Rittal 8617751 SZ adapter rail for VX compatibility, for H: 2000

Your rating:
Average rating
product review for Rittal 8617751 SZ adapter rail for VX compatibility, for H: 2000
( 4.5 / 5 ) 2 ratings

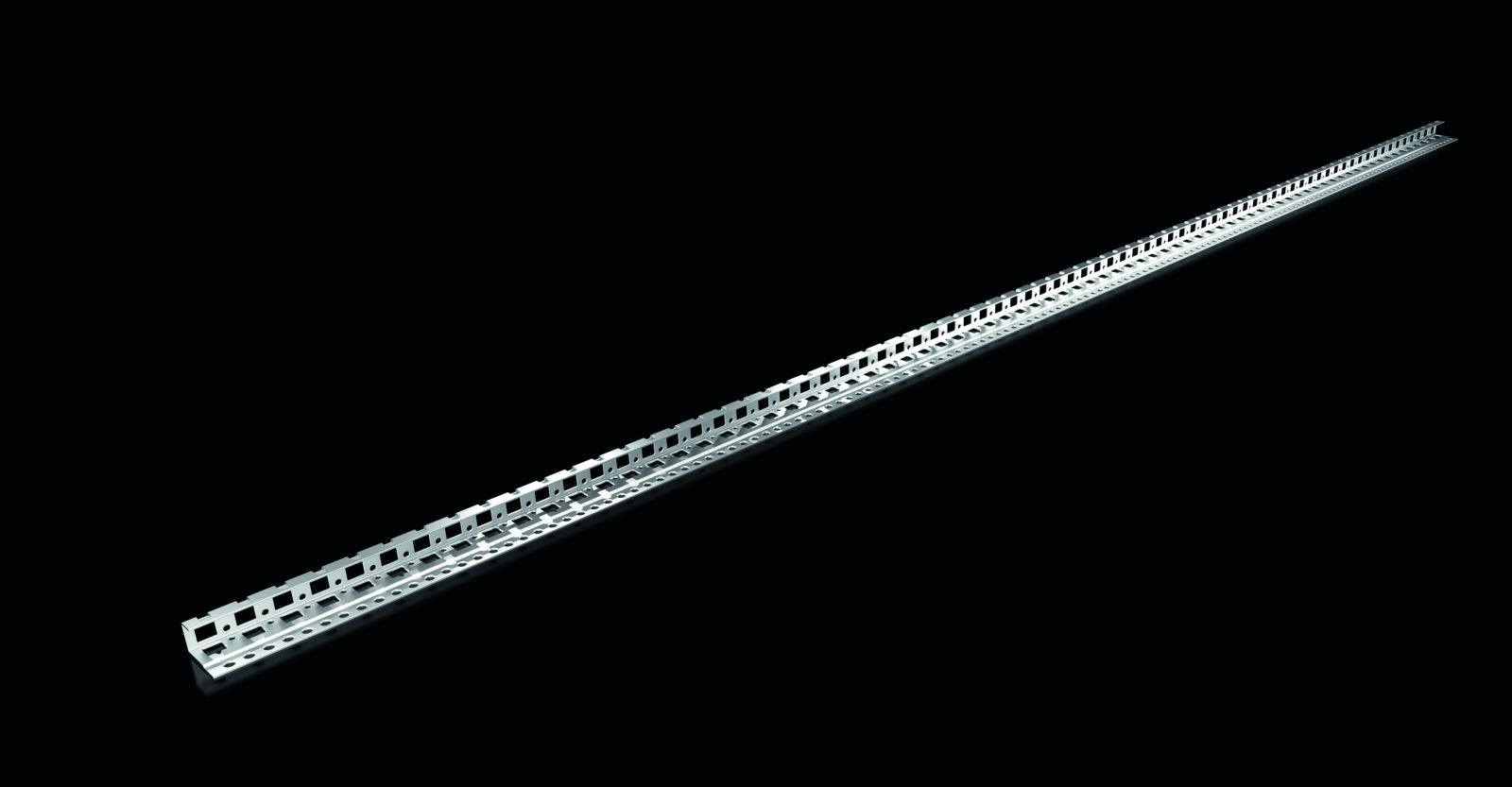

Rittal 8617751
This image may differ from the desired article.
Rittal 8617751Rittal 8617751
-10% 45,20 EUR 50,41 EUR
( 53,79 EUR incl. VAT )
≈ £37.83  |  ≈ $49.67
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8617751 SZ adapter rail for VX compatibility, for H: 2000
Datasheet:file_download Download
Lieske Part No.:1989427
Mfg Part No: 8617751
UPC/EAN: 4028177958654
Weight:5.1 kg
Type:SZ 8617751

Product information for Rittal 8617751:

The Rittal SZ 8617751 is an adapter rail for VX compatibility, specifically designed for enclosures of type VX SE with a height of 2,000 mm. It is used to adapt the internal configuration, enabling compatible mounting of components and devices from the VX25 system within the VX SE enclosure. The rail is supplied in a packaging unit of four pieces and is cut-to-length for individual requirements, allowing flexible use in various installation scenarios.

Applications
The adapter rail is primarily intended for use in industrial enclosure construction, particularly when existing VX SE enclosures are to be combined with components from the VX25 system. This enables economical use of existing enclosure structures without compromising on the mounting and fastening options of the VX25 system. The rail is especially suitable for installations requiring high mounting flexibility and modular expandability.

Functions and Equipment in Detail
The SZ 8617751 enables the mounting of components designed for the VX25 system within VX SE enclosures. The rail is mounted on the vertical enclosure profiles of the VX SE, and can be installed either over the full height or in partial sections. Additionally, mounting on the horizontal roof profile of the VX SE is possible in width. The delivery includes the adapter rail and the required mounting hardware. The rail can be cut to length as needed to support individual installation requirements.

Technology Explained Simply
The adapter rail serves as a transition element between two different enclosure series – the VX SE and the VX25. Since both systems use different mounting profiles, direct mounting of VX25 components in the VX SE without an adapter is not possible. The SZ 8617751 creates a mechanical connection by simulating the mounting profiles of the VX25 system within the VX SE enclosure. The rail is made of metal and provides a stable mounting for electrical components. The ability to cut the rail to length increases flexibility in planning the internal configuration, especially for non-standard or partially occupied enclosure heights.

Compatibility and Accessories
The adapter rail is exclusively intended for enclosures of type VX SE with a height of 2,000 mm. It is not designed for other enclosure types or heights. Compatibility with the VX25 system is ensured through the mechanical adaptation of the mounting profiles.

Mounting and Installation
Mounting is performed on the vertical or horizontal profiles of the VX SE enclosure. The rail can be adjusted in length according to requirements to reach the desired mounting position. Installation requires no special tools other than the screwdrivers needed for fastening.

Advantages in Operation
The use of the SZ 8617751 enables economical use of existing VX SE enclosures without sacrificing the benefits of the VX25 system. The flexibility provided by the cut-to-length rail supports individual planning and reduces the need to purchase new enclosures. The stable mounting ensures secure fastening of components, increasing the reliability of the enclosure installation. Compatibility between the systems reduces complexity in planning and maintaining installations.

General
Scope of deliveryAdapter rail, including mounting material
Mounting optionsOn vertical rack profile of VX SE (full height or partial sections); on horizontal roof profile of VX SE in width
Suitable forEnclosure type: VX SE, Height: = 2.000 mm
PCF/VE (Cradle-to-Gate)23,89


Product data sheet
Datasheet for Rittal 8617751, EAN: 4028177958654
