Rittal 1467000 AX plastic enclosure 600x600x200 mm with locking system

Your rating:
Average rating
product review for Rittal 1467000 AX plastic enclosure 600x600x200 mm with locking system
( 4.7 / 5 ) 3 ratings

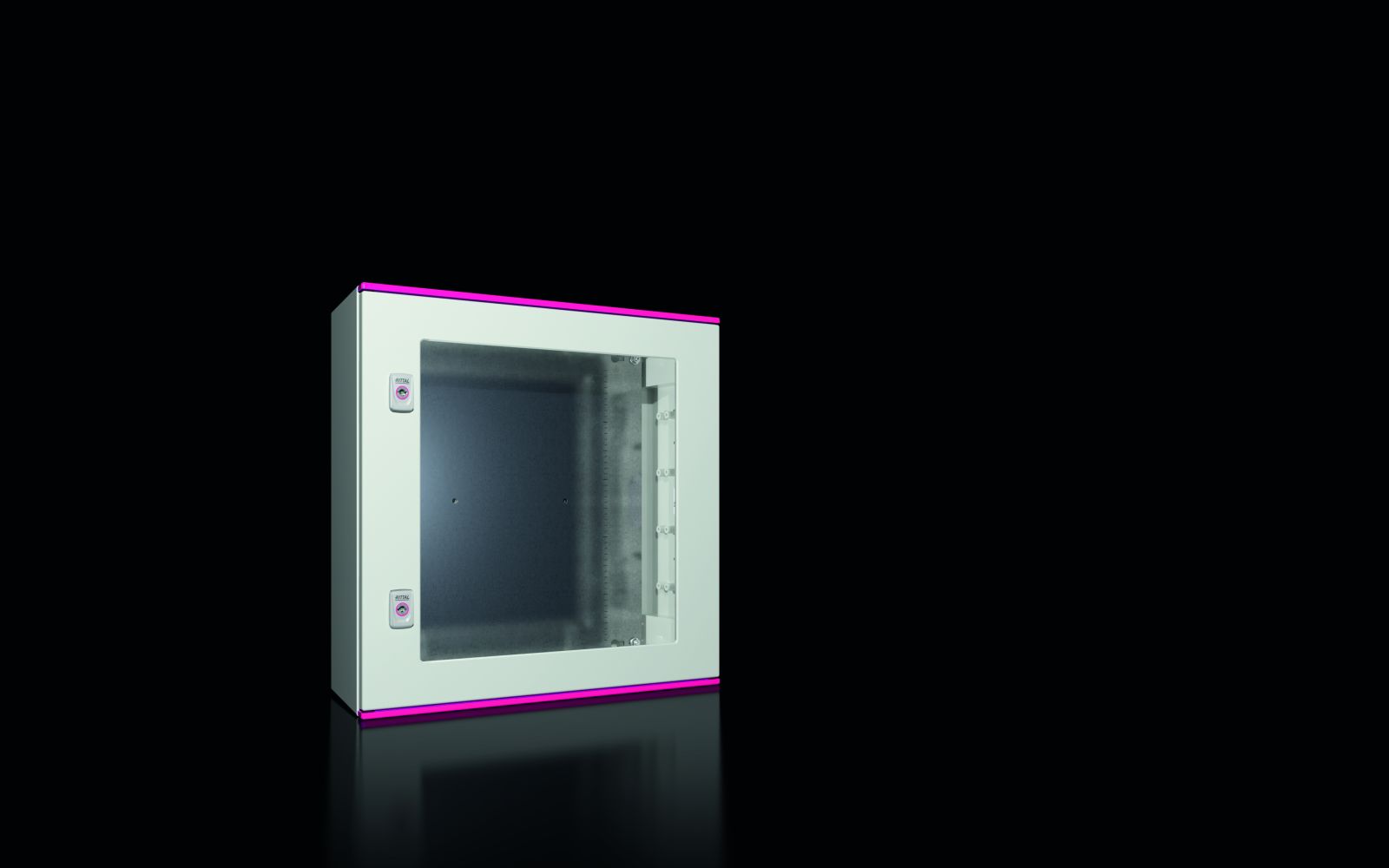

Rittal 1467000
This image may differ from the desired article.
Rittal 1467000Rittal 1467000Rittal 1467000Rittal 1467000Rittal 1467000Rittal 1467000Rittal 1467000
348,22 EUR
( 414,38 EUR incl. VAT )
≈ £291.46  |  ≈ $382.69
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 1467000 AX plastic enclosure 600x600x200 mm with locking system
Datasheet:file_download Download
Lieske Part No.:1101026
Mfg Part No: 1467000
UPC/EAN: 4028177006881
Weight:17.06 kg
Type:AX 1467000

Product information for Rittal 1467000:

The Rittal AX 1467000 is a plastic enclosure with a viewing window, designed for use in demanding environments. The enclosure is made of a single piece of impact-resistant, glass-fibre-reinforced, unsaturated polyester (GFK), which is self-extinguishing according to UL 94-V0 and manufactured halogen-free. The surface is not post-treated and is integrally coloured, matching RAL 7035. The door is fitted with a continuously foamed PU seal and features a 130° stainless steel hinge mechanism, which can be reversed to the left. The door opening provides good access to the interior, with an integrated drip rail at the bottom of the door serving as a rain protection strip. The mounting plate, made of galvanised steel sheet (3 mm thickness, dimensions 505 mm x 525 mm), offers a stable mounting surface for internal components.

Applications
This enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. The specified temperatures may be limited by installed devices. Due to its IP 56 protection rating according to EN 60 529, the enclosure is dust-tight and splash-proof, making it suitable for outdoor use or in damp indoor environments. The protection ratings NEMA 1, 3R, 3RX, 4, 4X and 12, as well as the Type rating according to UL 50E (Type 1, 3R, 3RX, 4, 4X, 12), confirm suitability for various environmental conditions, including damp, dusty or slightly corrosive areas. The F1 Outdoor Rating according to UL 746C further confirms suitability for outdoor applications.

Functions and Equipment in Detail
The enclosure is fully enclosed and features a 3 mm double-lip lock with two locks. The double sealing at the top and bottom edges of the door functions as an integrated rain protection strip. The door is equipped with a polycarbonate viewing window, enabling visual inspection of the interior. Numerous mounting domes within the enclosure allow for individual interior configuration on a 25 mm grid, for example with system chassis or mounting brackets. The mounting plate is equipped with keyhole slots for earthing and dimension markings and is fastened with Limbach nuts.

Technical Explanation
The use of glass-fibre-reinforced polyester (GFK) ensures high mechanical stability and weather resistance. The self-extinguishing property according to UL 94-V0 reduces fire risk. The IP 56 protection rating means the enclosure is protected against dust and splashing water, making it suitable for industrial or outdoor installations. The IK09 rating indicates high mechanical impact resistance. Protection Class II (at 1000 V AC) means the enclosure is double-insulated and does not require earthing.

Compatibility and Accessories
Various accessories are available for extending and adapting the enclosure, including zinc die-cast lock inserts, mounting brackets, mounting plates, system lights, circuit diagram pockets, VX system chassis, and the AX Mini comfort handle. These components enable flexible and modular configuration of the enclosure to meet specific requirements.

Mounting and Installation
Mounting is done via the integrated mounting plate, which features keyhole slots for earthing and dimension markings. Internal components are secured on a 25 mm grid using universal brackets or directly to the mounting domes. The door hinge direction is standard right-hand, but can be changed to left-hand. The door opening angle is 130°, providing good access to the interior. A QR code is printed on the enclosure body, mounting plate, door, and type plate to enable unique identification and traceability of parts.

Operational Advantages
The enclosure offers high mechanical and chemical resistance, is easy to install, and provides flexible interior configuration options. The integrated rain protection strip and IP 56 protection rating ensure reliable protection against environmental influences. The viewing window allows visual inspection without opening the door. The use of GFK and the halogen-free construction contribute to safety and environmental compatibility. For long-term exposure to UV radiation and rain, it is recommended to coat the surface with a PUR lacquer to avoid visual impairments.

General
Modelwith viewing window
MaterialCabinet and door: glass-fibre reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, viewing window: polycarbonate, flammability according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryEnclosure with hinged door with viewing window, fully enclosed, 3 mm double-barrel lock, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom of door as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 56
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width600 mm
Height600 mm
Depth200 mm
Mounting plate material thickness3 mm
Mounting plate dimensions (W x H)505 mm x 525 mm
Door opening angle130°
Number of locks2
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.
With viewing windowJa


Product data sheet
Datasheet for Rittal 1467000, EAN: 4028177006881
