Rittal 1453000 Plastic enclosure 500x500x300 mm

Your rating:
Average rating
product review for Rittal 1453000 Plastic enclosure 500x500x300 mm
( 4.5 / 5 ) 2 ratings

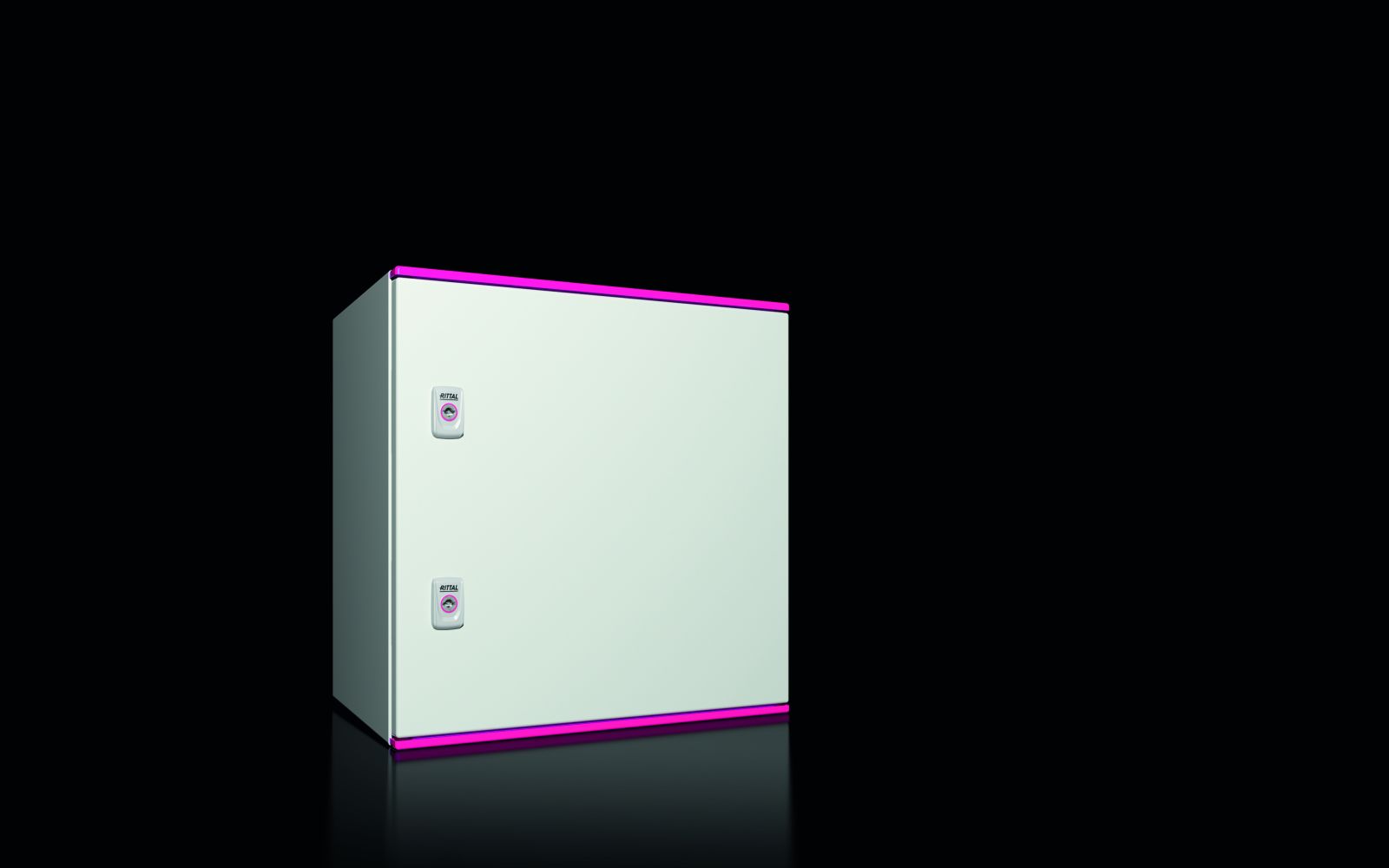

Rittal 1453000
This image may differ from the desired article.
Rittal 1453000Rittal 1453000Rittal 1453000Rittal 1453000Rittal 1453000Rittal 1453000Rittal 1453000
336,89 EUR 336,95 EUR
( 400,90 EUR incl. VAT )
≈ £281.98  |  ≈ $370.24
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1453000 Plastic enclosure 500x500x300 mm
Datasheet:file_download Download
Lieske Part No.:1055409
Mfg Part No: 1453000
UPC/EAN: 4028177006706
Weight:14.48 kg
Type:AX 1453000

Product information for Rittal 1453000:

The Rittal AX 1453000 is a plastic enclosure with dimensions W x H x D 500x500x300 mm, designed without a viewing window. It is designed for use in demanding environments, particularly where high mechanical loads, humidity or weather influences occur. The enclosure is made of a single piece of glass-fibre-reinforced, unsaturated polyester (GFK), which is self-extinguishing according to UL 94-V0 and halogen-free. The surface is not post-treated and is pigmented, giving it a colour similar to RAL 7035. The door is fitted with a continuously foamed PU seal, ensuring a tight seal. Double sealing is integrated at the top and bottom edges of the door, which also functions as a rain shield.

Applications
The enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. The actual operating temperature may be limited by the devices installed inside. It is particularly suitable for outdoor applications, as it meets protection class IP 66 according to EN 60 529, meaning it is dust-tight and watertight. Additionally, it complies with NEMA protection classes 1, 3R, 3RX, 4, 4X and 12, as well as Type Ratings according to UL 50E. The IK classification IK09 indicates high mechanical resistance to impact. Compliance with the F1 Outdoor Rating according to UL 746C confirms suitability for outdoor use.

Functions and Equipment in Detail
The enclosure is fully enclosed and features a hinged door with a 3 mm double bar lock. The door is standard right-hinged, but can be converted to left-hinged. The door opening angle is 130°, providing good access to the interior. The steel sheet mounting plate, with a material thickness of 3 mm, is galvanised and has dimensions 405 mm x 425 mm. It is equipped with grounding hole marking and dimension marking, and is fastened with Limbach nuts. Numerous mounting domes in the enclosure allow for individual interior fitting on a 25 mm grid, for example with system chassis or rails.

Technology Explained Simply
The use of GFK as the base material ensures high mechanical stability and corrosion resistance. The integrated rain shield at the door edges prevents rainwater ingress, especially when mounted at an angle. The PU foam seal ensures a tight seal that remains stable even with temperature fluctuations. Protection class II (at 1000 V AC) means the enclosure is double insulated and does not require earthing. The surface is not post-treated, which may lead to visual degradation over time due to prolonged UV and rain exposure; in such cases, painting with PUR paint is recommended, with price and delivery time available on request.

Compatibility and Accessories
Various accessories are available for extending and adapting the enclosure. These include lock inserts made of zinc die-cast, mounting brackets for interior fitting, mounting plates in various sizes, AX Mini comfort handles, AS Multitool AX/VX 4052000, system lights LED 400, VX system chassis in various sizes, AX mast mounting brackets, and AX door latches. These components allow flexible adaptation to specific requirements, such as mounting control devices, lights or additional mounting elements.

Mounting and Installation
Internal component mounting requires interior mounting screws. Mounting is done on a 25 mm grid, for which universal brackets can be used. The mounting plate is included in the delivery scope and allows secure fastening of devices. The door can be converted to left or right hinge as required, enabling flexible installation at different locations. The integrated door bottom rail supports mounting and prevents damage when closing.

Operational Advantages
The enclosure offers high resistance to mechanical loads, humidity and weather influences. The integrated rain shield and double sealing ensure reliable protection in outdoor environments. The mounting domes in the enclosure allow flexible and individual interior fitting. Protection class II reduces the need for additional earthing. The use of GFK ensures long service life and corrosion resistance, even in harsh environments. QR codes on the enclosure, door and mounting plate enable unique identification and easy access to relevant product information and documentation.

General
Modelwithout viewing window
MaterialHousing and door: glass-fibre-reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, flammability behaviour according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryHousing with hinged door, fully enclosed, 3 mm double latch, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom door edges as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width500 mm
Height500 mm
Depth300 mm
Mounting plate material thickness3 mm
Mounting plate dimensions (W x H)405 mm x 425 mm
Door opening angle130°
Number of locks2
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.


Product data sheet
Datasheet for Rittal 1453000, EAN: 4028177006706
