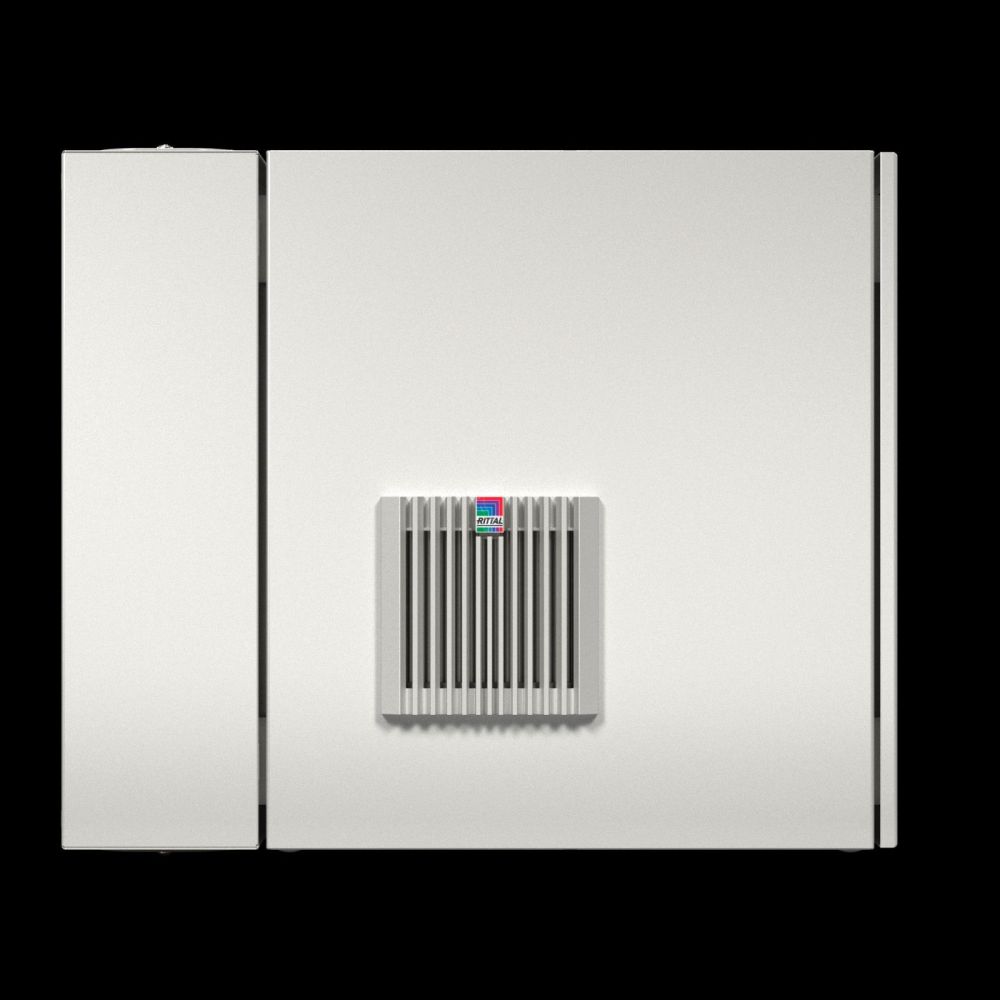

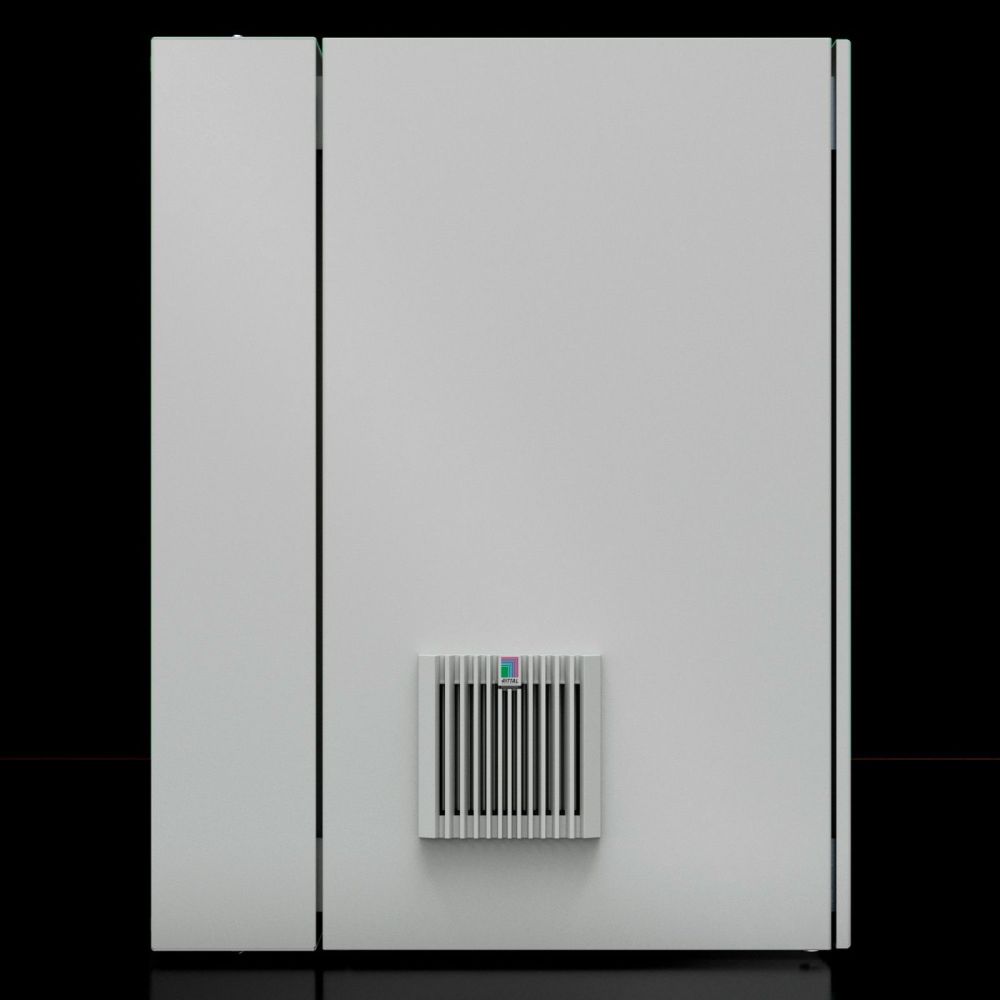

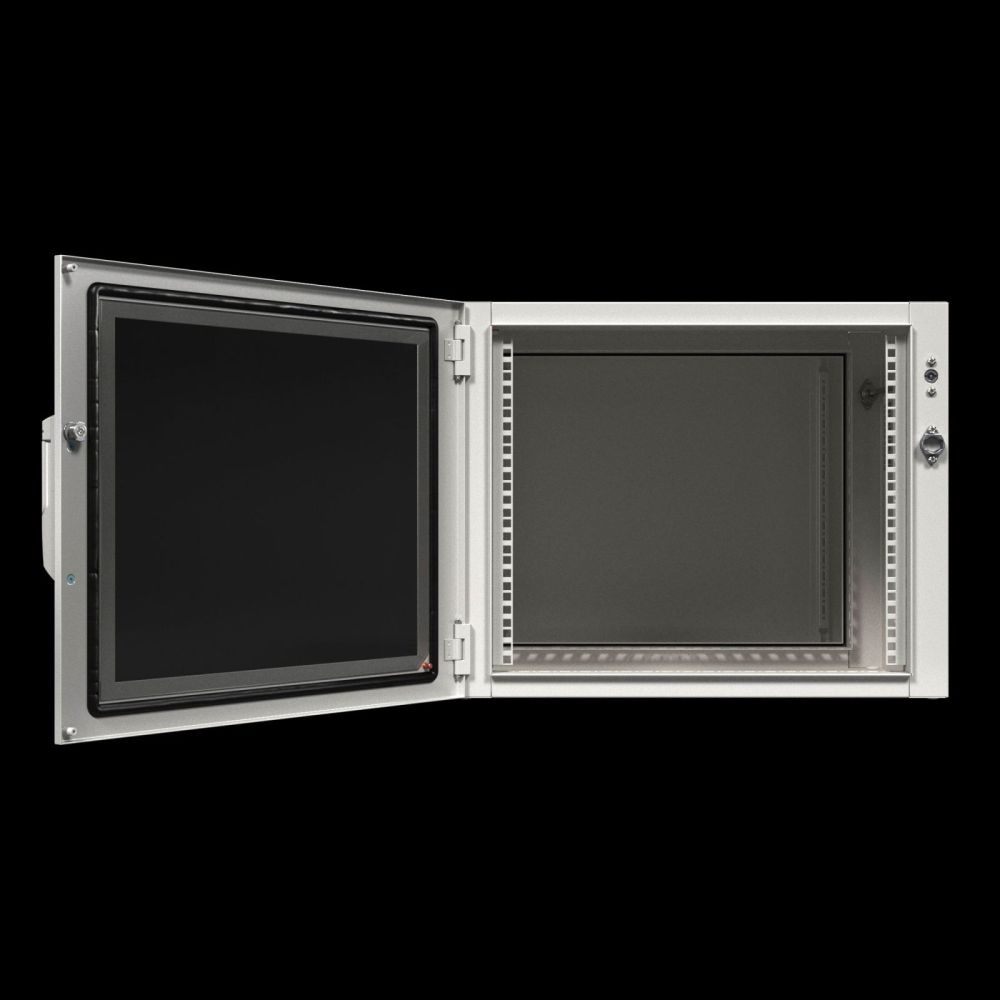

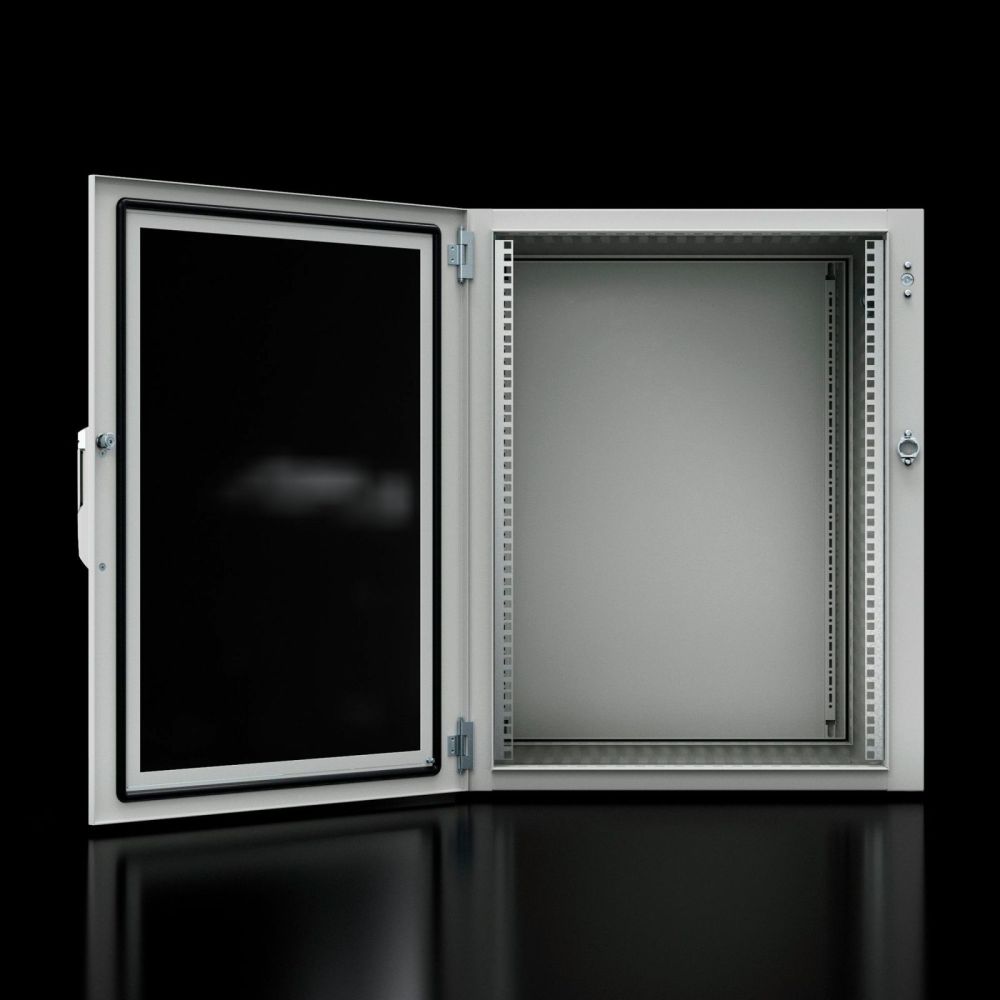

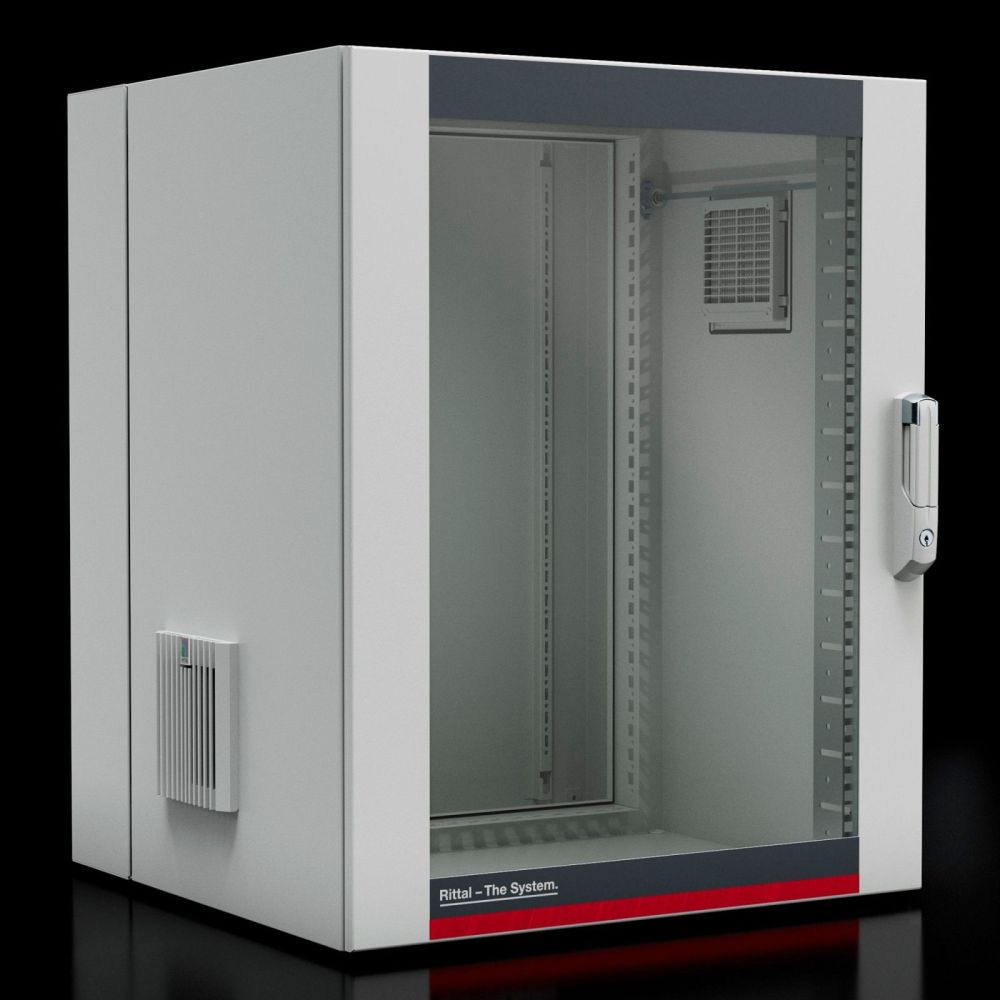

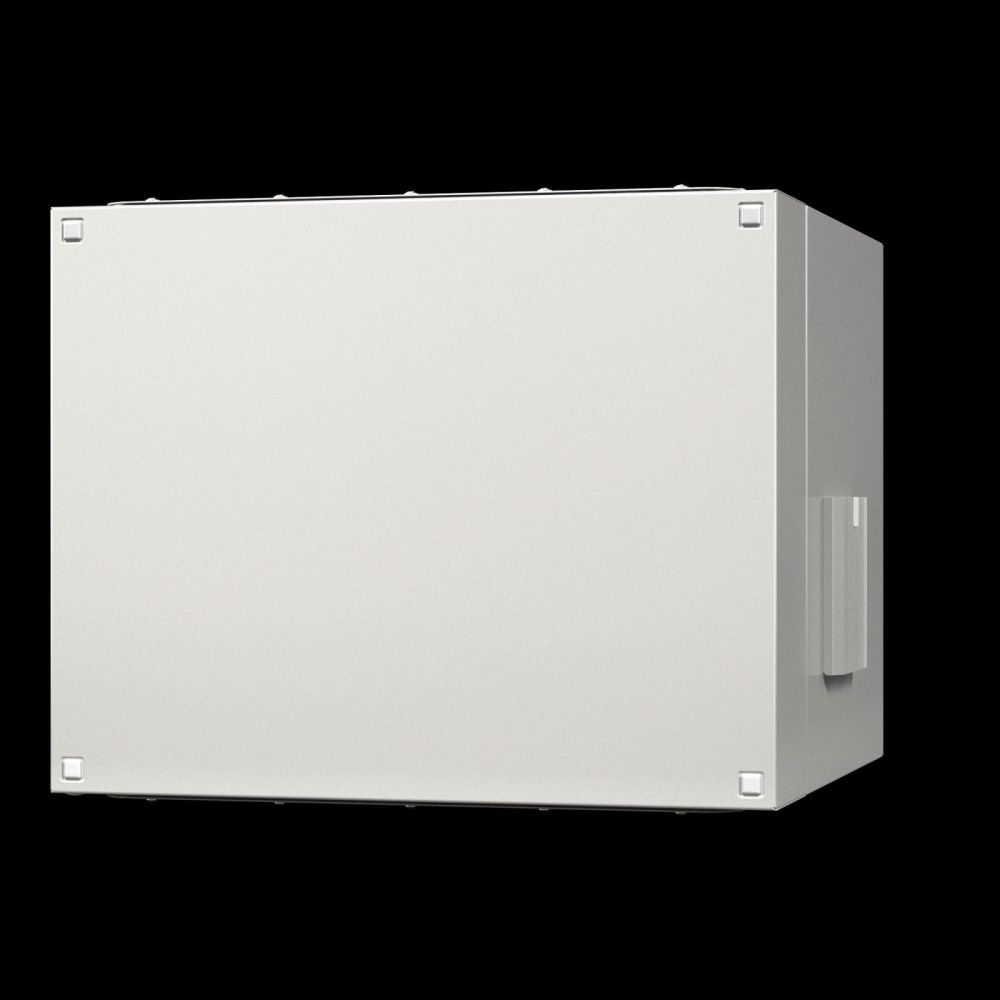

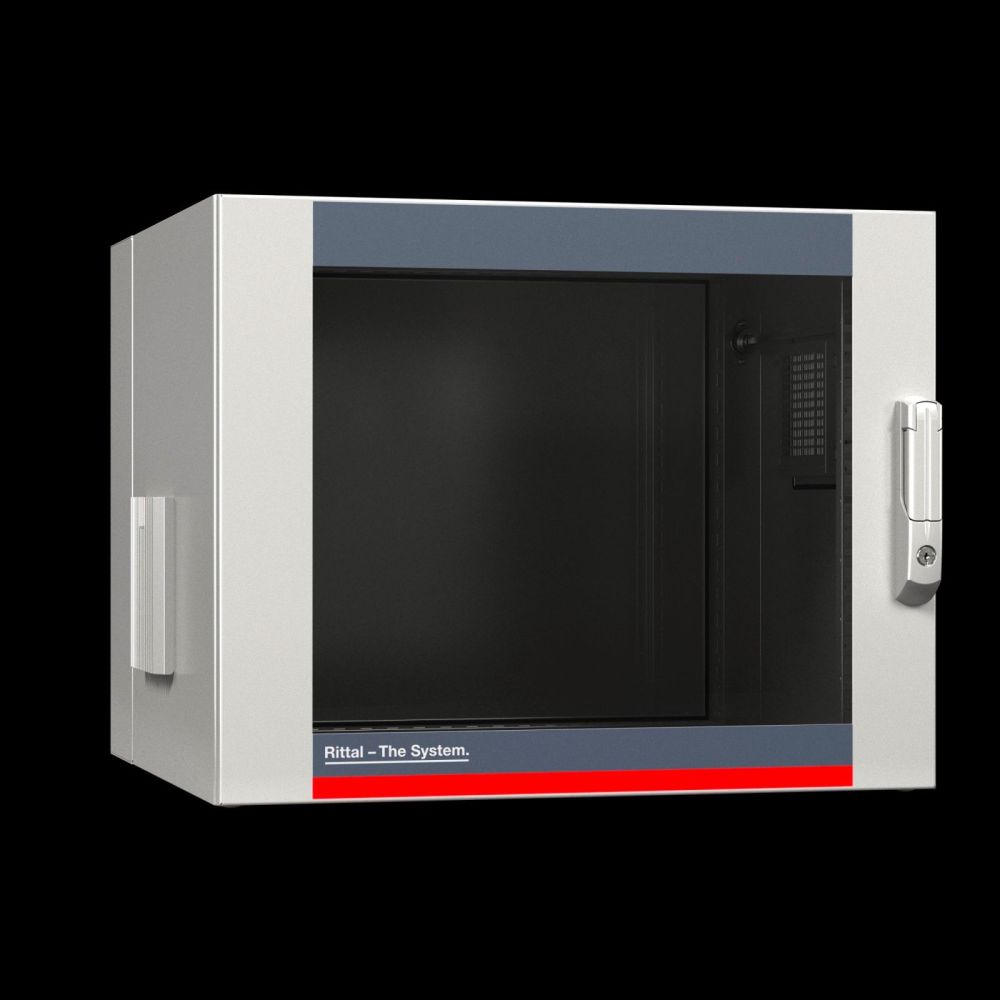

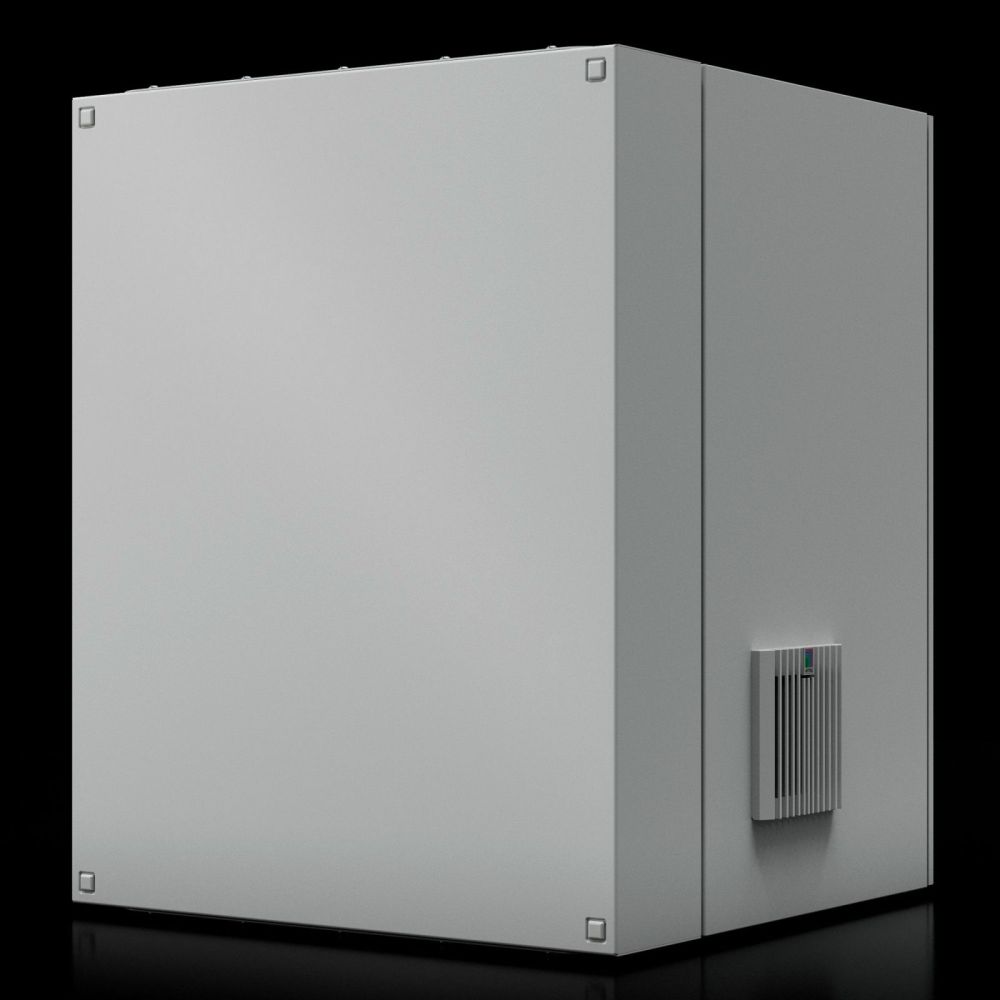

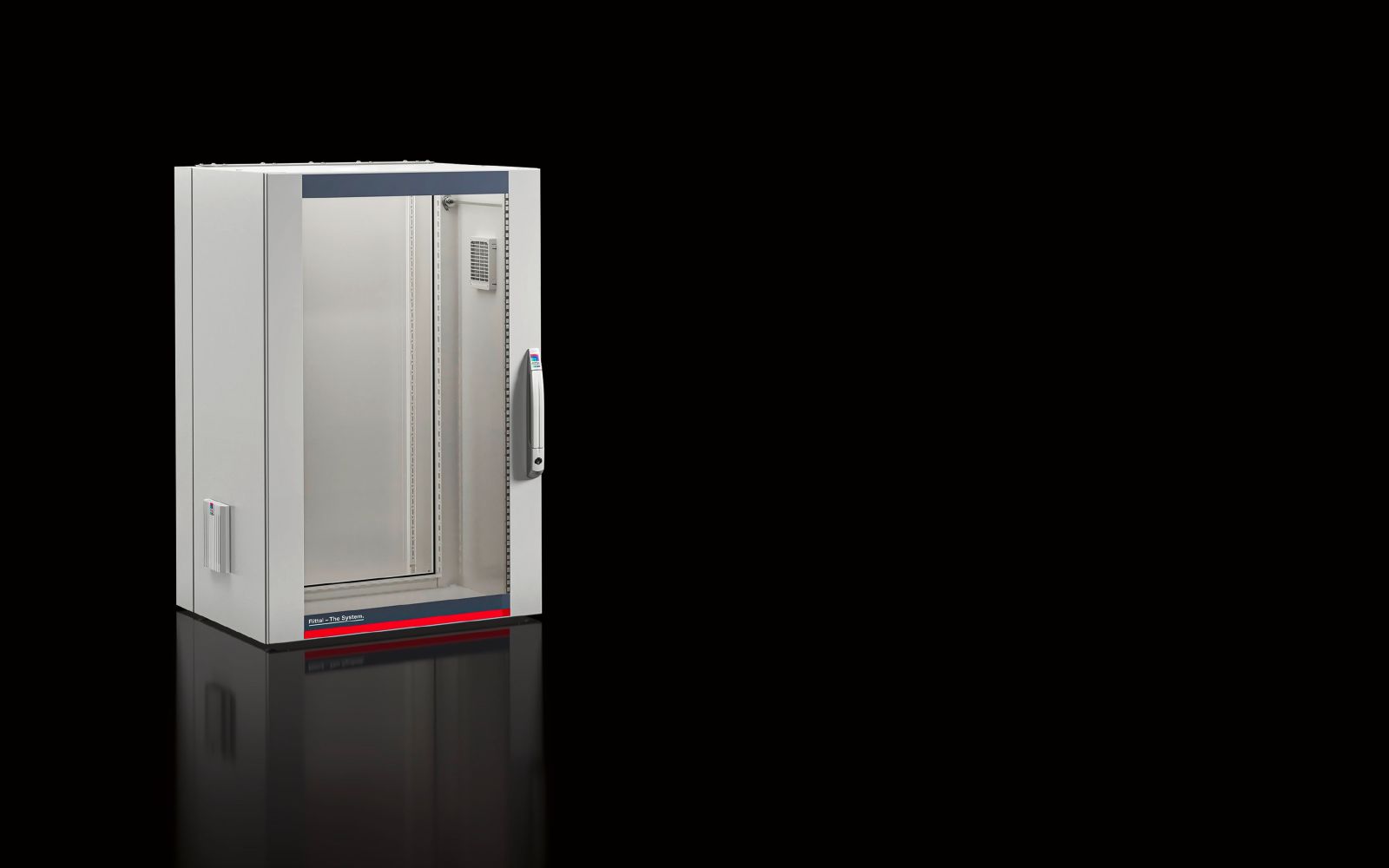

Rittal 2261555 AX AX wall-mounted enclosure 3-piece 15 U cutout

Your rating:
Average rating
product review for Rittal 2261555 AX AX wall-mounted enclosure 3-piece 15 U cutout
( 4.4 / 5 ) 5 ratings
Rittal 2261555
This image may differ from the desired article.
Rittal 2261555Rittal 2261555Rittal 2261555Rittal 2261555Rittal 2261555Rittal 2261555Rittal 2261555Rittal 2261555Rittal 2261555
-6% 770,50 EUR 816,73 EUR
( 916,90 EUR incl. VAT )
≈ £644.91  |  ≈ $846.78
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2261555 AX AX wall-mounted enclosure 3-piece 15 U cutout
Datasheet:file_download Download
Lieske Part No.:1572034
Mfg Part No: 2261555
UPC/EAN: 4028177994072
Weight:42.5 kg
Type:AX2261555

Product information for Rittal 2261555:

The Rittal AX2261555 is a 3-piece wall-mounted enclosure from the AX series, designed for use in IT and industrial applications. It features a total height of 745 mm, a width of 600 mm, and a depth of 573 mm, with an installation depth of 520 mm. The enclosure comprises 15 height units (HE) and is therefore suitable for mounting standard 48,3 cm ( 19 inch ) devices. The 3-piece construction consists of a wall section, a swing section, and a design viewing door, ensuring easy and secure access to installed components. The front view is enabled by a single-pane safety glass viewing window with a thickness of 3 mm, finished in RAL 7035/7015 (slate grey). The wall and swing sections are made of steel sheet with a thickness of 1.5 mm and are powder-coated in RAL 7035. The surface is thus corrosion-resistant and suitable for use in industrial environments.

Applications

The enclosure is designed for use in IT infrastructures and industrial plants where secure and accessible mounting of network and control technology is required. The 3-piece design enables flexible installation on walls while providing a high degree of protection. The protection class IP 54, combined with closed gland plates at the top and bottom, protects against dust and splashing water, making it suitable for use in indoor environments with increased contamination risk. The IK code IK08 ensures mechanical strength, protecting against mechanical impacts such as shocks or vibrations.

Functions and Equipment in Detail

The swing section is equipped with a 25 mm hole grid in the front and rear frame, enabling flexible device mounting. Two 48,3 cm ( 19 inch ) profile rails are pre-mounted in the front area to facilitate the installation of standard IT and electronics equipment. The design viewing door is fitted with a safety locking mechanism 3524 E, ensuring secure closure. The middle section is secured via a 3 mm double bar. A mini comfort handle ensures convenient operation. Two Blue e+ outlet filters (type 3238.300) are supplied loose and serve to purify the air inside the enclosure, extending the service life of installed components.

Technology Explained Simply

The static load capacity of the swing section is 750 N, while the wall section has a load capacity of 250 N. These values ensure the enclosure remains stable even under load. The clear dimensions are 502 mm (width) and 684 mm (height), defining the available mounting space for devices. The depth of the swing section is 416 mm, while the wall section has a depth of 135 mm. The use of steel sheet and single-pane safety glass ensures high mechanical stability and transparency. The powder coating in RAL 7035 provides a uniform surface with high resistance to corrosion and mechanical stress.

Compatibility and Accessories

The enclosure is part of the AX/VX system kit and can be expanded with various accessories. These include, for example, 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, mounting brackets, component shelves in various depths and colours (RAL 7035, RAL 9005), C-profile rails, fan extension kits, IT system lights, VX system chassis, and wall mounting brackets. These components allow individual adaptation to specific requirements, such as additional cooling, earthing, or optical identification.

Mounting and Installation

Mounting is done on a wall, with the wall section equipped with closed gland plates at the top and bottom. The installation depth of 520 mm must be considered during wall mounting planning. The 3-piece structure enables easy installation and maintenance, as the swing section can be opened without having to dismantle the entire enclosure. The pre-mounted profile rails and hole grid simplify device mounting. The safety locking mechanism 3524 E ensures secure closure, protecting against unauthorized access.

Advantages in Operation

The enclosure offers high mechanical stability, a high protection level against dust and splashing water, and flexible mounting options. The integrated Blue e+ outlet filters improve air quality inside and protect sensitive electronics. The 3-piece design and pre-mounted profile rails reduce installation time and increase flexibility during installation. The powder coating in RAL 7035 ensures an attractive appearance and high durability. The combination of safety, functionality, and design makes the Rittal AX2261555 a reliable solution for IT and industrial applications.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, design vision door lock: safety lock 3524 E, middle section lock: 3 mm double latch, 2 Blue e+ exit filters 3238.300 (loose), mini comfort handle
Height units15 HE
Width600 mm
Height745 mm
Depth573 mm
Built-in depth520 mm
Light dimensionsClear width: 502 mm, Clear height: 684 mm
Depth of swivel part416 mm
Depth of wall part135 mm
Number of locks1
IK codeIK08
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking system: Mini comfort handle, lock insert: Security lock insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2261555, EAN: 4028177994072
