Rittal 2261560 AX wall-mounted enclosure 3-piece W x H x D: 600x746x673 mm 15 U

Your rating:
Average rating
product review for Rittal 2261560 AX wall-mounted enclosure 3-piece W x H x D: 600x746x673 mm 15 U
( 4.7 / 5 ) 3 ratings

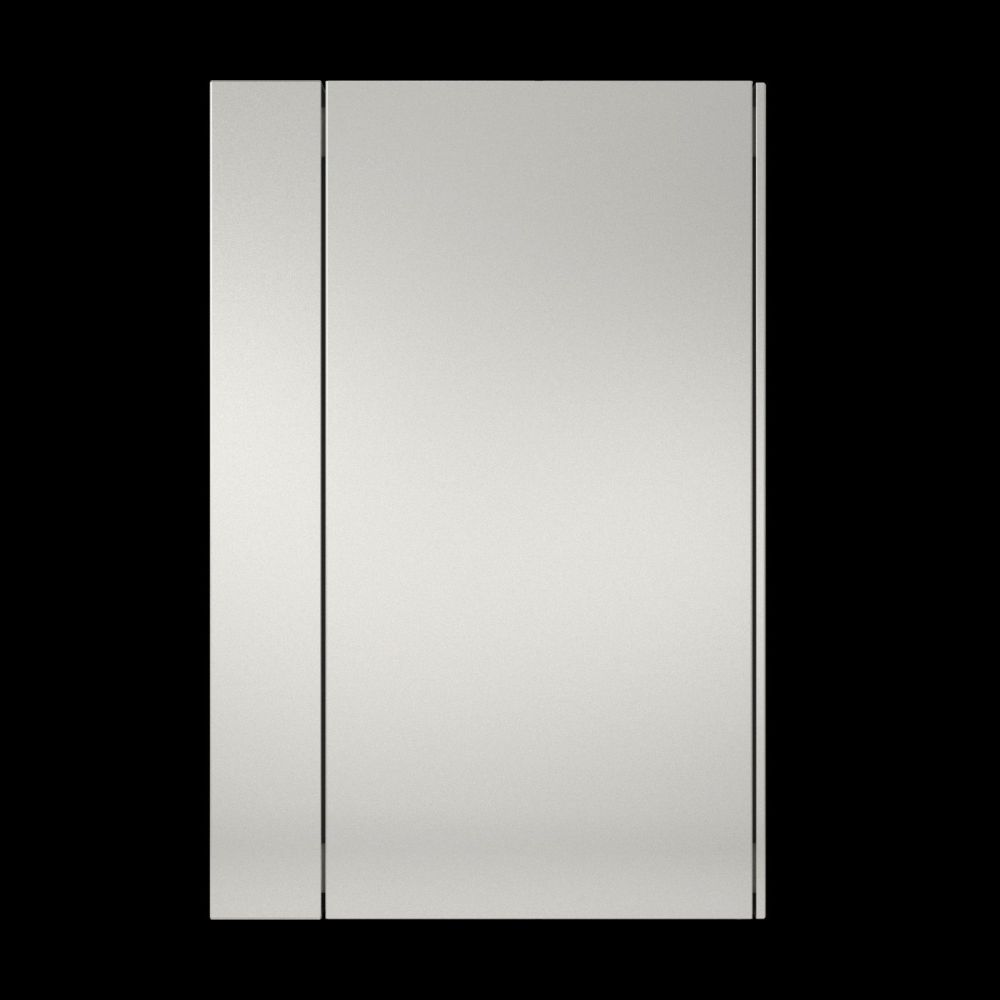

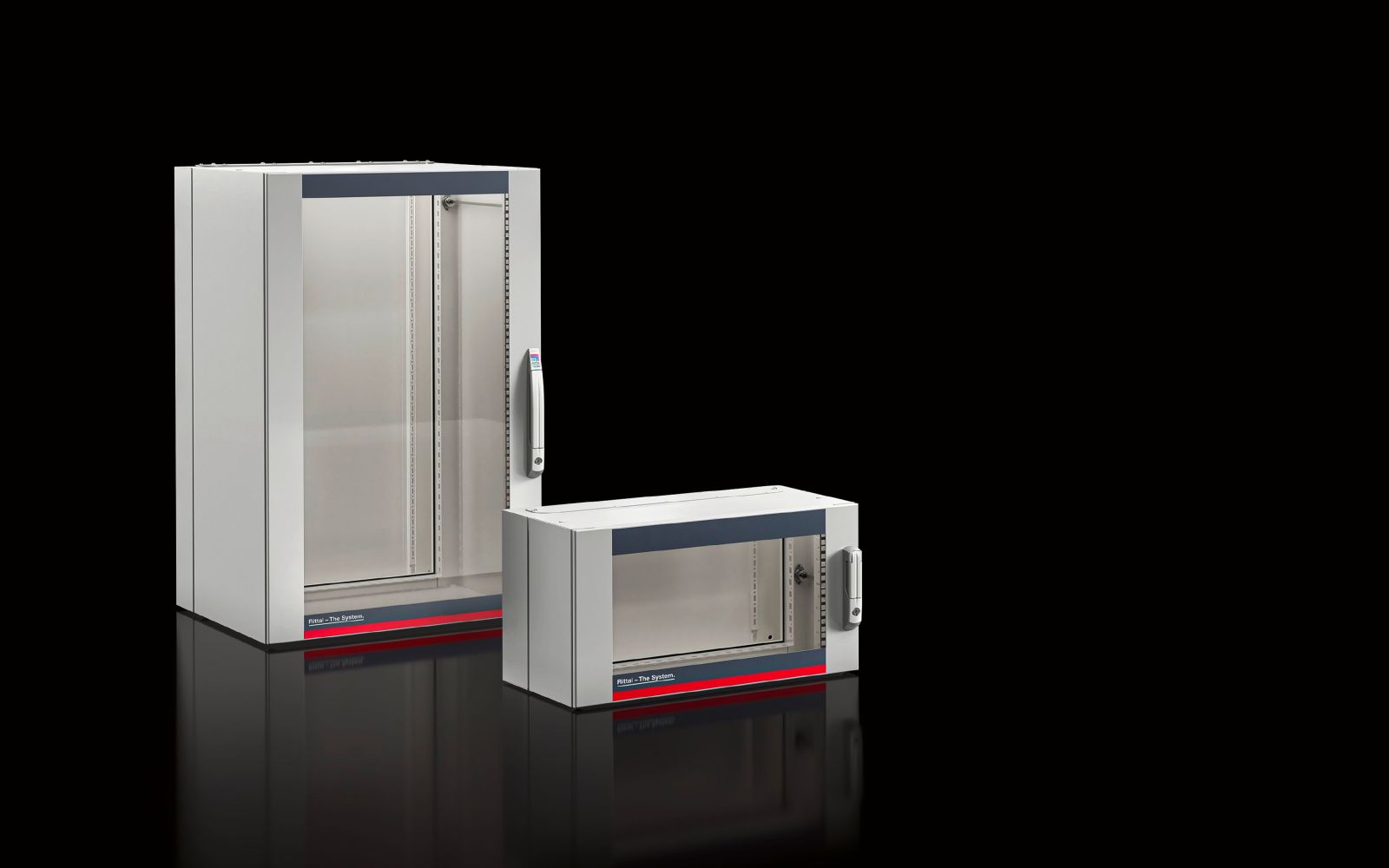

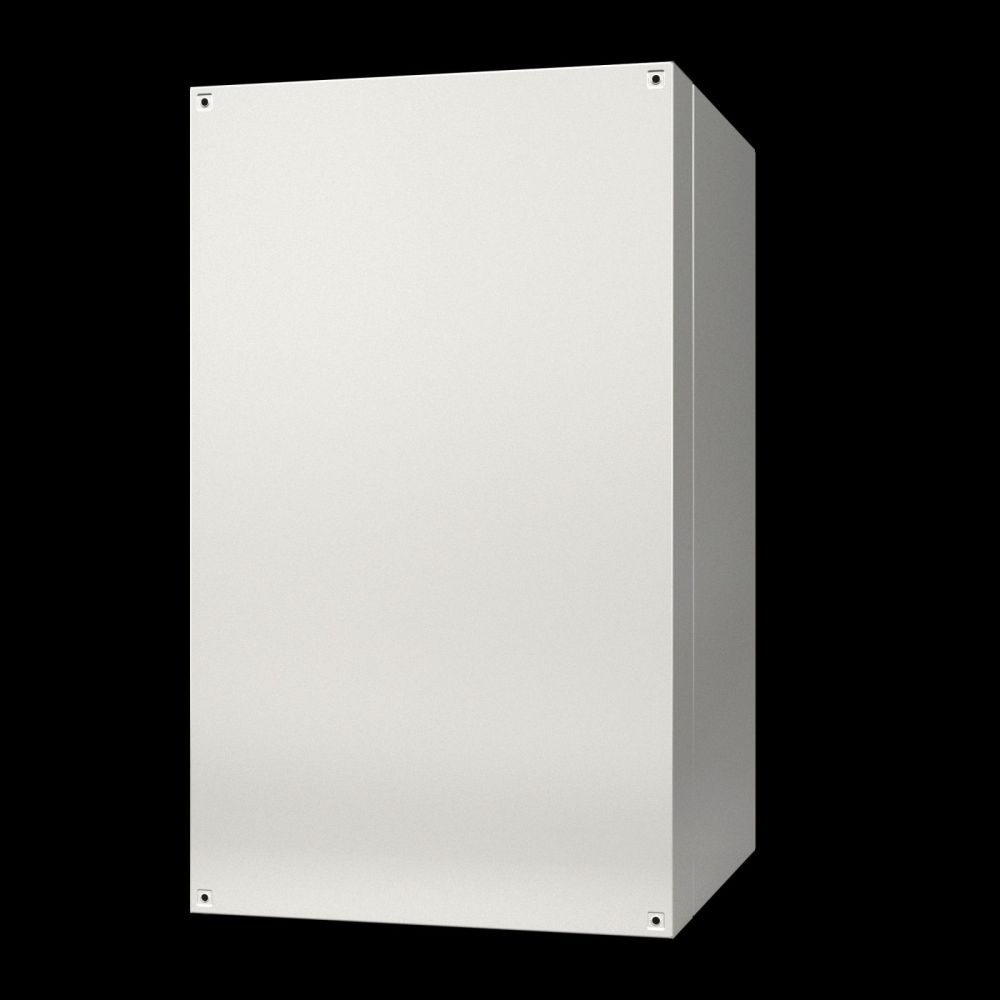

Rittal 2261560
This image may differ from the desired article.
Rittal 2261560Rittal 2261560Rittal 2261560Rittal 2261560
-6% 794,65 EUR 842,33 EUR
( 945,63 EUR incl. VAT )
≈ £665.12  |  ≈ $873.32
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2261560 AX wall-mounted enclosure 3-piece W x H x D: 600x746x673 mm 15 U
Datasheet:file_download Download
Lieske Part No.:1567525
Mfg Part No: 2261560
UPC/EAN: 4028177983335
Weight:45.5 kg
Type:AX 2261560

Product information for Rittal 2261560:

The Rittal AX 2261560 is a 3-piece wall-mounted enclosure for IT applications, designed for use in technical rooms, server rooms, or for the installation of network and control technology on walls. The enclosure offers 15 height units (HE) and has overall dimensions of 600 mm width, 745 mm height, and 673 mm depth. The three-part construction consists of a wall section, a swing section, and a design viewing door, ensuring easy access to installed devices. The wall and swing sections are made of steel sheet with a thickness of 1.5 mm and are powder-coated in RAL 7035 (slate grey). The viewing panel is made of 3 mm thick single-pane safety glass, also in RAL 7035/7015 (slate grey), enabling clear visibility of the devices without compromising safety.

Applications
This wall-mounted enclosure is designed for indoor use, particularly in IT infrastructures where compact and flexible wall mounting is required. It is suitable for installing network devices, switches, routers, control units, or other 48,3 cm ( 19 inch ) devices. The IP 54 protection rating, achieved in combination with closed gland plates at the top and bottom, protects against dust and splashing water, making it suitable for slightly damp environments. The installation depth is 620 mm, providing sufficient space for deeper devices.

Functions and Equipment in Detail
The swing section features a 25 mm hole grid in the front and rear frame, enabling flexible device mounting. Two 48,3 cm ( 19 inch ) profile rails are mounted at the front, allowing for fixed installation of devices. The design viewing door is equipped with a mini comfort handle, intended for use with the safety lock 3524 E. The locking mechanism in the middle section is a 3 mm double bar, ensuring secure latching. The wall section gland plate is closed at the top and bottom, supporting the IP protection rating and enhancing mechanical stability.

Technology Explained Simply
The construction from steel sheet with a thickness of 1.5 mm provides high mechanical strength. The powder-coated surface ensures corrosion protection and a uniform, robust finish. The viewing panel made of single-pane safety glass is shatter-resistant and meets requirements for safety and transparency. The IP 54 protection rating means the enclosure is dust-tight and protected against splashing water, making it suitable for indoor use in environments with increased humidity. The static load capacity of the swing section is 750 N, while the wall section has a load capacity of 250 N, sufficient for mounting heavier devices.

Compatibility and Accessories
The enclosure is part of the AX/VX system kit and can be expanded with various accessories. These include, for example, 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, component shelves, C-profile rails, IT system lights, mounting plates for terminal boxes, and wall mounting brackets. These components allow individual adaptation to specific requirements, such as additional earthing, cable management, or integration of lighting.

Mounting and Installation

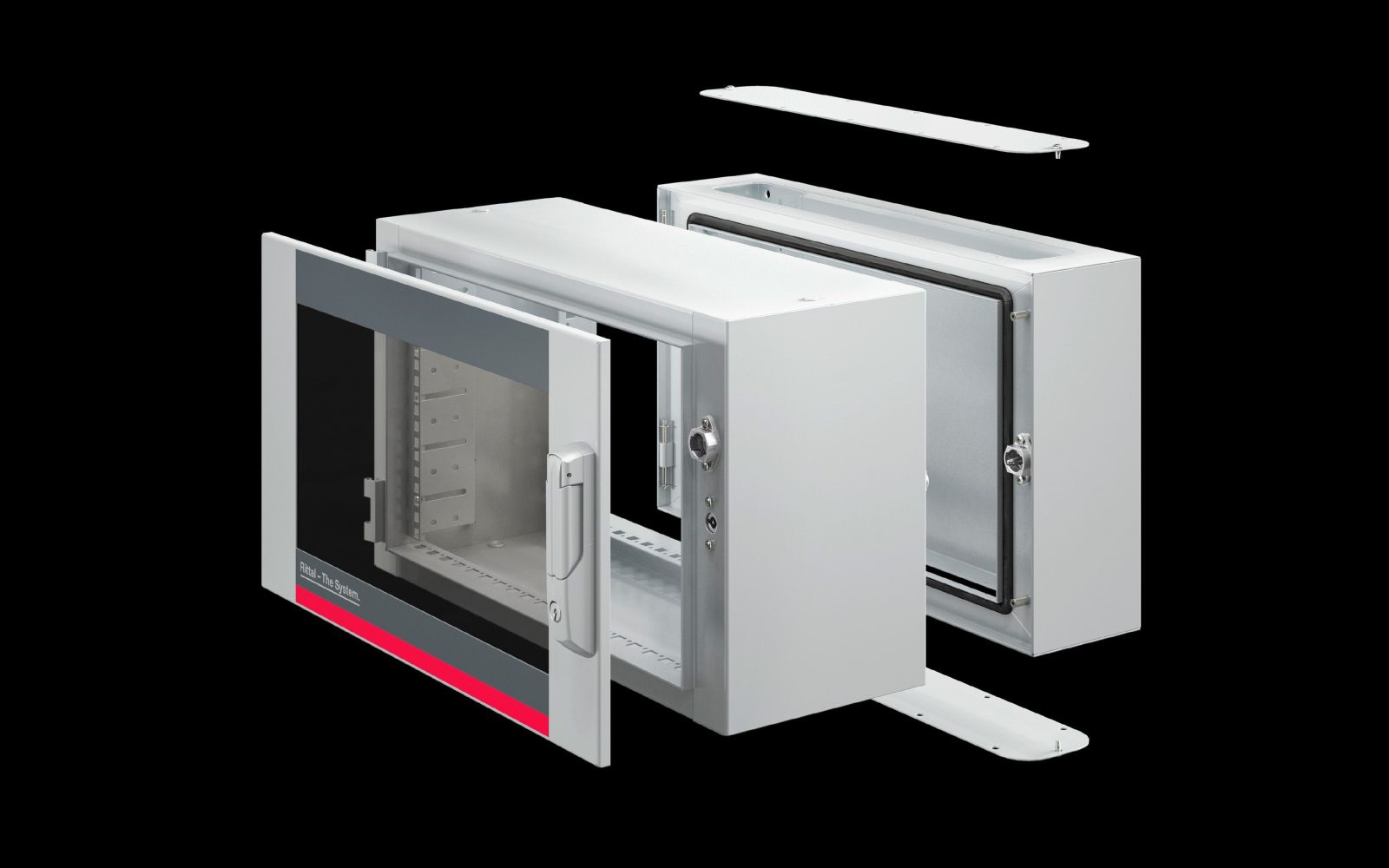

Mounting is done on the wall using the pre-drilled holes in the wall section. The three-part structure simplifies installation, as the swing section is attached and secured after mounting the wall section. The installation depth of 620 mm and the clear height of 684 mm provide sufficient space for device installation. The depth of the swing section is 516 mm, while the wall section has a depth of 135 mm. Mounting can be done without additional tools, provided the designated mounting elements are used.

Operational Advantages
The enclosure offers high flexibility due to its modular 3-piece design. The design viewing door allows visual inspection of devices without opening them. The safety lock 3524 E ensures secure access, while the mini comfort handle provides convenient operation. The IP 54 protection rating protects installed devices from environmental influences, and the robust steel sheet construction ensures a long service life. Compatibility with the AX/VX system kit enables expansion and adaptation to future requirements.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, locking middle section: 3 mm double bar, locking design vision door: safety lock 3524 E, mini comfort handle
Height units15 HE
Width600 mm
Height745 mm
Depth673 mm
Built-in depth620 mm
Light dimensionsClear width: 502 mm, Clear height: 684 mm
Depth of swivel part516 mm
Depth of wall part135 mm
Number of locks1
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking system: Mini comfort handle, lock insert: Security lock insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2261560, EAN: 4028177983335

Questions & answers

What is the delivery time of Rittal 2261560 AX wall-mounted enclosure 3-piece W x H x D: 600x746x673 mm 15 U?

The article Rittal 2261560 AX wall-mounted enclosure 3-piece W x H x D: 600x746x673 mm 15 U is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2261560 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2261560 AX wall-mounted enclosure 3-piece W x H x D: 600x746x673 mm 15 U always at the best possible price. We can give you a discount of 2% on Rittal 2261560 AX wall-mounted enclosure 3-piece W x H x D: 600x746x673 mm 15 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
