Rittal 7200810 DK safety Ergoform lock with 3-digit code

Your rating:
Average rating
product review for Rittal 7200810 DK safety Ergoform lock with 3-digit code
( 4.3 / 5 ) 12 ratings
Rittal 7200810
This image may differ from the desired article.
Rittal 7200810Rittal 7200810Rittal 7200810Rittal 7200810Rittal 7200810Rittal 7200810
-18% 97,75 EUR 119,15 EUR
( 116,32 EUR incl. VAT )
≈ £81.82  |  ≈ $107.43
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7200810 DK safety Ergoform lock with 3-digit code
Datasheet:file_download Download
Lieske Part No.:949117
Mfg Part No: 7200810
UPC/EAN: 4028177260016
Weight:0.671 kg
Type:DK 7200810

Product information for Rittal 7200810:

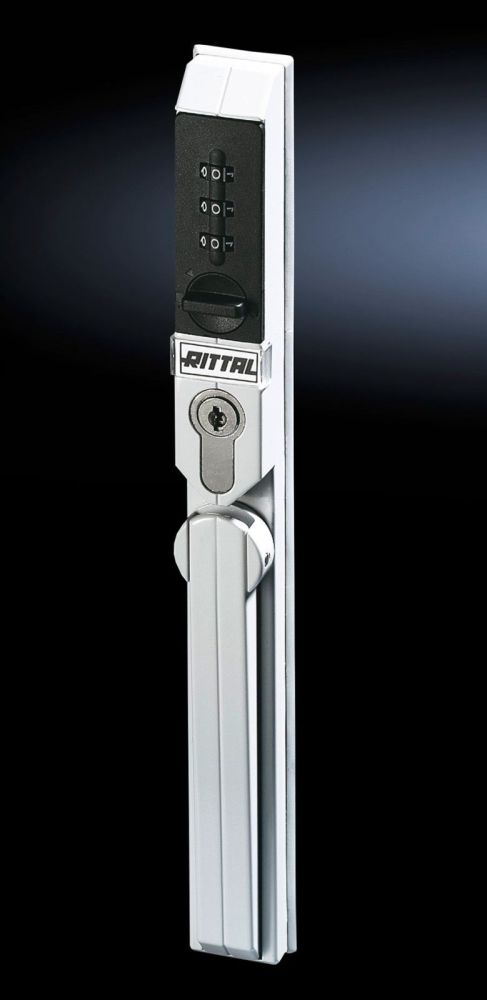

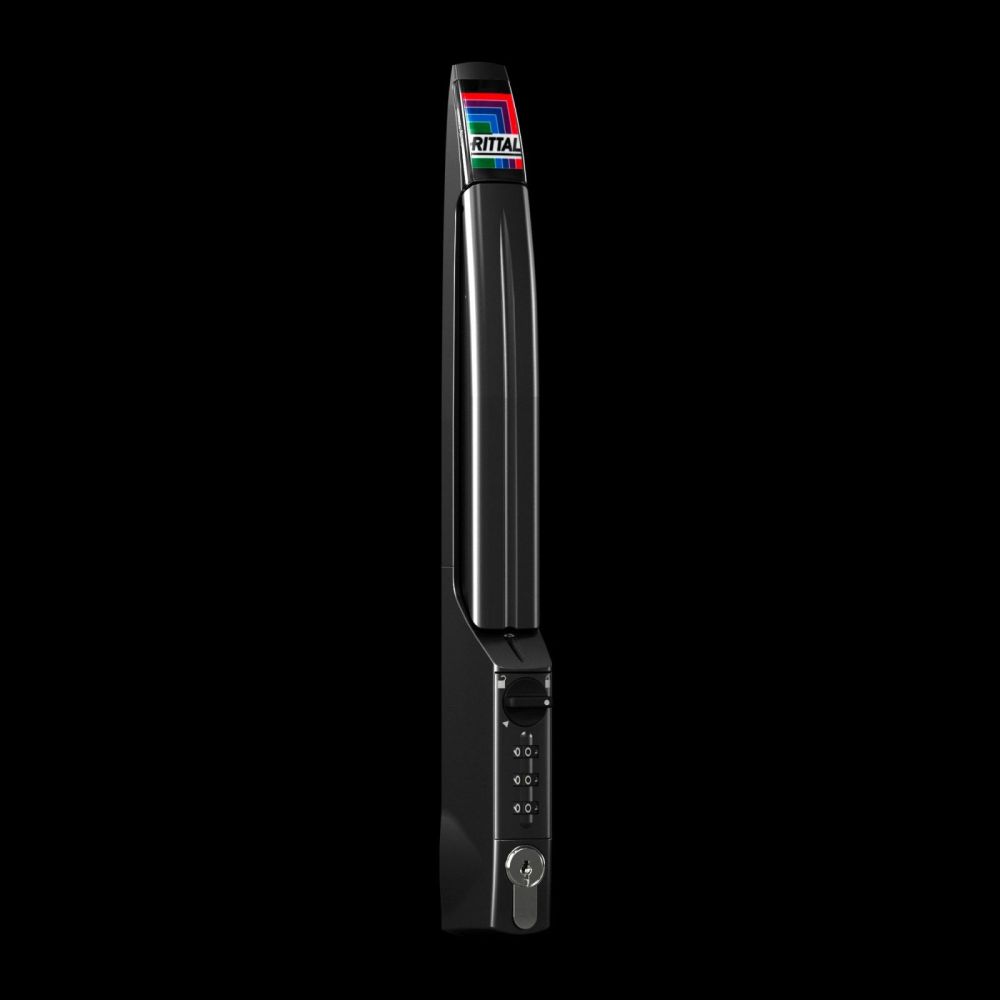

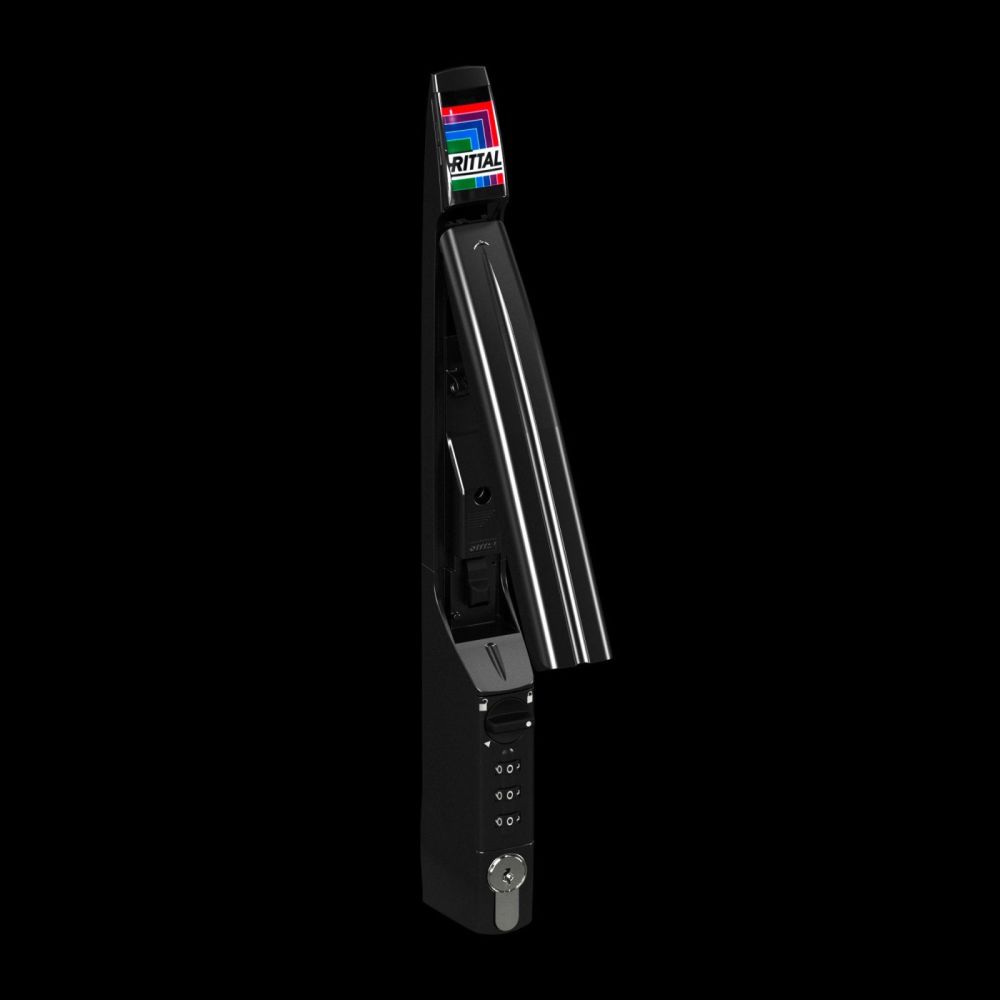

The Rittal security handle DK 7200810 is an access system for enclosures and technical housings, enabling flexible and secure operation. It features an Ergoform-S handle in the colour RAL 7035, ergonomically shaped to ensure safe handling. The device is specifically designed for use on enclosures of types FR, QR, PS and TC and can be mounted in place of a standard handle system. Access control is achieved via a 3-digit numeric code, activated without a key. The code can be individually set, with reconfiguration only possible if the original code is known, preventing unauthorised changes.

Applications
This security handle is particularly suitable for applications in industrial and automation technology, especially for ISP and ASP applications, where simple, retrofittable installation is required. It is ideal for enclosures used in production environments, manufacturing technology or technical installations where controlled access authorisation is necessary. The combination of mechanical security and electronic access control makes it a suitable solution for environments with high security requirements.

Functions and Equipment in Detail
The handle offers flexible access via an individual 3-digit numeric code, functioning without a key. Code setting is performed with the door open, ensuring security through the requirement of the original code for any reconfiguration. Additionally, a Master-Key function is available, activated independently of the numeric code. This requires the use of a profile half-cylinder with a length of 40 mm or 45 mm, compliant with DIN 18 252. This function enables an alternative access method, for example for maintenance personnel or in emergencies.

Technology Explained Simply
The security handle combines mechanical and numeric access control. The 3-digit numeric code provides a simple yet secure method to control access without the need to manage keys. Code setting is manual and only possible when the door is open. The Master-Key function enhances flexibility by enabling an additional access path via a mechanical locking system. The Ergoform-S shape of the handle ensures comfortable and secure handling, even with frequent use.

Compatibility and Accessories
The security handle is compatible with enclosures of types FR, QR, PS and TC. For use of the Master-Key function, profile half-cylinders with lengths of 40 mm or 45 mm, manufactured according to DIN 18 252, are required. Compatible accessories include handle adapters for comfort handle IW, PC RAL7035, lock inserts for handle systems, security and push-button inserts, and SZ 2467000 lock insert Ergoform-S security. These components can be used additionally to enhance the handle’s functionality, improving security or operability.

Mounting and Installation
Installation is performed in place of an existing handle system and requires no special tools. The installation is simple and can be carried out retroactively, facilitating use in existing installations.

Operational Advantages
The security handle offers high flexibility in access control, as it can be operated via an individual numeric code or via the Master-Key function. The ability to set the code individually enables targeted access authorisation. The Ergoform-S design ensures ergonomic operation, and compatibility with various enclosure types increases versatility. Simple installation and retrofittability make it a practical solution for technical installations.

General
ModelErgoform-S handle
ColourRAL 7035


Product data sheet
Datasheet for Rittal 7200810, EAN: 4028177260016

Questions & answers

What is the delivery time of Rittal 7200810 DK safety Ergoform lock with 3-digit code?

The article Rittal 7200810 DK safety Ergoform lock with 3-digit code is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7200810 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7200810 DK safety Ergoform lock with 3-digit code always at the best possible price. We can give you a discount of 2% on Rittal 7200810 DK safety Ergoform lock with 3-digit code if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
