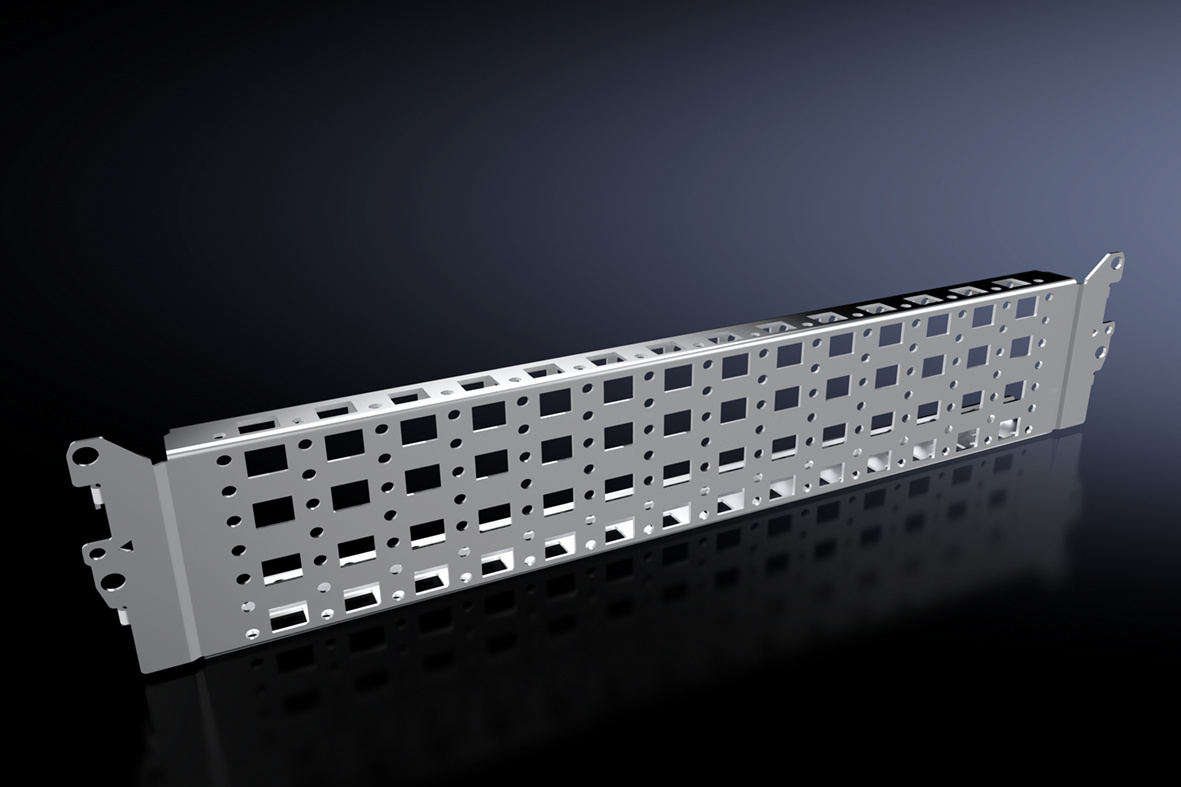

Rittal 8100731 VX system chassis 23 x 89 mm, for W x D: 500 mm, stainless steel

Your rating:
Average rating
product review for Rittal 8100731 VX system chassis 23 x 89 mm, for W x D: 500 mm, stainless steel
( 4.7 / 5 ) 14 ratings
Rittal 8100731
This image may differ from the desired article.
Rittal 8100731Rittal 8100731Rittal 8100731Rittal 8100731Rittal 8100731Rittal 8100731Rittal 8100731
61,41 EUR
( 73,08 EUR incl. VAT )
≈ £51.40  |  ≈ $67.49
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8100731 VX system chassis 23 x 89 mm, for W x D: 500 mm, stainless steel
Datasheet:file_download Download
Lieske Part No.:1440669
Mfg Part No: 8100731
UPC/EAN: 4028177924475
Weight:1.28 kg
Type:VX 8100.731

Product information for Rittal 8100731:

The Rittal VX 8100.731 is a system chassis made of stainless steel 1.4301 (AISI 304), specifically designed for variable and individual interior fitting of enclosure frames in the VX system. It serves as a mounting base for electrical or electronic components within enclosures and enables flexible arrangement on the internal mounting plane. The chassis is designed for enclosures with a width and depth of 500 mm and is suitable for enclosure types VX and VX SE. The material choice of stainless steel 1.4301 ensures high corrosion resistance and mechanical strength, making it suitable for industrial applications.

System chassis

The chassis has dimensions of 23 x 89 mm and is designed as a perforated mounting plate. It features a system hole pattern on all four sides, enabling easy and quick mounting. Installation is carried out by inserting into the system hole pattern of the enclosure profile and then screwing in place. The top and bottom sides are equipped with hole patterns for cage nuts, allowing secure attachment of additional components using metric screws.

Applications

The system chassis is primarily used in industrial enclosure construction where modular and adaptable interior fitting is required. It is particularly suitable for installations where electronic modules, controls, sensors or other devices are to be mounted in a VX enclosure. Use in VX and VX SE enclosures enables standardized mounting that matches the existing system hole pattern.

Functions and equipment in detail

The chassis features an integrated mounting flange that ensures secure fastening in the enclosure profile. The hole pattern on all four sides allows flexible positioning and cabling. Cage nuts on the top and bottom edges provide a stable mounting option for additional components. The delivery includes the fastening material required for mounting in the enclosure.

Technology explained simply

The system hole pattern is a standard feature in the VX system, enabling uniform mounting of components. The 23 x 89 mm hole pattern corresponds to the common hole grid used in industrial enclosures. The use of stainless steel 1.4301 (AISI 304) ensures high resistance to moisture, salt spray and mechanical stress, extending the service life of the chassis in demanding environments.

Compatibility and accessories

The chassis is compatible with enclosure types VX and VX SE, which have a width and depth of 500 mm. In VX SE enclosures, it can be mounted in conjunction with a VX adapter rail. It can also be mounted onto identical system chassis, enabling modular mounting. Suitable accessories include cable ties with a length of 150 mm, which can be used for cabling and securing wires within the enclosure.

Mounting and installation

Installation is carried out by inserting the chassis into the system hole pattern of the enclosure profile and then screwing it in place. Fastening is done using the material included in the delivery. Positioning is flexible due to the hole pattern on all four sides. Mounting onto identical chassis is also done via the system hole pattern, enabling modular arrangement of multiple chassis.

Advantages in operation

The system chassis offers a flexible and secure mounting option for electronic modules in enclosures. The use of stainless steel ensures high long-term stability, even in moist or corrosive environments. The integrated system hole pattern enables quick and standardized installation, reducing mounting time. Cage nuts on the top and bottom sides facilitate the attachment of additional components without requiring additional mounting aids.

General
MaterialStainless steel 1.4301 (AISI 304)
Scope of deliveryIncluding mounting hardware
Mounting optionsIn VX on the inner mounting plane on cabinet profile VX, In VX SE on cabinet profile in combination with adapter rail VX, on identical system chassis mounted one below the other
Suitable forHousing type: VX, VX SE, Width/Depth: 500 mm
PCF/VE (Cradle-to-Gate)24,09


Product data sheet
Datasheet for Rittal 8100731, EAN: 4028177924475
