Rittal 8617020 VX system chassis 18 x 64 mm W x D: 500 mm

Your rating:
Average rating
product review for Rittal 8617020 VX system chassis 18 x 64 mm W x D: 500 mm
( 4.5 / 5 ) 36 ratings
Rittal 8617020
This image may differ from the desired article.
Rittal 8617020Rittal 8617020Rittal 8617020Rittal 8617020Rittal 8617020Rittal 8617020Rittal 8617020
41,50 EUR 41,51 EUR
( 49,39 EUR incl. VAT )
≈ £34.74  |  ≈ $45.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8617020 VX system chassis 18 x 64 mm W x D: 500 mm
Datasheet:file_download Download
Lieske Part No.:1440970
Mfg Part No: 8617020
UPC/EAN: 4028177829053
Weight:2.075 kg
Type:VX 8617.020

Product information for Rittal 8617020:

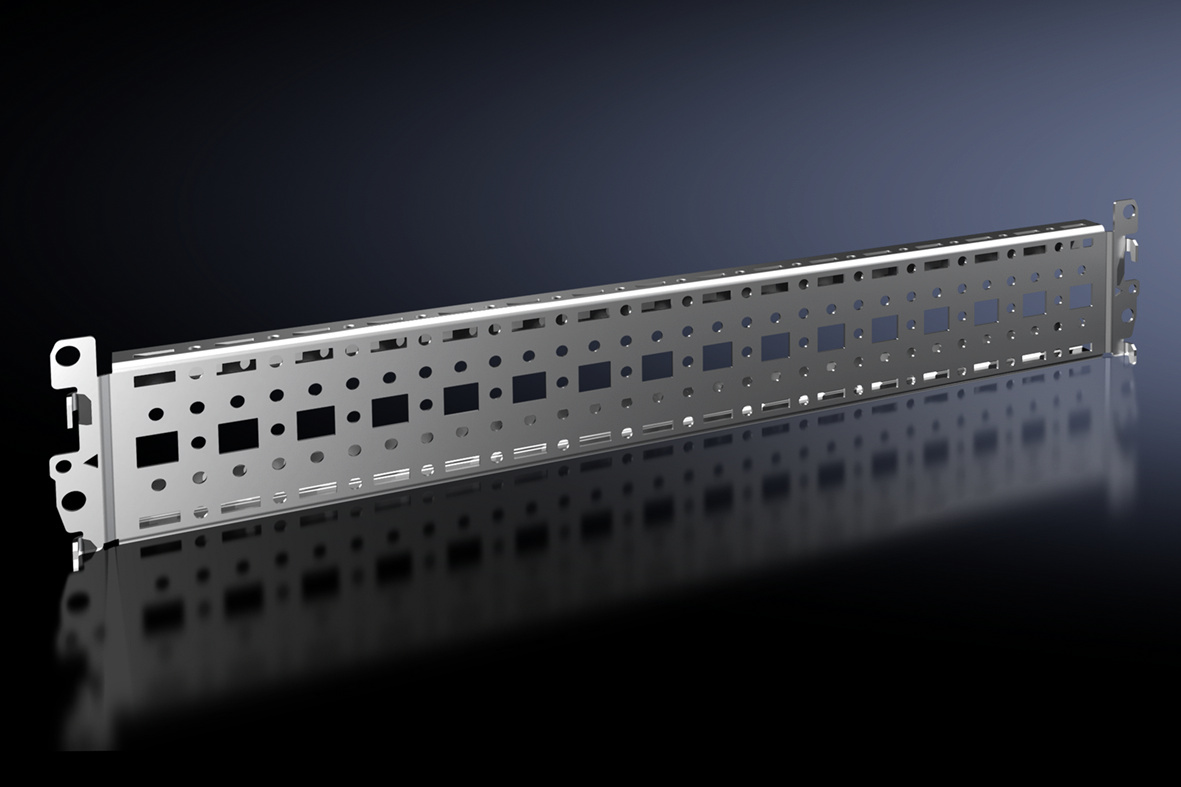

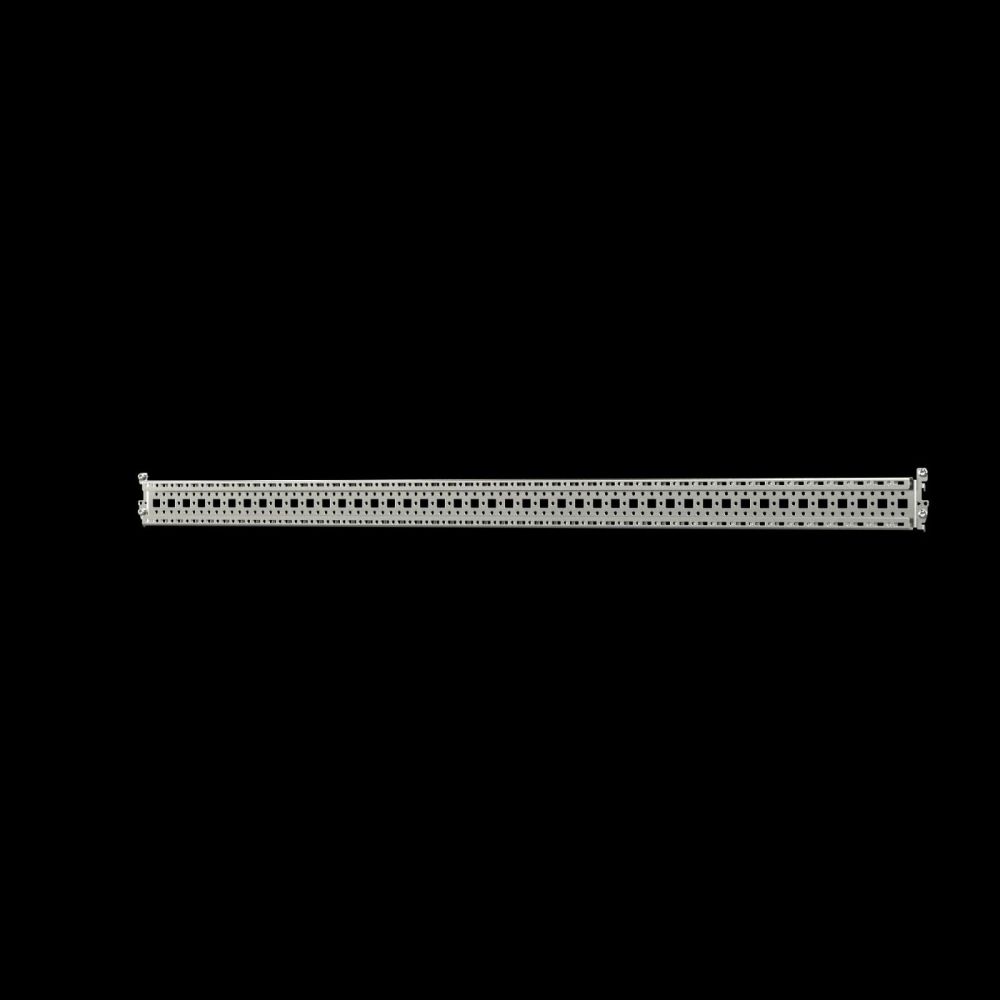

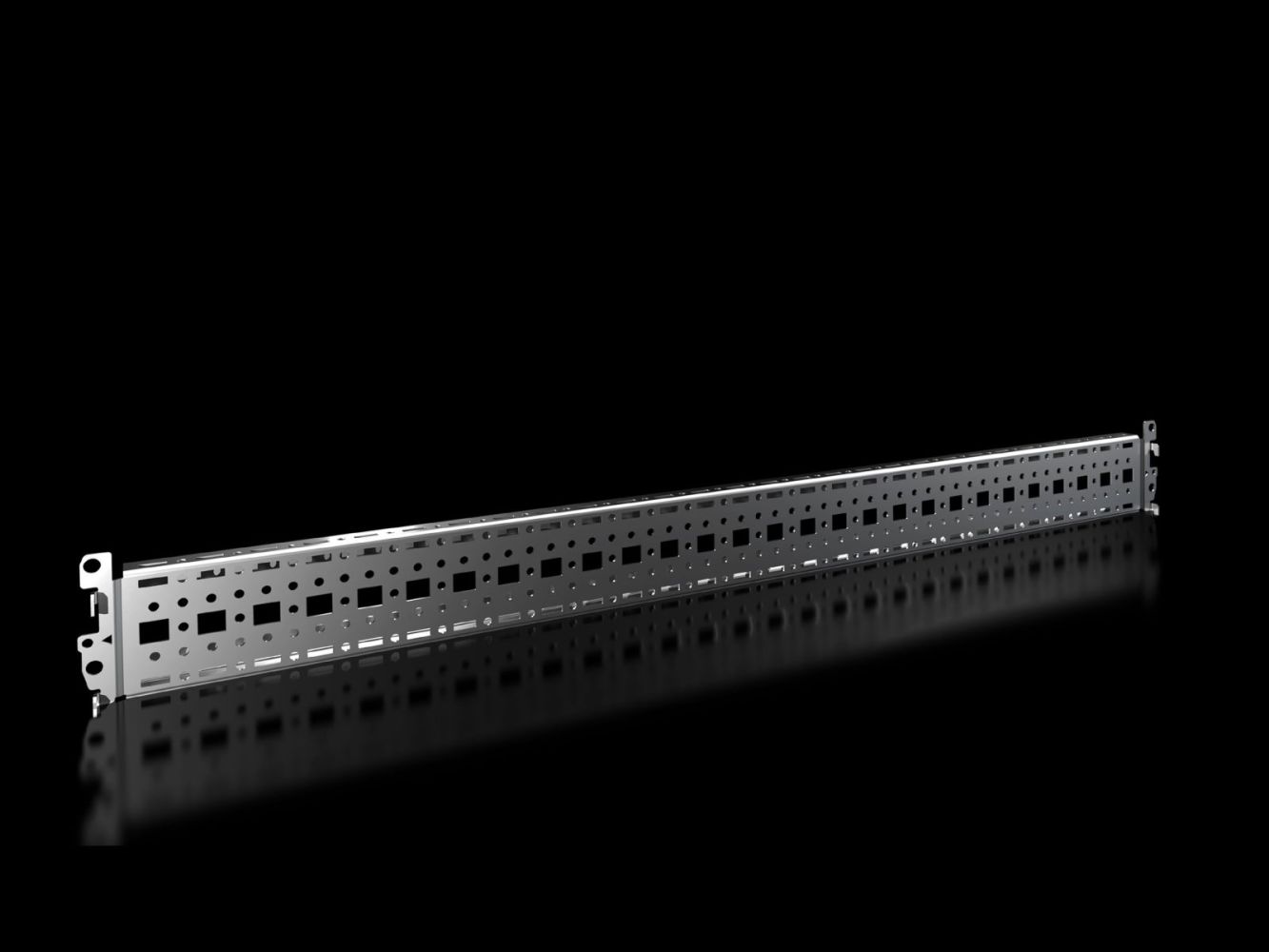

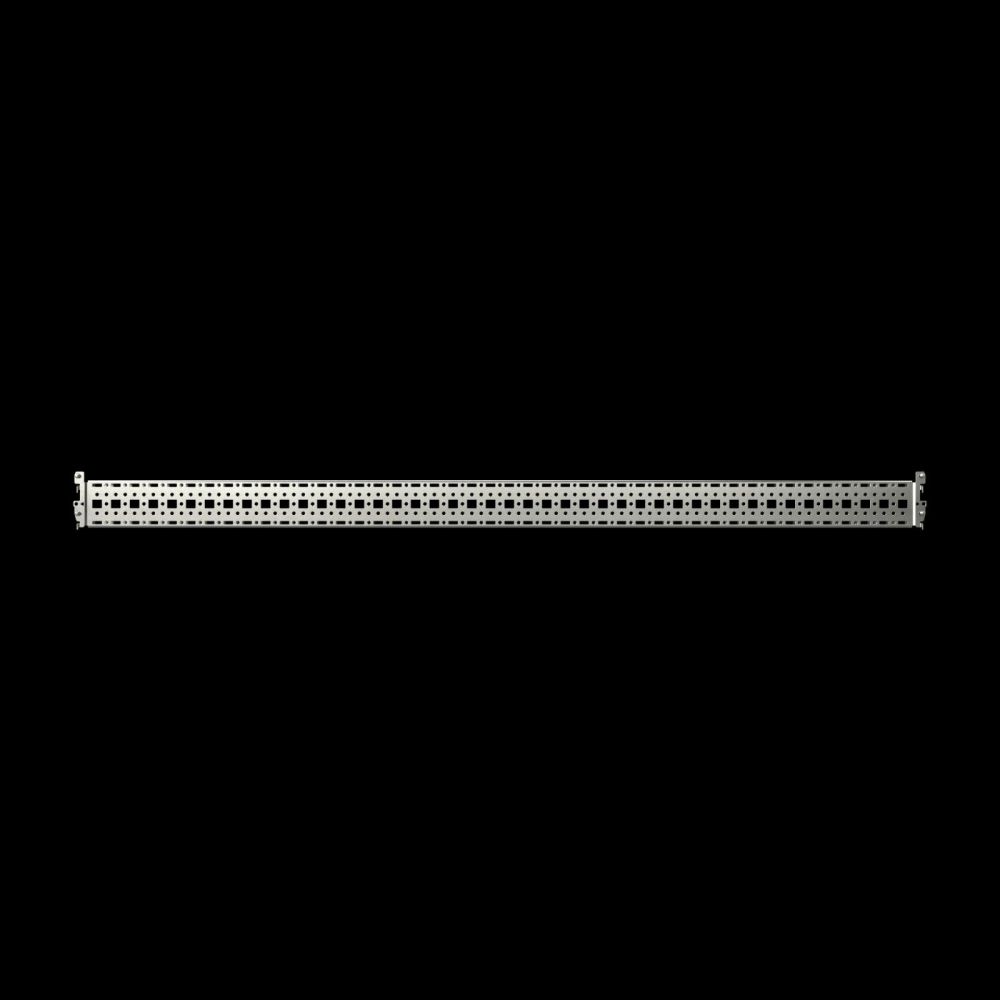

The Rittal System-Chassis VX 8617.020 is a System-Chassis made of steel sheet with a zinc-coated surface, specifically designed for variable and individual interior fitting of enclosure frames in the VX system. It serves as a mounting element on the outer mounting plane and enables flexible attachment of modules, devices, or accessories within enclosures. The chassis is designed for enclosures with a width and depth of 500 mm and is delivered in a packaging unit of four pieces. Mounting is simple, achieved by inserting into the system perforation and then screwing in place. The system perforation is present on all four sides of the chassis, ensuring versatile mounting options.

Applications
The System-Chassis VX 8617.020 is primarily used in industrial enclosure construction where flexible and modular mounting of components is required. It is particularly suitable for installations where the interior layout must be adapted to specific requirements without having to rebuild the entire enclosure frame. Installation takes place on the outer mounting plane, either directly on the enclosure profile or between two existing System-Chassis units with dimensions 23 x 64 mm. In already bayed enclosures, mounting can also be performed from the inside of the enclosure, simplifying installation in existing systems.

Functions and Equipment in Detail
The chassis features a system perforation on all four sides, enabling mounting of modules in various positions. Mounting is done by inserting into the existing perforations of the enclosure frame and then screwing in place. The product is made of steel sheet and has a zinc-coated surface, providing good corrosion protection. The delivery includes fastening material required for mounting. The dimensions of the chassis are 18 x 64 mm, with the enclosure depth being 500 mm.

Technology Explained Simply
The System-Chassis is a modular component integrated into the existing VX system. The system perforation allows for quick and secure mounting without additional drilling. The zinc-coated surface protects the steel sheet from corrosion, which is especially important in industrial environments. Mounting is done from the outside, making installation in existing systems possible without major effort. The dimensions 18 x 64 mm are standardized and fit into the VX system, which was developed for modular enclosure solutions.

Compatibility and Accessories
The System-Chassis VX 8617.020 is specifically designed for enclosures of the enclosure type VX with a width and depth of 500 mm. It is compatible with other VX system components and can be combined with various fastening elements. Suitable accessories include, among others, cable ties L150 mm, thread-forming hex screws M5x10, internal hex screws M8x12 mm, self-tapping screws type ST 4,8 L9,5 mm, SZ internal hex screws for thread M6, internal hex sheet metal screws type 5,5 L13 mm, and VX internal hex sheet metal screws for stainless steel. These elements can be used for secure fastening of devices or modules to the chassis.

Mounting and Installation

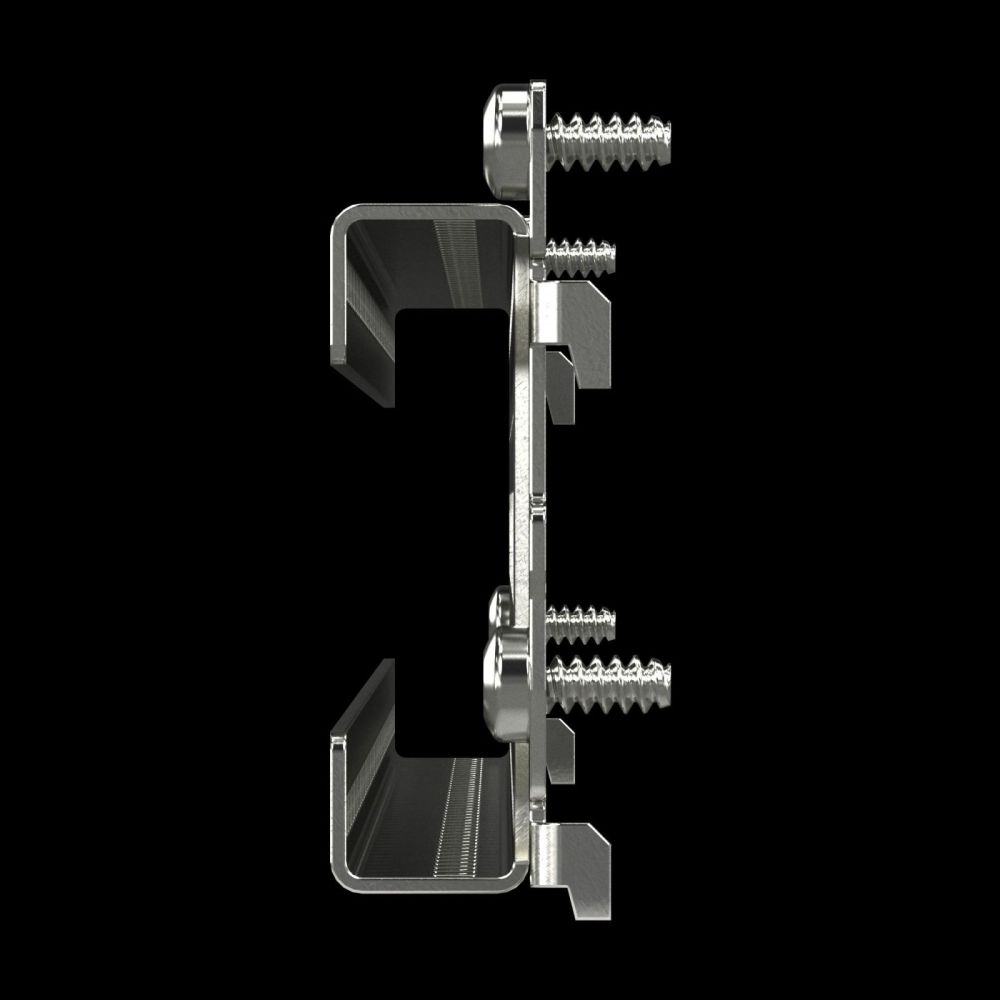

Mounting of the System-Chassis is done by inserting it into the system perforation of the enclosure frame from the outside. It is then secured using the included fastening material. The system perforation on all four sides allows for flexible positioning. In already installed enclosures, mounting can also be performed from the inside, simplifying installation in existing systems. Mounting is quick and requires no special tools or additional drilling.

Operational Advantages
The System-Chassis offers a flexible and modular solution for the interior fitting of enclosures. Simple mounting and the use of standardized fastening elements reduce installation time. The zinc-coated surface ensures high corrosion resistance, extending the service life of the chassis. Compatibility with the VX system enables easy integration into existing installations and simplifies maintenance and expansion of enclosure solutions.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsOn outer mounting plane on cabinet profile, on outer mounting plane between two system chassis 23 x 64 mm
Suitable forHousing type: VX, width/depth: 500 mm
PCF/VE (Cradle-to-Gate)9,99


Product data sheet
Datasheet for Rittal 8617020, EAN: 4028177829053
