Rittal 8700030 VX side panel, screwable, for HT: 1800x400 mm

Your rating:
Average rating
product review for Rittal 8700030 VX side panel, screwable, for HT: 1800x400 mm
( 4.4 / 5 ) 16 ratings
Rittal 8700030

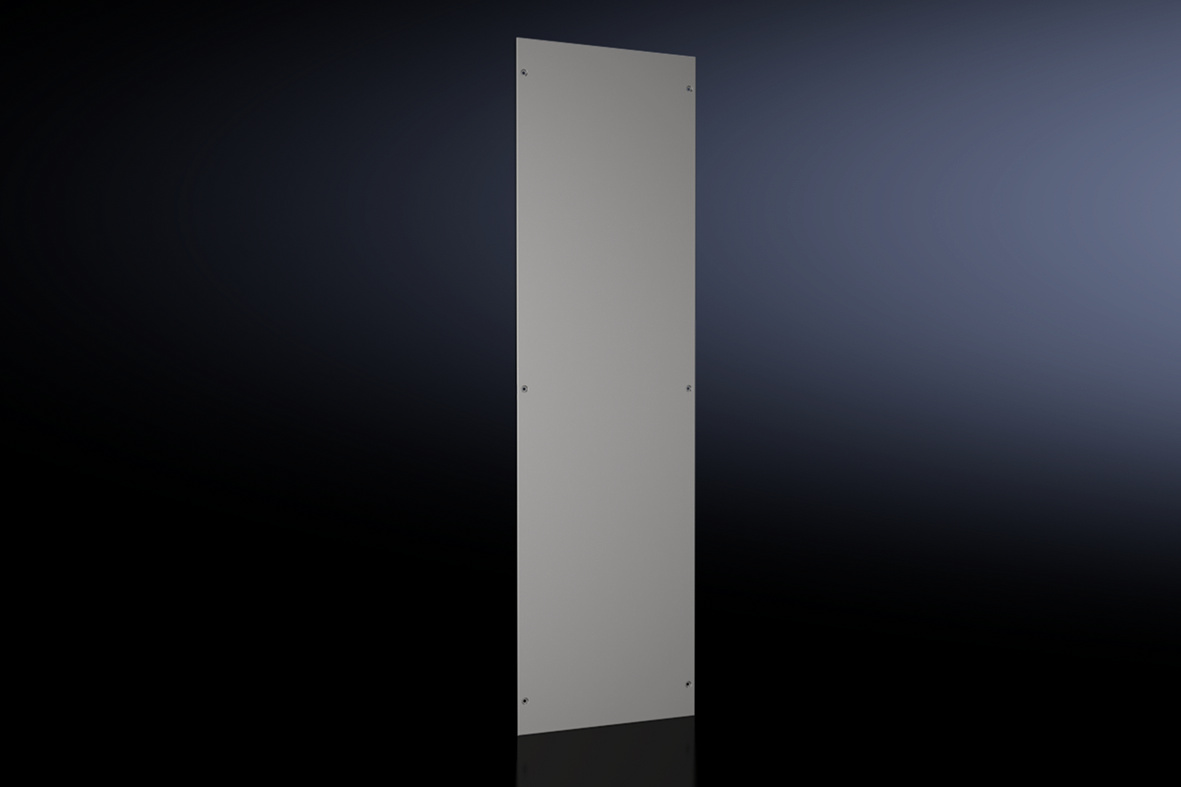

This image may differ from the desired article.
Rittal 8700030Rittal 8700030Rittal 8700030
319,24 EUR
( 379,90 EUR incl. VAT )
≈ £267.20  |  ≈ $350.84
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8700030 VX side panel, screwable, for HT: 1800x400 mm
Datasheet:file_download Download
Lieske Part No.:1441676
Mfg Part No: 8700030
UPC/EAN: 4028177921450
Weight:17.8 kg
Type:VX 8700.030

Product information for Rittal 8700030:

The Rittal VX 8700.030 is a screwable side panel for enclosures of type VX, specifically designed for enclosures with a height of 1,800 mm and a depth of 400 mm. The product is made of stainless steel 1.4301 (AISI 304) with a wall thickness of 1.5 mm and features a surface with a brushed finish, grain 400. The side panel is designed for use in industrial environments where high mechanical strength and corrosion resistance are required.

Applications
The side panel is suitable for use in enclosures in industrial environments, particularly in installations exposed to high mechanical and chemical stresses. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for use in indoor areas with increased contamination risk or in humid environments. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for indoor use and environments with light contamination.

Functions and Equipment in Detail
The side panel is equipped with clip-on brackets that enable time-saving installation. The flat part holders feature internal contact elements that ensure automatic equipotential bonding and higher EMC protection. The hanging aid facilitates precise positioning in height and depth, enabling accurate installation without additional tools. The earthing bolts have a large, paint-free contact surface, ensuring optimal electrical connection and reliable earthing contact.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance and mechanical strength, extending the product's lifespan in demanding environments. The brushed surface with grain 400 provides a uniform, easy-to-clean surface finish. The protection rating IP 55 means the side panel is dust-tight and protected against splashing water, making it suitable for use in industrial indoor environments. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for indoor use and environments with light contamination.

Compatibility and Accessories
The side panel is specifically designed for enclosures of type VX with a height of 1,800 mm and a depth of 400 mm. Installation is by screwing, with the fastening material included in the delivery scope. The packaging unit contains 2 pieces.

Installation and Mounting
The side panel is mounted by screwing onto the designated brackets. The clip-on brackets allow for quick and easy installation, which can also be performed by a single person. The hanging aid supports precise positioning in height and depth, ensuring secure and correct installation.

Operational Advantages
The side panel provides a reliable and durable solution for use in industrial enclosures. The high corrosion resistance of stainless steel 1.4301 ensures a long service life, while the protection rating IP 55 and the type rating according to UL 50E confirm suitability for demanding environments. Integrated features such as automatic equipotential bonding and EMC protection increase the safety and reliability of the enclosure during operation. The easy installation and the possibility of single-person installation reduce installation effort and mounting time.

General
MaterialStainless steel 1.4301 (AISI 304), 1.5 mm
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, height: = 1,800 mm, depth: = 400 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialStainless steel


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8700030, EAN: 4028177921450

Questions & answers

What is the delivery time of Rittal 8700030 VX side panel, screwable, for HT: 1800x400 mm?

The article Rittal 8700030 VX side panel, screwable, for HT: 1800x400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8700030 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8700030 VX side panel, screwable, for HT: 1800x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8700030 VX side panel, screwable, for HT: 1800x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
