Rittal 8100730 VX system chassis 23 x 89 mm, for W x D: 400 mm, stainless steel

Your rating:
Average rating
product review for Rittal 8100730 VX system chassis 23 x 89 mm, for W x D: 400 mm, stainless steel
( 4.3 / 5 ) 18 ratings
Rittal 8100730
This image may differ from the desired article.
Rittal 8100730Rittal 8100730Rittal 8100730Rittal 8100730Rittal 8100730Rittal 8100730Rittal 8100730
52,21 EUR
( 62,13 EUR incl. VAT )
≈ £43.70  |  ≈ $57.38
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8100730 VX system chassis 23 x 89 mm, for W x D: 400 mm, stainless steel
Datasheet:file_download Download
Lieske Part No.:1440670
Mfg Part No: 8100730
UPC/EAN: 4028177924628
Weight:1 kg
Type:VX 8100.730

Product information for Rittal 8100730:

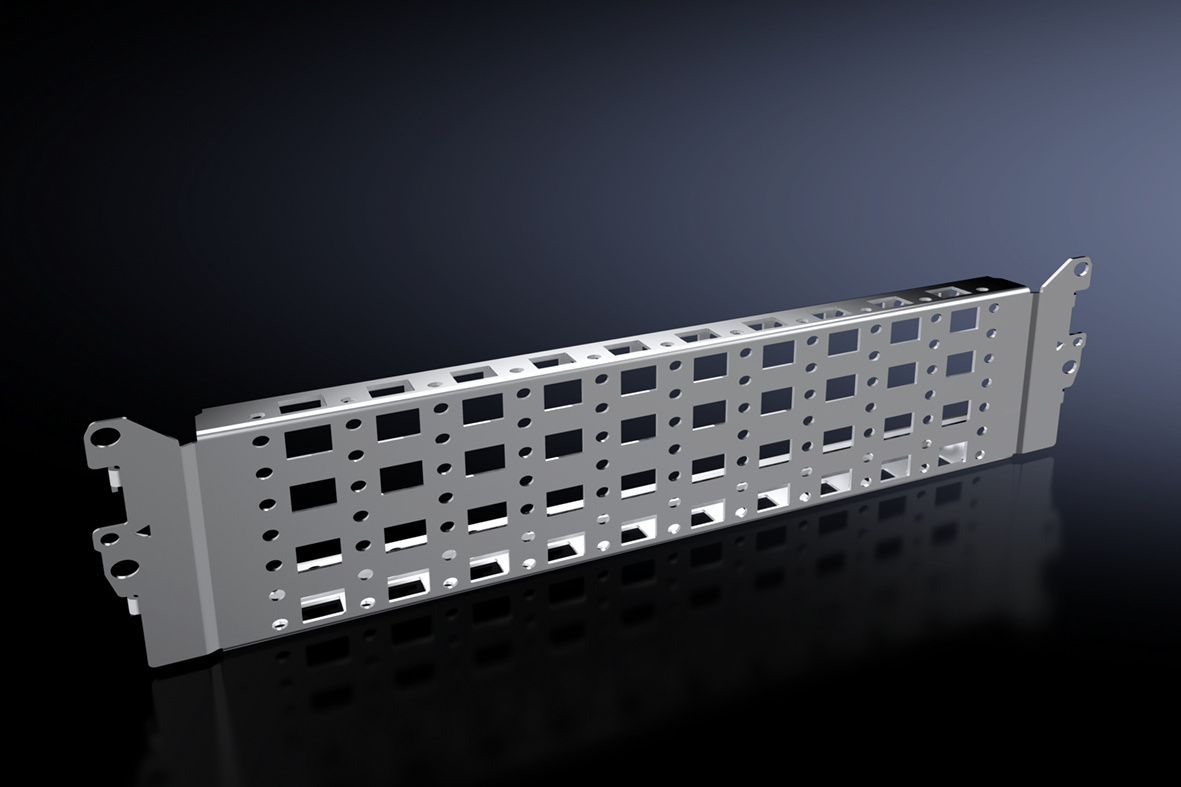

The Rittal VX 8100.730 is a system chassis made of stainless steel 1.4301 (AISI 304), designed for variable and individual interior assembly of enclosure frames in the VX system. It serves as a mounting base for electronic components, controls or other modules within enclosures and enables a flexible, modular arrangement on the internal mounting plane. The chassis has dimensions of 23 x 89 mm and is specifically designed for enclosures with a width and depth of 400 mm. It is delivered in packaging units of two pieces and includes mounting hardware that allows direct installation into the system perforation.

Applications
This system chassis is intended for use in VX and VX SE enclosure frames. It can be mounted directly onto the VX enclosure profile, or with VX SE enclosure frames in combination with a VX adapter rail. Additionally, multiple identical chassis can be mounted vertically, enabling modular expansion of the interior assembly. Use is restricted to enclosures with a width/depth of 400 mm, ensuring a precise fit for respective enclosure sizes.

Functions and Equipment in Detail
The chassis features system perforation on all four sides, enabling flexible component mounting. At the top and bottom, special perforations for cage nuts are integrated, allowing user modules to be secured using metric screws. Mounting is achieved by inserting the chassis into the system perforation of the enclosure frame and then screwing it in place, ensuring quick and secure installation. The choice of stainless steel 1.4301 (AISI 304) provides high corrosion resistance and mechanical strength, making it suitable for industrial applications.

Technology Explained Simply
The system perforation on all four sides allows versatile mounting of modules in any position. The integrated cage nut perforations at the top and bottom edges of the chassis enable mounting of components using metric screws, without requiring additional fastening elements. Stainless steel 1.4301 (AISI 304) is a non-rusting steel used in industry for its resistance to moisture, corrosion and mechanical stress. Mounting requires no additional tools, as the chassis is simply inserted into the predefined perforations of the enclosure frame and screwed in place.

Compatibility and Accessories
The chassis is compatible with VX and VX SE enclosure frames having a width and depth of 400 mm. It can be mounted directly onto the VX enclosure profile, or with VX SE frames in combination with a VX adapter rail. Additionally, it can be mounted vertically onto identical system chassis, enabling modular expansion of the interior assembly. Suitable accessories include cable ties with a length of 150 mm, which can be used to secure cables and wiring within the enclosure.

Mounting and Installation
Installation is performed by inserting the chassis into the system perforation of the enclosure frame and then screwing it in place. The predefined perforations on all four sides allow flexible positioning. Mounting is done using the included mounting hardware, designed for attachment to enclosure profiles. Tool-free installation is possible, as the system perforation ensures easy alignment and secure fixation.

Operational Advantages
The system chassis offers modular and flexible mounting options for electronic modules within enclosures. The use of stainless steel 1.4301 (AISI 304) ensures high durability and corrosion resistance, which is particularly beneficial in humid or aggressive environments. The integrated cage nut perforations at the top and bottom edges allow for quick and secure component mounting. The modular design enables easy expansion and adaptation of the interior assembly to changing requirements, without requiring a complete reconfiguration of the enclosure frame.

General
MaterialStainless steel 1.4301 (AISI 304)
Scope of deliveryIncluding mounting hardware
Mounting optionsIn VX on the inner mounting plane on cabinet profile VX, In VX SE on cabinet profile in combination with adapter rail VX, on identical system chassis mounted one below the other
Suitable forEnclosure type: VX, VX SE, width/depth: 400 mm
PCF/VE (Cradle-to-Gate)9,87


Product data sheet
Datasheet for Rittal 8100730, EAN: 4028177924628

Questions & answers

What is the delivery time of Rittal 8100730 VX system chassis 23 x 89 mm, for W x D: 400 mm, stainless steel?

The article Rittal 8100730 VX system chassis 23 x 89 mm, for W x D: 400 mm, stainless steel is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8100730 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8100730 VX system chassis 23 x 89 mm, for W x D: 400 mm, stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 8100730 VX system chassis 23 x 89 mm, for W x D: 400 mm, stainless steel if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
