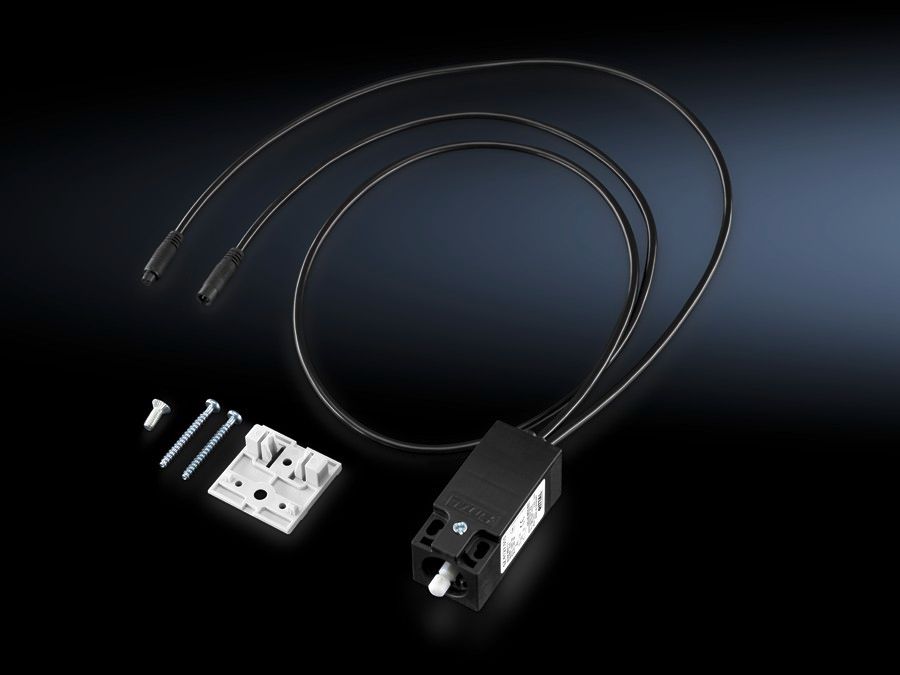

Rittal 4315820 Connection accessory, door position switch, with connection

Your rating:
Average rating
product review for Rittal 4315820 Connection accessory, door position switch, with connection
( 4.4 / 5 ) 32 ratings
Rittal 4315820
This image may differ from the desired article.
Rittal 4315820Rittal 4315820
-8% 37,49 EUR 40,60 EUR
( 44,61 EUR incl. VAT )
≈ £31.38  |  ≈ $41.20
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 4315820 Connection accessory, door position switch, with connection
Datasheet:file_download Download
Lieske Part No.:744644
Mfg Part No: 4315820
UPC/EAN: 4028177630178
Weight:0.171 kg
Type:SZ 4315820

Product information for Rittal 4315820:

The article SZ 4315820 from Rittal is a door position switch with integrated LED connection cable, specifically developed for use with the LED Compact system light. It serves as an electrical switch that detects the position of an enclosure door and accordingly transmits signals to the lighting, for example, to automatically turn on the LED light when the door is opened. The length of the connection cable is 1,000 mm, enabling flexible installation in enclosures. The switch is designed as accessory for the mentioned system lights and is directly connected to the light.

Applications
The door position switch is used in industrial enclosures, particularly in combination with the LED Compact lighting of Rittal system lights. It is suitable for applications where automatic activation of lighting upon opening the enclosure door is required, to improve working conditions and increase safety. The switch is used in enclosures with model numbers 4140.810, 4140.820, 4140.830, and 4140.840, which are equipped with LED Compact lighting.

Functions and Equipment in Detail
The switch operates mechanically and is actuated by the movement of the enclosure door. When the door is opened, the switch is activated and turns on the connected LED lighting. The LED connection cable is equipped with an open end and a cable connector, enabling a direct connection to the system light. The length of 1,000 mm provides sufficient clearance for installation in various enclosure sizes. The design as a door position switch ensures reliable and precise detection of the door position.

Technology Explained Simply
The switch uses mechanical actuation triggered by the movement of the enclosure door. The integrated LED connection cable transmits the switching signal directly to the lighting unit. The use of a cable connector at the end of the cable allows for an easy and secure connection without additional tools. The length of 1,000 mm is sufficient for most standard enclosure configurations, enabling the switch to be mounted on the door and the light to be connected inside the enclosure.

Compatibility and Accessories
The door position switch is specifically intended for system lights with article numbers 4140.810, 4140.820, 4140.830, and 4140.840. It is part of the accessories for these lighting systems and is directly connected to the light. Compatibility is ensured by the manufacturer’s specifications, with no additional components required.

Mounting and Installation
Installation involves securing the switch to the enclosure door, with the connection cable routed into the interior of the enclosure. The connection to the LED system light is made via the cable connector at the end of the cable. The installation requires no special tools, as the mechanical and electrical connection is made directly. The length of 1,000 mm allows for flexible positioning within the enclosure.

A door position switch is a mechanical switch that detects the position of a door. The LED connection cable serves for the electrical connection to the lighting. The LED Compact system light is a lighting system for enclosures. The cable connector enables a secure electrical connection. The length of 1,000 mm is suitable for most enclosure configurations.

Operational Advantages
The use of the door position switch ensures automatic activation of lighting when the door is opened, improving working conditions inside the enclosure and enhancing safety. The simple mounting and direct connection to the LED lighting reduce installation time and minimize error sources. The reliability of the mechanical actuation ensures long service life and stable performance in industrial applications.

General
ModelDoor position switch with LED connection cable
Length1.000 mm
NoteDoor position switch 4127010 including connection cable LED (open end/cable connector)
Suitable for part no.4140.810, 4140.820, 4140.830, 4140.840


Product data sheet
Datasheet for Rittal 4315820, EAN: 4028177630178

Questions & answers

What is the delivery time of Rittal 4315820 Connection accessory, door position switch, with connection?

The article Rittal 4315820 Connection accessory, door position switch, with connection is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4315820 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 4315820 Connection accessory, door position switch, with connection always at the best possible price. We can give you a discount of 2% on Rittal 4315820 Connection accessory, door position switch, with connection if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
