Rittal 7979503 PDU metered plus, 16 A/230 V, 1~, CEE 7/3: 4 x Schuko

Your rating:
Average rating
product review for Rittal 7979503 PDU metered plus, 16 A/230 V, 1~, CEE 7/3: 4 x Schuko
( 5 / 5 ) 3 ratings

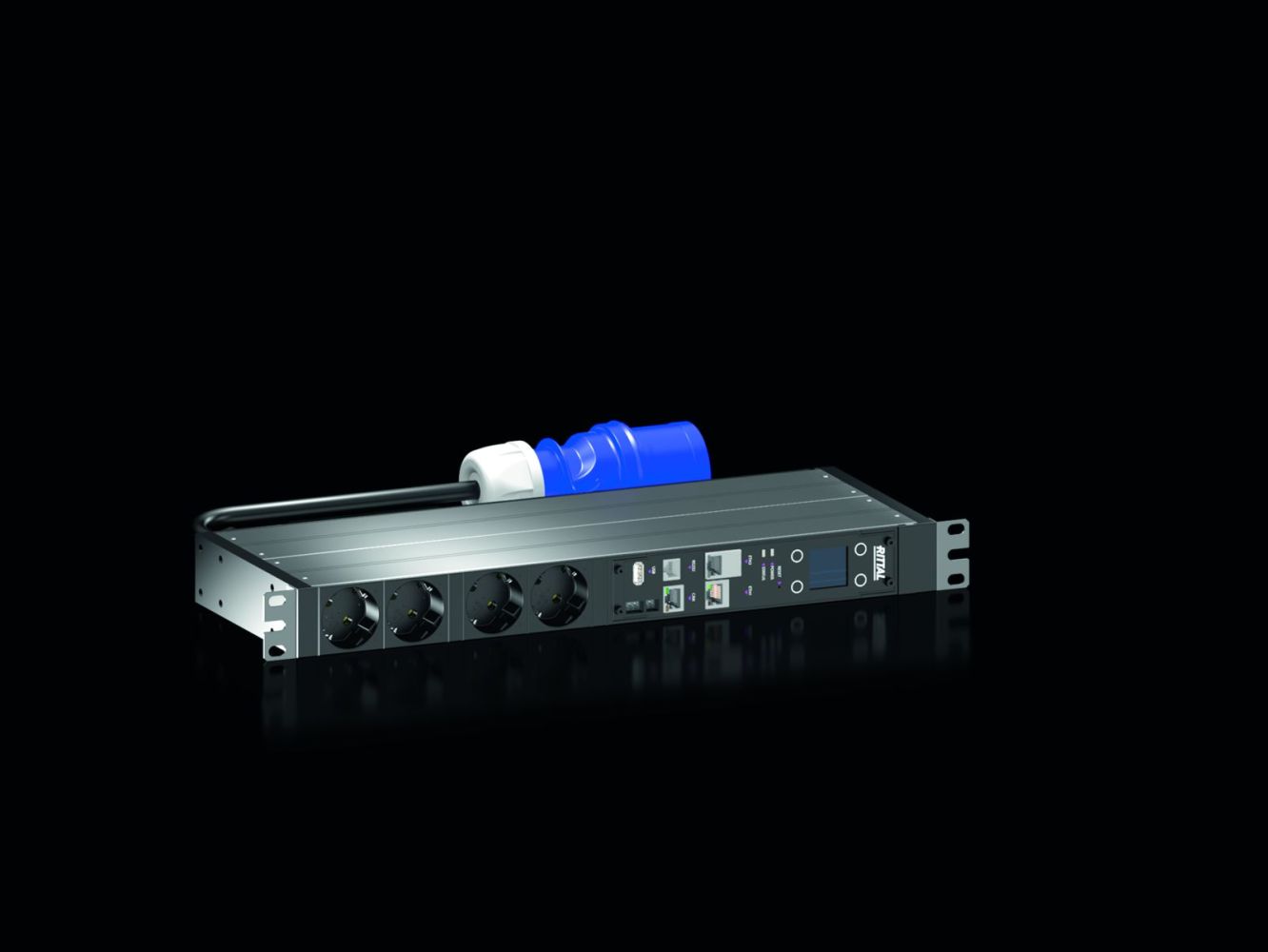

Rittal 7979503
This image may differ from the desired article.
Rittal 7979503Rittal 7979503Rittal 7979503Rittal 7979503Rittal 7979503Rittal 7979503Rittal 7979503
-8% 1.033,16 EUR 1.125,72 EUR
( 1.229,46 EUR incl. VAT )
≈ £864.75  |  ≈ $1,135.44
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979503 PDU metered plus, 16 A/230 V, 1~, CEE 7/3: 4 x Schuko
Datasheet:file_download Download
Lieske Part No.:1101079
Mfg Part No: 7979503
UPC/EAN: 4028177948273
Weight:3.124 kg
Type:DK 7979503

Product information for Rittal 7979503:

The Rittal DK 7979503 is a 19-inch PDU (Power Distribution Unit) with integrated energy measurement, specifically designed for use in IT network and server racks. As a metered+ model, it offers detailed power distribution and monitoring, where measurement is not only per phase or input, but also per individual output socket. This enables precise load distribution and analysis for individual devices in the rack. The PDU is designed in a compact 48,3 cm ( 19 inch ) format, with dimensions 450 mm (length) × 44 mm (height) × 144 mm (depth), and is suitable for vertical mounting in the Zero-U-Space of Rittal VX IT- or TS IT-racks. Installation is tool-free, with a mounting kit for VX IT available. The housing is made of aluminum profile, black anodized, and the sockets are made of plastic. Power supply is via a CEE power cord with 3 m length, connected to a 230 V (AC) input. The PDU is self-powered, requiring no external power supply. The maximum rated power is 3.7 kW at a rated current of 16 A. The sockets are of type CEE 7/3 (Schuko), four in total, enabling power supply for IT and network devices. The phase color coding (L1=pink, L2=black, L3=white) facilitates assignment and safety inspection.

Applications

The PDU is designed for use in IT infrastructures, server rooms, and network centers where precise energy consumption control and optimization are required. It is particularly suitable for racks with a minimum width of 800 mm, both for VX IT enclosure frames and 48,3 cm ( 19 inch ) profile rails. The integrated energy measurement enables monitoring of voltage, current, active power, apparent power, active energy, reactive energy, power factor (cosPhi), phase angle, and neutral conductor current. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21, providing a reliable data basis for energy efficiency analysis and load management. The PDU is designed for operation in environments with temperatures from 5 °C to 50 °C and humidity from 10 % to 95 % (non-condensing).

Functions and Equipment in Detail

The PDU features a bright TFT display with 128x128 pixels (RGB), which is rotatable and replaceable. It displays performance data and basic configuration and includes an energy-saving mode. The display is supplemented by multicolor LEDs (green/yellow/red) indicating the switching state and thresholds per output socket. An integrated electromagnetic buzzer enables acoustic alarm signaling in case of exceedances. Thresholds for voltage, current, and power are individually adjustable per output socket, allowing individual warning and alarm limits to be defined. The PDU is equipped with an integrated real-time clock, secured by a battery backup (max. 10 years, replaceable), ensuring time accuracy even during power failure.

Technology Explained Simply

The PDU is driven by a powerful CPU (ARM Cortex A8) responsible for processing measurement data and controlling interfaces. Power supply is via a fully redundant power supply unit, which can be fed from all phases, ensuring fault-tolerant and reliable power supply. The PDU features a fully redundant Ethernet interface (10/100/1000 Mbit/s) for network integration. Additionally, a USB 2.0 interface (USB-A) is available for mass configuration, firmware updates, and data recording, as well as a CAN-Bus interface (RJ45) for connecting up to 16 CMC III CAN-Bus sensors for environmental monitoring. A serial RS232 interface (RJ12) enables connection to LTE modules, scripting, CLI, and use of custom certificates with TLS 1.2. The PDU supports email alerting on alarm (SMTP), user management with rights management, integration with LDAP(S)/Radius/Active Directory, and connection to Syslog servers (max. 2 servers). Protocol support includes Web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and FTP/SFTP for updates and file transfers. An MIB enables integration into external DCIM software.

Compatibility and Accessories

The PDU is compatible with the CMC III CAN-Bus system, allowing monitoring of environmental parameters such as temperature, humidity, or smoke detection. Connection is via the RJ45 interface, with cables available in various lengths (0.5 m, 1.0 m, 1.5 m). Additional compatible accessories include covers for C13 and C19 sockets, mounting adapters for TE 8000, universal locks for C14/C20 plugs, RCM measurement modules, numeric code lock, VX IT CMC III transponder reader, surge protection modules Type 3, and CMC III online comfort handles with master key function. These components extend the functionality and security of the PDU.

Installation and Mounting

Mounting is tool-free in the Zero-U-Space of Rittal VX IT- or TS IT-racks. The PDU is designed for racks with a minimum width of 800 mm. The delivery includes fastening materials required for installation. The power cord (3 m) is connected to a CEE input. The PDU is designed for use in IT infrastructures requiring reliable power distribution and monitoring.

Operational Advantages

The PDU offers an energy-saving design with low self-consumption, improving the efficiency of the entire IT infrastructure. Detailed energy measurement per output socket enables precise load distribution and optimization. Integrated alarm signaling via buzzer, LEDs, and email, along with support for SNMP, Modbus/TCP, and OPC-UA, simplifies integration into existing monitoring and management systems. Support for LDAP, Radius, and Active Directory enables centralized user management. The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. The operating temperature range of 5 °C to 50 °C and storage temperature of -20 °C to 70 °C ensure use in various environments. The PDU is designed for use in IT infrastructures requiring reliable power distribution and monitoring.

General
Model19" version
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsCMC III CAN-Bus sensors for environmental monitoring connectable, max. 16 sensors
Description of measurement functionsMeasurement per phase or input, additional measurement per output socket, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Height44 mm
Depth144 mm
Length450 mm
Number of sockets and type4 x Schuko, Type F, CEE 7/3
Socket outlets4 x Schuko
Rated operating voltage230 V (AC)
Rated current (max.)16 A
Nominal power3,7 kW
Power suppliesNumber: 1, Phases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 800 mm, Housing type: VX IT 19"-profile rails: ≥ 800 mm


Product data sheet
Datasheet for Rittal 7979503, EAN: 4028177948273
