Rittal 7979515 PDU metered plus, 16A/230V, 1~, 24 x C13 + 4 x C19

Your rating:
Average rating
product review for Rittal 7979515 PDU metered plus, 16A/230V, 1~, 24 x C13 + 4 x C19
( 4 / 5 ) 1 ratings
Rittal 7979515
This image may differ from the desired article.
Rittal 7979515Rittal 7979515Rittal 7979515Rittal 7979515Rittal 7979515Rittal 7979515Rittal 7979515
1.482,33 EUR 1.508,00 EUR
( 1.763,97 EUR incl. VAT )
≈ £1,240.71  |  ≈ $1,629.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979515 PDU metered plus, 16A/230V, 1~, 24 x C13 + 4 x C19
Datasheet:file_download Download
Lieske Part No.:593578
Mfg Part No: 7979515
UPC/EAN: 4028177948341
Weight:4.5 kg
Type:DK 7979515

Product information for Rittal 7979515:

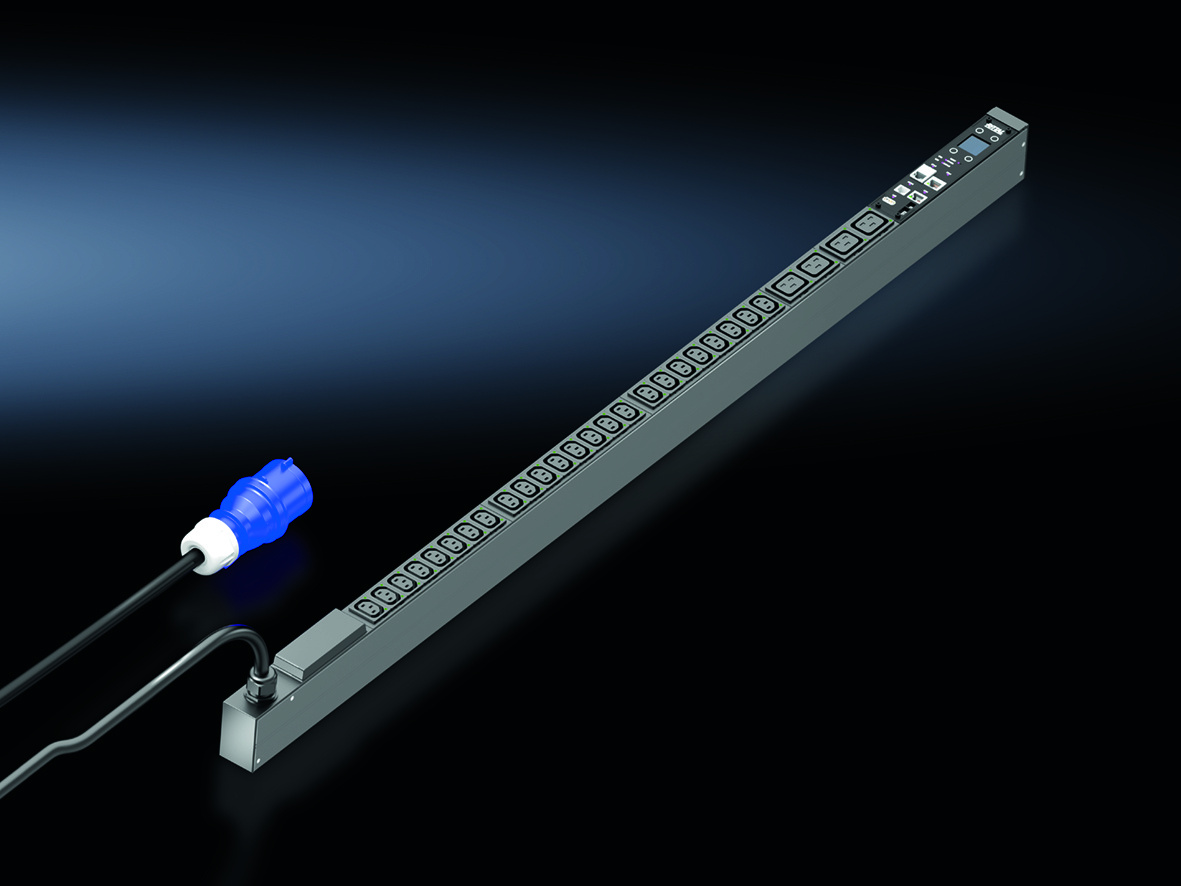

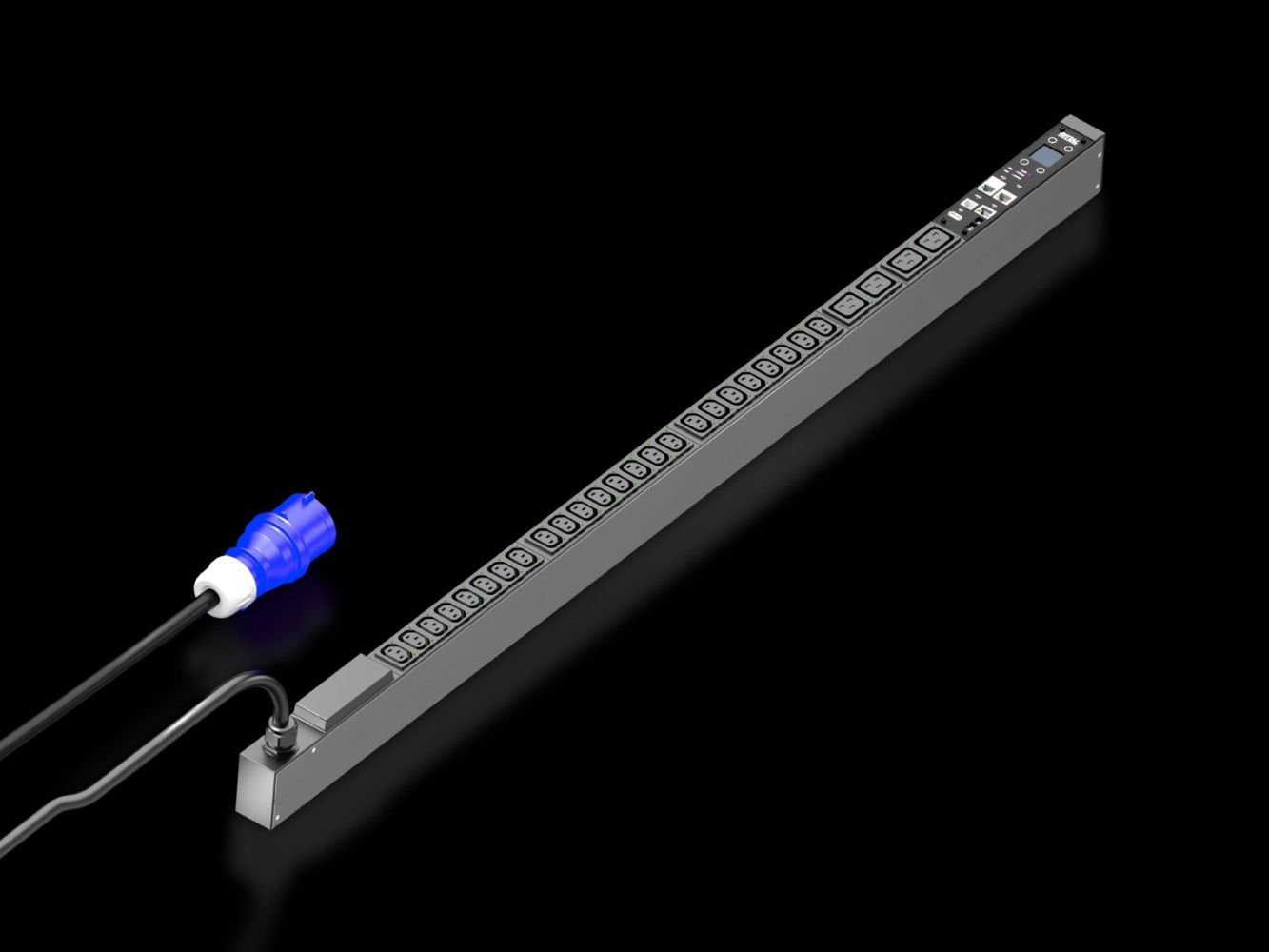

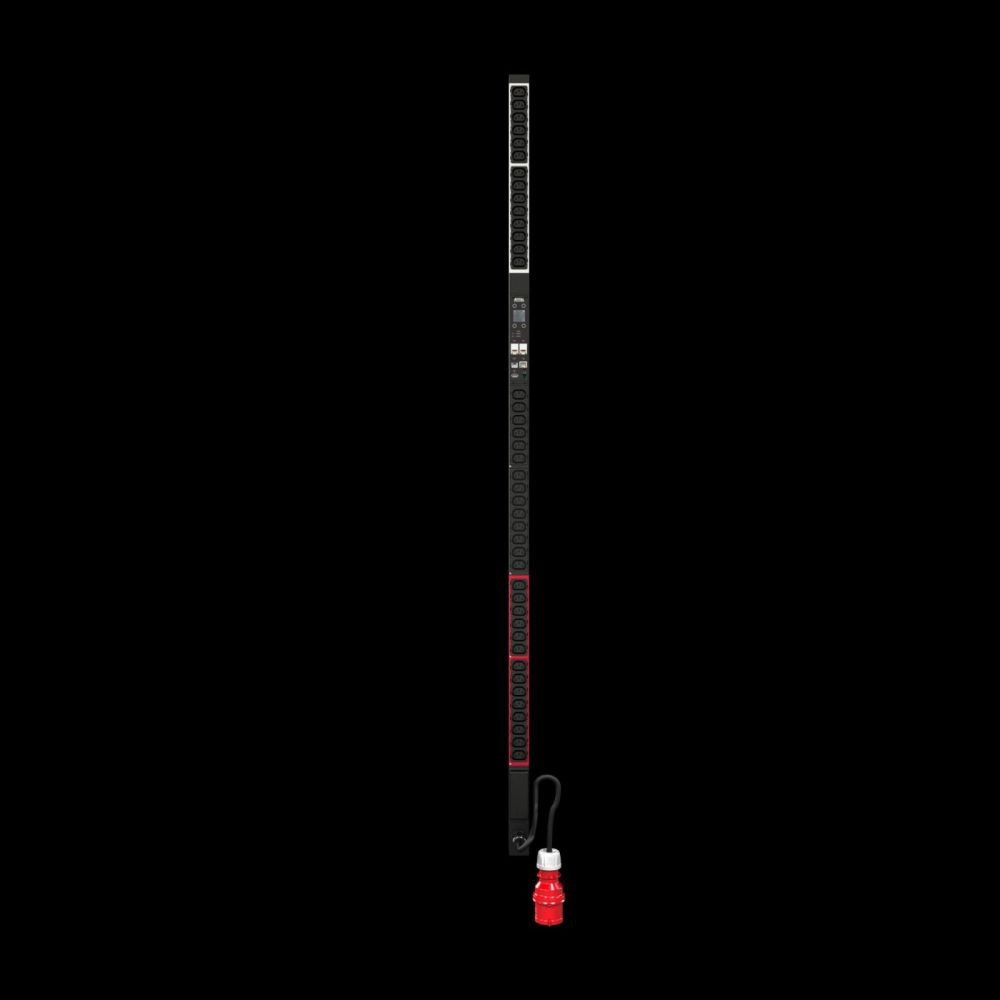

The Rittal DK 7979515 is a PDU (Power Distribution Unit) of the metered plus type, specifically designed for use in IT network and server racks. It serves as an intelligent power distribution unit with integrated energy measurement for each individual output socket, enabling monitoring of the power demand of individual consumers. The device is housed in a compact aluminium profile, black anodized, with an overall length of 1,295 mm, a width of 44 mm, and a depth of 70 mm. Power supply is via a CEE connection cable with a length of 3 m, and the PDU is self-powered, requiring no external power source. The rated operating voltage is 230 V (AC), with a nominal current of up to 16 A, corresponding to a nominal power of 3.7 kW. Power input is via a single phase (1~). The PDU is suitable for use in Rittal VX IT cabinet frames with a minimum length of 1,800 mm, as well as in VX IT 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,800 mm.

Applications
The DK 7979515 is intended for use in professional IT infrastructures such as data centres, server racks, and network environments. It enables precise energy management and monitoring, particularly in environments where detailed load distribution and analysis are required. Vertical mounting in the Zero-U-Space of Rittal VX IT or TS IT racks is tool-free, simplifying installation. The phase colour coding (L1=pink, L2=black, L3=white) supports assignment and maintenance.

Functions and Equipment in Detail
The PDU features 24 C13 sockets and 4 C19 sockets, made of plastic. Measurement functions include energy measurement per phase or input, as well as per output socket. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. An integrated real-time clock with battery backup (up to 10 years, replaceable) ensures continuous time measurement. An integrated electromagnetic buzzer enables acoustic alarm notification. Adjustable thresholds for voltage, current, and power can be individually configured per output socket. The PDU is redundantly powered via all phases, ensuring fault-tolerant power supply.

Technology Explained Simply
The PDU is equipped with a powerful CPU (ARM Cortex A8) ensuring data processing and transmission. The integrated, fully redundant power supply ensures high availability, even in case of phase failures. The display/controller unit is rotatable and replaceable within the housing (180°), allowing flexible adaptation to the mounting position. The bright TFT display with 128x128 pixels (RGB) and backlighting shows power data and basic configuration. Position sensors ensure correct display of the PDU on the web interface. Multicolour LEDs (green/yellow/red) indicate the switching state and thresholds per output socket. A power LED indicates voltage presence.

Compatibility and Accessories
The PDU is equipped with a variety of interfaces: USB 2.0 (USB-A) for mass configuration, firmware updates, and data logging; CAN-Bus interface (RJ45) for up to 16 environmental sensors (CMC III); serial interface RS232 (RJ12) for LTE unit, scripting, and CLI; and a fully redundant Ethernet interface (10/100/1000 Mbit/s). Supported protocols include Web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, as well as FTP/SFTP for updates and file transfers. The PDU supports connection to LDAP(S), Radius, Active Directory, and Syslog servers (up to 2 servers). Email notification on alarm (SMTP) and user management including rights management are also integrated. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring can be integrated. Differential current measurement (Type B) per input/phase/fuse is also possible. Monitoring of the optional surge protection device is also provided. CMC III CAN-Bus sensors for environmental monitoring can be connected, supporting up to 16 sensors. Other housing colours are available optionally.

Mounting and Installation
Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes mounting hardware. Vertical mounting is tool-free, accelerating installation. The PDU is designed for use in racks with a minimum length of 1,800 mm.

Operational Advantages
The DK 7979515 offers high operational reliability through redundant power supply and integrated alarm functions. Detailed energy measurement per output socket enables precise load distribution and analysis. The integrated network interface and support for numerous protocols facilitate integration into existing IT infrastructures. The energy-saving design with low self-consumption reduces the PDU’s own energy usage. The integrated real-time clock with battery backup ensures continuous time measurement even during power failure. The ability to set individual thresholds per output socket enables flexible and precise monitoring of connected devices. Support for CMC III sensors extends monitoring capabilities to environmental parameters such as temperature and humidity.

The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. Operating temperature ranges from 5 °C to 50 °C, with non-condensing humidity between 10 % and 95 %. Storage temperature is from -20 °C to 70 °C.

General
ModelPDU, metered plus
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsMeasurement per phase or input, additional measurement per output socket, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.295 mm
Number of sockets and type24 x C13 / 4 x C19
Socket outlets24 x C 13, 4 x C 19
Rated operating voltage230 V (AC)
Rated current (max.)16 A
Nominal power3,7 kW
Power suppliesNumber: 1, Phases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979515, EAN: 4028177948341
