Rittal 7979141 DK PDU Basic basic power distribution 32A/3P CEE 36x C13 + 6x C19

Your rating:
Average rating
product review for Rittal 7979141 DK PDU Basic basic power distribution 32A/3P CEE 36x C13 + 6x C19
( 4.7 / 5 ) 3 ratings
Rittal 7979141
This image may differ from the desired article.
Rittal 7979141Rittal 7979141Rittal 7979141Rittal 7979141Rittal 7979141Rittal 7979141Rittal 7979141Rittal 7979141
-7% 462,23 EUR 494,91 EUR
( 550,05 EUR incl. VAT )
≈ £386.89  |  ≈ $507.99
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979141 DK PDU Basic basic power distribution 32A/3P CEE 36x C13 + 6x C19
Datasheet:file_download Download
Lieske Part No.:1775590
Mfg Part No: 7979141
UPC/EAN: 4028177947573
Weight:6.66 kg
Type:DK 7979141

Product information for Rittal 7979141:

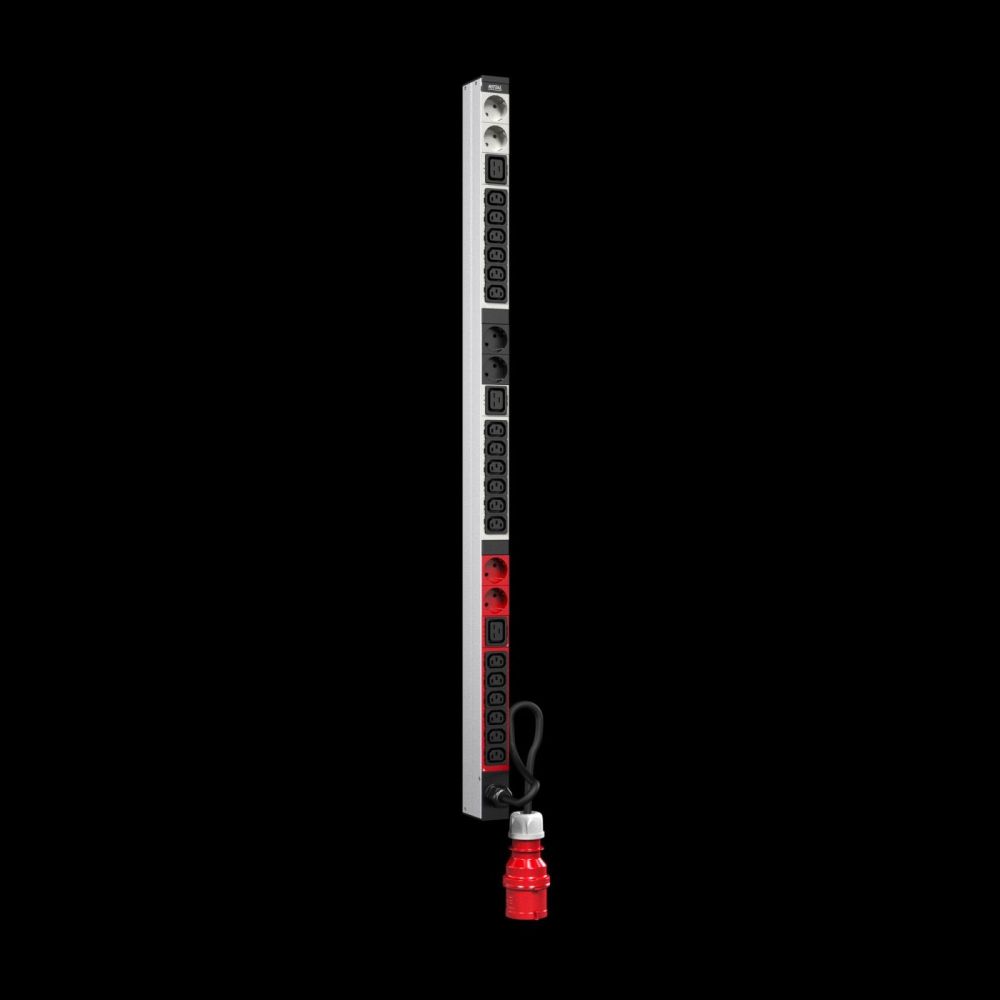

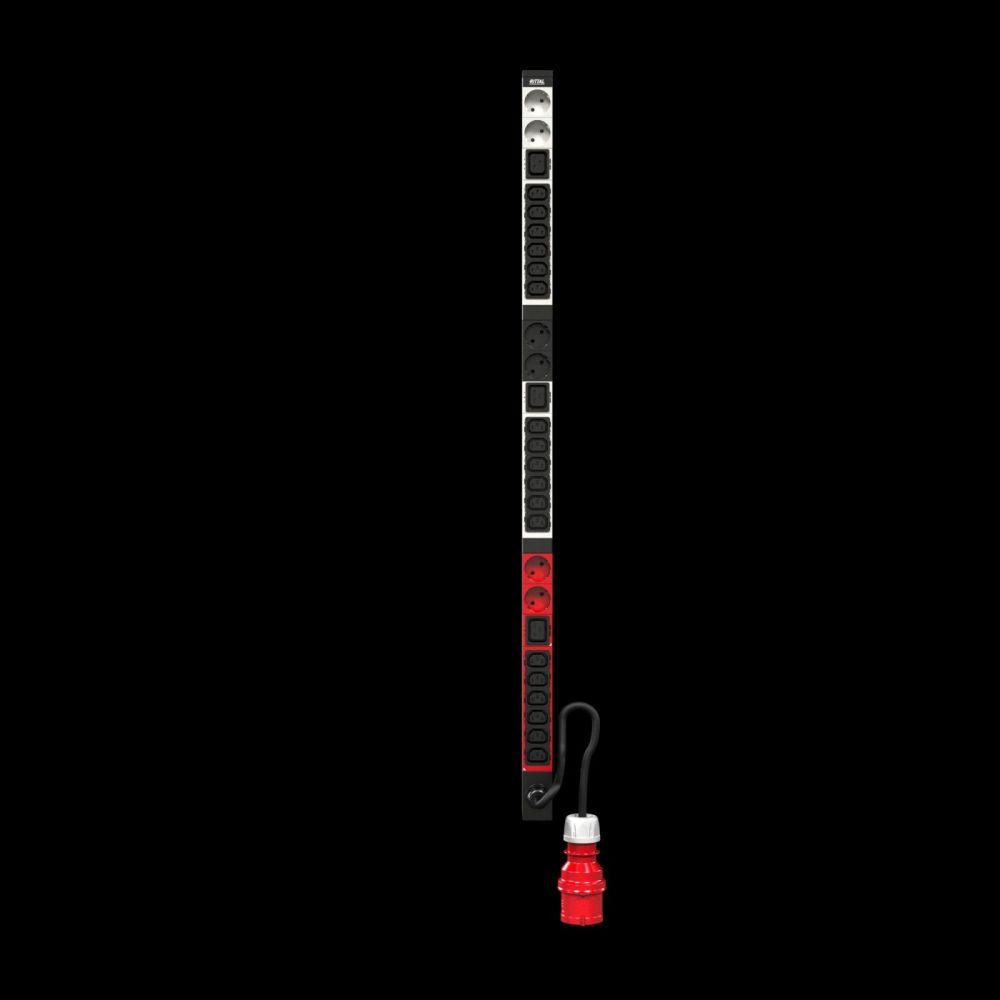

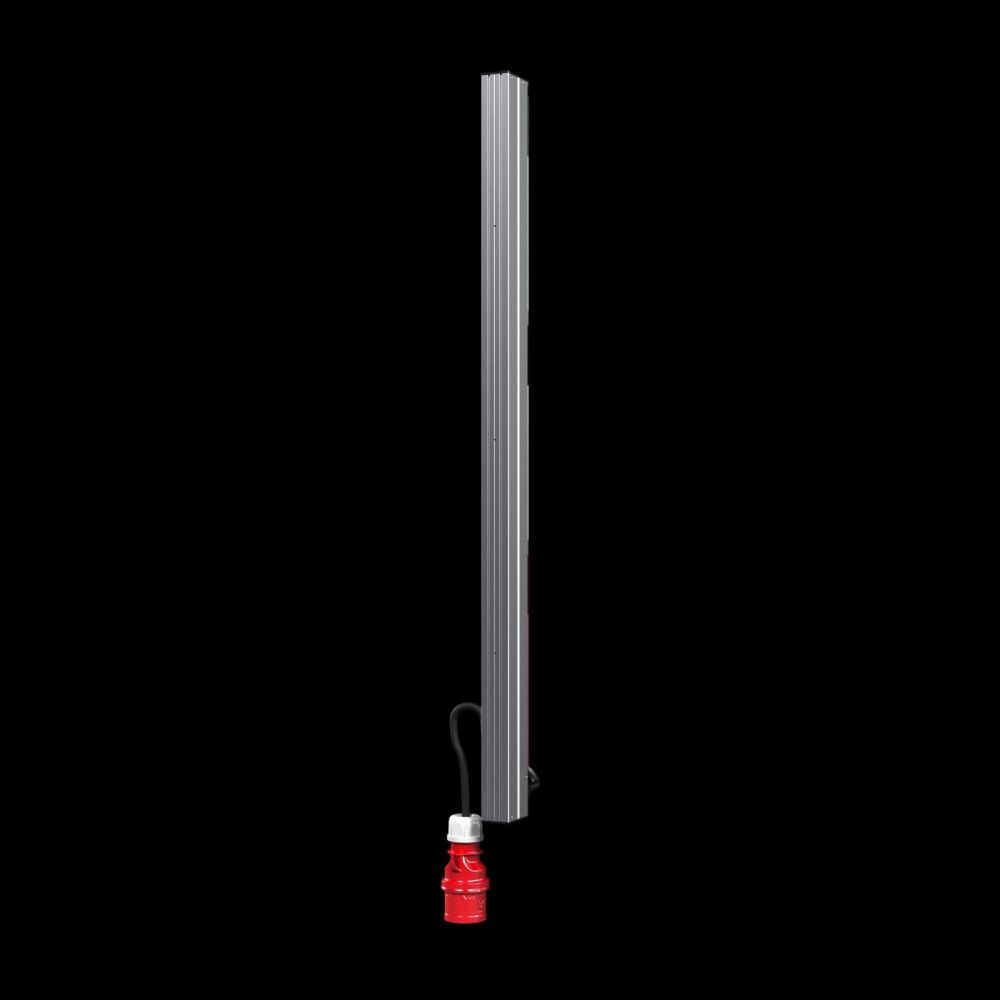

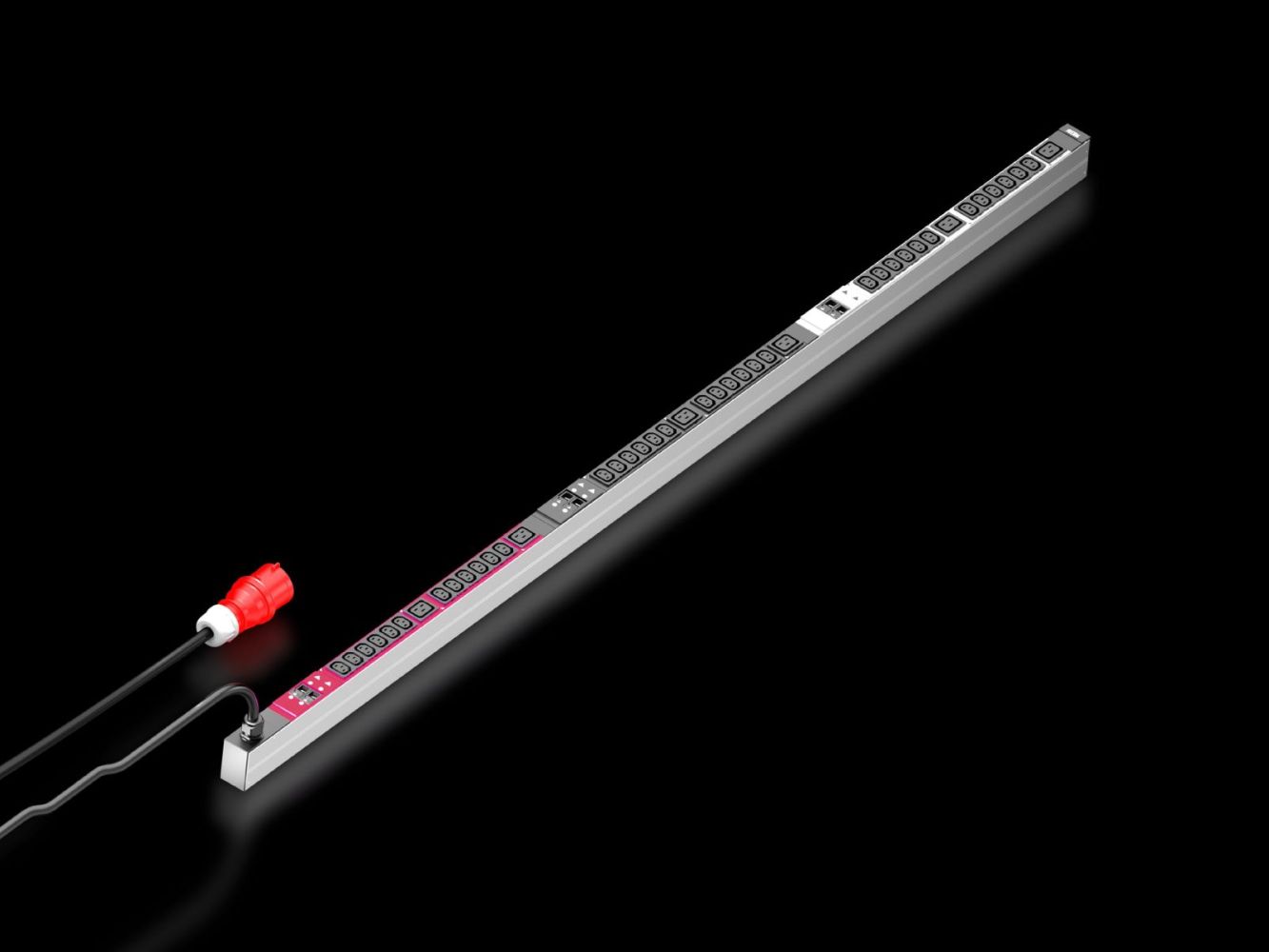

The Rittal DK 7979141 is a PDU Basic power distribution unit, specifically designed for use in IT server and network enclosures. It serves as a compact base power distribution unit, enabling any IT rack to be equipped with a professional power supply. The unit is designed for vertical or horizontal mounting in 48,3 cm ( 19 inch )-racks, with vertical mounting also possible in Zero-U-Space. The power distribution unit is suitable for use in Rittal VX IT enclosures with a cabinet frame from 2,000 mm or 48,3 cm ( 19 inch )-profile rails from 2,200 mm. The unit is constructed from a robust aluminium extruded profile, anodized, with plastic socket outlets. It features a rated operating voltage of 400 V (AC), a nominal current of 32 A, and a nominal power of 22 kW. Power supply is via a CEE connection cable with a length of 3 m. The unit is designed for operation in a temperature range of 5 °C to 50 °C and a humidity range of 10 % to 95 % (non-condensing). Storage temperature can range from -20 °C to 70 °C.

Applications

The PDU Basic is designed for use in IT infrastructures, particularly in server and network enclosures. It is suitable for powering IT end devices, network switches, servers, and other equipment connected via IEC C13 or C19 sockets. Vertical mounting in Zero-U-Space enables efficient use of cabinet space, especially in racks where no U-units are available. The power distribution unit is intended for use in Rittal VX IT and TS IT racks, with tool-free mounting possible thanks to the included mounting kit.

Functions and Equipment in Detail

The power distribution unit features a total of 36 sockets of type IEC C13 and 6 sockets of type IEC C19, distributed across three phases. The phases are colour-coded: L1 in pink, L2 in black, and L3 in white, to enable clear identification. The sockets are fixed-mounted and can be secured with a socket locking mechanism for IEC C14 and C20 plugs, preventing accidental disconnection. Unused sockets can be covered with optional accessories to prevent unintentional overloading of individual phases or circuits. The delivery includes the socket locking mechanism and mounting materials.

Technology Explained Simply

The power distribution unit is designed for three-phase input (3~), with the total power of 22 kW distributed across the three phases. Maximum current draw is 32 A per phase. Power supply is via a permanently mounted connection cable with a CEE plug, 3 m in length. The unit complies with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. The unit is designed for operation in a temperature range of 5 °C to 50 °C, making it suitable for use in typical server rooms. Humidity can reach up to 95 %, provided no condensation occurs.

Compatibility and Accessories

The PDU Basic is specifically developed for use in Rittal VX IT and TS IT racks. Mounting is tool-free using the included mounting kit. Various accessories are available, including surge protection modules Type 3 with replaceable discharge elements during operation, which can be integrated into the PDU housing. These modules offer protection against transient overvoltages and are equipped with status monitoring. Additional accessories include covers for C13 and C19 sockets, CAN-Bus cables for the monitoring system CMC III, mounting adapters, and numeric code locks. The housing colour can be optionally customized.

Mounting and Installation

The PDU Basic can be mounted either horizontally in the 48,3 cm ( 19 inch ) plane or vertically in Zero-U-Space. For vertical mounting in Rittal VX IT or TS IT racks, the unit can be installed tool-free using the included mounting kit. Mounting is done using the mounting materials included in the delivery. The power distribution unit is immediately operational once connected, as the connection cable is permanently mounted.

Operational Advantages

The PDU Basic provides reliable and robust power distribution for IT infrastructures. The colour-coding of phases simplifies assignment and maintenance. The socket locking mechanism and covers for unused sockets enhance safety and prevent overloads. Tool-free mounting in Zero-U-Space optimizes cabinet space. Compliance with relevant standards and directives ensures safe and compatible use. Optionally, the power distribution unit can be equipped with a surge protection module to protect connected devices from transient voltage spikes.

General
ModelPDU Basic
MaterialAluminium extruded profile, anodized, socket positions: plastic
Scope of deliveryPlug lock for IEC C14, C20 plugs, including mounting hardware
OptionsSurge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable in PDU enclosure, other enclosure colours available
Width44 mm
Depth70 mm
Length1.895 mm
Number of sockets and type36 x C13 / 6 x C19
Rated operating voltage400 V (AC)
Rated current (max.)32 A
Nominal power22 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forCabinet type: VX IT cabinet frame: ≥ 2,000 mm, cabinet type: VX IT 19"-profile rails: ≥ 2,200 mm


Product data sheet
Datasheet for Rittal 7979141, EAN: 4028177947573

Questions & answers

What is the delivery time of Rittal 7979141 DK PDU Basic basic power distribution 32A/3P CEE 36x C13 + 6x C19?

The article Rittal 7979141 DK PDU Basic basic power distribution 32A/3P CEE 36x C13 + 6x C19 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979141 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979141 DK PDU Basic basic power distribution 32A/3P CEE 36x C13 + 6x C19 always at the best possible price. We can give you a discount of 2% on Rittal 7979141 DK PDU Basic basic power distribution 32A/3P CEE 36x C13 + 6x C19 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
