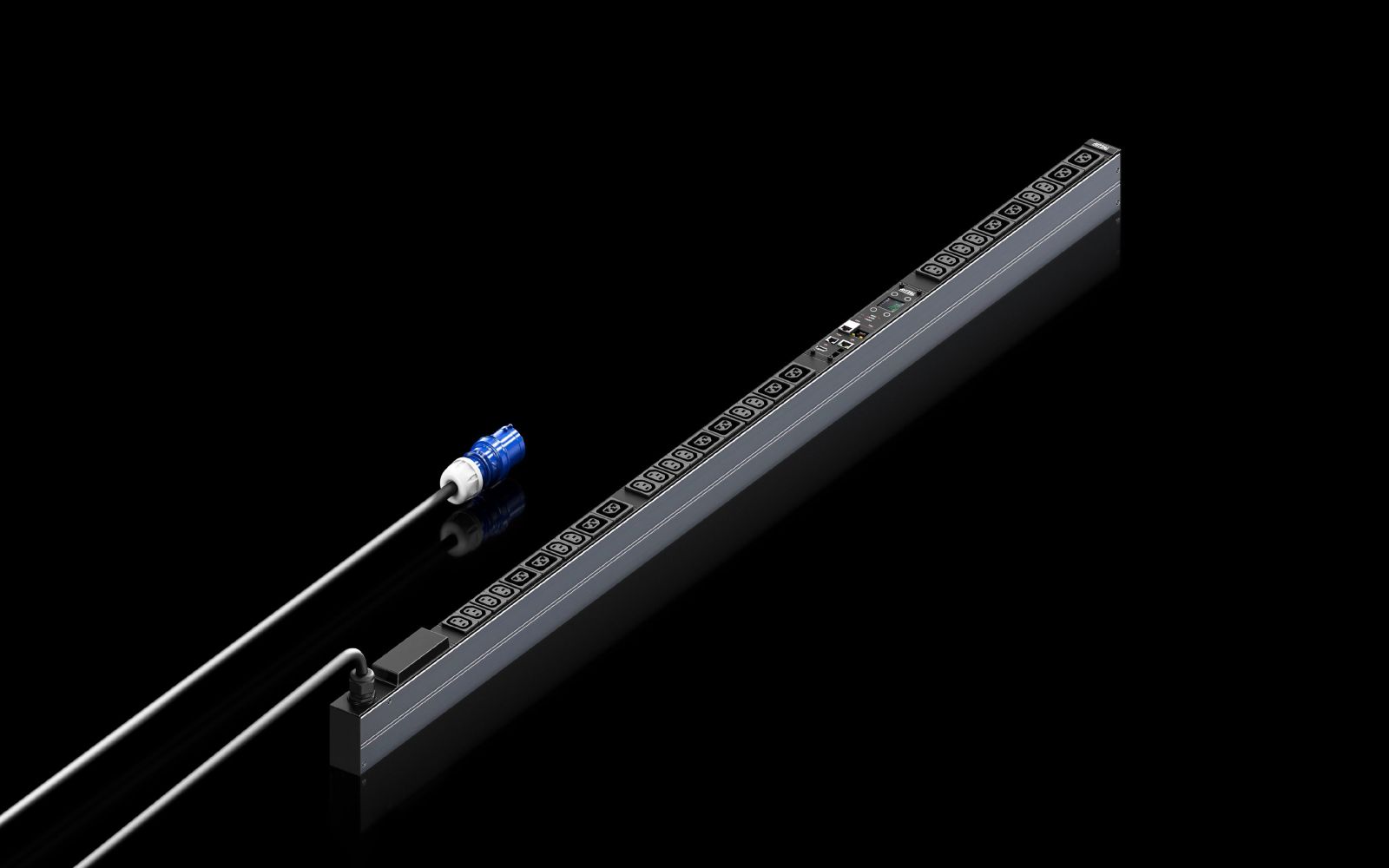

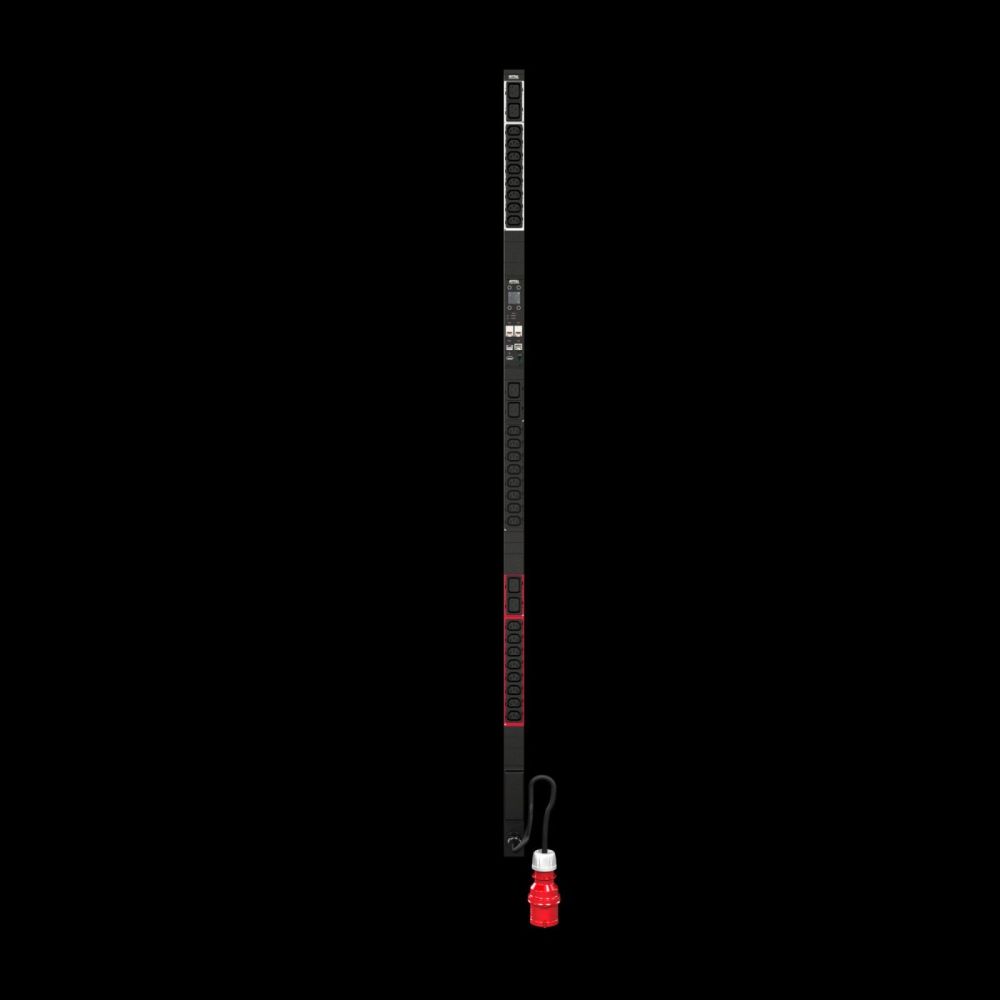

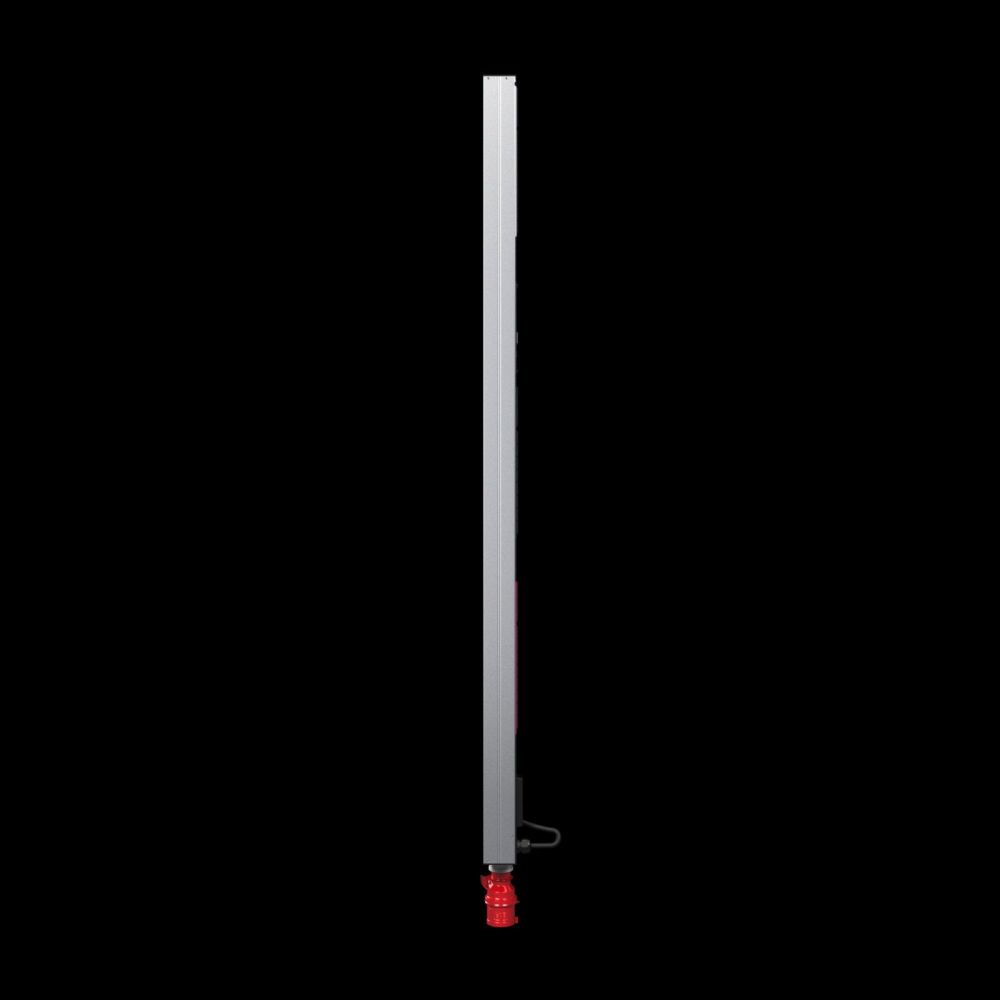

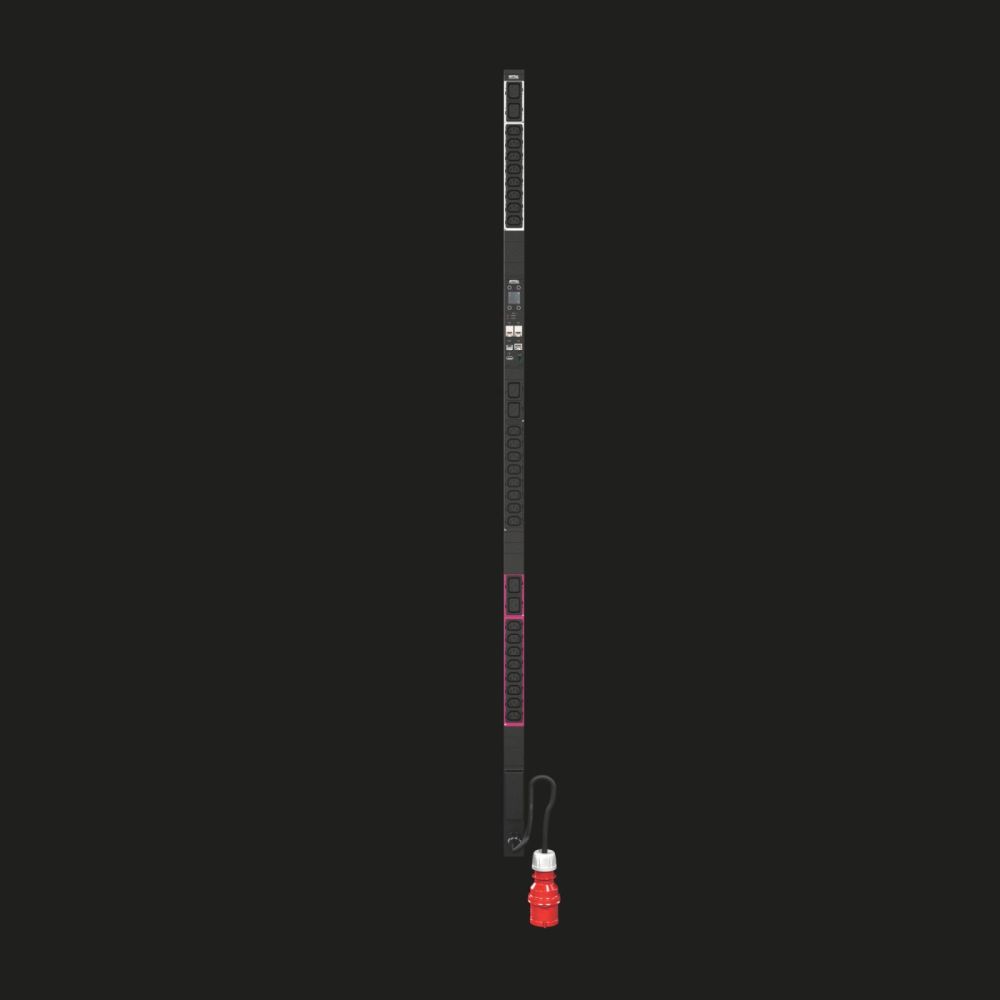

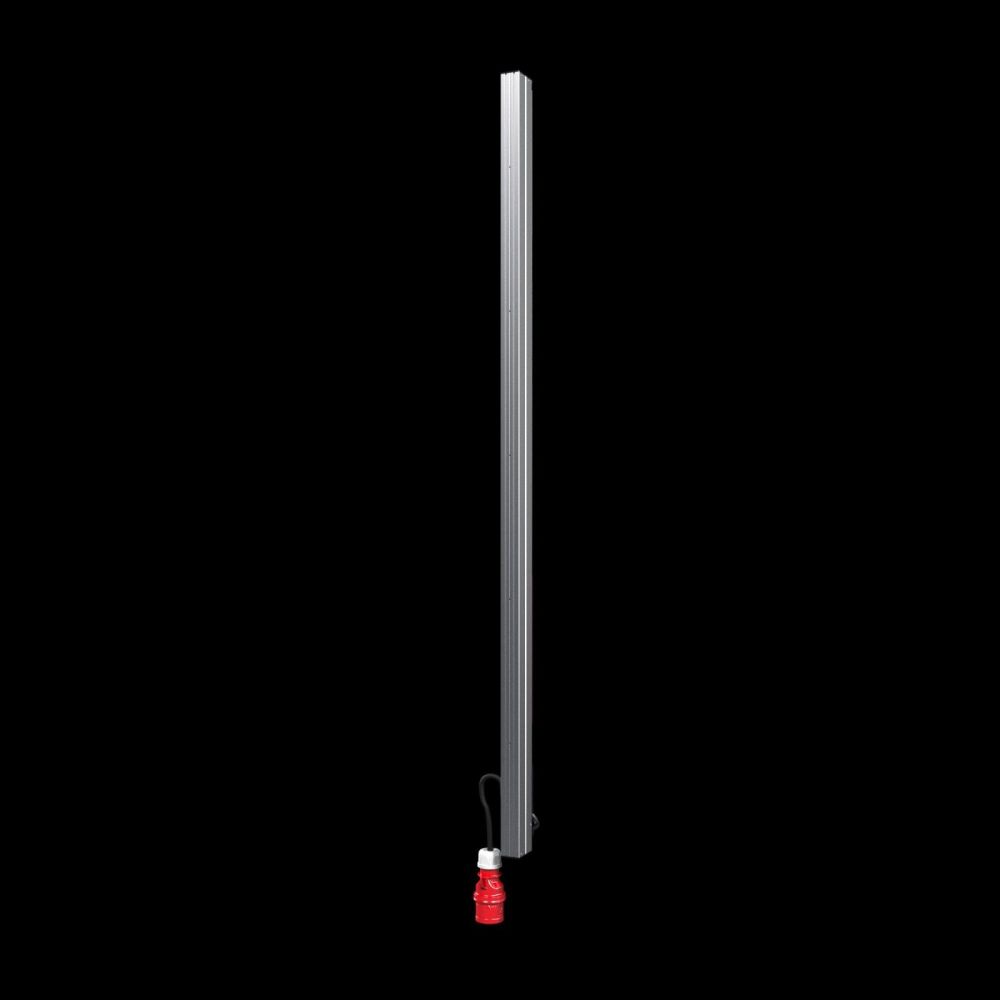

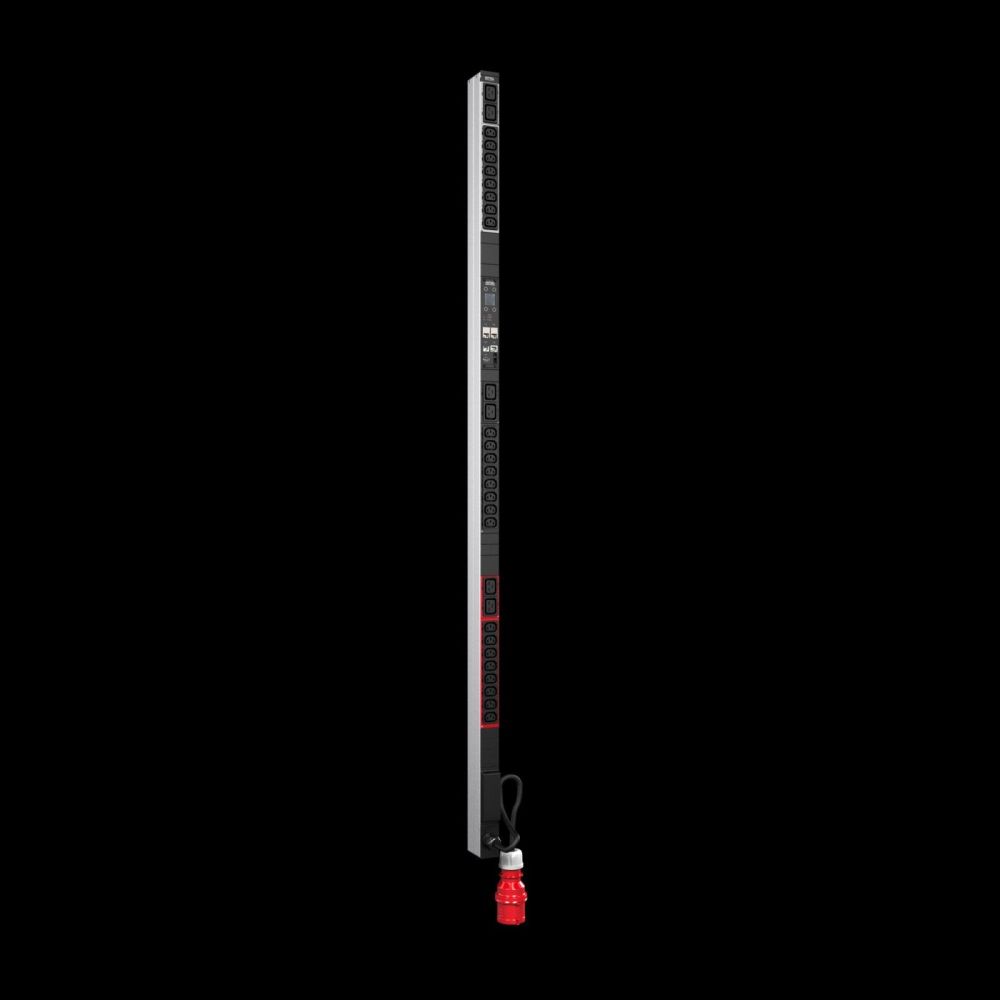

Rittal 7979220 DK DK PDU metered 16 A 1-phase 18x C13 + 12x Combi
|
761,88 EUR 794,48 EUR |
|
|
( 906,64 EUR incl. VAT ) ≈ £637.69 | ≈ $837.31 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 894304 |
| Mfg Part No: | 7979220 |
| UPC/EAN: | 4069196015188 |
| Weight: | 0.123 kg |
| Type: | DK 7979220 |
Product information for Rittal 7979220:
Applications
The PDU is designed for use in IT infrastructures, particularly in server and network racks, where precise energy distribution and monitoring are required. It is suitable for environments where phase-specific or input power consumption measurement is necessary to monitor the total energy demand of an entire rack. The integrated real-time clock with battery backup (up to 10 years, replaceable) enables continuous time measurement even during power failure. The PDU is self-powered and does not require an external power supply.
Functions and Equipment in Detail
The DK 7979220 features 18 C13 outlets and 12 Combi outlets (C13/C19), made of plastic. The rated operating voltage is 230 V AC, with a nominal current of up to 16 A, corresponding to a nominal power of 3.7 kW. The outlets are colour-coded (L1=pink, L2=black, L3=white) to visually distinguish phases and fuse circuits. The integrated measurement function records voltage, current, frequency, active power, active energy, apparent power, reactive energy, power factor (cosPhi), phase angle, and neutral conductor current for imbalance detection. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. A bright TFT display (128x128 pixels, RGB) with backlight and energy-saving mode shows performance data and basic configuration. The display is rotatable by 180° and replaceable. An integrated electromagnetic buzzer provides acoustic alarm.
Technology Explained Simply
The PDU is equipped with a powerful CPU (ARM Cortex A8) that handles measurement and control functions. Power supply is redundant across all phases, ensuring fault-tolerant and reliable operation. The integrated real-time clock with battery backup ensures continuous time measurement even during power failure. The operating hour counters are resettable both globally and cyclically. The PDU includes a compact circuit breaker module (16 A, Carling type) and an integrated, fully redundant power supply. Power is drawn from all phases, ensuring high availability.
Compatibility and Accessories
The PDU is equipped with a variety of interfaces, including a fully redundant Ethernet interface (10/100/1000 Mbit/s), a USB 2.0 interface (USB-A) for mass configuration, firmware updates, and data logging, a CAN-Bus interface (RJ45) for up to 16 environment sensors of type CMC III, and a serial interface RS232 (RJ12) for LTE unit, scripting, and CLI. Protocol support includes Web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, and FTP/SFTP for updates and file transfers. The PDU supports connection to LDAP(S), Radius, Active Directory, and Syslog servers (up to 2 servers). Email alerts on alarm (SMTP) are also possible. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring can be integrated. Differential current measurement (Type B) per input, phase, or fuse is also available. Monitoring of the optional surge protection is possible. CMC III CAN-Bus sensors can be connected, with support for up to 16 sensors. Other housing colours are available optionally.
Installation and Mounting
Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The PDU is designed for vertical mounting and fits into rack frames or 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,800 mm. The connection cable has a length of 3 m and is equipped with a CEE plug. Mounting is done using the included materials.
Operational Advantages
The DK 7979220 offers precise energy measurement with high accuracy (±1 %) and enables detailed monitoring of power consumption. The integrated real-time clock and operating hour counter support maintenance planning and operational behaviour analysis. The redundant power supply increases reliability. The wide range of interfaces and protocols allows flexible integration into existing IT infrastructures and DCIM systems. Adjustable thresholds for voltage, current, and power, along with acoustic alarm via the integrated buzzer, support proactive fault detection. The energy-saving design ensures low self-consumption. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity from 10 % to 95 % (non-condensing). The storage temperature range is -20 °C to 70 °C. The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21.
| General | |
| Model | PDU, metered |
| Material | Aluminium profile, black anodised, mounting slots: plastic |
| Scope of delivery | Including mounting hardware |
| Options | Overvoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available |
| Description of measurement functions | measurement per phase or input, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact) |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 1.695 mm |
| Number of sockets and type | 18 x C13 / 12x Combi (C13/C19) |
| Rated operating voltage | 230 V AC |
| Rated current (max.) | 16 A |
| Nominal power | 3,7 kW |
| Power supplies | Number: 1, Phases per input: 1~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer) |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Housing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm |
