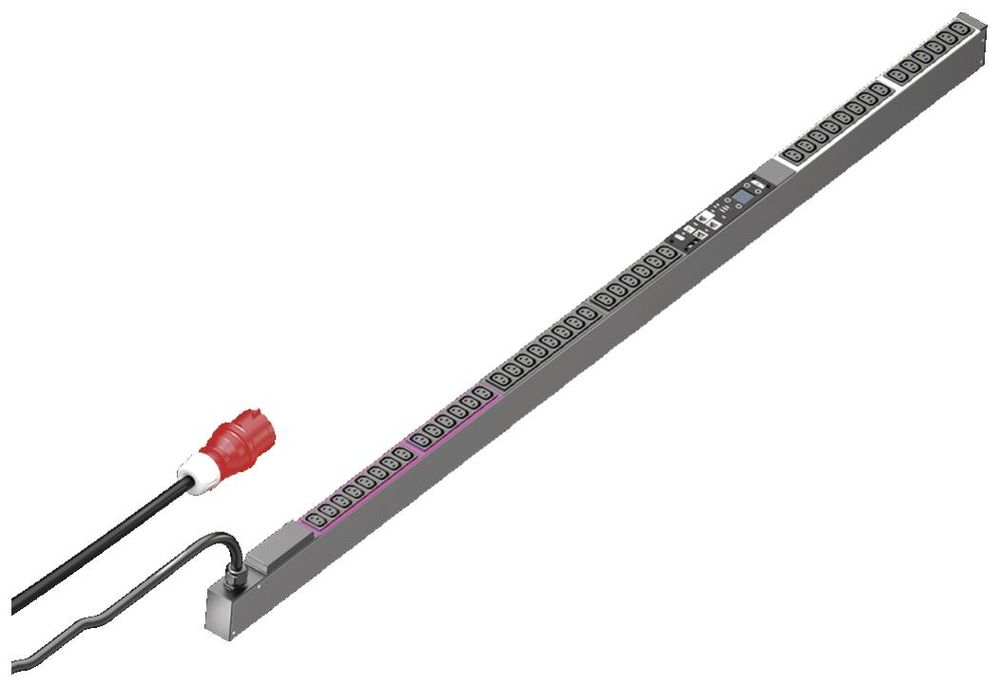

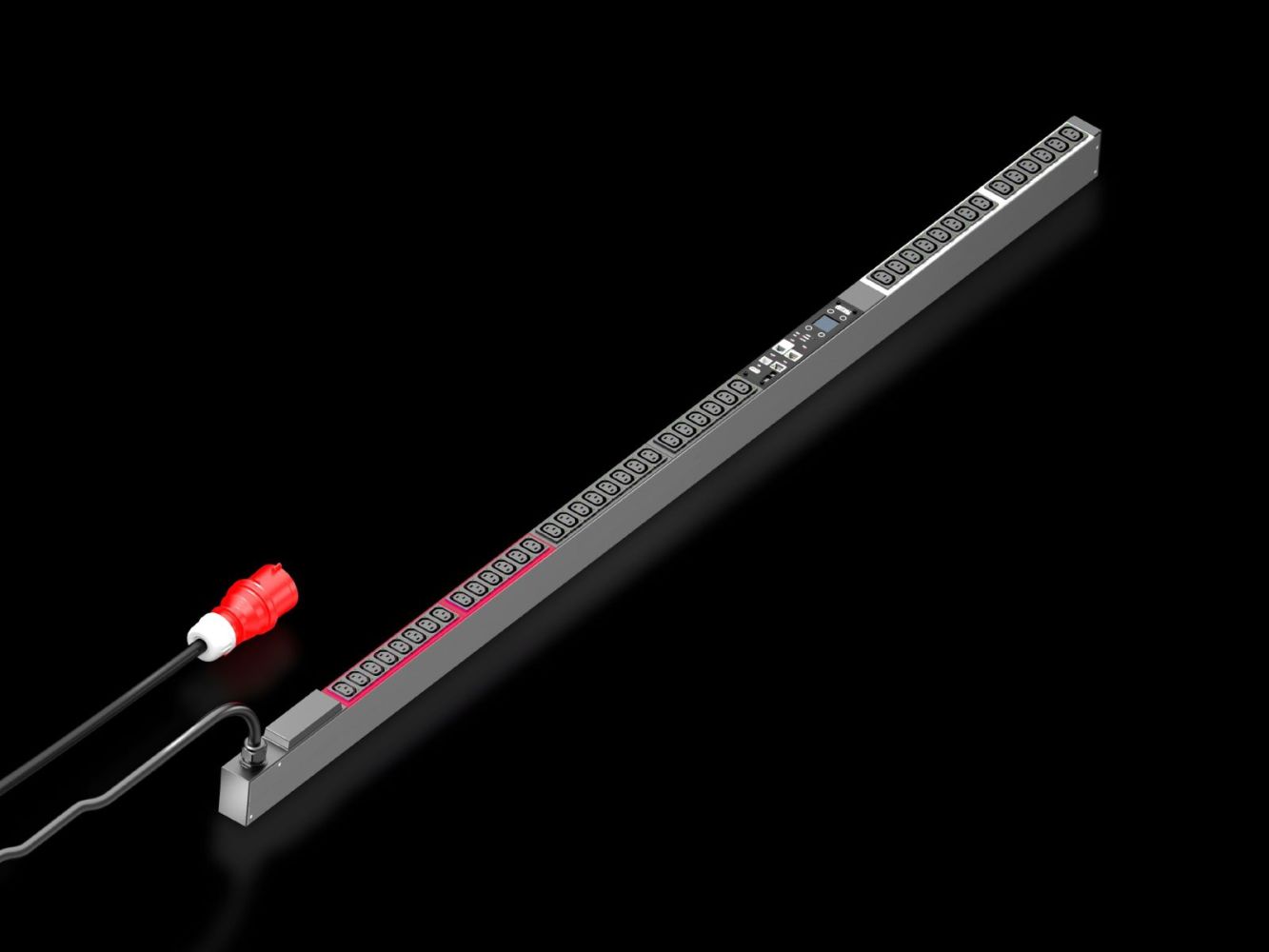

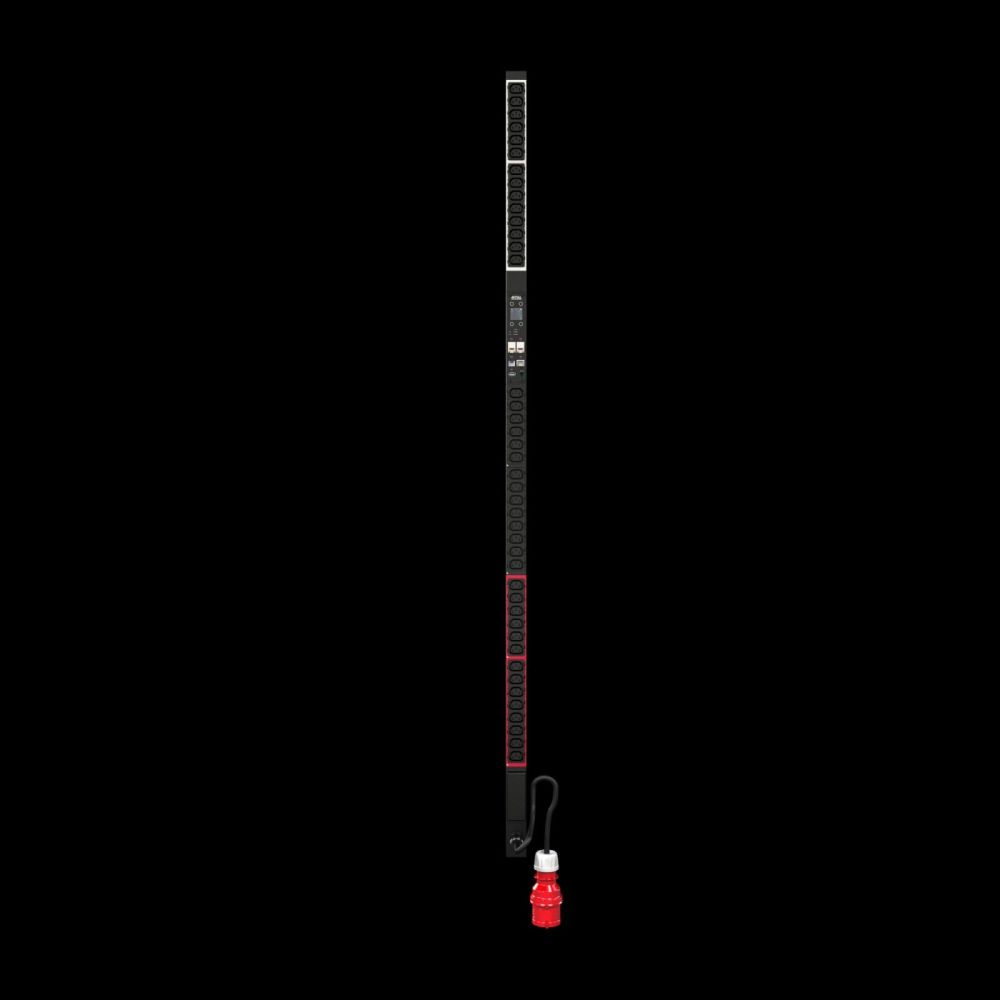

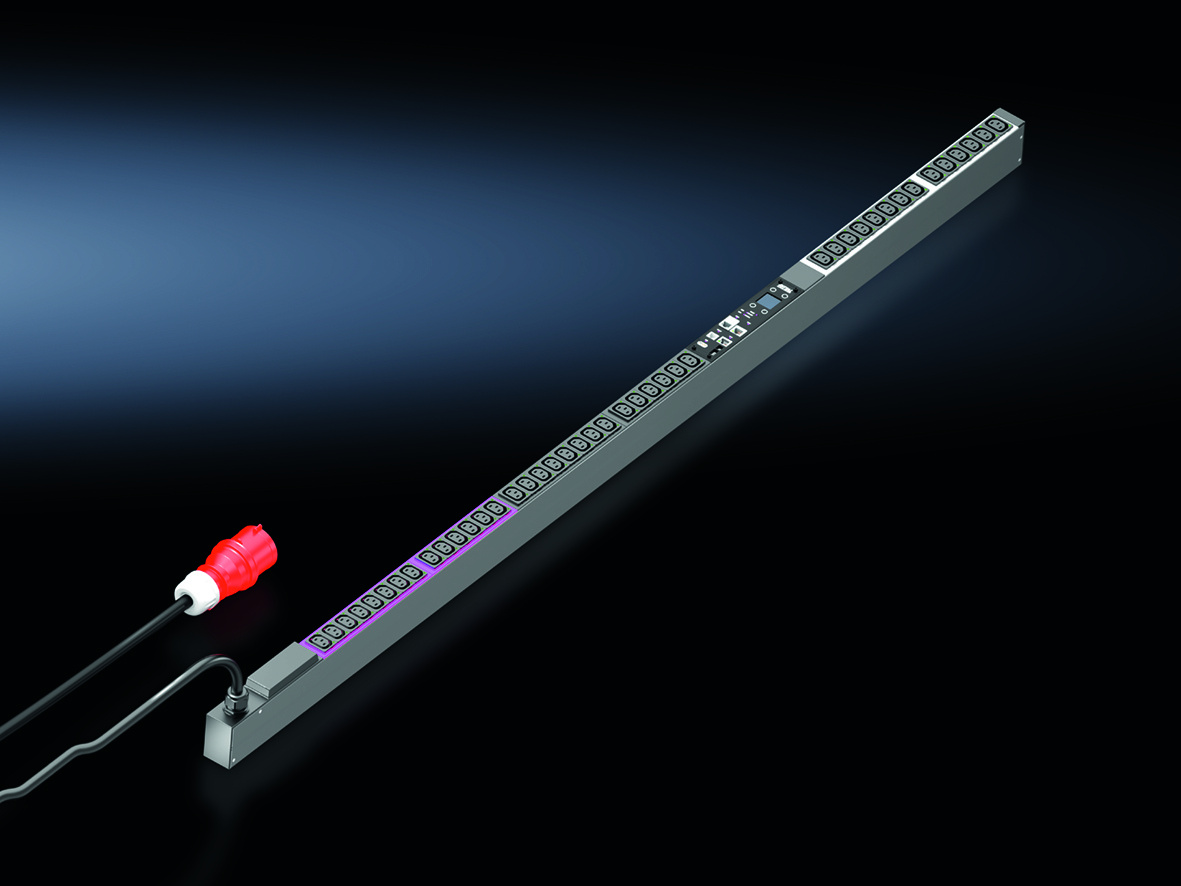

Rittal 7979342 DK PDU switched 16A/3P CEE 42xC13

Your rating:
Average rating
product review for Rittal 7979342 DK PDU switched 16A/3P CEE 42xC13
( 4.5 / 5 ) 2 ratings
Rittal 7979342
This image may differ from the desired article.
Rittal 7979342Rittal 7979342Rittal 7979342Rittal 7979342Rittal 7979342Rittal 7979342Rittal 7979342Rittal 7979342
-10% 1.514,55 EUR 1.675,22 EUR
( 1.802,31 EUR incl. VAT )
≈ £1,267.68  |  ≈ $1,664.49
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979342 DK PDU switched 16A/3P CEE 42xC13
Datasheet:file_download Download
Lieske Part No.:110107
Mfg Part No: 7979342
UPC/EAN: 4028177948037
Weight:6.3 kg
Type:DK 7979342

Product information for Rittal 7979342:

The Rittal DK 7979342 is a switched PDU (Power Distribution Unit) for use in IT network and server racks. It serves as an intelligent power distribution unit with integrated energy measurement per phase and enables individual switching control of the 42 output sockets of type C13. The unit is designed for a rated operating voltage of 400 V (AC) and supports a maximum rated current of 16 A and a rated power of 11 kW. Power supply is via a CEE power cord with a length of 3 m, where the PDU is self-powered and does not require external power supply. The construction from aluminium profile, black anodized, with plastic socket outlets ensures robust and long-lasting use in server environments.

Applications

The PDU is specifically designed for use in racks of type VX IT. When mounted vertically, it can be installed tool-free in the Zero-U-Space of the Rittal VX IT or TS IT rack. The dimensions (width 44 mm, depth 70 mm, length 1,695 mm) allow for compact placement in cabinets with a minimum length of 1,800 mm (cabinet frame) or 2,000 mm (48,3 cm ( 19 inch ) profile rails). The colour-coded phase marking (L1=pink, L2=black, L3=white) supports clear assignment and simplifies maintenance.

Functions and Equipment in Detail

The PDU features integrated energy measurement per phase, ensuring a measurement accuracy of ±1 % (kWh) according to standard EN 62053-21. Measured values include voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current measurement for unbalanced load detection. Switching is performed via bistable relays, which allow low power consumption and high switching capacity even with inrush currents up to 300 A. Relay states are retained even during power failure. Output control can be programmed, for example, via time schedules or logical conditions. The power-on behaviour (on, off, last status) can be individually configured upon power restoration.

Technology Explained Simply

The PDU is equipped with an ARM Cortex A8 processor, ensuring reliable processing of measurement and control data. The integrated real-time clock with battery backup (up to 10 years, replaceable) ensures accurate timekeeping even during power failure. An integrated electromagnetic buzzer enables acoustic alarm signalling when preset thresholds are exceeded. The operating hour counters (total and cyclic) are resettable. Display is via a bright TFT display (128x128 pixels, RGB) with backlight and energy-saving mode. The display unit is rotatable by 180° and replaceable. Multicoloured LEDs (green/yellow/red) indicate switching states and warning or alarm thresholds per phase.

Compatibility and Accessories

The PDU supports a wide range of protocols, including HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, as well as MIBs for integration into DCIM software. Interfaces include a USB 2.0 port (USB-A) for mass configuration, firmware updates, and data logging, a CAN-Bus interface (RJ45) for up to 16 environmental sensors (e.g. CMC III), a serial RS232 interface (RJ12) for LTE unit, scripting, CLI, TLS 1.2, email sending (SMTP), user management with rights management, LDAP(S)/Radius/Active Directory integration, Syslog server connection (up to 2 servers), and a fully redundant Ethernet interface 10/100/1000 Mbit/s. Optional surge protection modules (Type 3) can be integrated, which are replaceable during operation and support status monitoring. Connection of CMC III CAN-Bus sensors enables environmental monitoring.

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of the VX IT rack. The delivery includes the mounting hardware. The PDU is designed for use in racks with a minimum length of 1,800 mm (cabinet frame) or 2,000 mm (48,3 cm ( 19 inch ) profile rails). The integrated power supply is fault-tolerant and redundantly powered across all phases.

Operational Advantages

The PDU offers high operational reliability through redundant power supply, integrated alarm signalling, and precise energy measurement. Individual control of outputs enables optimized load distribution and prevents overload peaks through sequential switching. Support for DCIM software and standard protocols simplifies integration into existing infrastructures. Low self-consumption and energy-efficient design reduce operating costs. The integrated real-time clock and storage of relay states ensure continuous operational monitoring even during power failure.

Standards and Regulations

The PDU complies with the EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU. Standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 are met. Operating temperature ranges from 5 °C to 50 °C, relative humidity (non-condensing) from 10 % to 95 %. Storage temperature is from -20 °C to 70 °C.

General
ModelPDU, switched
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
Width44 mm
Depth70 mm
Length1.695 mm
Number of sockets and type42 x C13
Socket outlets42 x C 13
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesPhases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 2,000 mm


Product data sheet
Datasheet for Rittal 7979342, EAN: 4028177948037
