Rittal 7979221 DK DK PDU metered 32A 1-phase 12xC13+8xCombi

Your rating:
Average rating
product review for Rittal 7979221 DK DK PDU metered 32A 1-phase 12xC13+8xCombi
( 5 / 5 ) 1 ratings

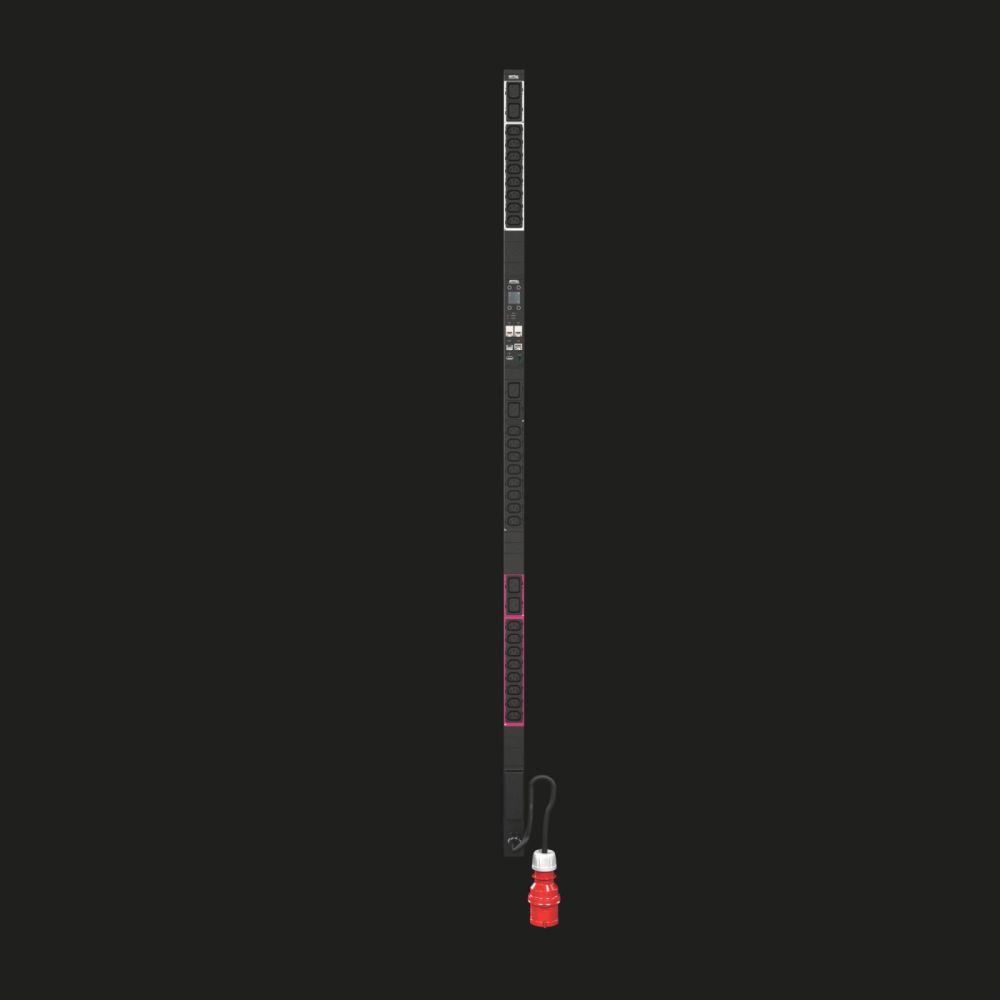

Rittal 7979221
This image may differ from the desired article.
Rittal 7979221Rittal 7979221Rittal 7979221Rittal 7979221Rittal 7979221Rittal 7979221
780,16 EUR 813,54 EUR
( 928,39 EUR incl. VAT )
≈ £652.99  |  ≈ $857.40
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979221 DK DK PDU metered 32A 1-phase 12xC13+8xCombi
Datasheet:file_download Download
Lieske Part No.:894305
Mfg Part No: 7979221
UPC/EAN: 4069196015171
Weight:0.123 kg
Type:DK 7979221

Product information for Rittal 7979221:

The Rittal DK 7979221 is a PDU (Power Distribution Unit) with integrated energy measurement per phase, specifically designed for use in IT network and server racks. As a metered PDU, it offers detailed power distribution and monitoring, with measurement per input or per phase. The device is housed in a compact aluminium profile with a black anodized surface, measuring 1,295 mm in length, 44 mm in width, and 70 mm in depth. It is intended for use in Rittal VX IT rack frames or 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,800 mm. Installation is tool-free in Zero-U-Space, with a tool-free mounting kit available for VX IT. The delivery includes mounting hardware.

Applications

The PDU is designed for use in IT infrastructures, particularly in server and network racks, where precise energy distribution and monitoring are required. It is suitable for environments where phase or input-based power consumption measurement is used for optimizing energy efficiency, load balancing, or fault diagnosis. The integrated real-time clock with battery backup (up to 10 years, replaceable) enables accurate timestamping of measurement data, even during power failure. The PDU is self-powered and does not require external power supply.

Functions and Equipment in Detail

The DK 7979221 features 12 C13 outlets and 8 Combi outlets (C13/C19), made of plastic. The rated operating voltage is 230 V (AC), with a maximum rated current of 32 A, corresponding to a rated power of 7.4 kW. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. The PDU measures voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current for unbalanced load detection. Additionally, fuse monitoring is performed for PDUs with integrated fuses. A bright TFT display with 128x128 pixels (RGB) and backlighting shows power data and basic configuration. The display is rotatable by 180° and replaceable. An integrated electromagnetic buzzer provides acoustic alarm. Total and cyclic operating hour counters are available and resettable. The phase color coding (L1=pink, L2=black, L3=white) facilitates identification.

Technology Explained Simply

The PDU is equipped with a powerful CPU (ARM Cortex A8) that handles measurement and control functions. Power supply is redundant across all phases, ensuring fault-tolerant and reliable operation. Integrated power distribution is achieved via compact circuit breakers (16 A, Carling type). The PDU features a fully redundant Ethernet interface (10/100/1000 Mbit/s) for communication with network and monitoring systems. Interfaces also include a USB 2.0 port (USB-A) for mass configuration, firmware updates, and data logging, a CAN-Bus interface (RJ45) for up to 16 environmental sensors (CMC III), and a serial interface RS232 (RJ12) for LTE unit, scripting, and CLI. The PDU supports protocols such as Web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and MIB for integration into 3rd party DCIM software. FTP/SFTP is supported for updates and file transfers. User management includes rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server connection (up to 2 servers). Integrated email alerting (SMTP) is also available.

Compatibility and Accessories

The PDU is expandable with optional components, including a Type 3 surge protection device with replaceable discharge elements during operation, which can be integrated into the PDU housing. Differential current measurement (Type B) per input, phase, or fuse is also possible. Monitoring of the optional surge protection is integrated. Connection of CMC III CAN-Bus sensors for environmental monitoring is possible, with up to 16 sensors connectable. Accessories include CAN-Bus cables (0.5 m, 1.0 m, 1.5 m), connection cables, covers for C13 and C19 sockets, mounting adapters, universal locking mechanisms, numeric code lock, transponder reader, and online comfort handles.

Installation and Mounting

Installation is tool-free in Zero-U-Space of Rittal VX IT or TS IT racks. The PDU is connected to the input via a 3 m long connection cable with CEE plug. The phase color coding (L1=pink, L2=black, L3=white) supports correct assignment. The integrated real-time clock with battery backup ensures timestamping of measurement data even during power failure. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity levels from 10 % to 95 % (non-condensing). Storage temperature ranges from -20 °C to 70 °C.

Operational Advantages

The DK 7979221 offers high measurement accuracy (±1 %) and comprehensive energy monitoring with detailed data on voltage, current, power, and energy consumption. The integrated network interface enables remote monitoring and control via various protocols. The fully redundant power supply ensures reliability. Tool-free installation and the integrated real-time clock with battery backup enhance operational safety. Integration with DCIM software and support for email alerts simplify integration into existing IT infrastructures. The energy-efficient design with low self-consumption reduces the PDU's own energy demand.

Standards and Regulations

The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Standards include EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. The measurement accuracy of ±1 % (kWh) is certified according to EN 62053-21. The PDU is compliant for use in IT infrastructures according to the mentioned standards and directives.

General
ModelPDU, metered
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsmeasurement per phase or input, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.295 mm
Number of sockets and type12 x C13 / 8x Combi (C13/C19)
Rated operating voltage230 V (AC)
Rated current (max.)32 A
Nominal power7,4 kW
Power suppliesNumber: 1, Phases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979221, EAN: 4069196015171
