Rittal 7979420 DK PDU managed 16A 1-phase 12xC13+12xCombi

Your rating:
Average rating
product review for Rittal 7979420 DK PDU managed 16A 1-phase 12xC13+12xCombi
( 4.3 / 5 ) 3 ratings

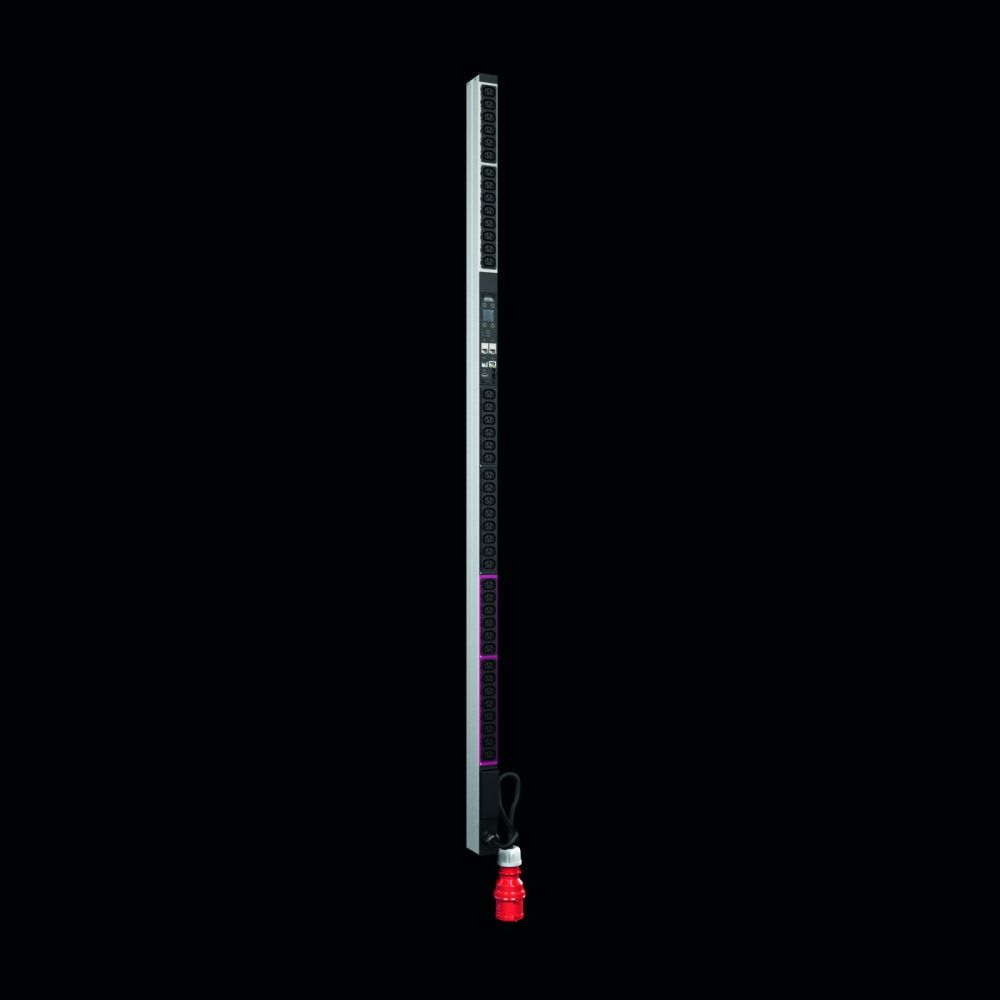

Rittal 7979420
This image may differ from the desired article.
Rittal 7979420Rittal 7979420Rittal 7979420Rittal 7979420Rittal 7979420Rittal 7979420
1.858,98 EUR 1.938,52 EUR
( 2.212,19 EUR incl. VAT )
≈ £1,555.97  |  ≈ $2,043.02
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979420 DK PDU managed 16A 1-phase 12xC13+12xCombi
Datasheet:file_download Download
Lieske Part No.:895256
Mfg Part No: 7979420
UPC/EAN: 4069196015102
Weight:0.123 kg
Type:DK 7979420

Product information for Rittal 7979420:

The Rittal DK 7979420 is a managed PDU (Power Distribution Unit) for use in IT network and server racks. It is designed for power distribution and provides comprehensive energy measurement and monitoring functions for each individual outlet socket. The unit is designed for use in 19-inch enclosures and can be mounted vertically in the Zero-U-Space of Rittal VX IT or TS IT racks without tools. The PDU is made of aluminium profile, black anodized, with sockets made of plastic. Dimensions are 44 mm width, 70 mm depth, and 1,495 mm length.

Applications
The PDU is designed for use in IT infrastructures, particularly in data centres, server rooms, and network racks. It is suitable for applications requiring precise energy monitoring, load distribution, and remote control of power supply. The unit is suitable for enclosure types with a minimum length of 1,800 mm, both for VX IT frame enclosures and 48,3 cm ( 19 inch ) profile rails.

Functions and Equipment in Detail
The DK 7979420 features 12 C13 sockets and 12 Combi sockets (C13/C19), enabling flexible connection of various IT devices. The rated operating voltage is 230 V (AC), with a maximum rated current of 16 A, corresponding to a rated power of 3.7 kW. Power supply is via a CEE plug with a 3 m long supply cable. The PDU is self-powered, requiring no external power supply. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21.

Technology Explained Simply
The PDU is equipped with an integrated, fully redundant power supply unit that can be powered from all phases, ensuring fault-tolerant power supply. Control is performed via a powerful CPU (ARM Cortex A8). The integrated real-time clock with battery backup (up to 10 years, replaceable) ensures time accuracy even during power failure. Switching functions include programmable power-on behaviour after voltage recovery (on/off/last status) and programmable switching behaviour via time or logic control. The relays are bistable, enabling low power consumption and high switching capacity even at high inrush currents (up to max. 300 A). Relay states are retained even during power failure.

Compatibility and Accessories
The PDU can be connected to up to 16 CMC III CAN-Bus sensors for environmental monitoring. Various CAN-Bus cables (0.5 m, 1.0 m, 1.5 m) and a connection cable are available for this purpose. Additional accessories include covers for C13 and C19 sockets, mounting adapters, a universal locking device for C14/C20 plugs, a numeric code lock, a transponder reader, and an online comfort handle with master key function. The PDU supports connection to LDAP(S), Radius, Active Directory, and Syslog servers (max. 2 servers). User management includes rights management.

Mounting and Installation
Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes the required mounting hardware. Phase colour coding (L1=pink, L2=black, L3=white) facilitates assignment. The display/controller unit is rotatable and replaceable within the enclosure by 180°. Display is via a bright TFT screen with 128x128 pixels (RGB) and backlighting. Multicolour LEDs (green/yellow/red) indicate switching status and thresholds for each outlet socket.

Operational Advantages
The PDU enables precise energy monitoring per outlet socket, including measurement of voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current. Adjustable thresholds (warning/alarm) for voltage, current, and power per outlet socket enable individual monitoring. An integrated electromagnetic buzzer provides acoustic alarm. The PDU supports protocols such as HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB, and FTP/SFTP. Interfaces include USB 2.0 (USB-A), CAN-Bus (RJ45), RS232 (RJ12), and a fully redundant Ethernet interface (10/100/1000 Mbit/s). Integrated email notification on alarm (SMTP) and support for TLS 1.2 for secure communication are provided. The PDU is designed for operation at temperatures from 5 °C to 50 °C and humidity from 10 to 95 % (non-condensing). Storage temperature range is -20 °C to 70 °C. Compliance with directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21 is guaranteed.

General
ModelPDU, managed
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsCMC III CAN-Bus sensors for environmental monitoring connectable, max. 16 sensors
Width44 mm
Depth70 mm
Length1.495 mm
Number of sockets and type12 x C13 / 12x Combi (C13/C19)
Rated operating voltage230 V (AC)
Rated current (max.)16 A
Nominal power3,7 kW
Power suppliesNumber: 1, Phases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979420, EAN: 4069196015102
