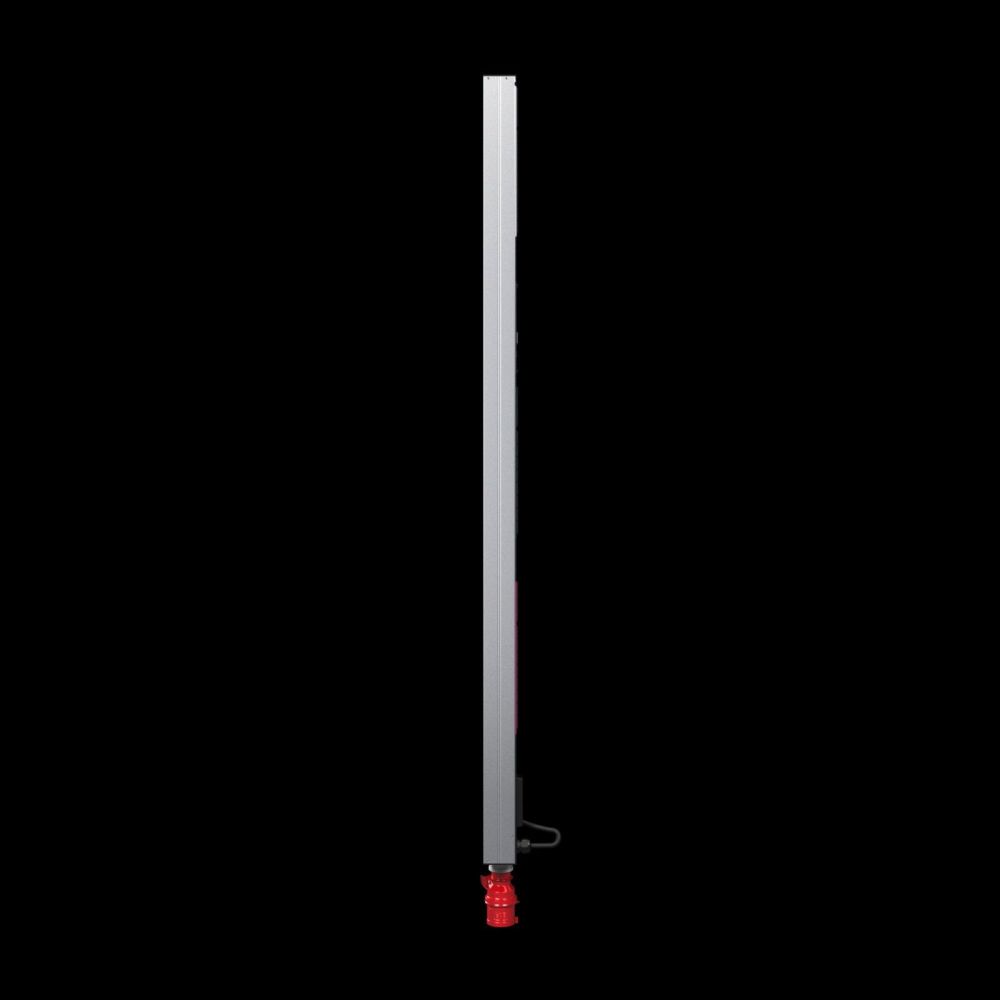

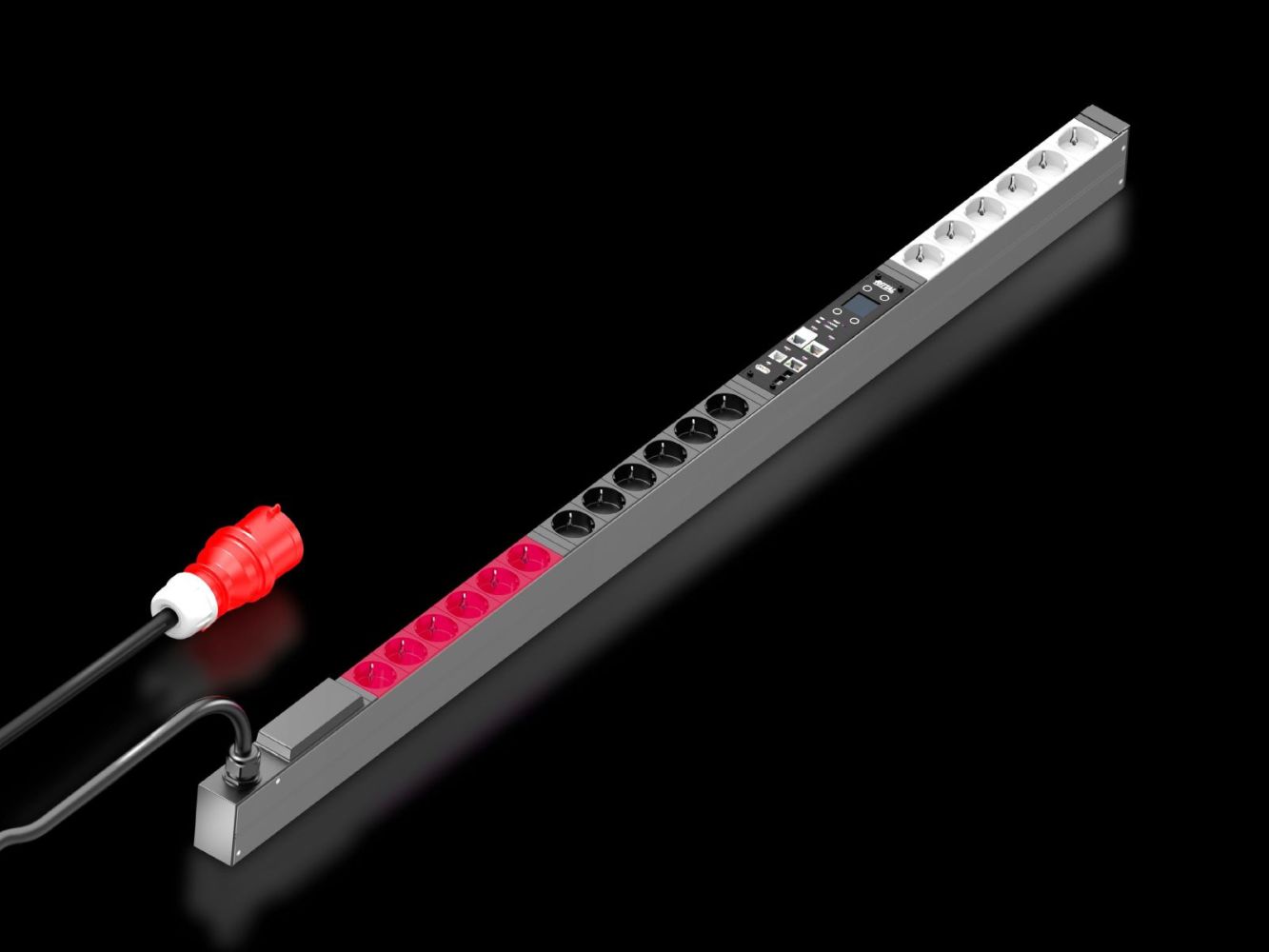

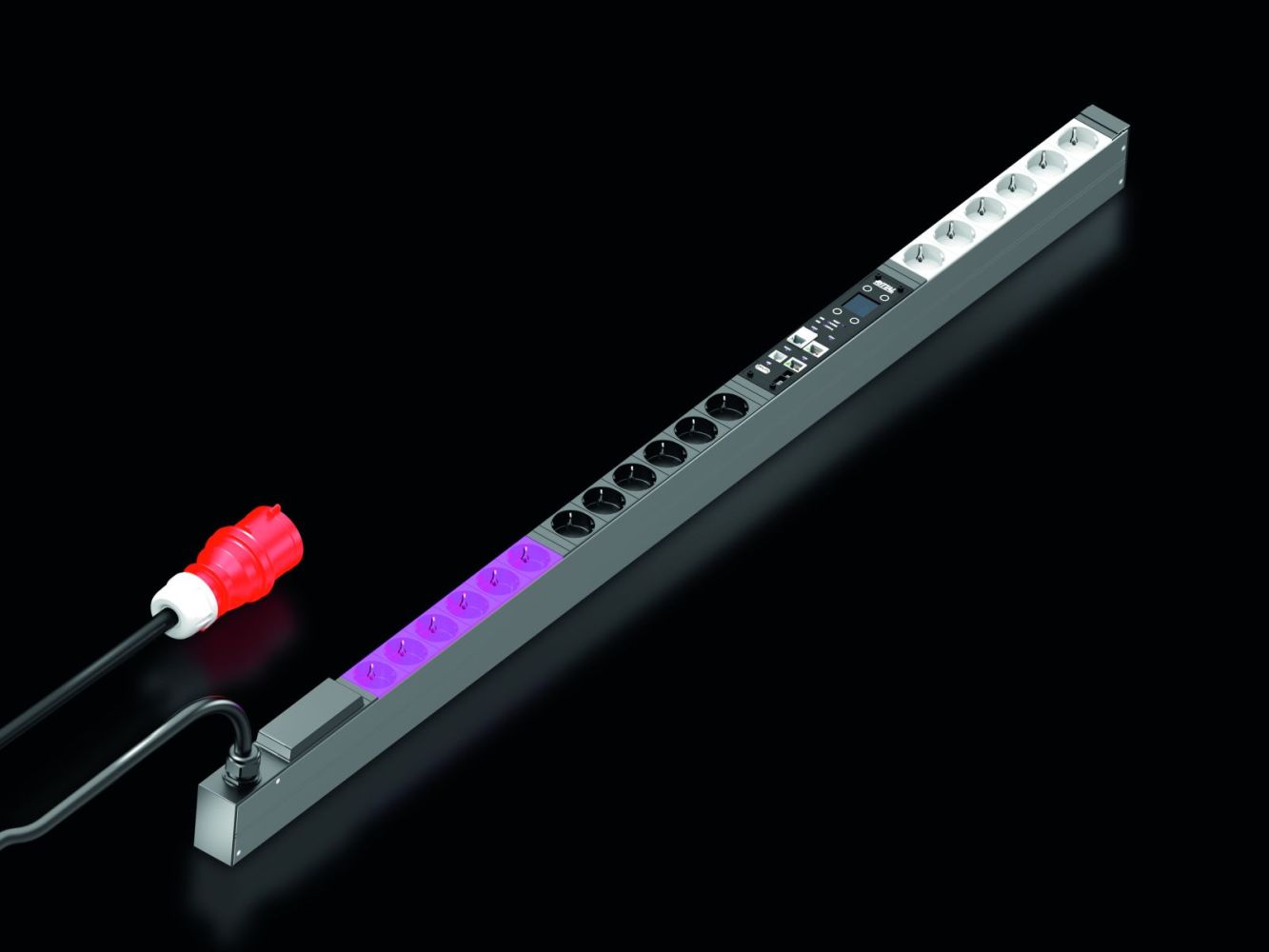

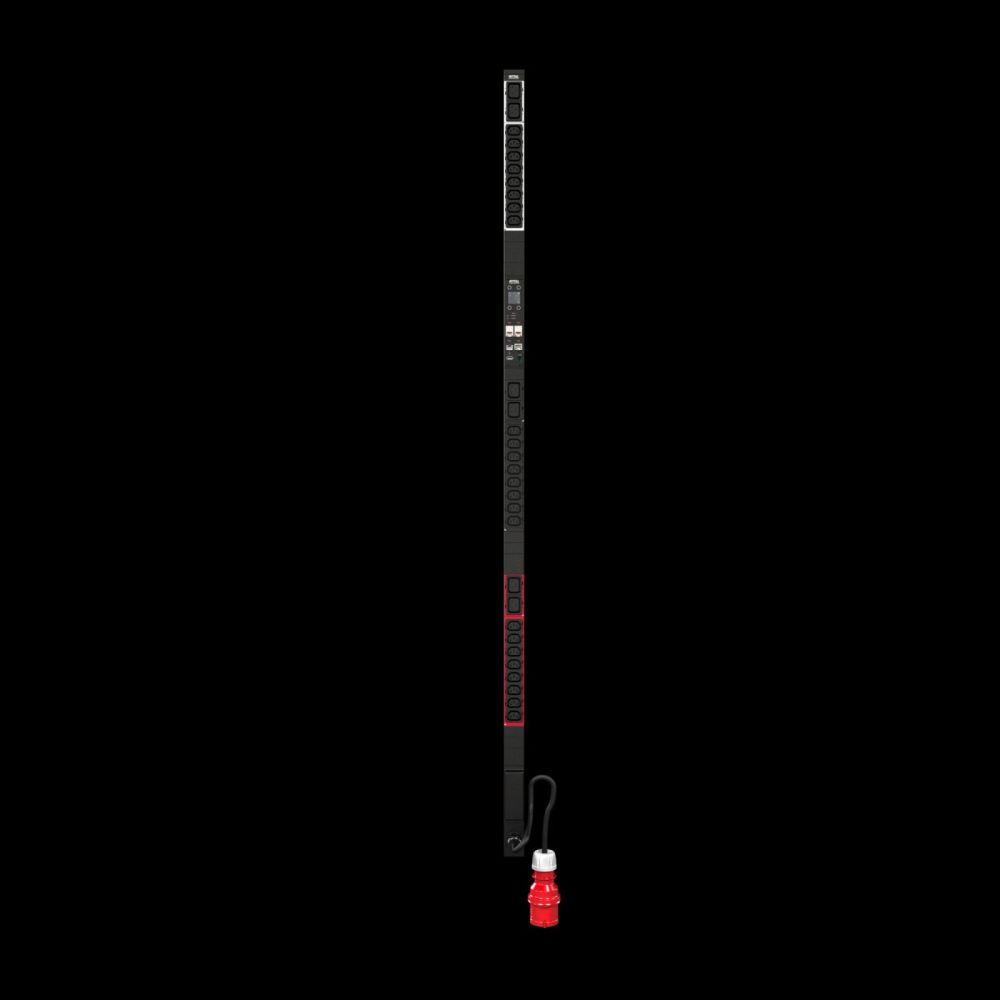

Rittal 7979233 PDU metered 16A/3P CEE 18 x CEE7/3 Schuko

Your rating:
Average rating
product review for Rittal 7979233 PDU metered 16A/3P CEE 18 x CEE7/3 Schuko
( 0 / 5 ) 0 ratings
Rittal 7979233
This image may differ from the desired article.
Rittal 7979233Rittal 7979233Rittal 7979233Rittal 7979233Rittal 7979233Rittal 7979233Rittal 7979233
719,53 EUR 738,07 EUR
( 856,24 EUR incl. VAT )
≈ £602.25  |  ≈ $790.76
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979233 PDU metered 16A/3P CEE 18 x CEE7/3 Schuko
Datasheet:file_download Download
Lieske Part No.:593559
Mfg Part No: 7979233
UPC/EAN: 4028177947733
Weight:5.71 kg
Type:DK 7979233

Product information for Rittal 7979233:

The Rittal DK 7979233 is a PDU (Power Distribution Unit) with integrated energy measurement, specifically designed for use in IT network and server racks. As a metered PDU, it enables precise measurement of power consumption per phase and at the input, allowing the energy demand of an entire rack to be monitored. The device features a fully redundant power supply, powered from all phases, and is self-powered, so no external power supply is required. The measurement accuracy is ±1 % (kWh) in accordance with the standard EN 62053-21, ensuring reliable energy accounting. The PDU is constructed in an aluminium profile, black anodized, with socket outlets made of plastic. Dimensions are 44 mm (width) × 1,295 mm (length) × 70 mm (depth), making it suitable for use in standardized 19-inch systems.

Applications include power distribution in IT infrastructures, particularly in racks from the Rittal VX IT and TS IT series. Vertical mounting is tool-free in Zero-U-Space, optimizing rack space. The PDU is designed for enclosures with a minimum length of 1,800 mm, suitable for both cabinet frames and 19-inch profile rails. The phase colour coding (L1=pink, L2=black, L3=white) simplifies assignment and maintenance. The integrated real-time clock with battery backup (up to 10 years, replaceable) ensures accurate documentation of operational data, even during power failure.

Functions and equipment in detail include a powerful CPU (ARM Cortex A8) enabling processing of measurement data and communication via various interfaces. The PDU features a bright TFT display (128x128 pixels, RGB) with backlighting and energy-saving mode, showing performance data and basic configuration. The display unit is rotatable by 180° and replaceable, facilitating operation at different mounting positions. An integrated electromagnetic buzzer provides acoustic alarm for exceeding set threshold values. The operating hour counters are resettable both total and cyclically, supporting use in maintenance and service planning.

Technology explained simply shows that the PDU features a fully redundant Ethernet interface (10/100/1000 Mbit/s) suitable for communication with network management systems and DCIM software (Data Center Infrastructure Management). The interfaces include a USB 2.0 port (USB-A) for mass configuration, firmware updates, and data recording, a CAN-Bus interface (RJ45) for connecting up to 16 CMC III environmental sensors, and a serial RS232 interface (RJ12) for LTE modules, scripting, and CLI access. The PDU supports protocols such as HTTP/HTTPS, SSH, Telnet, SNMP v1/v2c/v3, Modbus/TCP, OPC-UA and enables integration into external systems via MIBs. User management including rights management, as well as connection to LDAP(S), Radius, or Active Directory, allows secure and structured access control. E-mail alerts (SMTP) and Syslog server connection (up to 2 servers) support monitoring and fault resolution.

Compatibility and accessories include the option to integrate surge protection Type 3 with replaceable discharge elements during operation, with status monitoring. Residual current measurement (Type B) per input, phase, or fuse is also possible. Connection of CMC III CAN-Bus sensors for environmental monitoring (e.g. temperature, humidity) is feasible via the CAN-Bus interface. Available accessories include various CAN-Bus cables (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 sockets, mounting adapters, universal locks, and numeric code lock for CMC III. The PDU can also be combined with a VX IT CMC III transponder reader and an online comfort handle VX with master key function.

Mounting and installation is tool-free in the Zero-U-Space of Rittal VX IT and TS IT racks. The delivery includes fastening material to facilitate installation. The connection cable has a length of 3 m and is equipped with a CEE plug. The PDU is designed for a rated operating voltage of 400 V (AC), with a rated current of 16 A and a rated power of 11 kW. Operating temperature ranges from 5 °C to 50 °C, and relative humidity (non-condensing) from 10 % to 95 %. Storage temperature is from -20 °C to 70 °C.

Operational advantages include high measurement accuracy, integrated network communication, and remote monitoring capability. The energy-saving design with low self-consumption reduces the PDU’s own energy demand. Adjustable thresholds for voltage, current, and power allow individual adaptation to the requirements of installed devices. The integrated fuse monitoring for PDUs with integrated fuses supports fault diagnosis. The fully redundant power supply increases reliability, as the PDU can continue operating even if one phase fails. Connection to DCIM software enables centralized management and analysis of energy consumption in the data center.

The PDU complies with the EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU. Standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 ensure safety and functionality. Protocol support includes TCP/IP v4 & v6, DHCP, DNS, NTP, FTP/SFTP, facilitating integration into existing networks. Certification according to EN 62053-21 for energy measurement ensures the accuracy of measured values. The PDU is designed for use in IT infrastructures where precise energy consumption measurement and control are required. The integrated environmental monitoring via CMC III sensors extends functionality to critical parameters such as temperature and humidity, which are decisive for the operational safety of IT systems.

Key terms in the text: PDU, energy measurement, 19-inch technology, EN 62053-21, CAN-Bus, DCIM software.

General
ModelPDU, metered
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsmeasurement per phase or input, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.295 mm
Number of sockets and type18 x Schuko (Type F, CEE 7/3)
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979233, EAN: 4028177947733

Questions & answers

What is the delivery time of Rittal 7979233 PDU metered 16A/3P CEE 18 x CEE7/3 Schuko?

The article Rittal 7979233 PDU metered 16A/3P CEE 18 x CEE7/3 Schuko is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979233 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979233 PDU metered 16A/3P CEE 18 x CEE7/3 Schuko always at the best possible price. We can give you a discount of 2% on Rittal 7979233 PDU metered 16A/3P CEE 18 x CEE7/3 Schuko if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
