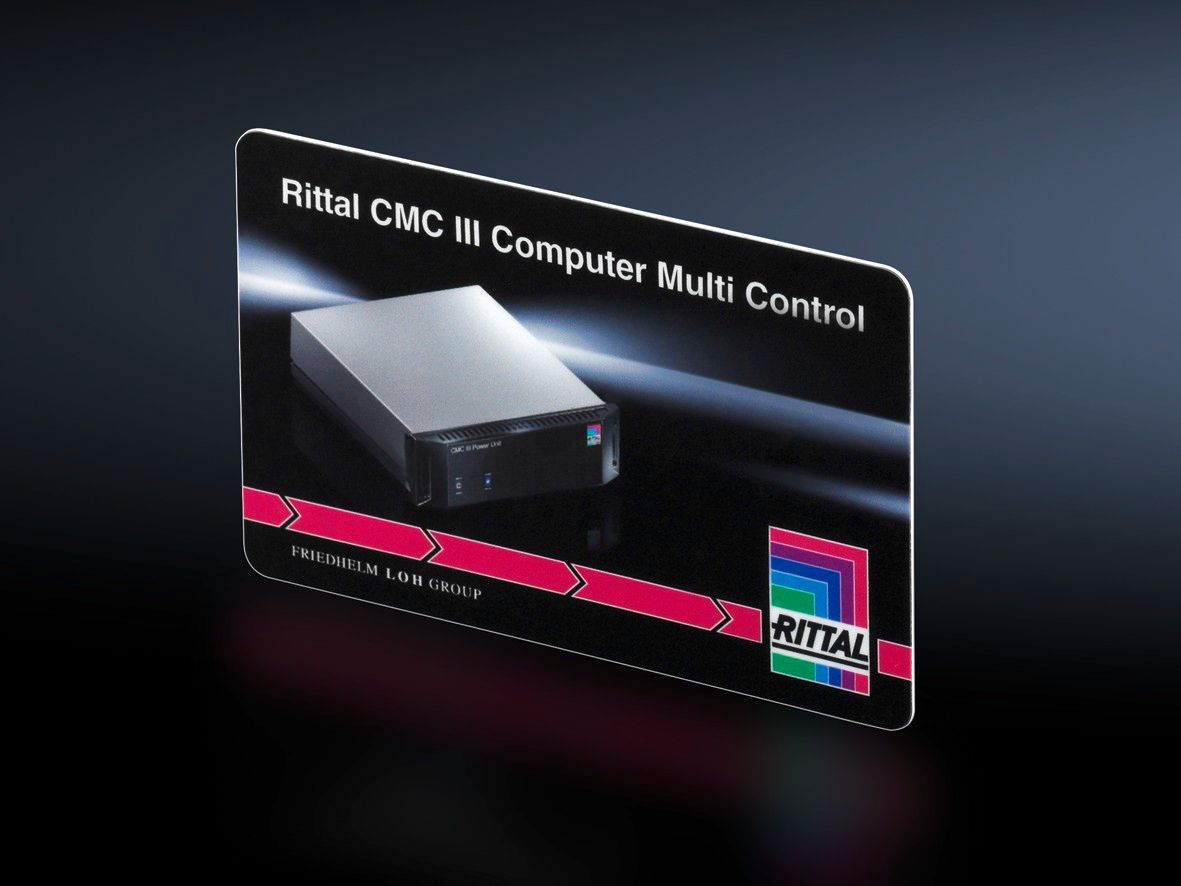

Rittal 7030628
This image may differ from the desired article.
24,50 EUR
( 29,15 EUR incl. VAT )
≈ £20.51  |  ≈ $26.93
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 7030628 Transponder card Mifare classic
Datasheet:file_download Download
Lieske Part No.:593710
Mfg Part No: 7030628
UPC/EAN: 4028177926134
Weight:0.014 kg
Type:IT 7030628

Product information for Rittal 7030628:

The Transponder card IT 7030628 from Rittal is a contactless chip card in Mifare Classic 1k format, designed for personalized authentication in industrial enclosure systems. It serves as an access card for opening doors equipped with suitable readers, particularly in conjunction with the CMC III Transponder reader for CMC III and IoT Interface, as well as the CMC III wireless comfort handle VX with integrated card reader. The card is compactly dimensioned with a width of 85 mm, a height of 54 mm, and a depth of 1 mm, making it suitable for use in standardized enclosure environments.

Applications

The card is specifically designed for use in industrial environments where secure and controlled access control is required. It is used in systems operating on transponder technology, particularly in combination with the mentioned Rittal readers. Authentication is contactless, enabling fast and hygienic access control. The card is designed for use in systems with up to 16 users per PU (Power Unit), with a maximum of two users supported when used with a PU compact. When powered via PoE (Power over Ethernet), a maximum of five cards per PDU (Power Distribution Unit) is possible.

Functions and Equipment in Detail

The transponder card is based on Mifare Classic 1k technology, a widely used contactless RFID technology known for its reliability and compatibility in access control systems. The card enables user identification and authentication, with data transmitted via short-range wireless communication between the card and the reader. The card is available in a packaging unit of two pieces, sufficient for small to medium applications.

Technology Explained Simply

The card operates contactlessly, meaning it functions without physical contact with the reader. Power is supplied inductively via the electromagnetic field of the reader, eliminating the need for external power. Communication occurs at a frequency of 13.56 MHz, which is the standard frequency for HF-RFID systems. However, the card is intended for use in enclosed enclosures, where it is protected from direct environmental exposure.

Compatibility and Accessories

The transponder card is specifically developed for use with the CMC III Transponder reader and the CMC III wireless comfort handle VX with integrated card reader. These readers are part of the Rittal CMC III system and enable integration into existing enclosure and IoT infrastructures. Compatible accessories include the VX IT CMC III Transponder reader in RAL 9005, intended for physical interaction with the card. The card is not suitable for other reader systems or other manufacturers unless they explicitly support Mifare Classic 1k technology.

Mounting and Installation

The card requires no mounting or installation. It is simply held near the reader when needed to activate access. Usage involves bringing the card close to the reader, where authentication occurs automatically. No additional tools, batteries, or software installation are required. The card is immediately ready for use upon removal from the packaging.

Operational Advantages

Using the transponder card provides reliable and secure access control in industrial facilities. Contactless authentication reduces wear on readers and enables fast access control. The card is robust and designed for industrial environments. Integration into existing CMC III systems allows seamless incorporation into current infrastructures. The limited number of users per PU and PDU enables structured and controlled usage, with the exact number varying depending on system configuration.

General
ModelMifare classic
ApplicationsFor use with the transponder reader for CMC III and IoT Interface or the CMC III wireless comfort handle VX with integrated card reader
Number of participants PU compact (max.)2
Number of participants PU (max.)16
Number of users per PDU noteMax. 5 units when powered via PoE
Width85 mm
Height54 mm
Depth1 mm


Product data sheet
Datasheet for Rittal 7030628, EAN: 4028177926134
