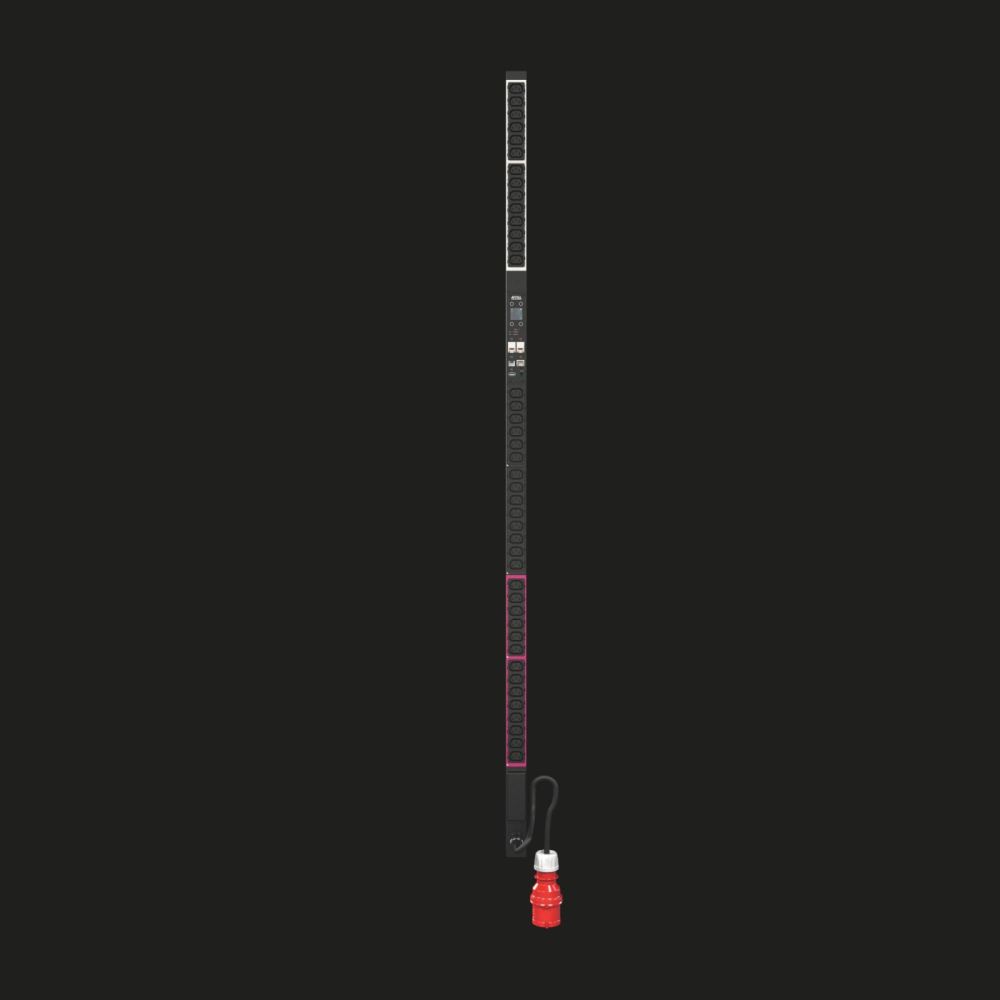

Rittal 7979346 DK PDU switched 16A 3-phase 18xC13+12xCombi

Your rating:
Average rating
product review for Rittal 7979346 DK PDU switched 16A 3-phase 18xC13+12xCombi
( 0 / 5 ) 0 ratings
Rittal 7979346
This image may differ from the desired article.
Rittal 7979346Rittal 7979346Rittal 7979346Rittal 7979346Rittal 7979346Rittal 7979346
1.462,80 EUR 1.525,39 EUR
( 1.740,73 EUR incl. VAT )
≈ £1,224.36  |  ≈ $1,607.62
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979346 DK PDU switched 16A 3-phase 18xC13+12xCombi
Datasheet:file_download Download
Lieske Part No.:895255
Mfg Part No: 7979346
UPC/EAN: 4069196015126
Weight:0.123 kg
Type:DK 7979346

Product information for Rittal 7979346:

The Rittal DK 7979346 is a switched PDU (Power Distribution Unit) for use in IT network and server racks. It is designed for intelligent power distribution and monitoring in 19-inch systems, particularly in Rittal VX IT and TS IT racks with a minimum length of 1,800 mm. The PDU features a compact design with dimensions of 44 mm (width) × 1,695 mm (length) × 70 mm (depth) and enables tool-free installation in Zero-U-Space, allowing efficient integration into the rack layout.

Applications
The PDU is designed for use in professional IT infrastructures where precise energy measurement, individual switching functions, and remote monitoring are required. It is suitable for server rooms, data centers, and network areas where reliable power supply and detailed energy consumption analysis are necessary. The integrated energy measurement per phase and the ability to switch individual outlets support optimization of energy efficiency and prevention of overloads.

Functions and Equipment in Detail
The PDU provides 18 C13 outlets and 12 Combi-outlets (C13/C19), each individually switchable via a network interface. The switching function is implemented using bistable relays, which enable low power consumption and high switching capacity even at high inrush currents up to 300 A. The relay states are retained even during power failure, so the previous state is maintained after voltage restoration. The PDU features a bright TFT display with 128x128 pixels (RGB), which is rotatable by 180° and replaceable, as well as multicolored LEDs (green/yellow/red) for visual indication of switching states and warning or alarm thresholds.

Technology Explained Simply
The PDU is equipped with an integrated, fully redundant power supply unit that is fed from all phases, ensuring fault-tolerant power supply. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. Measurement functions include voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current measurement for unbalanced load detection. The PDU also records total and cyclic operating hours, with the counter being resettable. An integrated electromagnetic buzzer enables acoustic alarm signaling in case of disturbances.

Compatibility and Accessories
The PDU is designed for input with 3 phases (3~) and supports a rated operating voltage of 400 V (AC) with a maximum rated current of 16 A and a rated power of 11 kW. The supply cable has a length of 3 m and is fitted with a CEE plug. The PDU is equipped with a variety of interfaces: a USB 2.0 interface (USB-A) for mass configuration, firmware updates, and data logging; a CAN-Bus interface (RJ45) for connecting up to 16 CMC III environmental sensors; and a serial RS232 interface (RJ12) for LTE modules, scripting, and CLI. The network interface is fully redundant and supports 10/100/1000 Mbit/s. The PDU supports protocols such as HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and MIB for integration into DCIM software. Email alarms can be sent via SMTP, and user management supports LDAP(S), Radius, and Active Directory. Connection to up to two Syslog servers is also possible.

Installation and Mounting
Mounting is tool-free in the Zero-U-Space of Rittal VX IT and TS IT racks. The PDU is supplied with a tool-free mounting kit that simplifies installation. The color-coded phase marking (L1=pink, L2=black, L3=white) supports correct assignment during installation. The delivery includes the mounting hardware.

Operational Advantages
The PDU offers high operational reliability through redundant power supply and integrated monitoring functions. The programmable switching logic enables sequential switching of outlets after voltage restoration to avoid inrush current peaks. The integrated real-time clock with battery backup (up to 10 years, replaceable) ensures accurate timekeeping even during power failure. The PDU is designed for operation at temperatures from 5 °C to 50 °C and relative humidity from 10 % to 95 % (non-condensing). Storage is possible at -20 °C to 70 °C. The PDU is certified according to the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. Optional extensions include surge protection Type 3 with replaceable discharge elements during operation, residual current measurement (Type B) per input/phase/fuse, and connection of CMC III CAN-Bus sensors for environmental monitoring. The PDU is made of aluminum profile, black anodized, with plastic outlets. The PDU is self-powered and does not require external power supply.

General
ModelPDU, switched
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Width44 mm
Depth70 mm
Length1.695 mm
Number of sockets and type18 x C13 / 12x Combi (C13/C19)
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979346, EAN: 4069196015126
