Rittal 8619550 VX swing frame, small, for W: 600/800 mm

Your rating:
Average rating
product review for Rittal 8619550 VX swing frame, small, for W: 600/800 mm
( 4.6 / 5 ) 18 ratings
Rittal 8619550
This image may differ from the desired article.
Rittal 8619550Rittal 8619550Rittal 8619550
-10% 103,39 EUR 115,33 EUR
( 123,03 EUR incl. VAT )
≈ £86.54  |  ≈ $113.63
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8619550 VX swing frame, small, for W: 600/800 mm
Datasheet:file_download Download
Lieske Part No.:1441184
Mfg Part No: 8619550
UPC/EAN: 4028177919617
Weight:4.74 kg
Type:VX 8619.550

Product information for Rittal 8619550:

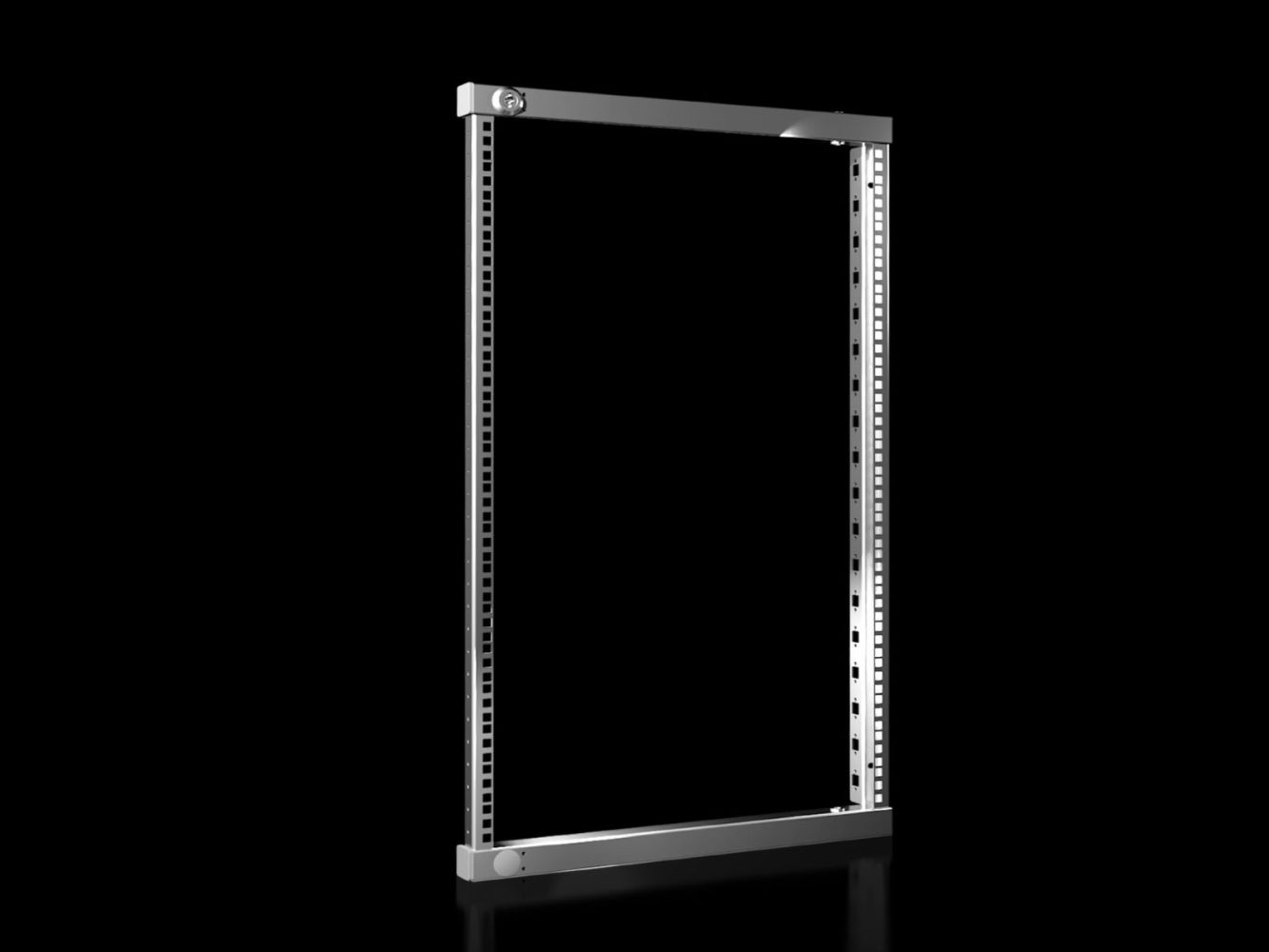

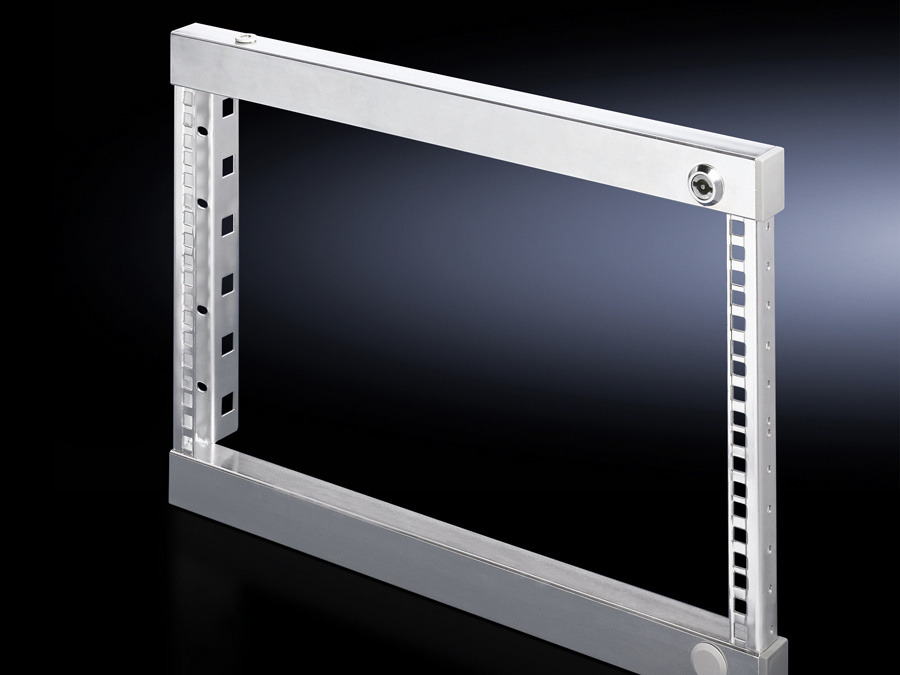

The Rittal VX 8619.550 is a swing frame, small, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures of type VX and VX SE. It is designed for enclosures with a width of 600 mm and 800 mm and offers a height of 18 U. The frame enables swivelling mounting of devices, facilitating access to front and rear connections. The product is made of sheet steel with a galvanised surface, ensuring good corrosion resistance and mechanical stability.

Applications

The swing frame is used in industrial and technical installations where flexible and accessible mounting of network or control units is required. It is particularly suitable for enclosures in the VX system, especially in combination with enclosure types VX and VX SE. The width specifications of 600 mm and 800 mm cover commonly used standard sizes, making the frame suitable for many standard installations. The 18 U height corresponds to a typical space requirement for multiple installation devices, such as network switches, server modules or control units.

Functions and equipment in detail

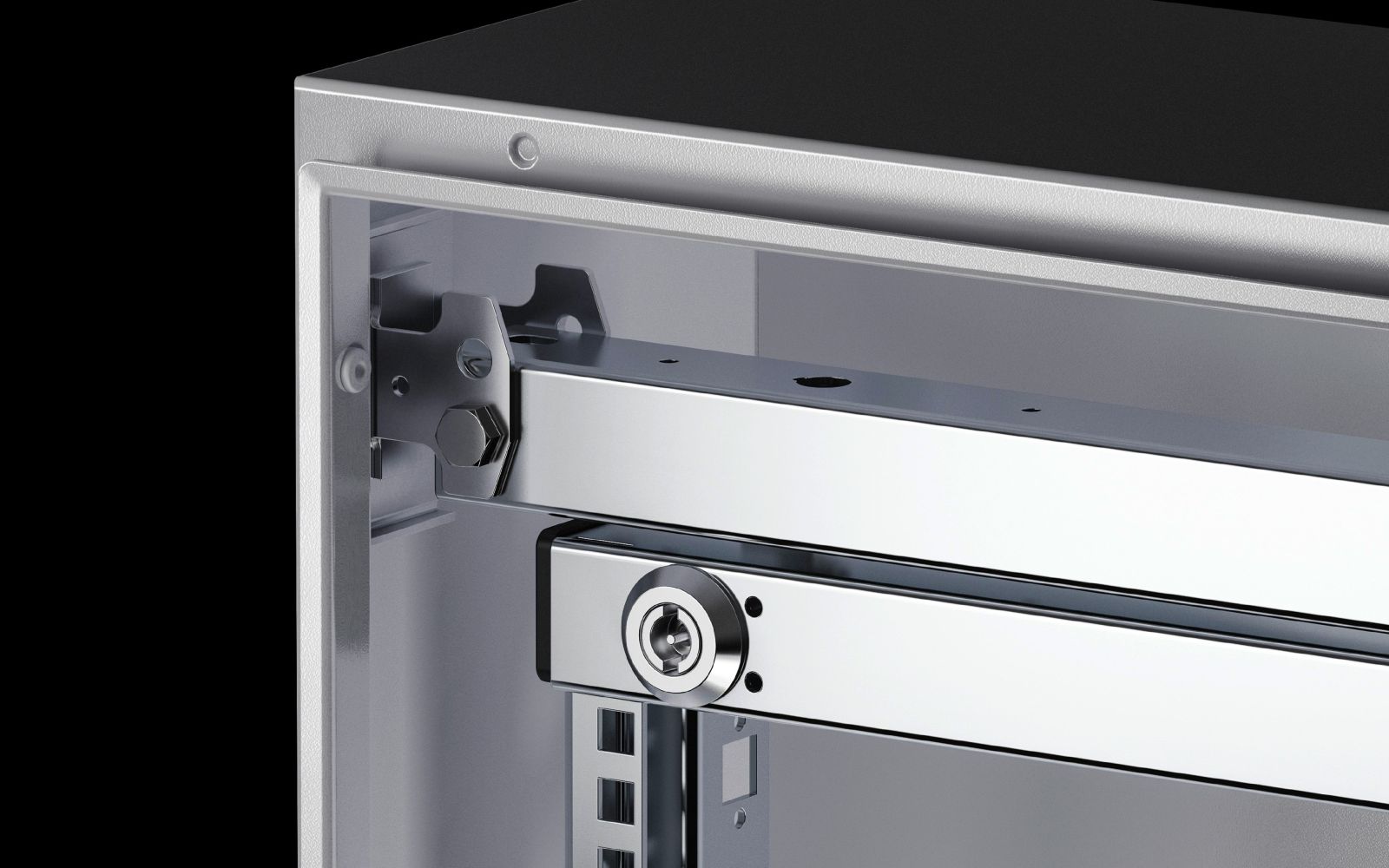

The delivery includes two hinges with an opening angle of 130°, a latch with double-bar lock insert, and the necessary mounting materials for the mounting kit. The hinges enable a secure and stable locking swivelling movement of the frame. The double-bar lock ensures secure locking in the closed position. The mounting materials are intended for mounting on the mounting kit, where depending on the expansion situation, system chassis 23 x 64 mm may be required. In VX SE enclosures, the frame is mounted on the enclosure profile in combination with a VX adapter rail.

Technology explained simply

The swing frame is designed to enable the mounting of 48,3 cm ( 19 inch ) devices in an enclosure, with the devices being swivellable after installation. This facilitates connecting cables to the rear of the devices without having to open the entire enclosure or remove the devices. The galvanised sheet steel construction provides sufficient strength and resistance to mechanical stress and corrosion. The 130° hinges ensure sufficient opening to allow access to the devices without the frame protruding excessively from the enclosure.

Compatibility and accessories

The swing frame is specifically designed for enclosure types VX and VX SE. It is compatible with enclosures of width 600 mm and 800 mm. For mounting in VX SE enclosures, the use of a VX adapter rail is required. Additionally, depending on the expansion situation, system chassis 23 x 64 mm may be required to support the mounting. Further expansion options are described in the manufacturer's document Technology in detail.

Mounting and installation

Mounting is done on the mounting kit of the enclosure. The included fastening materials are used to securely fix the frame. For VX SE enclosures, mounting on the enclosure profile in combination with the VX adapter rail is necessary. The hinges are included in the delivery and enable the swivelling movement. Installation requires no additional tools other than standard mounting tools for screws and nuts. The exact mounting instructions are contained in the manufacturer's document Technology in detail.

Advantages in operation

The swing frame offers improved accessibility to the front and rear connections of the mounted devices. This reduces installation and maintenance time, as cable connections can be made or checked without removing the devices. The stable construction from galvanised sheet steel ensures long service life and reliability in industrial environments. The use of 130° hinges allows sufficient opening without the frame protruding excessively from the enclosure, optimising space requirements within the enclosure.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 hinges 130°, including strike plate with double-bolt lock insert, material for mounting on installation kit
NoteTo lock the opened swivel frame, the swivel frame locking mechanism is required. Depending on the installation situation, system chassis 23 x 64 mm are required. In VX SE on cabinet profile in combination with adapter rail VX. For further installation options, see "Technology in detail".
Suitable forEnclosure type: VX, VX SE, Width: = 600 mm, = 800 mm
Suitable for housing typeVX, VX SE
Height units18 HE


Product data sheet
Datasheet for Rittal 8619550, EAN: 4028177919617

Questions & answers

What is the delivery time of Rittal 8619550 VX swing frame, small, for W: 600/800 mm?

The article Rittal 8619550 VX swing frame, small, for W: 600/800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619550 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619550 VX swing frame, small, for W: 600/800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619550 VX swing frame, small, for W: 600/800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
