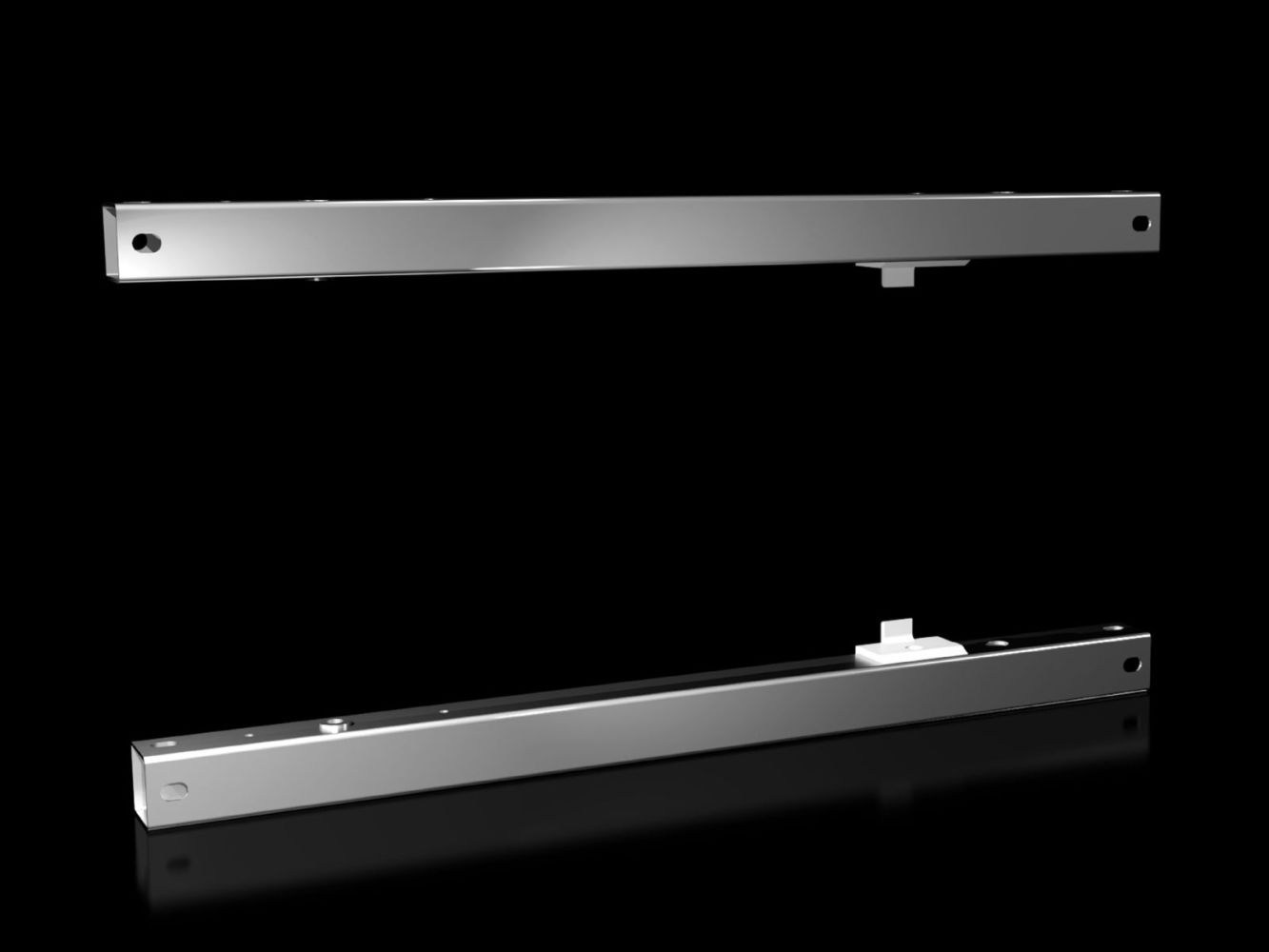

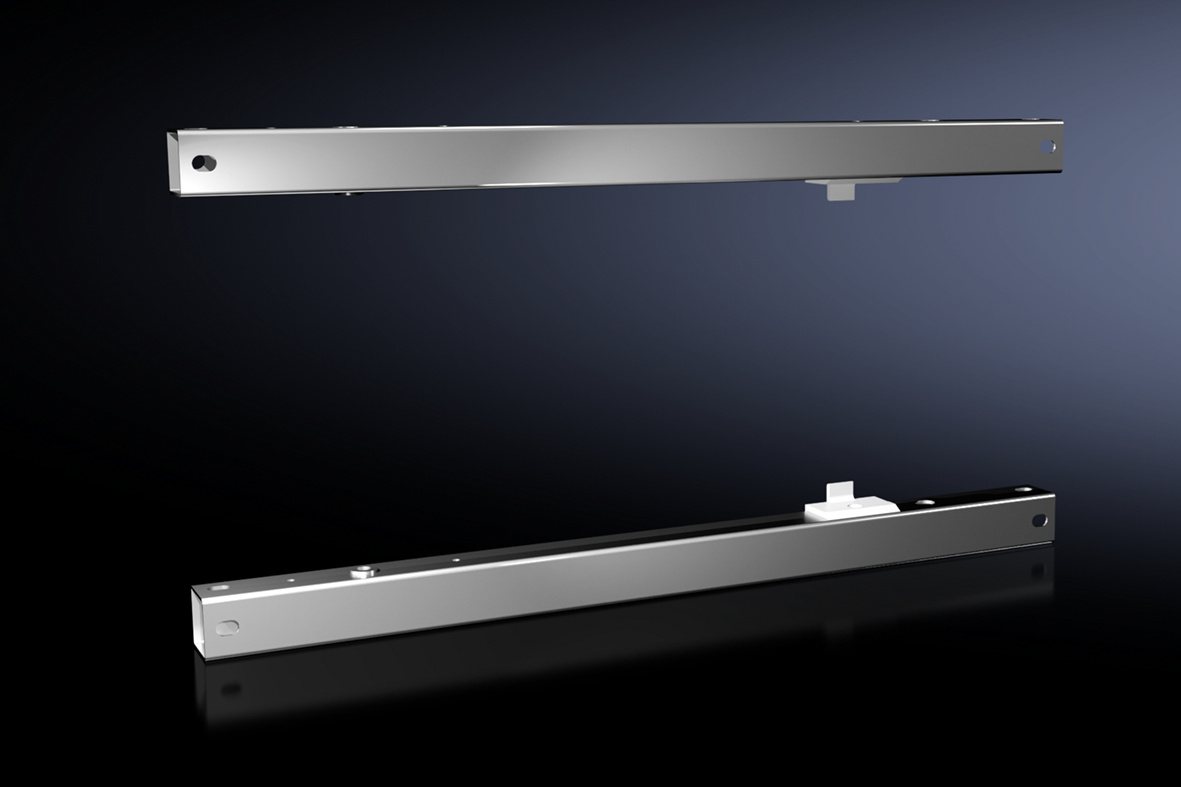

Rittal 8619600 VX mounting kit for swing frame, small, W: 600 mm

Your rating:
Average rating
product review for Rittal 8619600 VX mounting kit for swing frame, small, W: 600 mm
( 4.5 / 5 ) 27 ratings
Rittal 8619600
This image may differ from the desired article.
Rittal 8619600Rittal 8619600Rittal 8619600
35,31 EUR
( 42,02 EUR incl. VAT )
≈ £29.55  |  ≈ $38.81
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8619600 VX mounting kit for swing frame, small, W: 600 mm
Datasheet:file_download Download
Lieske Part No.:1441168
Mfg Part No: 8619600
UPC/EAN: 4028177919624
Weight:2.52 kg
Type:VX 8619.600

Product information for Rittal 8619600:

The Rittal VX 8619.600 is a mounting kit for the swing frame, small, specifically designed for installation in enclosures of types VX and AX with a width of at least 600 mm. It enables secure fastening of the swing frame, small, to various mounting surfaces within the enclosure, allowing flexible and stable installation of control elements, displays, or control devices. The product is made of sheet steel and is nickel-plated, ensuring high corrosion resistance and a clean, metallic surface.

Applications
The mounting kit can be mounted directly on the enclosure profile in the frontmost position, ensuring optimal accessibility for control elements. Alternatively, a depth offset is possible when the swing frame is installed in conjunction with a system chassis 23 x 64 mm. This variant allows spatial separation of control and display elements from the front enclosure wall, which is advantageous in complex systems. Installation is also possible in enclosures of type SE, but only in combination with a VX adapter rail.

Functions and Equipment in Detail
The mounting kit is intended for mounting the swing frame, small, in AX, VX, SE, or on a partial mounting plate. When mounted on a partial mounting plate, the hinge fastening 8617650 is required to ensure a secure connection. The static load capacity is 1,500 N, providing high load-bearing capacity for most industrial applications. The construction from nickel-plated sheet steel offers high mechanical stability and is designed for use in industrial environments.

Technology Explained Simply
The product enables flexible positioning of control elements within the enclosure. Direct mounting on the enclosure profile ensures a compact and accessible arrangement, while depth offset via the system chassis 23 x 64 mm allows spatial separation. The nickel-plated surface protects the material from corrosion and ensures long service life. The static load capacity of 1,500 N is sufficient to securely hold even heavier control units.

Compatibility and Accessories
The mounting kit is specifically designed for enclosures of types VX and AX with a width of at least 600 mm. For use in AX sheet steel, the AX mounting kit is required. In VX SE enclosures, installation must be done in conjunction with the VX adapter rail. For mounting on a partial mounting plate, the hinge fastening 8617650 is necessary. Compatible accessories include various VX system chassis in widths of 400 mm, 500 mm, 600 mm, and 800 mm, as well as the AX mounting kit for swing frame, small.

Mounting and Installation
Installation is carried out either directly on the enclosure profile in the frontmost position or in conjunction with a system chassis 23 x 64 mm, which shifts the swing frame in depth. For installation in AX sheet steel, the AX mounting kit is required. For installation in VX SE enclosures, the VX adapter rail is needed. Mounting on a partial mounting plate requires the hinge fastening 8617650.

Operational Advantages
The mounting kit offers a flexible and stable mounting option for the swing frame, small, in various enclosure types. The high static load capacity of 1,500 N ensures secure fastening even for heavy control units. The nickel-plated surface provides high corrosion resistance and long service life. Compatibility with various enclosure types and accessories enables versatile application in industrial systems. Simple installation with included fastening material reduces installation effort and error susceptibility.

General
ApplicationsFor VX: Directly on cabinet profile in front position; For VX: In combination with system chassis 23 x 64 mm, offset in depth
Materialsteel sheet
Surface protectionnickel-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsDirectly on cabinet profile in front position, in combination with system chassis 23 x 64 mm offset in depth
NoteFor installation in AX sheet metal only in combination with the installation kit AX. In VX SE on cabinet profile in combination with adapter rail VX. For mounting on the partial mounting plate, hinge mounting 8617650 is required.
Load capacity (static)1.500 N
Suitable forCabinet type: VX, AX, width: = 600 mm
Suitable for housing typeVX, AX


Product data sheet
Datasheet for Rittal 8619600, EAN: 4028177919624

Questions & answers

What is the delivery time of Rittal 8619600 VX mounting kit for swing frame, small, W: 600 mm?

The article Rittal 8619600 VX mounting kit for swing frame, small, W: 600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619600 VX mounting kit for swing frame, small, W: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619600 VX mounting kit for swing frame, small, W: 600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
