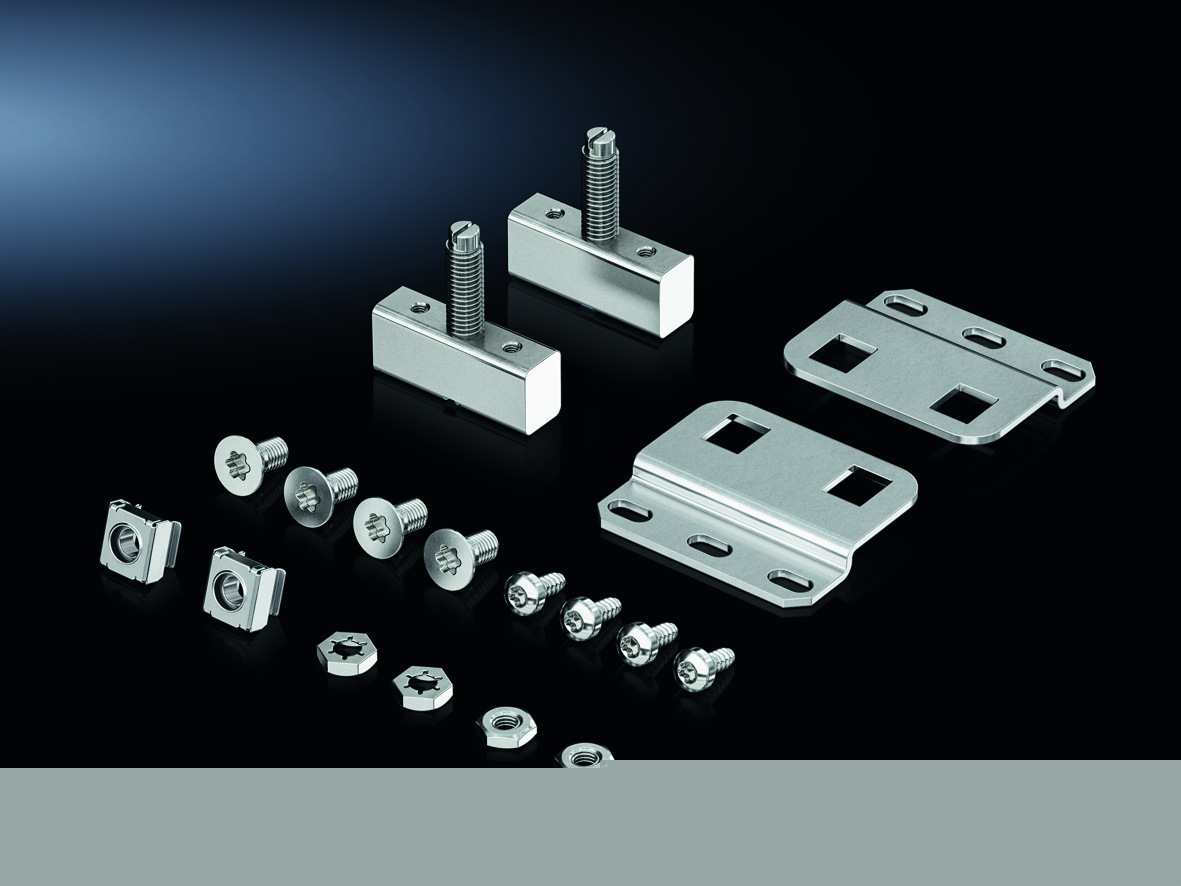

Rittal 8617650 VX hinge mounting for partial mounting plate

Your rating:
Average rating
product review for Rittal 8617650 VX hinge mounting for partial mounting plate
( 4.5 / 5 ) 20 ratings
Rittal 8617650
This image may differ from the desired article.
Rittal 8617650Rittal 8617650
-10% 33,81 EUR 37,72 EUR
( 40,23 EUR incl. VAT )
≈ £28.30  |  ≈ $37.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8617650 VX hinge mounting for partial mounting plate
Datasheet:file_download Download
Lieske Part No.:1440925
Mfg Part No: 8617650
UPC/EAN: 4028177919501
Weight:0.414 kg
Type:VX 8617.650

Product information for Rittal 8617650:

Rittal VX 8617.650 is a hinge mounting for partial mounting plates in industrial enclosure construction. It enables flexible mounting of partial plates that can be opened during operation or maintenance to provide access to components located behind the plate. The product is made of steel and features a zinc-coated surface, ensuring high corrosion resistance and long service life in industrial environments.

Applications
The hinge mounting is used in enclosures where a partially movable mounting surface is required. It allows access to electrical assemblies, controls, or terminal blocks without having to open the entire enclosure front or door. This is particularly advantageous for frequent maintenance or inspection tasks, as it reduces working time and increases safety. The mounting is designed for use in enclosures with various depths, and the appropriate system chassis must be selected according to the enclosure depth.

Functions and Equipment in DetailThe VX 8617.650 is used in conjunction with the mounting kit for small swing frame to mount a partial mounting plate hingedly. The mounting allows installation at the front of the frame profile, recessed into enclosure depth, or laterally in combination with a hinged side panel. This variety of mounting options provides flexibility in designing the interior of the enclosure.

Technology Explained SimplyThe hinge mounting consists of a robust steel component protected against moisture and corrosion by zinc coating. The mechanical design ensures the partial mounting plate is securely held while remaining easily swivellable. Installation is carried out on a frame profile, with positioning adjusted to the enclosure depth to ensure proper function. The use of the mounting kit for small swing frame is required to activate the hinge function.

Compatibility and AccessoriesThe hinge mounting is specifically designed for use with the mounting kit for small swing frame. This mounting kit enables integration of the partial mounting plate into the enclosure system. The mounting options are aligned with standard constructions of Rittal enclosures, ensuring compatible and secure installation.

Mounting and InstallationInstallation is carried out on a frame profile of the enclosure. Positioning can be at the front, recessed into the enclosure depth, or laterally, depending on requirements. The mounting instruction emphasizes that the system chassis must be selected according to the enclosure depth to ensure proper function.

Operational AdvantagesThe hinge mounting enables quick and secure access to components behind the partial mounting plate, making maintenance and service work more efficient. The robust steel construction with zinc-coated surface ensures long service life even in demanding environments. The integrated mounting solution reduces the need for additional mounting accessories and simplifies installation.

General
MaterialSteel
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsFront on frame profile, recessed in cabinet depth, side-mounted in conjunction with hinged side panel
Mounting noteThe system chassis must be selected according to the cabinet depth.


Product data sheet
Datasheet for Rittal 8617650, EAN: 4028177919501

Questions & answers

What is the delivery time of Rittal 8617650 VX hinge mounting for partial mounting plate?

The article Rittal 8617650 VX hinge mounting for partial mounting plate is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617650 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617650 VX hinge mounting for partial mounting plate always at the best possible price. We can give you a discount of 2% on Rittal 8617650 VX hinge mounting for partial mounting plate if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
