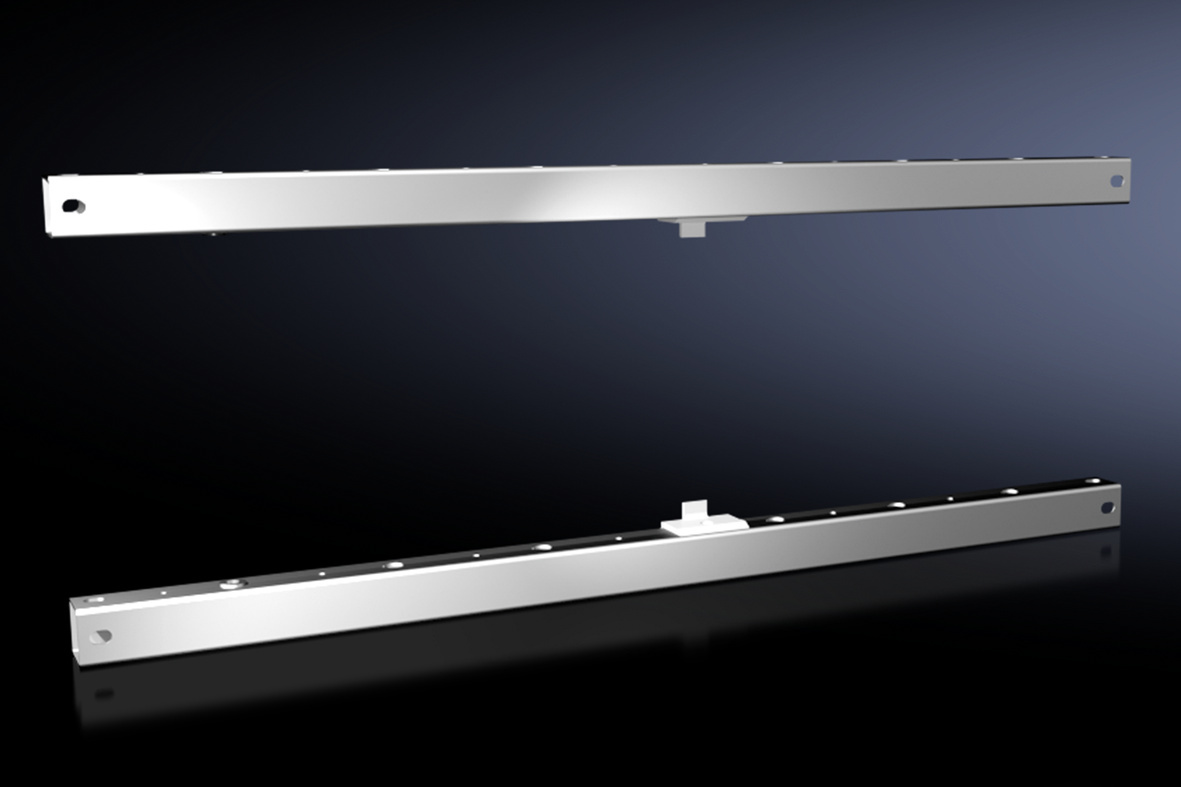

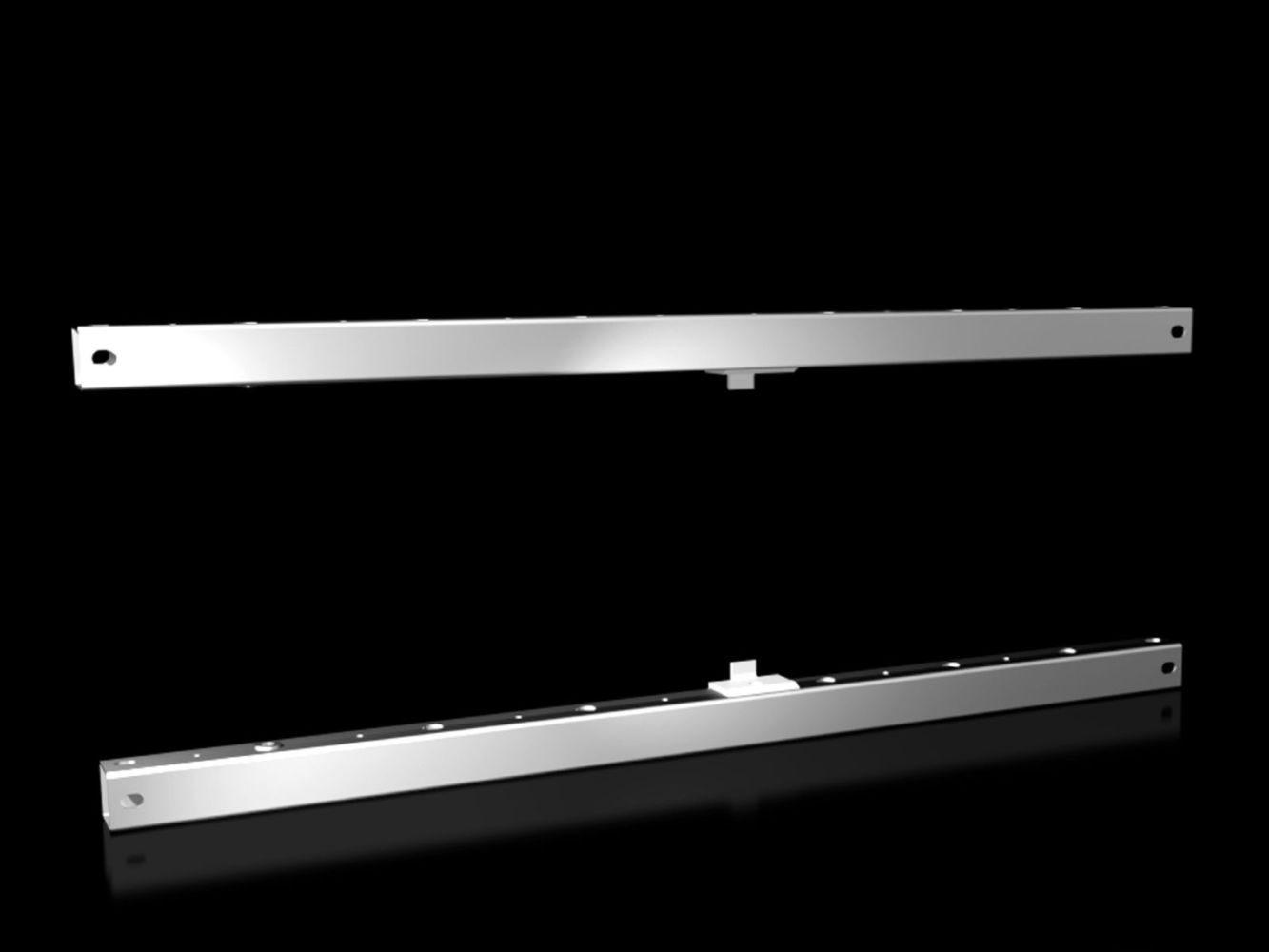

Rittal 8619610 VX mounting kit for swing frame, small, W: 800 mm

Your rating:
Average rating
product review for Rittal 8619610 VX mounting kit for swing frame, small, W: 800 mm
( 4.4 / 5 ) 21 ratings
Rittal 8619610
This image may differ from the desired article.
Rittal 8619610Rittal 8619610Rittal 8619610
-10% 41,40 EUR 46,19 EUR
( 49,27 EUR incl. VAT )
≈ £34.65  |  ≈ $45.50
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8619610 VX mounting kit for swing frame, small, W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1441167
Mfg Part No: 8619610
UPC/EAN: 4028177919631
Weight:3.28 kg
Type:VX 8619.610

Product information for Rittal 8619610:

The Rittal VX 8619.610 is a mounting kit for the small swing frame, specifically designed for enclosures with a width of 800 mm. It enables secure mounting of the swing frame in various enclosure types such as AX, VX, SE, or on a partial mounting plate. Installation is performed directly on the enclosure profile in the front position or in combination with a system chassis measuring 23 x 64 mm, allowing for a deeper mounting position. The mounting kit is made of sheet steel and is nickel-plated, ensuring a corrosion-resistant surface and supporting its use in industrial environments.

Applications
This mounting kit is primarily intended for installation in enclosures of the VX system, where it can be mounted directly onto the enclosure profile. Alternatively, it allows installation in combination with a system chassis 23 x 64 mm, shifting the mounting position deeper into the enclosure. This provides flexibility in device placement within the enclosure. For use in AX sheet steel enclosures, installation is only possible in combination with the specific AX mounting kit. In VX SE enclosures, mounting on the enclosure profile is only possible in conjunction with a VX adapter rail.

Functions and Equipment in Detail
The mounting kit is designed for mounting the small swing frame, which is used for example to secure control panels or displays. It includes fastening material to ensure secure installation. The static load capacity is 1,500 N, providing sufficient load-bearing capacity for typical industrial applications.

Technology Explained Simply
The mounting kit consists of robust sheet steel, nickel-plated to prevent corrosion and extend service life. The nickel-plated surface offers good protection against moisture and chemical influences, making it suitable for industrial environments. The static load capacity of 1,500 N allows mounting of devices requiring corresponding weight loads without damaging the structure. Installation is either directly on the enclosure profile or in combination with a system chassis, enabling flexible positioning.

Compatibility and Accessories
The mounting kit is specifically designed for enclosures with a width of 800 mm. It is compatible with various enclosure types such as AX, VX, and SE. For use in AX sheet steel enclosures, the AX mounting kit is required. In VX SE enclosures, mounting on the enclosure profile is only possible in combination with the VX adapter rail. For mounting on a partial mounting plate, the hinge mounting 8617650 is necessary. Suitable accessories include system chassis in various widths (400 mm, 500 mm, 600 mm, 800 mm) as well as the mounting kit for small swing frames.

Mounting and Installation
Installation is performed either directly on the enclosure profile in the front position or in combination with a system chassis 23 x 64 mm, shifting the mounting position deeper into the enclosure. Fastening is done using the included fastening material. When mounting on a partial mounting plate, the additional hinge mounting 8617650 is required. Installation in AX sheet steel enclosures requires the AX mounting kit, while in VX SE enclosures the VX adapter rail is needed.

Operational Advantages
The mounting kit offers a flexible and secure mounting option for the small swing frame in various enclosure types. The nickel-plated surface ensures high corrosion resistance, increasing service life. The static load capacity of 1,500 N allows mounting of heavier devices. The ability to mount the swing frame directly on the enclosure profile or in combination with a system chassis provides flexibility in positioning and optimizing the internal enclosure space. The use of standardized components such as the system chassis 23 x 64 mm simplifies integration into existing systems.

General
ApplicationsFor VX: Directly on cabinet profile in front position; For VX: In combination with system chassis 23 x 64 mm, offset in depth
Materialsteel sheet
Surface protectionnickel-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsDirectly on cabinet profile in front position, in combination with system chassis 23 x 64 mm offset in depth
NoteFor installation in AX sheet metal only in combination with the installation kit AX. In VX SE on cabinet profile in combination with adapter rail VX. For mounting on the partial mounting plate, hinge mounting 8617650 is required.
Load capacity (static)1.500 N
Suitable forWidth: = 800 mm


Product data sheet
Datasheet for Rittal 8619610, EAN: 4028177919631
