Rittal 2034010 AX mounting kit for swing frame, small

Your rating:
Average rating
product review for Rittal 2034010 AX mounting kit for swing frame, small
( 4.3 / 5 ) 7 ratings
Rittal 2034010
This image may differ from the desired article.
Rittal 2034010Rittal 2034010Rittal 2034010
-12% 47,73 EUR 54,34 EUR
( 56,80 EUR incl. VAT )
≈ £39.95  |  ≈ $52.46
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 2034010 AX mounting kit for swing frame, small
Datasheet:file_download Download
Lieske Part No.:1598334
Mfg Part No: 2034010
UPC/EAN: 4028177938090
Weight:0.535 kg
Type:AX 2034010

Product information for Rittal 2034010:

The Rittal AX 2034010 is a mounting kit for installing a small swing frame in compact enclosures of type AX. It ensures secure fastening of the swing frame within the enclosure and enables the integration of control or display units mounted on a swivelling frame. The kit is specifically designed for enclosures of the AX series and supports standard widths of 600 mm and 800 mm. Installation is carried out using the included mounting brackets and fastening materials, ensuring a stable and tool-friendly installation.

Applications
This mounting kit is used to install small swing frames in industrial enclosures of the AX series. These frames are intended for mounting control panels, displays, or other front elements requiring a swivelling installation. The application is in electrical and automation technology, particularly in environments where flexible operation or maintenance of front elements is required. The kit is suitable for enclosures with a width of 600 mm and 800 mm, enabling use in standard configurations of the AX series.

Functions and Equipment in Detail
The kit includes four mounting brackets and the necessary fastening materials to securely fix the small swing frame within the enclosure. The mounting brackets are designed to ensure a stable connection between the swing frame and the internal walls of the enclosure. Installation requires no additional tools or components, as the kit contains all necessary parts. One packaging unit (VE) is sufficient to mount one small swing frame.

Technology Explained Simply
The mounting brackets are made of robust metal and allow for precise and secure installation. The fastening materials included in the delivery package consist of the required screws and nuts to attach the brackets to the internal walls of the enclosure. The design is engineered to withstand mechanical loads during operation and ensure a durable installation. Installation is carried out at the designated mounting points within the enclosure, ensuring correct alignment and stability of the swing frame.

Compatibility and Accessories
The mounting kit is specifically developed for enclosures of the AX series and fits housings with a width of 600 mm and 800 mm. It is designed for mounting the small swing frame and is used in combination with this frame. Compatibility is limited to the AX series; the mention of for AX and VX in descriptions suggests possible use in VX enclosures, but there is no explicit confirmation for VX in the technical specifications. Therefore, use in VX enclosures is not explicitly confirmed.

Installation and Mounting
Installation is performed by securing the four included brackets to the internal walls of the enclosure at the designated mounting points. The small swing frame is then attached to the brackets and secured. No additional components or tools are required, as the kit contains all necessary parts. The installation instructions are not explicitly mentioned, but installation is typically possible without additional assistance due to the standard construction and clearly defined mounting points.

Operational Advantages
Using the mounting kit ensures a stable and secure installation of the small swing frame within the enclosure. The integrated fastening allows for easy and quick installation, reducing mounting time. The construction is designed for industrial use and ensures reliable performance under operating conditions. Compatibility with standard widths of 600 mm and 800 mm in the AX series enables flexible use in various enclosure configurations.

General

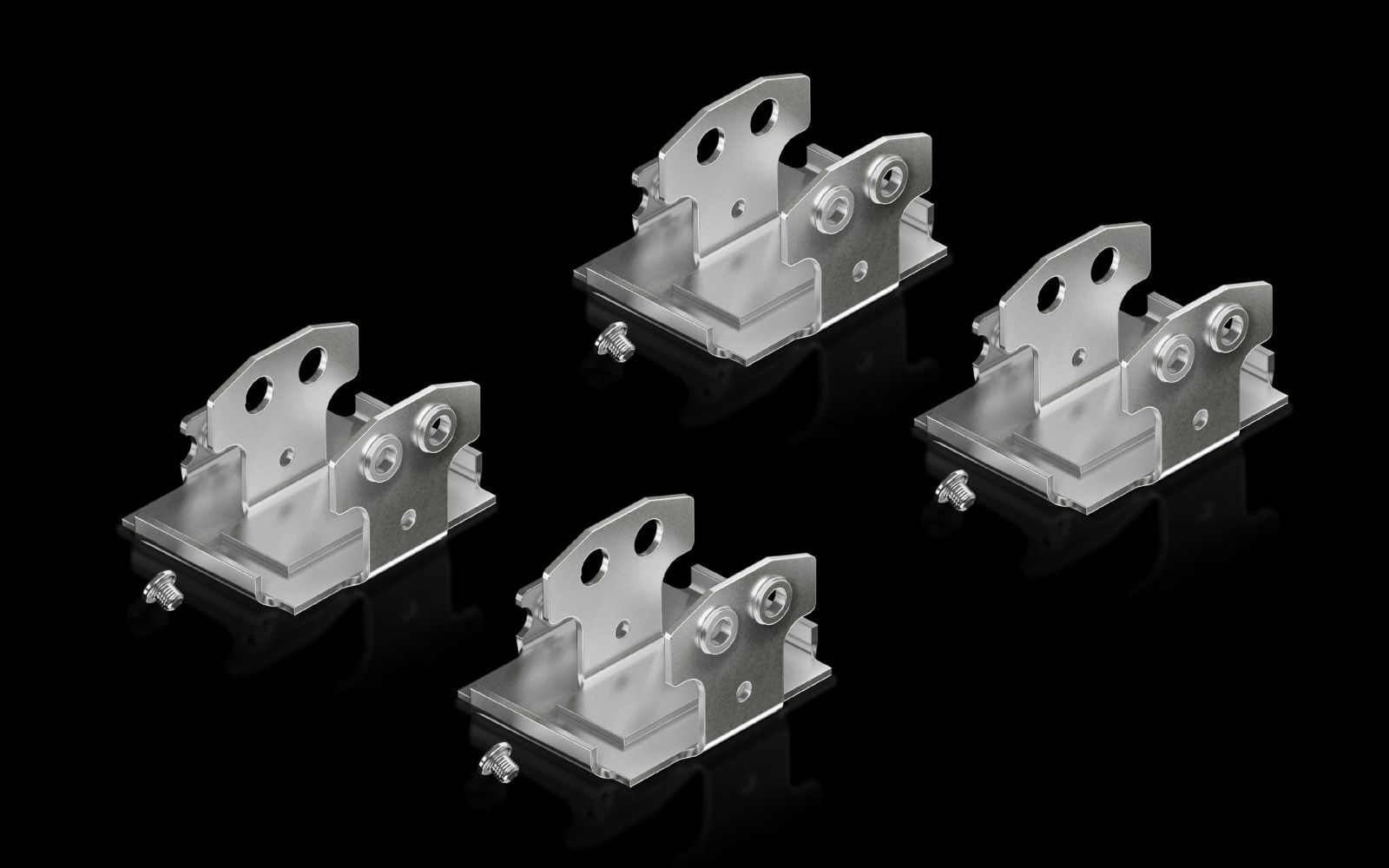

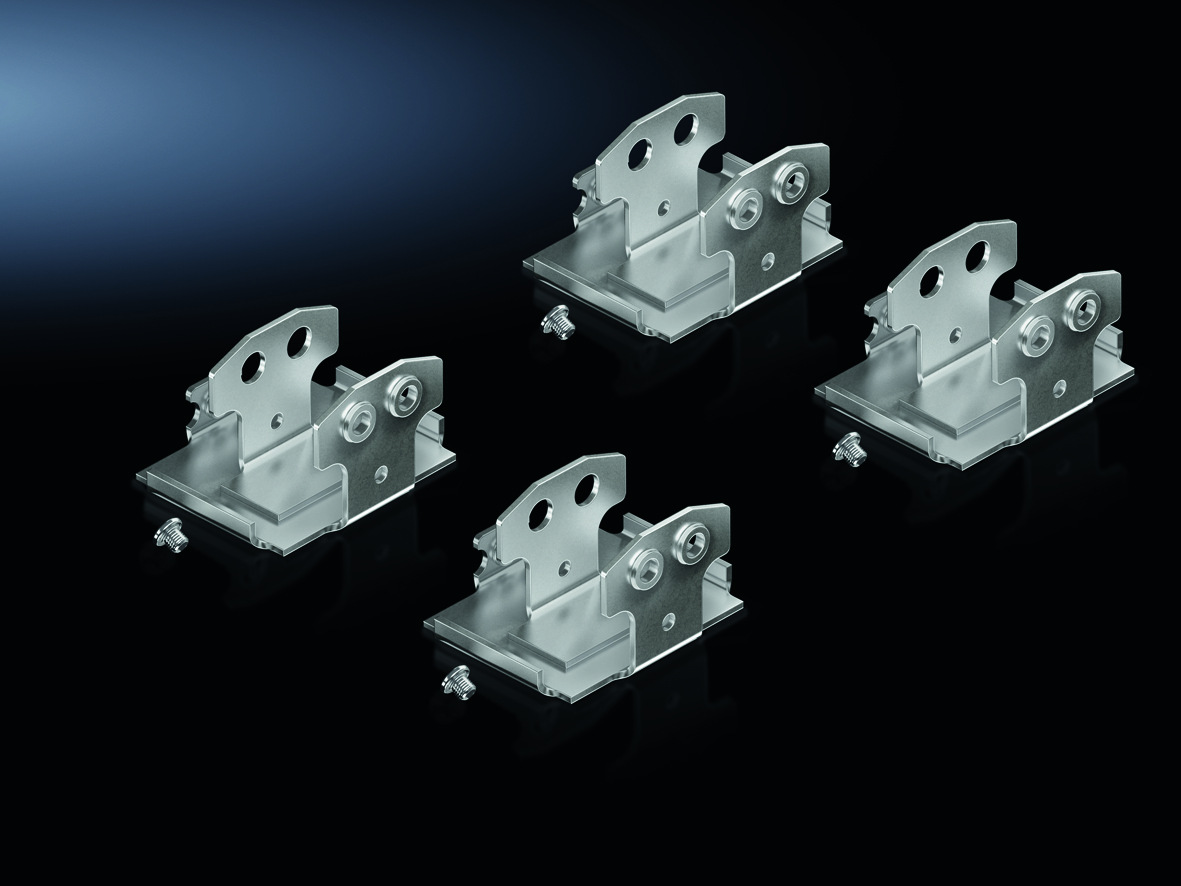

Scope of delivery4 mounting brackets, including mounting material
Note1 unit is sufficient for mounting a small swivel frame
Suitable forhousing type: AX, width: = 600 mm, = 800 mm
Suitable for housing typeAX


Product data sheet
Datasheet for Rittal 2034010, EAN: 4028177938090

Questions & answers

What is the delivery time of Rittal 2034010 AX mounting kit for swing frame, small?

The article Rittal 2034010 AX mounting kit for swing frame, small is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2034010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2034010 AX mounting kit for swing frame, small always at the best possible price. We can give you a discount of 2% on Rittal 2034010 AX mounting kit for swing frame, small if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
