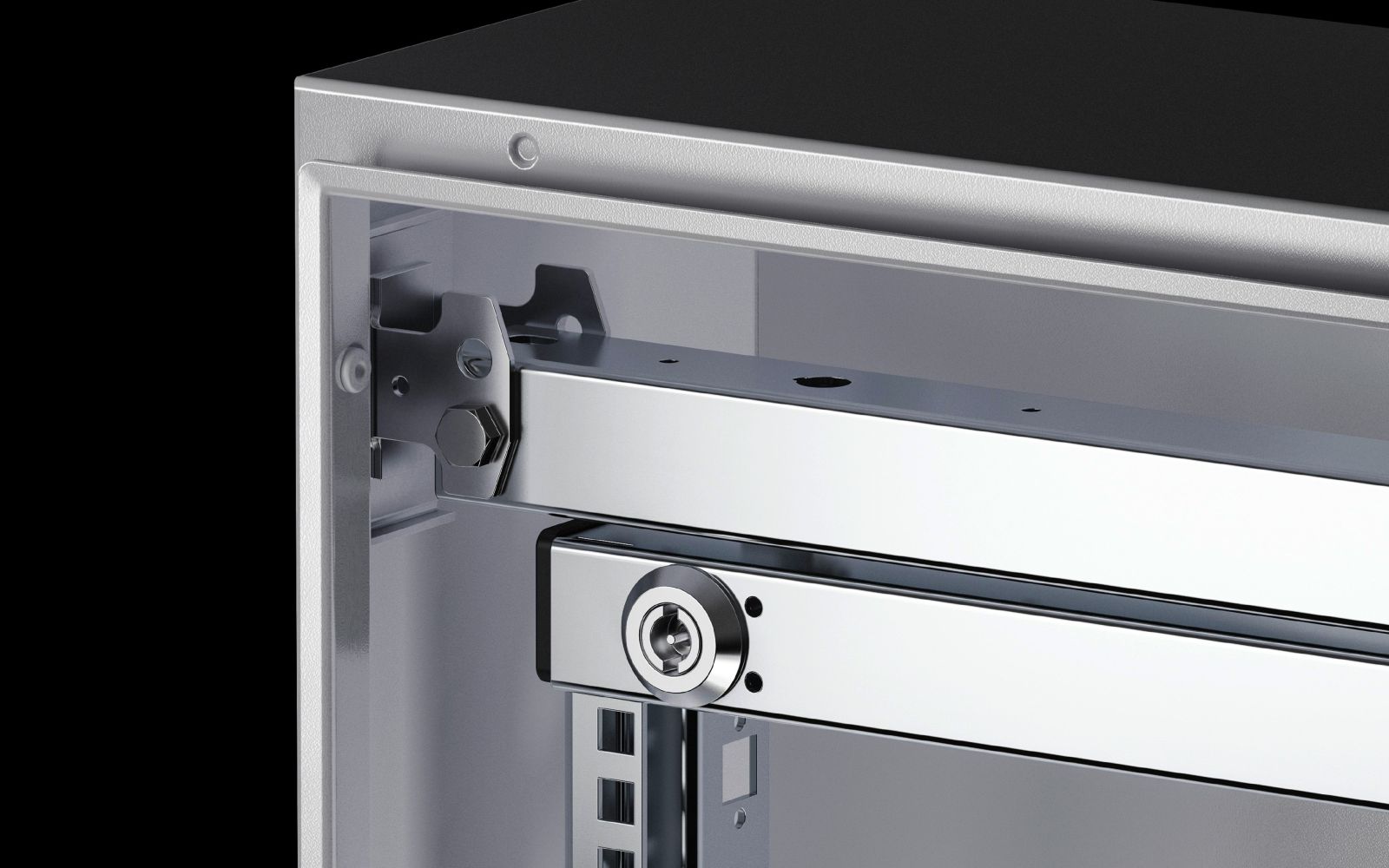

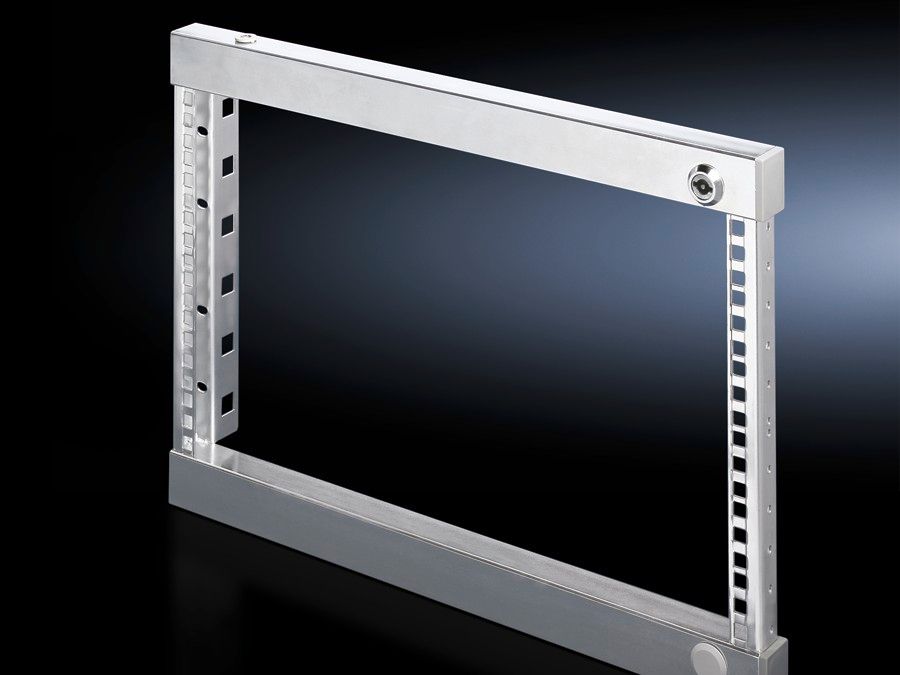

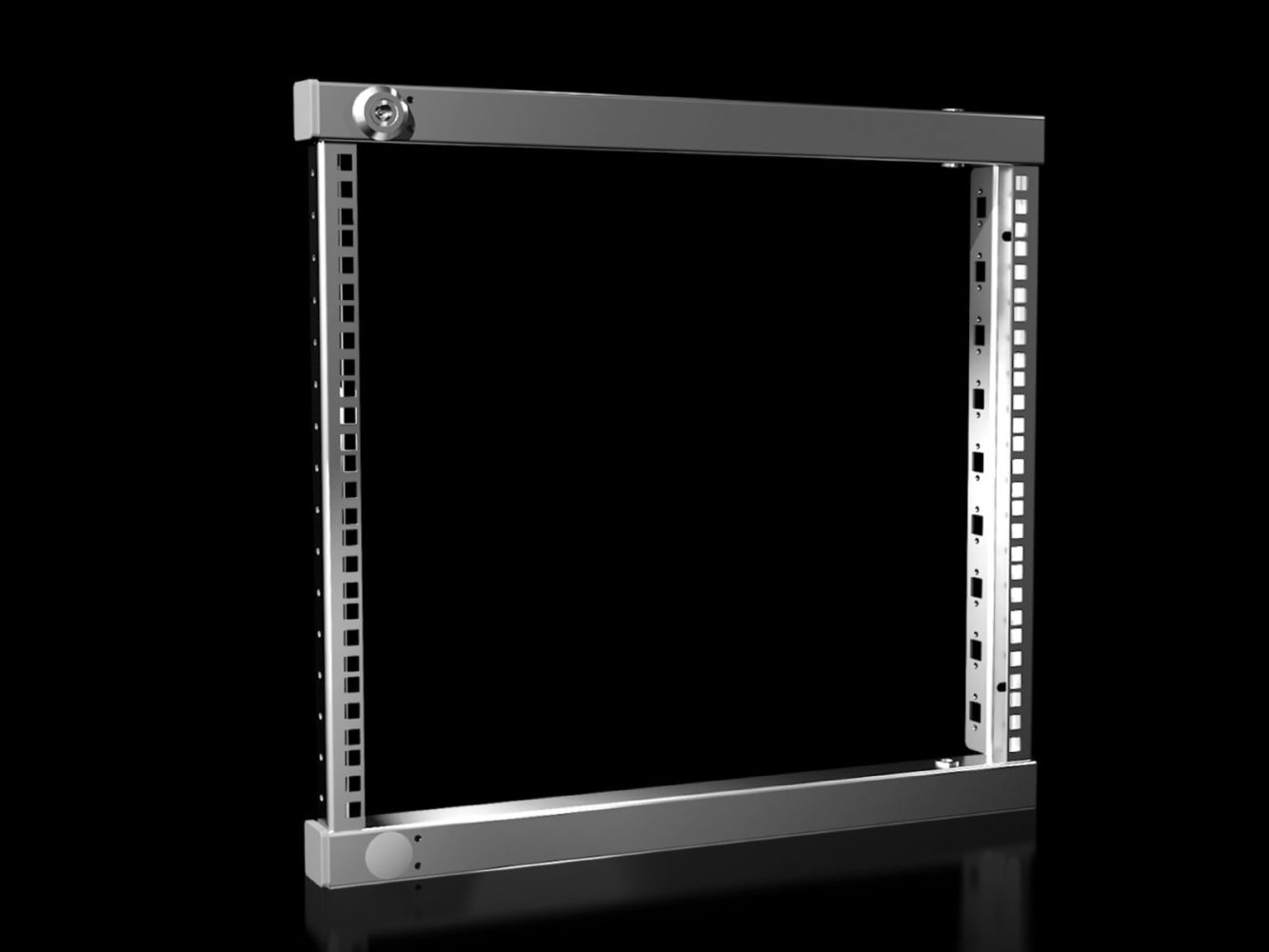

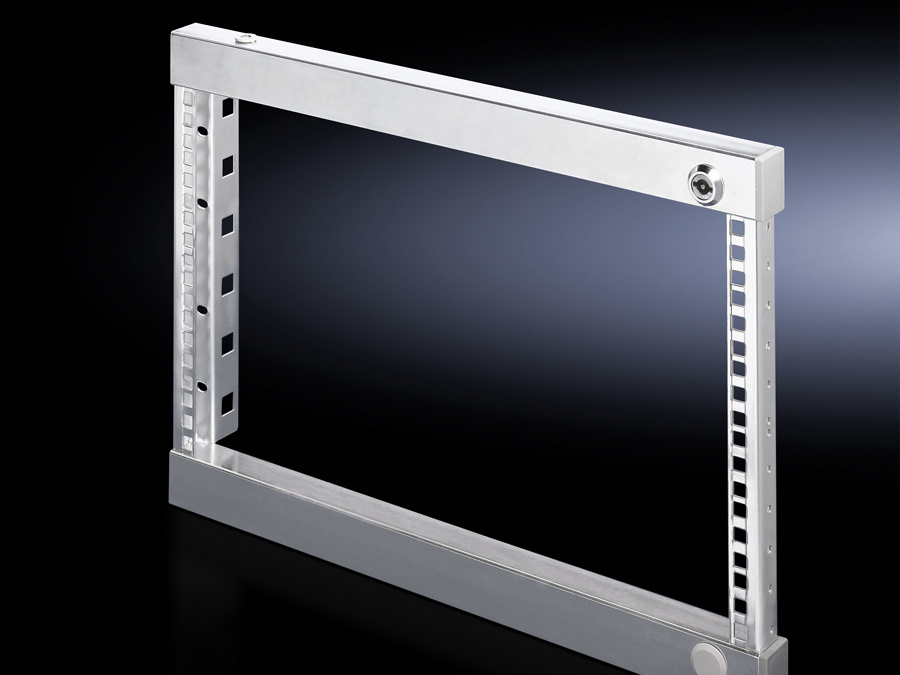

Rittal 8619520 VX swing frame, small, for W: 600/800 mm

Your rating:
Average rating
product review for Rittal 8619520 VX swing frame, small, for W: 600/800 mm
( 4.4 / 5 ) 10 ratings
Rittal 8619520
This image may differ from the desired article.
Rittal 8619520Rittal 8619520Rittal 8619520Rittal 8619520
83,84 EUR
( 99,77 EUR incl. VAT )
≈ £70.17  |  ≈ $92.14
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8619520 VX swing frame, small, for W: 600/800 mm
Datasheet:file_download Download
Lieske Part No.:1441172
Mfg Part No: 8619520
UPC/EAN: 4028177919587
Weight:3.483 kg
Type:VX 8619.520

Product information for Rittal 8619520:

The Rittal VX 8619.520 is a swing frame, small, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures of types VX, VX SE and AX. It enables flexible installation of devices intended for mounting in an enclosure with a width of 600 mm or 800 mm and a height of at least 600 mm. The frame offers a mounting height of 9 HE and is made of sheet steel, with a surface zinc-coated to prevent corrosion and ensure longer service life.

Applications

The swing frame is used in industrial plants where flexible and accessible mounting of network or control components is required. It is particularly suitable for enclosures used in electrical and IT technology, and allows the frame to be opened by 130° to facilitate maintenance and device replacement. Use in VX SE enclosures is at the enclosure profile in conjunction with the VX adapter rail.

Functions and Equipment in Detail

The delivery includes two hinges with an opening movement of 130°, a latch with double-bar lock insert, and the necessary mounting hardware for attachment to the mounting kit. The hinges enable secure and stable rotation of the frame. The double-bar lock ensures secure latching of the frame in the closed position. For mounting in AX enclosures, the additional AX mounting kit is required.

Technology Explained Simply

The swing frame is designed to simplify the mounting of standard 48,3 cm ( 19 inch ) devices in enclosures. The 9 HE height corresponds to a standard dimension in industry, used for many network and control units. The zinc-coated sheet steel surface provides good corrosion protection, especially in environments with high humidity or aggressive atmosphere. The 130° opening allows good access to mounted components without having to open the entire enclosure.

Compatibility and Accessories

The swing frame is compatible with enclosures of types VX, VX SE and AX, with a width of 600 mm or 800 mm and a height of at least 600 mm. For mounting in VX SE enclosures, the VX adapter rail is required. Depending on the expansion situation, system chassis with dimensions 23 x 64 mm may be required. The swing frame locking is necessary to fix the opened frame in the open position. Suitable accessories include various system chassis in widths of 400 mm, 500 mm, 600 mm and 800 mm, as well as the swing frame locking.

Mounting and Installation

Mounting is done at the mounting kit of the enclosure, using the included mounting hardware. When used in VX SE enclosures, mounting is at the enclosure profile in conjunction with the VX adapter rail. For AX enclosures, the additional AX mounting kit is required. Installation is done without additional tools, provided the necessary mounting elements are available.

Advantages in Operation

The swing frame offers improved accessibility to mounted devices, accelerating maintenance and component replacement. The stable construction from zinc-coated sheet steel ensures high mechanical strength and durability. The integrated locking with double-bar lock ensures secure fixation of the frame in the closed position, preventing accidental opening. Compatibility with various enclosure types increases flexibility in planning and execution of enclosure systems.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 hinges 130°, including strike plate with double-bolt lock insert, material for mounting on installation kit
NoteTo lock the opened swivel frame, the swivel frame locking mechanism is required. Depending on the installation situation, system chassis 23 x 64 mm are required. In VX SE on cabinet profile in combination with adapter rail VX. For further installation options, see "Technology in detail".
Note on part numberFor installation in AX, additional installation kit AX required
Suitable forHousing type: VX, VX SE, AX, width: = 600 mm, = 800 mm, height: ≥ 600 mm
Suitable for housing typeVX, VX SE
Height units9 HE


Product data sheet
Datasheet for Rittal 8619520, EAN: 4028177919587
