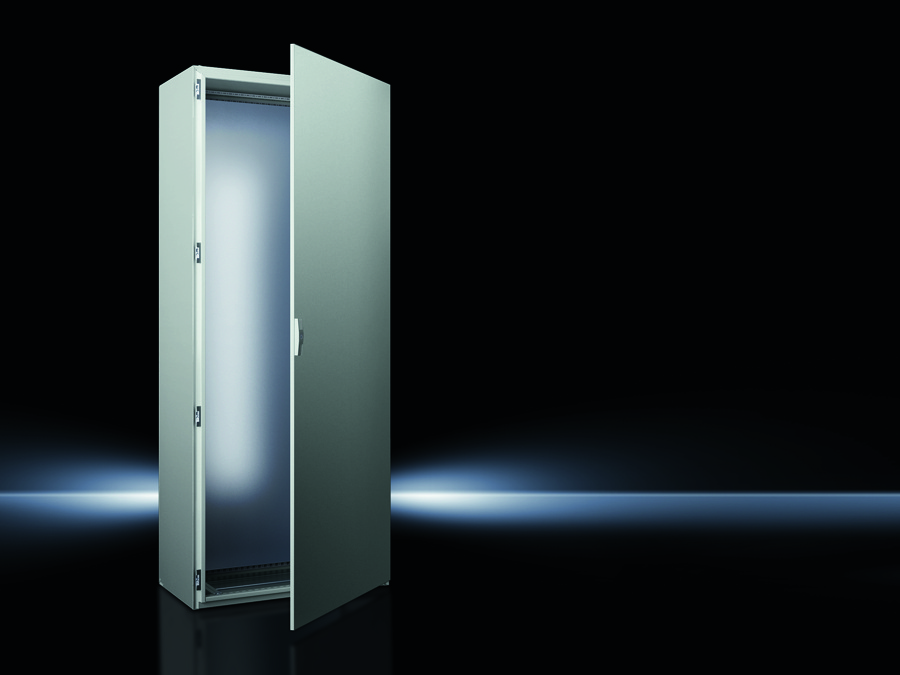

Rittal 5830680 SE system single enclosure, IP 66, NEMA 4, 600x1800x40
|
734,16 EUR |
|
|
( 873,65 EUR incl. VAT ) ≈ £614.49 | ≈ $806.84 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055460 |
| Mfg Part No: | 5830680 |
| UPC/EAN: | 4028177959323 |
| Weight: | 103.6 kg |
| Type: | SE 5830680 |
Product information for Rittal 5830680:
Applications
This enclosure is suitable for use in environments requiring high protection against dust, water, and mechanical impacts. It is particularly suited for industrial control systems, automation technology, machine building, and plant engineering, where high mechanical strength and weather resistance are required. The IP 66 protection rating according to EN 60 529 and NEMA 4 ensure high protection against dust, splashing water, and temporary immersion. The IK10 rating provides high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a wall thickness of 1.5 mm for the enclosure, rear panel, and base. The door is made of 2.0 mm sheet steel, and the mounting plate is made of 3.0 mm sheet steel. The surface is dip-primed and powder-coated externally with textured paint in RAL 7035. The mounting plate is galvanized, and the base is dip-primed and powder-coated. The door features a horizontal, double-foamed seal and a square tube frame with 25 mm DIN grid perforation. The locking mechanism is a 3 mm double latch according to DIN 43668, four-point locking, with non-removable hinge pins. The door opening angle is 130° according to VDI, but can be upgraded to 180°. An automatic equipotential bonding between door and enclosure body is integrated.
Technology Explained Simply
The IP 66 protection rating means the enclosure is dust-tight and protected against splashing water from any direction and temporary immersion. The NEMA 4 rating corresponds to a high level of protection against water, dust, and mechanical impacts, even in outdoor environments. The IK10 rating guarantees high protection against mechanical stress, such as impacts from a hammer. The surface treatment with nanoceramic, electrophoretic dip priming, and textured powder coating ensures corrosion protection and resistance against mineral oils, lubricants, machining emulsions, and solvents.
Compatibility and Accessories
The enclosure is fully compatible with the VX25 baying system. Suitable accessories include system chassis, levelling feet, lock inserts, comfort handles, transport eyes, door latches, and adapter rails. These components allow flexible adaptation to specific mounting and operational requirements. The mounting plate is depth-adjustable in 25 mm increments and features integrated plastic glides as well as reusable mounting rails. A mounting grid facilitates component positioning.
Mounting and Installation
Installation is performed using the pre-fabricated integral construction, where the enclosure, roof, and side panels are made as a single unit. The rear panel is screwed on and can be removed. The base consists of a single-piece base sheet with gland plates, which is removable and replaceable. The mounting plate is side-crimped and depth-adjustable. The pre-drilled 25 mm DIN grid enables flexible and precise mounting of components.
Advantages in Operation
The enclosure offers high mechanical stability and weather resistance. The integral construction reduces installation time and increases strength. The integrated mounting plate with depth-adjustable positioning and pre-drilled grid simplifies component installation. The high protection rating IP 66/NEMA 4 and IK10 ensure reliable operation in demanding environments. The surface treatment ensures long service life and resistance to aggressive environmental conditions.
| General | |
| Material | Housing: Sheet steel 1.5 mm, Door: Sheet steel, 2.0 mm, Rear panel: Sheet steel, 1.5 mm, Base: Sheet steel, 1.5 mm, Mounting plate: Sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate: galvanised, base: dip-primed and powder-coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Housing top and sides closed, door(s), door hinge right, reversible to left, mounting plate, base, flange plate(s), rear panel, removable, closure: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 600 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 299.51 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
