Rittal 1444000 Plastic enclosure AX W x H x D 400x400x200 mm IP66

Your rating:
Average rating
product review for Rittal 1444000 Plastic enclosure AX W x H x D 400x400x200 mm IP66
( 4 / 5 ) 2 ratings

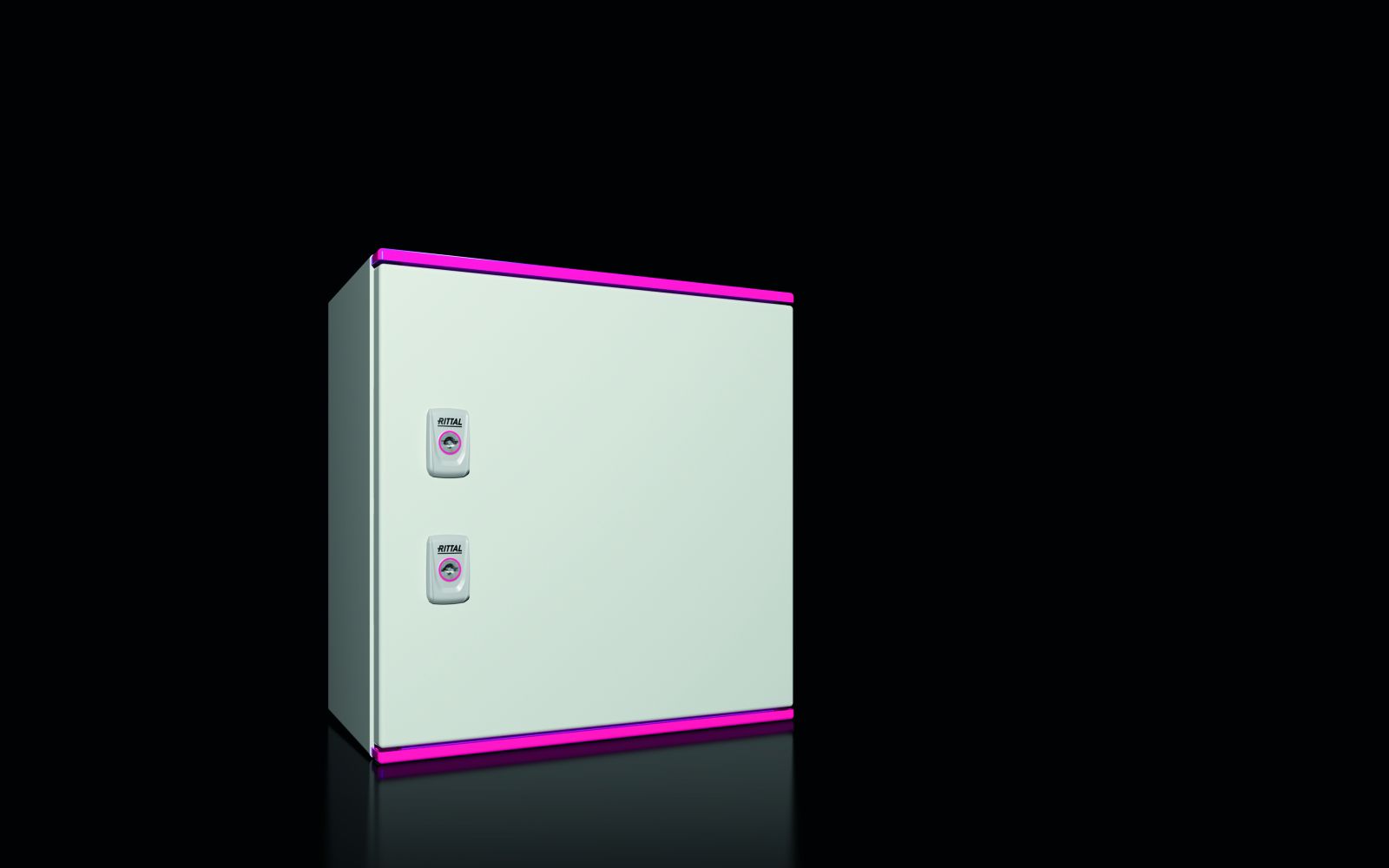

Rittal 1444000
This image may differ from the desired article.
Rittal 1444000Rittal 1444000Rittal 1444000Rittal 1444000Rittal 1444000Rittal 1444000
143,74 EUR 143,97 EUR
( 171,05 EUR incl. VAT )
≈ £120.31  |  ≈ $157.97
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 1444000 Plastic enclosure AX W x H x D 400x400x200 mm IP66
Datasheet:file_download Download
Lieske Part No.:1055408
Mfg Part No: 1444000
UPC/EAN: 4028177006478
Weight:8.5 kg
Type:AX 1444000

Product information for Rittal 1444000:

The Rittal AX 1444000 is a plastic enclosure with dimensions W x H x D 400x400x200 mm, designed without a viewing window. It is designed for use in demanding environments, particularly in areas where high mechanical loads, weather influences, or high requirements for protection rating are present. The enclosure is made of a single piece of glass-fibre-reinforced, unsaturated polyester (GFRP), which is self-extinguishing according to UL 94-V0 and manufactured halogen-free. The surface is not post-treated and is pigmented, matching RAL 7035. The door is fitted with a continuously foamed PU seal, ensuring a tight seal. An integrated rain shield along the top and bottom edges of the door provides additional protection against precipitation.

Applications
This enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. The actual operating temperature may be limited by the installed components. Due to its protection rating IP 66 according to EN 60 529, it is dust- and waterproof, also suitable for outdoor use. The NEMA protection rating includes categories 1, 3R, 3RX, 4, 4X, and 12, enabling use in damp, dusty, or slightly corrosive environments. The type rating according to UL 50E corresponds to categories Type 1, 3R, 3RX, 4, 4X, and 12. Protection class II (at 1000 V AC) means the enclosure is double-insulated and does not require earthing. The IK code IK09 indicates high mechanical strength against impacts such as shocks or vibrations.

Functions and Equipment in Detail
The enclosure is fully enclosed and features a hinged door with a 130° opening angle. The door hinge is standard on the right, but can be changed to the left. The door is secured by a 3 mm double-barrel lock, with two locks provided. The steel sheet mounting plate, with a material thickness of 2.5 mm, is galvanised and measures 305 mm x 325 mm. It features keyhole slots for earthing and dimension markings, and is fastened with Limbach nuts. Numerous mounting bosses inside the enclosure allow for custom internal installation on a 25 mm grid, for example with system chassis or rails.

Technology Explained Simply
The base material is plastic, specifically glass-fibre-reinforced polyester, known for its high mechanical strength, temperature resistance, and chemical resistance. The self-extinguishing property according to UL 94-V0 reduces fire risk. The integrated rain shield along the top and bottom edges of the door prevents precipitation from entering, especially when mounted at an angle. The PU foam seal ensures a tight seal and prevents dust and moisture ingress. The mounting plate allows for component mounting inside the enclosure.

Compatibility and Accessories
Various accessories are available for this enclosure, extending its functionality. These include lock inserts made of zinc die-cast, mounting brackets for internal installation, mounting plates in various sizes, the AX Mini comfort handle, the AS Multitool AX/VX 4052000, the SZ internal door for plastic enclosure AX, system lights, VX system chassis, and the AX mast mounting. These components enable flexible and application-specific configuration of the enclosure.

Mounting and Installation
Screws for internal installation are required to mount components inside the enclosure. With the universal bracket, components can be mounted on a 25 mm grid, for example system chassis. The mounting plate features keyhole slots for earthing. The door can be opened with a 130° stainless steel hinge, with the hinge position changeable to the left. The integrated door bottom rail facilitates mounting and operation.

Operational Advantages
The enclosure offers high mechanical strength (IK09), is weather-resistant IP 66), and can be used over a wide temperature range. The integrated rain shield and double sealing ensure reliable protection against precipitation. The mounting bosses inside the enclosure allow for flexible internal configuration. The mounting plate with dimension markings and keyhole slots simplifies component installation. The surface is halogen-free and self-extinguishing, enhancing safety. For long-term exposure to UV radiation and rain, it is recommended to paint the surface with a PUR lacquer to avoid visual impairment.

A QR code is printed on the enclosure, mounting plate, door, and type plate to enable unique identification, easy access to relevant product information, and traceability of individual parts.

Note: Batteries are not included in the delivery scope.

General
Modelwithout viewing window
MaterialHousing and door: glass-fibre-reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, flammability behaviour according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryHousing with hinged door, fully enclosed, 3 mm double latch, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom door edges as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width400 mm
Height400 mm
Depth200 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)305 mm x 325 mm
Door opening angle130°
Number of locks2
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.


Product data sheet
Datasheet for Rittal 1444000, EAN: 4028177006478
