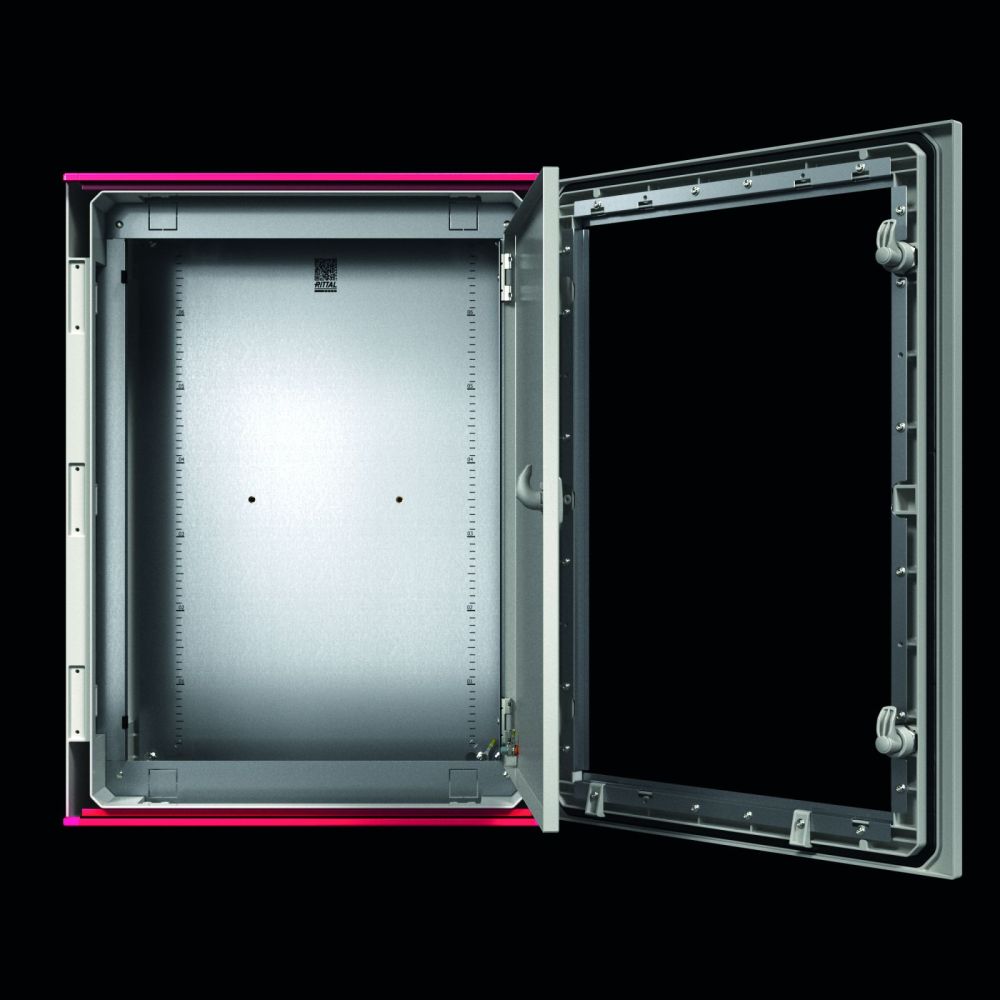

Rittal 1485744 SZ internal door for plastic enclosure AX, 400x400 mm

Your rating:
Average rating
product review for Rittal 1485744 SZ internal door for plastic enclosure AX, 400x400 mm
( 4.4 / 5 ) 5 ratings
Rittal 1485744
This image may differ from the desired article.
Rittal 1485744Rittal 1485744Rittal 1485744Rittal 1485744Rittal 1485744Rittal 1485744
53,94 EUR
( 64,19 EUR incl. VAT )
≈ £45.15  |  ≈ $59.28
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 1485744 SZ internal door for plastic enclosure AX, 400x400 mm
Datasheet:file_download Download
Lieske Part No.:1101809
Mfg Part No: 1485744
UPC/EAN: 4028177965874
Weight:2.04 kg
Type:AX 1485744

Product information for Rittal 1485744:

The Rittal SZ internal door, type AX 1485744, is a specially designed internal door for plastic enclosures of the AX series, providing secure access protection and clear separation between the operating and technical levels. The door is designed for enclosures with a width and height of 400 mm each and is installed into the enclosure at the mounting domes in the side panels. It is made of sheet steel and designed for use in industrial environments.

Applications

The internal door is used to secure operating and control elements within an enclosure. It allows organized access to the operating level while protecting technical components in the rear area. This is particularly advantageous in systems with multiple operators or in environments with increased safety requirements. The door is intended for use in AX plastic enclosures, which are characterized by their robust construction and high resistance to mechanical stress.

Functions and Equipment in Detail

The door is supplied with a deadbolt lock incorporating a 3 mm double-bolt lock insert. This lock is standard and can be replaced, if required, with other lock inserts of 27 mm width, type A. Mounting is done using supplied screws, which are inserted directly into the mounting domes of the enclosure walls. The door opens up to an angle of 105°, ensuring sufficient access to the operating level.

Technology Explained Simply

The door is made of 1 mm thick sheet steel, providing sufficient strength for industrial use. The door surface is powder-coated and features a textured finish, ensuring high resistance to mechanical stress and contamination. The color corresponds to RAL 7035, a gray tone that integrates well in industrial environments. The door frame is galvanized to prevent corrosion and extend service life. The construction is designed to fit easily into the designated mounting domes of AX plastic enclosures.

Compatibility and Accessories

The internal door is exclusively designed for AX plastic enclosures with dimensions of 400 mm width and 400 mm height. Compatibility is limited to these enclosure types, as the mounting domes and door dimensions are precisely matched. The standard double-bolt lock insert can be replaced with other 27 mm lock inserts, type A, allowing adaptation to different safety requirements.

Installation and Mounting

Installation is performed by fitting the door into the mounting domes of the side walls of the AX plastic enclosure. The supplied mounting screws are inserted into the designated holes to securely fix the door. The door opens up to 105°, providing sufficient access to the operating level.

Operational Advantages

The internal door provides a clear separation between operating and technical levels, increasing safety and clarity during operation. The deadbolt lock with double-bolt insert ensures secure access protection. The robust sheet steel construction and powder-coated surface ensure long service life and high resistance to wear. The door is easy to install and fits precisely into the designated AX plastic enclosures with dimensions 400x400 mm.

General
MaterialDoor and door frame: steel sheet
Surface protectionDoor: powder-coated, textured lacquer, door frame: galvanised
ColourDoor: RAL 7035
Scope of deliveryDoor, deadbolt lock with 3 mm double bar insert, including mounting screws
Mounting optionsIn AX plastic at mounting domes in the side walls
NoteStandard double-barrel lock insert, replaceable with lock inserts 27 mm, type A
Suitable for housing typeAX plastic
Suitable for width= 400 mm
Suitable for height= 400 mm
Door material thickness1 mm
Door opening angle105°


Product data sheet
Datasheet for Rittal 1485744, EAN: 4028177965874
