Rittal 1448000 AX plastic enclosure 400x400x200 mm with locking system

Your rating:
Average rating
product review for Rittal 1448000 AX plastic enclosure 400x400x200 mm with locking system
( 4.4 / 5 ) 8 ratings

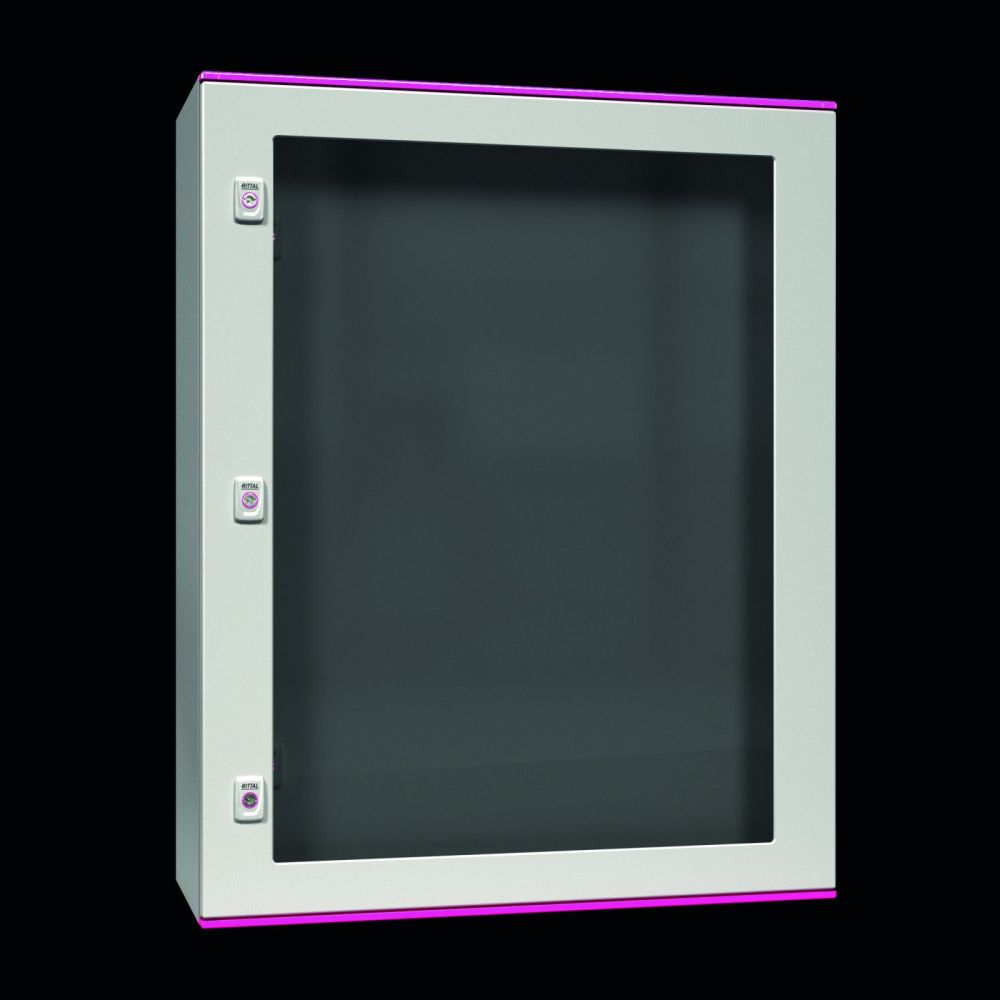

Rittal 1448000
This image may differ from the desired article.
Rittal 1448000Rittal 1448000Rittal 1448000Rittal 1448000Rittal 1448000Rittal 1448000Rittal 1448000
185,50 EUR 189,25 EUR
( 220,74 EUR incl. VAT )
≈ £155.26  |  ≈ $203.86
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 1448000 AX plastic enclosure 400x400x200 mm with locking system
Datasheet:file_download Download
Lieske Part No.:1910555
Mfg Part No: 1448000
UPC/EAN: 4028177006614
Weight:8.97 kg
Type:AX 1448000

Product information for Rittal 1448000:

The Rittal AX 1448000 is a plastic enclosure with dimensions of 400 mm width, 400 mm height, and 200 mm depth. It is designed as a compact enclosure and features a viewing window in the door, enabling visual inspection of installed components. The enclosure is made of glass-fibre-reinforced, unsaturated polyester (GFK), which is self-extinguishing according to UL 94-V0 and halogen-free. The surface is uncoated and pigmented, matching RAL 7035. The door is fitted with a continuously foamed PU seal, ensuring a tight seal. The steel sheet mounting plate, with a material thickness of 2.5 mm, is zinc-coated and provides a stable mounting surface for internal components.

Applications
This enclosure is designed for use in demanding environments, particularly outdoors. It is rated for ambient temperatures from -30 °C to +75 °C, although the actual operating temperature may be limited by the installed devices. The IP 56 protection rating according to EN 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use. Additionally, the enclosure meets protection ratings NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, and NEMA 12, as well as Type ratings according to UL 50E (Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12). The F1 Outdoor Rating according to UL 746C confirms suitability for outdoor applications. The IK classification IK09 indicates high mechanical resistance against mechanical impacts.

Functions and Equipment in Detail
The enclosure is fully enclosed and features a hinged door with a 3 mm double-barrel lock. The door is standard right-hinged but can be converted to left-hinged. The door opening angle is 130°, providing good access to the interior. Double sealing is integrated along the top and bottom edges of the door as an integrated rain shield, offering additional protection against precipitation. The door includes an integrated bottom stop at the lower edge, ensuring secure positioning.

Technology Explained Simply
The GFK construction provides high mechanical strength and weather resistance. The self-extinguishing property according to UL 94-V0 reduces fire risk. The PU seal ensures a tight seal, effective even in wind and rain. The mounting plate with keyhole slots for earthing and dimension markings facilitates installation. The mounting bosses inside the enclosure allow flexible internal installation on a 25 mm grid.

Compatibility and Accessories
Various accessories are available for extending and adapting the enclosure. These include zinc die-cast lock inserts, mounting brackets, mounting plates in various sizes, TS mounting rails for a door width of 400 mm, the AX Mini comfort handle, the AS Multitool AX/VX 4052000, the SZ internal door for plastic enclosures, an LED 400 system light, VX system chassis in various dimensions, and the AX mast mounting 2584100. These components enable individual adaptation to specific requirements.

Mounting and Installation
Mounting is done via the integrated mounting plate, secured with Limbach nuts. The mounting bosses inside the enclosure and the option to mount components on a 25 mm grid provide flexibility for internal configuration. The door hinge direction is reversible, allowing adaptation to different mounting conditions. The integrated rain shield and double sealing ensure reliable protection against weather influences.

Operational Advantages
The enclosure offers high mechanical and weather-resistant construction, suitable for outdoor use. The viewing window allows visual inspection of devices without opening the door. The IP 56 protection rating and NEMA classifications ensure a high level of protection against dust, splashing water, and mechanical impacts. The integrated rain shield and double sealing enhance reliability outdoors. The mounting bosses and 25 mm grid enable flexible and individual internal configuration. The surface is halogen-free and self-extinguishing, increasing safety. For long-term exposure to UV radiation and rain, it is recommended to coat the surface with a PUR lacquer to avoid visual impairments.

The enclosure is designed for industrial and technical applications where a robust, weather-resistant, and safety-relevant enclosure is required. The combination of mechanical strength, weather resistance, and flexible internal configuration makes it a suitable solution for various application scenarios.

General
Modelwith viewing window
MaterialCabinet and door: glass-fibre reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, viewing window: polycarbonate, flammability according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryEnclosure with hinged door with viewing window, fully enclosed, 3 mm double-barrel lock, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom of door as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 56
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width400 mm
Height400 mm
Depth200 mm
Mounting plate material thickness2,5 mm
Mounting plate dimensions (W x H)305 mm x 325 mm
Door opening angle130°
Number of locks2
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.
With viewing windowJa


Product data sheet
Datasheet for Rittal 1448000, EAN: 4028177006614
