Rittal 8619510 VX swing frame, small, for W: 600/800 mm

Your rating:
Average rating
product review for Rittal 8619510 VX swing frame, small, for W: 600/800 mm
( 4.5 / 5 ) 13 ratings
Rittal 8619510
This image may differ from the desired article.
Rittal 8619510Rittal 8619510Rittal 8619510Rittal 8619510
78,89 EUR
( 93,88 EUR incl. VAT )
≈ £66.03  |  ≈ $86.70
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8619510 VX swing frame, small, for W: 600/800 mm
Datasheet:file_download Download
Lieske Part No.:1441173
Mfg Part No: 8619510
UPC/EAN: 4028177919570
Weight:3.084 kg
Type:VX 8619.510

Product information for Rittal 8619510:

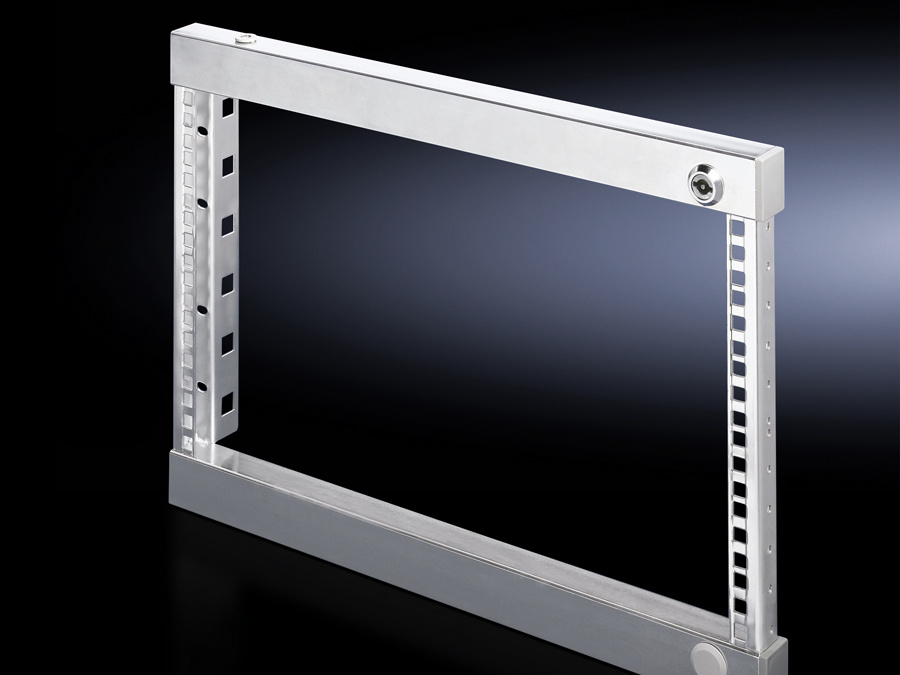

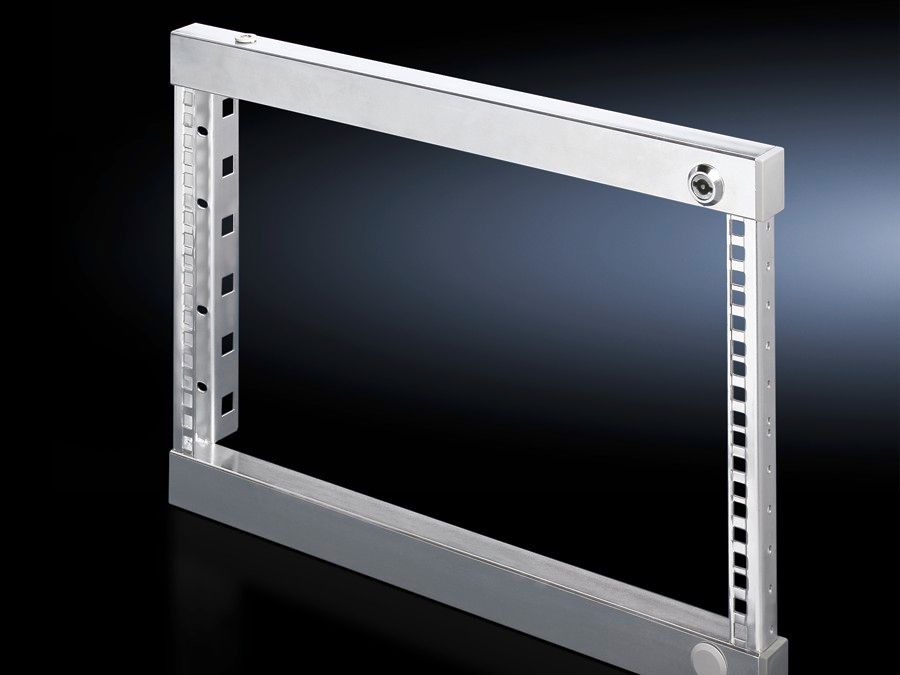

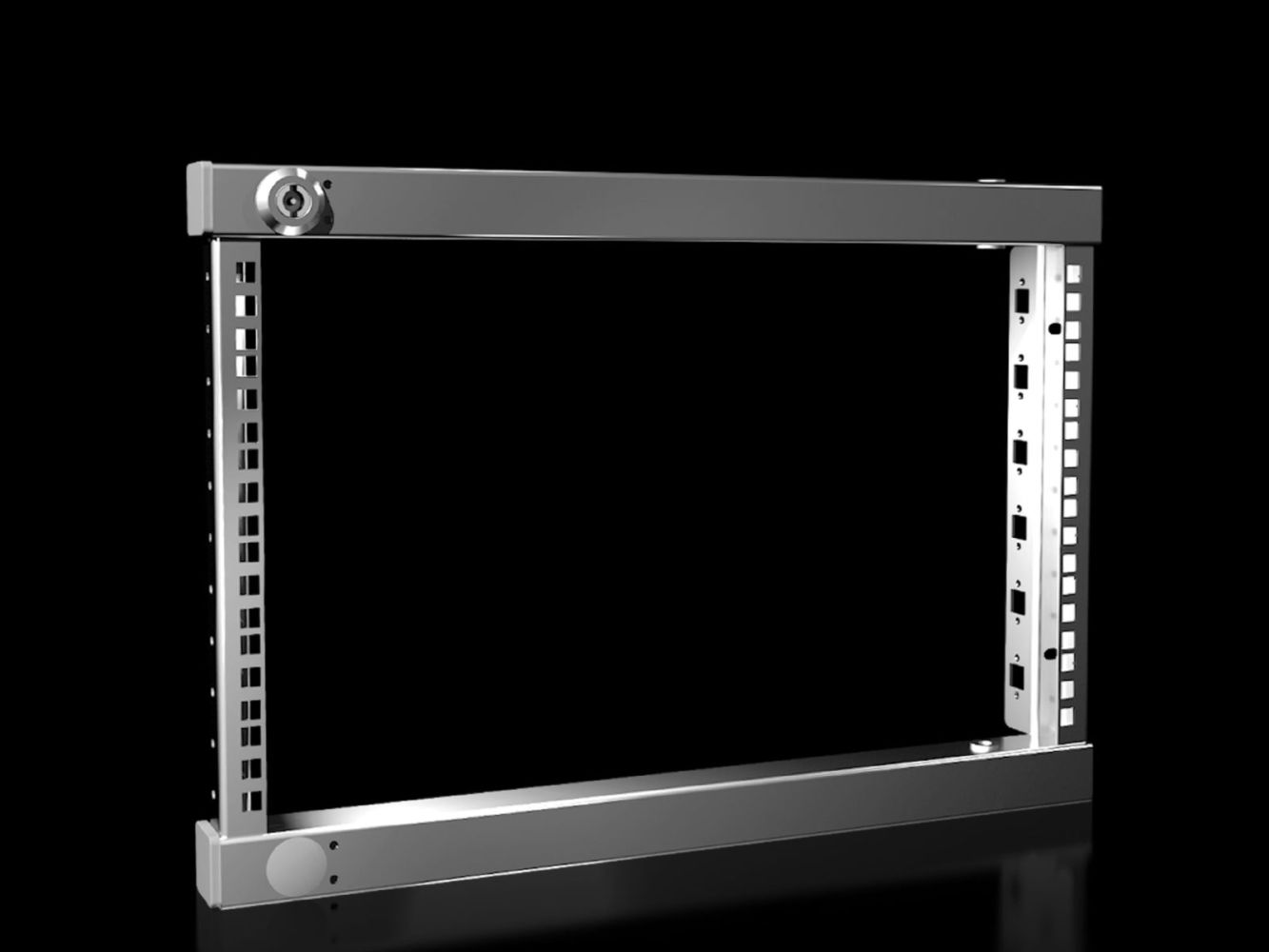

The Rittal VX 8619.510 is a swing frame, small, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures of types VX, VX SE and AX. It enables flexible installation of devices inside the enclosure, with the frame being swivellable by 130° to facilitate access to the mounted components. The product is made of sheet steel and features a galvanized surface, providing good corrosion protection. The construction is designed for enclosures with a width of 600 mm or 800 mm and a height of at least 600 mm. The height of the frame corresponds to 6 HE (height units), matching the standard dimension for 48,3 cm ( 19 inch ) devices.

Applications

The swing frame is used in industrial enclosures where flexible and accessible mounting of installation devices is required. It is particularly suitable for applications where frequent maintenance or replacement operations on the mounted components are necessary. Use in VX, VX SE and AX enclosures enables standardized integration into existing systems. The width variants of 600 mm and 800 mm cover common enclosure sizes, while the minimum height of 600 mm ensures sufficient space for mounting and operation of the devices.

Functions and Equipment in Detail

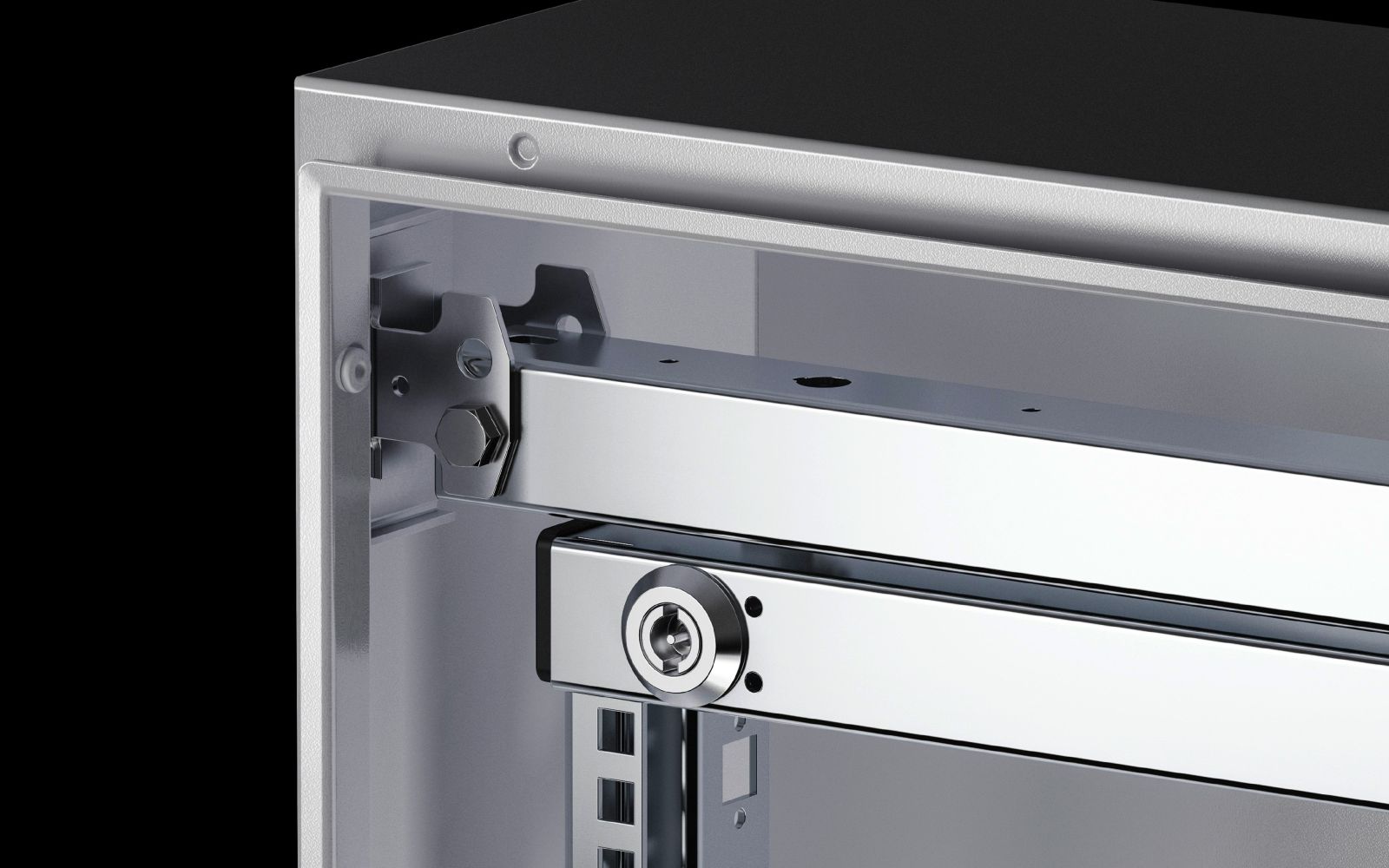

The delivery includes two hinges with a 130° opening movement, a latch with double-bar lock insert, and the necessary mounting material for attachment to the mounting kit. The hinges enable a secure and stable swivelling motion of the frame. The latch with double-bar lock insert ensures secure locking of the frame in the closed position. The mounting material is intended for attachment to the mounting kit, with the exact mounting method depending on the respective enclosure configuration.

Technology Explained Simply

The swing frame is made of sheet steel, protected against corrosion by galvanization. This surface treatment is particularly suitable for industrial environments where moisture or aggressive media may be present. The 130° hinges allow sufficient opening angle to ensure access to the front and side of the mounted devices. The use of 6 HE corresponds to the standard for 48,3 cm ( 19 inch ) installation devices and enables mounting of standard IT or control components. Mounting is done on the enclosure profiles, with a VX adapter rail required for VX SE enclosures.

Compatibility and Accessories

The swing frame is compatible with enclosure types VX, VX SE and AX. For mounting in AX enclosures, the additional AX mounting kit is required. Depending on the expansion situation, system chassis with dimensions 23 x 64 mm may be needed to support the mounting. The combination with the mentioned accessories enables flexible and secure installation in various enclosure configurations.

Mounting and Installation

Mounting is done on the enclosure profiles, with the exact fastening method depending on the enclosure type. For VX SE enclosures, the VX adapter rail is used to attach the frame to the enclosure profile. Fastening is done using the included mounting material. Installation of the devices is done directly onto the swing frame, taking into account the standard dimensions of 482.6 mm (48,3 cm ( 19 inch )) and 6 HE. The frame is opened via the 130° hinges, with locking achieved by the latch with double-bar lock insert.

Advantages in Operation

The swing frame enables improved accessibility to the mounted devices, simplifying maintenance and component replacement. The stable construction made of galvanized sheet steel ensures long service life and high mechanical strength. The use of standard 48,3 cm ( 19 inch ) dimensions allows mounting of a wide range of devices, increasing flexibility in use. The integrated locking mechanism ensures secure positioning of the frame, both in closed and open positions.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 hinges 130°, including strike plate with double-bolt lock insert, material for mounting on installation kit
NoteTo lock the opened swivel frame, the swivel frame locking mechanism is required. Depending on the installation situation, system chassis 23 x 64 mm are required. In VX SE on cabinet profile in combination with adapter rail VX. For further installation options, see "Technology in detail".
Note on part numberFor installation in AX, additional installation kit AX required
Suitable forHousing type: VX, VX SE, AX, width: = 600 mm, = 800 mm, height: ≥ 600 mm
Suitable for housing typeVX, VX SE
Height units6 HE


Product data sheet
Datasheet for Rittal 8619510, EAN: 4028177919570

Questions & answers

What is the delivery time of Rittal 8619510 VX swing frame, small, for W: 600/800 mm?

The article Rittal 8619510 VX swing frame, small, for W: 600/800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619510 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619510 VX swing frame, small, for W: 600/800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619510 VX swing frame, small, for W: 600/800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
