Rittal 9690040 SV VX ESS energy storage enclosure

Your rating:
Average rating
product review for Rittal 9690040 SV VX ESS energy storage enclosure
( 0 / 5 ) 0 ratings

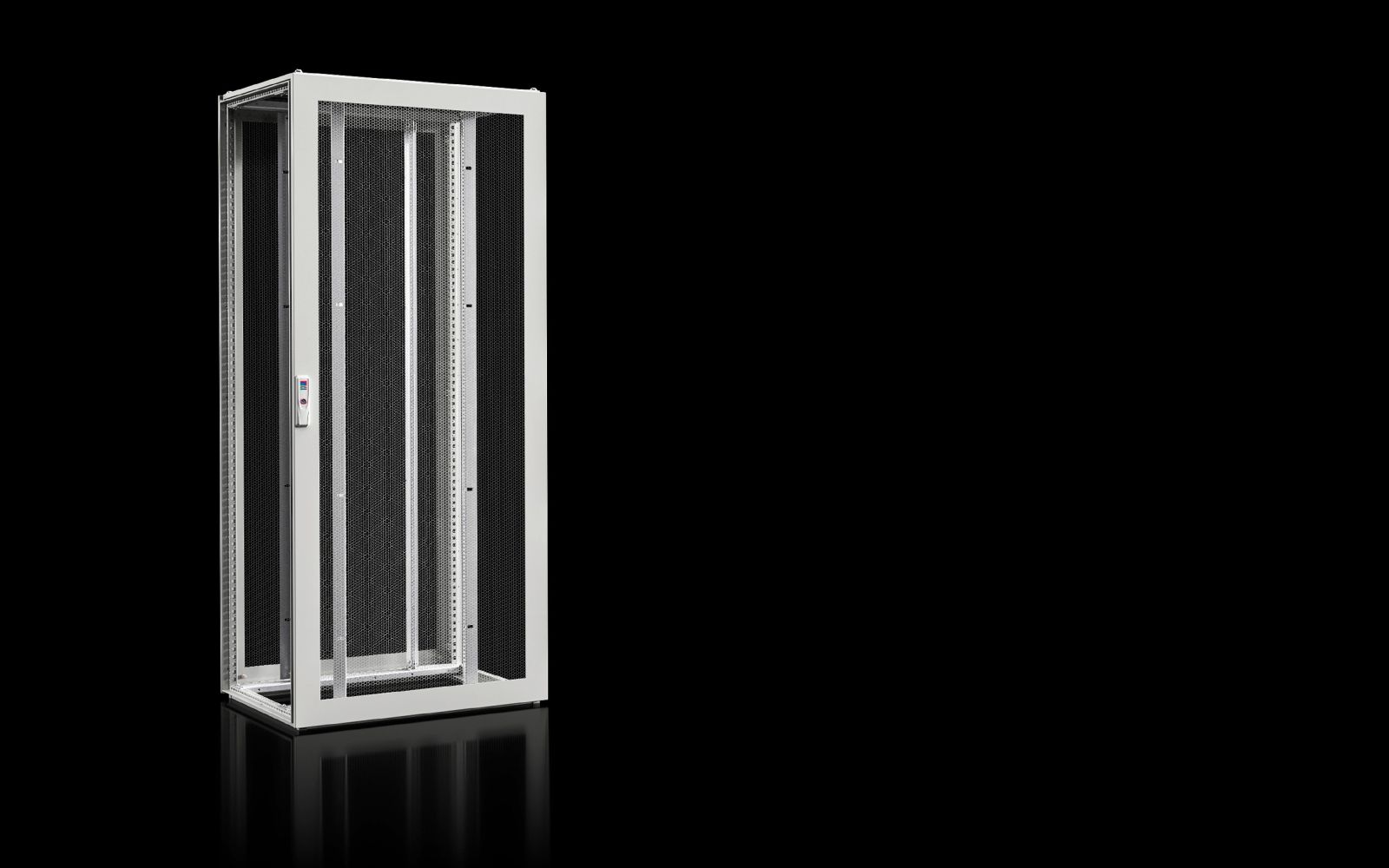

Rittal 9690040
This image may differ from the desired article.
1.082,47 EUR 1.128,79 EUR
( 1.288,14 EUR incl. VAT )
≈ £906.03  |  ≈ $1,189.63
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9690040 SV VX ESS energy storage enclosure
Datasheet:file_download Download
Lieske Part No.:895324
Mfg Part No: 9690040
UPC/EAN: 4028177044272
Weight:66.2 kg
Type:SV 9690040

Product information for Rittal 9690040:

The Rittal SV 9690040 is a VX ESS energy storage enclosure with dimensions width 600 mm, height 2,000 mm and depth 600 mm. It is specifically designed for use in energy storage systems and offers a flexible interior build, enabling modular and efficient installation of components. The enclosure frame is made of sheet steel with a wall thickness of 1.5 mm and is dip-primed, while the door, roof plate and rear panel are powder-coated and feature a textured paint surface in RAL 7035. The protection class IP 20 according to EN 60 529 ensures protection against contact with fingers and against solid foreign objects, but not against water or dust. The enclosure is designed for indoor use and provides sufficient protection for electrical assemblies against mechanical influences and unauthorized access.

Applications

The enclosure is primarily intended for energy storage systems, particularly for systems mounted on sliding rails. The modular design allows flexible adaptation to different requirements in the field of electrical energy storage, for example in photovoltaic systems or industrial applications. The perforated door and rear panel with a free ventilation area of 85 % ensure efficient heat dissipation, which is important for the thermal stability of installed components. The integrated PU foam seal on the door and roof plate improves sealing properties and supports the IP 20 protection class.

Functions and Equipment in Detail

The enclosure features an enclosure frame made of metric profile frames, consisting of closed and profiled hollow profiles. The perforation follows a 25 mm grid, enabling flexible mounting of assemblies. The frame profiles are fitted with integrated blind rivet nuts M6 to securely fasten fittings. The door is perforated, secured with a bar lock and four-point locking, and can be opened to a maximum angle of 130°. Optionally, the door can be extended to 180°. The hinges are reversible, and the hinges are fitted with non-removable hinge pins. The floor clearance is 17 mm. The roof plate is removable and fitted with a PU foam seal. The rear panel is also perforated and removable, with a positioning aid and a PU foam seal.

Technology Explained Simply

The surface treatment of the enclosure includes a triple protective layer: nanoceramic coating, electrophoretic dip priming, and powder-coated paint in RAL 7035. This treatment protects against corrosion and is resistant to mineral oils, lubricants, machining emulsions and solvents. The flat parts (rear panel and roof plate) are conductively connected to the enclosure frame, enabling automatic equipotential bonding according to DIN 62208. This is important for electrical safety and to avoid voltage differences. The interior build components are made of galvanized sheet steel (cross brace 3 mm, mounting angle 3 mm, profile rail 2 mm), ensuring high mechanical stability.

Compatibility and Accessories

Various accessories are available for extending and adapting the enclosure, including earthing straps in different cross-sections (4 mm², 10 mm², 16 mm², 25 mm²) and lengths (170 mm, 300 mm), plinth trim panels, plinth corner pieces, side panels, baying connectors, baying brackets, baying blocks, and various roof plates (e.g. with cable entry or IP 20). These components allow individual adaptation to specific requirements, such as integrating earthing systems or connecting multiple enclosures.

Mounting and Installation

Mounting is performed via the integrated perforation grid in a 25 mm grid, enabling flexible positioning of assemblies. The enclosure profiles are baying-capable on all sides, allowing scalable arrangements of multiple enclosures. The maximum load capacity of the enclosure frame is 15,000 N, and that of the interior build (consisting of profile rails and cross braces with mounting angles) is 10,000 N. Fastening is done using cage nuts and metric screws up to M8. The integrated blind rivet nuts M6 facilitate the mounting of fittings. The door and roof plate are removable, simplifying installation and maintenance of components.

Operational Advantages

The enclosure offers high mechanical stability and flexible mounting options via the interior build system. The perforated surfaces ensure good ventilation, reducing thermal stress on installed components. The conductive connection of flat parts to the enclosure frame ensures safe equipotential bonding. The powder-coated surface in RAL 7035 provides high corrosion protection and is resistant to industrial environmental conditions. The integrated QR codes on the door, roof, rear panel and nameplate enable unique identification and easy access to product information and documentation.

Scope of Delivery

The enclosure is delivered with the enclosure frame, perforated door, perforated rear panel, roof plate and a 3 mm double-bar lock. The components are designed for flexible interior build and enable modular installation.

General
ModelWith flexible internal construction
Materialrack frame: sheet steel, 1.5 mm, roof sheet: sheet steel, 1.5 mm, door: sheet steel, 1.5 mm, rear panel: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip primed, door, roof and rear panel: powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryCabinet frame, door and rear panel, perforated, roof sheet, lock: 3 mm double tongue
Degree of protection IP according to EN 60 529IP 20
Width600 mm
Height2.000 mm
Depth600 mm
PCF/VE (Cradle-to-Gate)208.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9690040, EAN: 4028177044272

Questions & answers

What is the delivery time of Rittal 9690040 SV VX ESS energy storage enclosure?

The article Rittal 9690040 SV VX ESS energy storage enclosure is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9690040 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9690040 SV VX ESS energy storage enclosure always at the best possible price. We can give you a discount of 2% on Rittal 9690040 SV VX ESS energy storage enclosure if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
