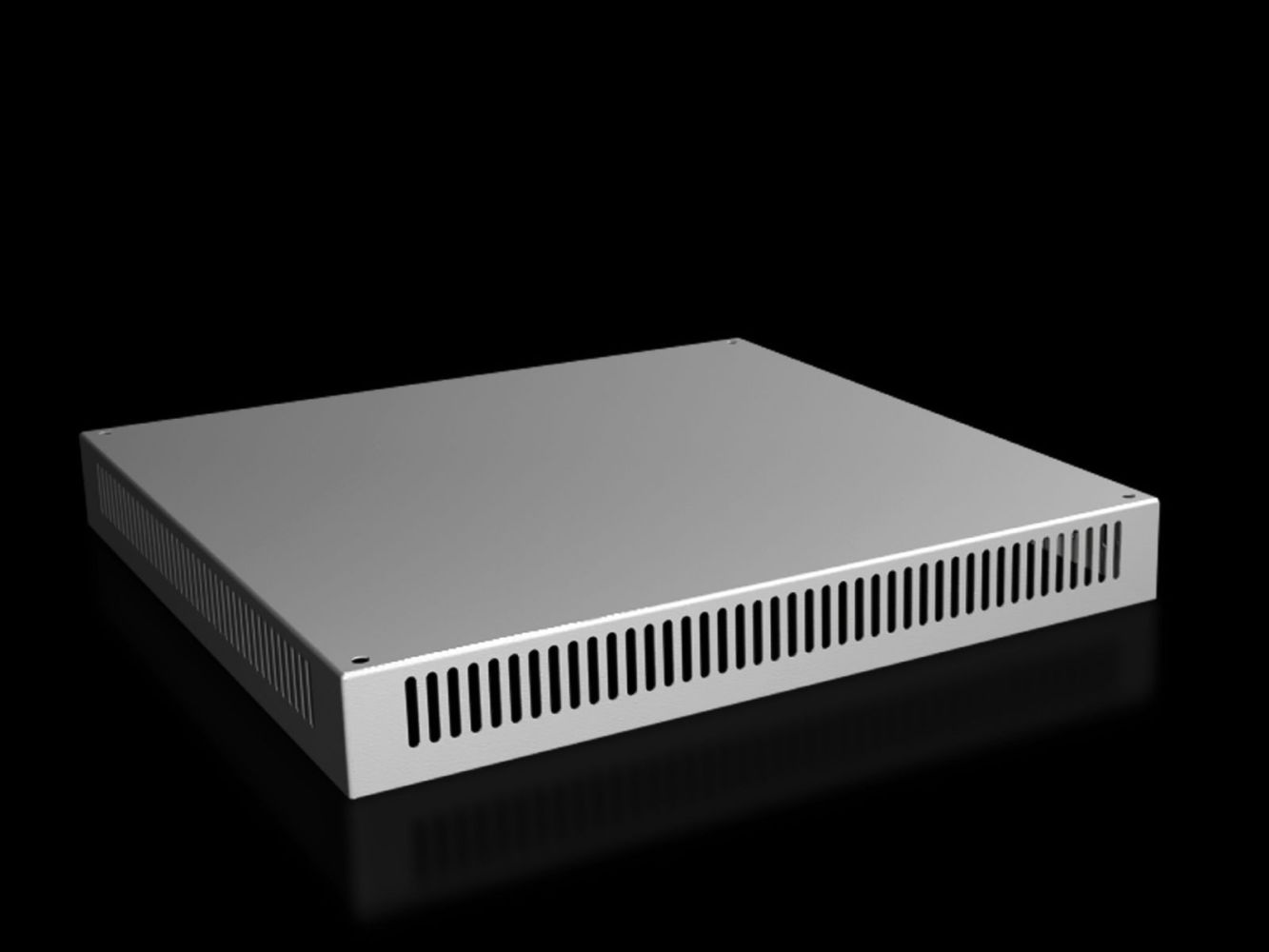

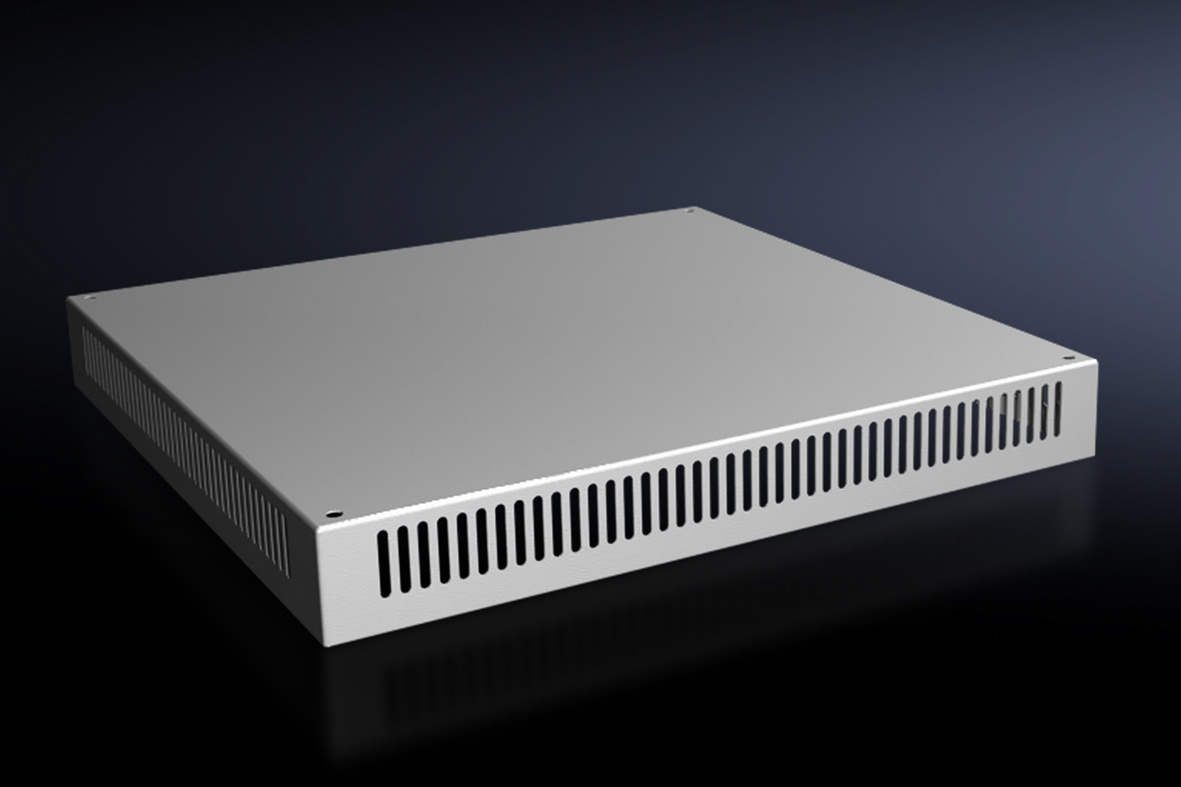

Rittal 9681866 SV roof plate for VX, width: 600x600 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681866 SV roof plate for VX, width: 600x600 mm, IP 2X
( 4.5 / 5 ) 2 ratings
Rittal 9681866
This image may differ from the desired article.
Rittal 9681866Rittal 9681866Rittal 9681866
64,86 EUR
( 77,18 EUR incl. VAT )
≈ £54.29  |  ≈ $71.28
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9681866 SV roof plate for VX, width: 600x600 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903712
Mfg Part No: 9681866
UPC/EAN: 4028177926721
Weight:6.78 kg
Type:SV 9681866

Product information for Rittal 9681866:

The Rittal SV 9681866 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width and depth of 600 mm each. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is made of sheet steel with a thickness of 1.5 mm and features a surface coated with textured paint in the colour RAL 7035, ensuring a robust and uniform coating. The mounting height is 72 mm, allowing it to integrate optimally into the standard height construction of VX enclosures.

Applications

The roof plate is intended for use in industrial environments, particularly in enclosures of the VX and VX IT series. It is used to protect the upper closure surface of the enclosure while simultaneously enabling ventilation. The IP 2X protection rating ensures protection against contact with fingers and vertical dripping water, making it suitable for indoor applications where no high requirements for weather resistance exist. The ventilation opening supports natural air circulation within the enclosure, which can be beneficial for cooling electronic components.

Functions and Equipment in Detail

The roof plate is equipped with a ventilation opening that enables controlled air circulation. This opening is dimensioned to ensure necessary airflow without compromising the protection function of the IP 2X classification. The sheet steel material with a thickness of 1.5 mm provides sufficient mechanical stability to withstand loads in industrial operation. The textured paint surface in RAL 7035 ensures a uniform, abrasion-resistant coating that supports the visual appearance of the enclosure.

Technology Explained Simply

The IP 2X protection rating means that the roof plate is protected against contact with fingers and can repel vertical dripping water. It is not designed for outdoor use or in damp environments where higher protection requirements apply. The ventilation opening is an integrated design feature that supports air circulation within the enclosure without compromising the protection function. The sheet steel with a thickness of 1.5 mm provides sufficient strength to withstand mechanical loads during operation.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with a width and depth of 600 mm each. It is compatible with enclosures originally delivered without a roof plate, as well as for replacing the standard roof of other enclosures. The fit is tailored to the specified dimensions to ensure secure installation. The product is available in a packaging unit of one piece.

Mounting and Installation

Installation is carried out using the included mounting material, which is part of the delivery scope. The fastening is done at the designated mounting points of the enclosure, taking into account the mounting height of 72 mm.

Operational Advantages

The roof plate provides a simple and reliable solution for closing VX enclosures. The ventilation opening supports the cooling of components installed in the enclosure, thereby increasing operational safety. The use of sheet steel with textured paint in RAL 7035 ensures a durable, aesthetically pleasing surface that meets industrial requirements. Compatibility with VX series enclosures and easy installation make it a practical addition to existing installations.

The product is available in a packaging unit of one piece and is delivered with mounting material. The stated technical features are derived from manufacturer specifications and have been verified. The information regarding fit, material thickness, surface, and protection rating is consistent across all sources.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 600 mm, Depth: = 600 mm


Product data sheet
Datasheet for Rittal 9681866, EAN: 4028177926721

Questions & answers

What is the delivery time of Rittal 9681866 SV roof plate for VX, width: 600x600 mm, IP 2X?

The article Rittal 9681866 SV roof plate for VX, width: 600x600 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681866 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681866 SV roof plate for VX, width: 600x600 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681866 SV roof plate for VX, width: 600x600 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
