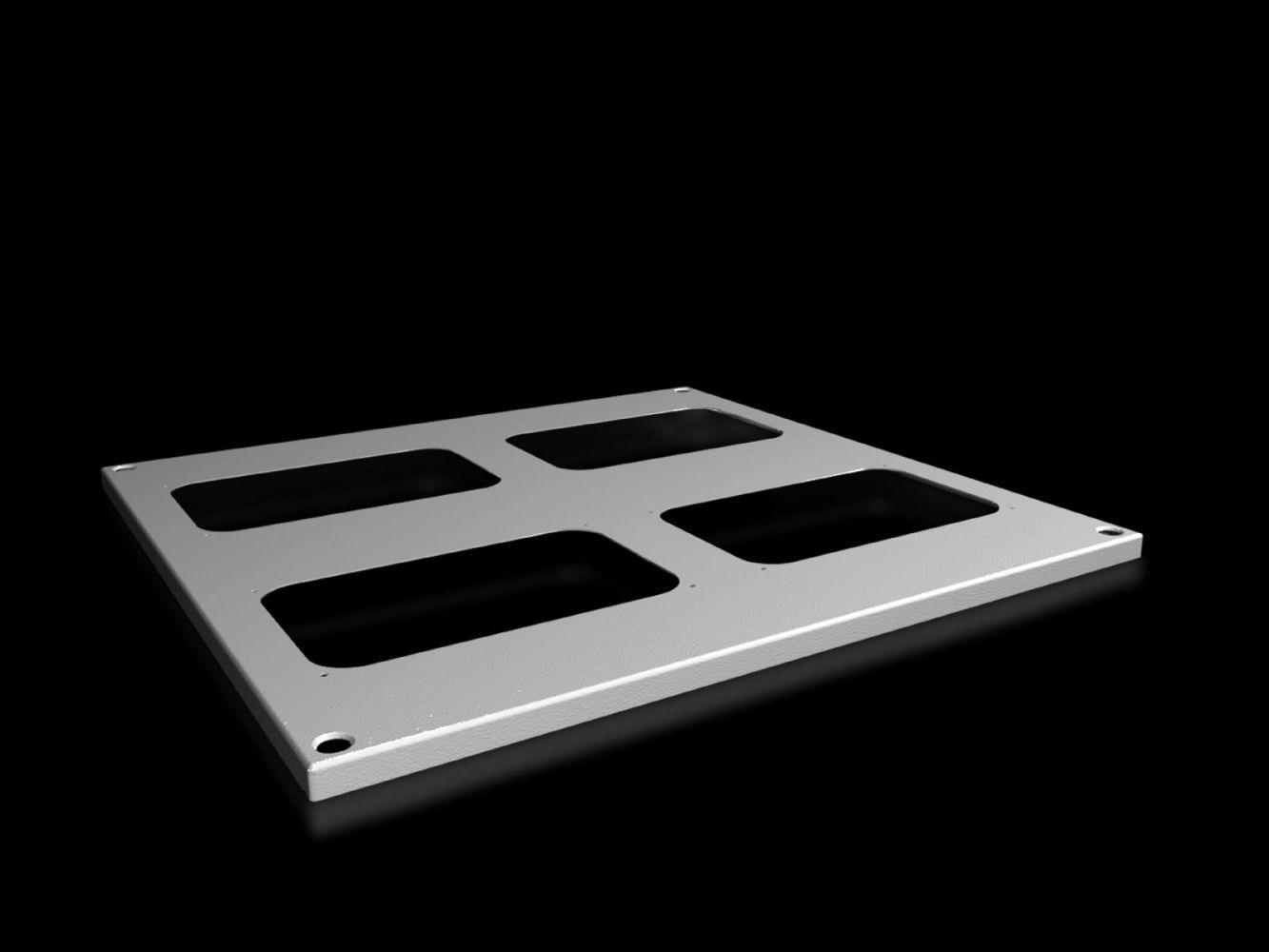

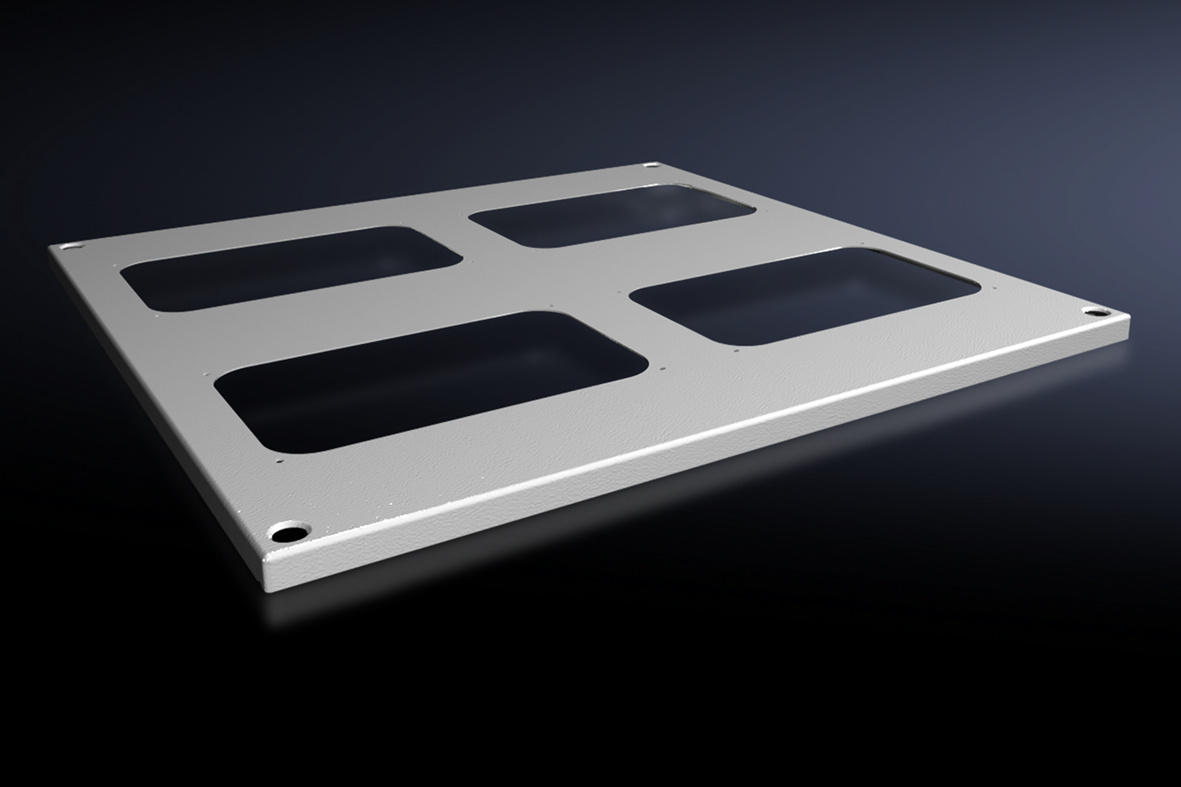

Rittal 9681566 SV roof plate for VX, width: 600x600 mm, for cable entry

Your rating:
Average rating
product review for Rittal 9681566 SV roof plate for VX, width: 600x600 mm, for cable entry
( 4.3 / 5 ) 4 ratings
Rittal 9681566
This image may differ from the desired article.
Rittal 9681566Rittal 9681566Rittal 9681566
56,70 EUR
( 67,47 EUR incl. VAT )
≈ £47.46  |  ≈ $62.31
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681566 SV roof plate for VX, width: 600x600 mm, for cable entry
Datasheet:file_download Download
Lieske Part No.:1903702
Mfg Part No: 9681566
UPC/EAN: 4028177926608
Weight:4 kg
Type:SV 9681566

Product information for Rittal 9681566:

The Rittal SV 9681566 is a roof plate for enclosures of the VX series, specifically designed for dimensions of 600 mm width and 600 mm depth. It serves as a replacement roof for enclosures originally delivered without a roof plate, or as a substitute for the standard roof plate in other enclosure models. The product is made of steel sheet with a thickness of 1.5 mm and features a surface coated with textured paint in the colour RAL 7035, ensuring a robust and uniform coating. The use of textured paint increases mechanical durability and provides good protection against environmental influences. The roof plate is designed for mounting four cable entry flanges, enabling flexible use for various cable connections and wiring entries.

Applications

The roof plate is primarily designed for use in industrial environments where enclosures with defined dimensions of 600 mm × 600 mm are required. It is particularly suitable for installations where secure and structured cable connections via the enclosure roof are necessary. Its use is common in electrical and automation technology, where integrating cables and wiring through the roof is a standard practice. The product is not suitable for enclosures with other dimensions, as it is specifically designed for the stated width and depth.

Functions and Equipment in Detail

The roof plate is supplied with mounting hardware, enabling secure installation on the enclosure. Mounting is carried out via designated mounting points, designed for use with four cable entry flanges. The number of required flanges is four, allowing for even distribution of cable entries. The textured paint surface ensures high mechanical strength and uniform protection against external influences.

Technology Explained Simply

The steel sheet with a thickness of 1.5 mm provides sufficient stability to withstand mechanical loads in industrial applications. The textured paint coating prevents corrosion and offers high protection against dirt and mechanical damage. The colour RAL 7035 is a grey tone commonly used in industry to ensure a neutral and professional appearance. The roof plate is not designed for use in explosive environments or under extreme environmental conditions, as no specific protection ratings such as IP or explosion protection are specified.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with dimensions of 600 mm width and 600 mm depth. It is not compatible with other enclosure sizes or types. As an accessory, a transport eye set for VX, TS and SE is available, suitable for freight shipping.

Mounting and Installation

Installation is carried out using the mounting hardware included in the delivery scope. The designated mounting points allow for secure attachment to the enclosure roof. Installation of the cable entry flanges is performed at the designated positions, with the exact arrangement varying according to the cable connection requirements. The installation does not require special tools, although a suitable mounting surface and correct alignment of the roof plate are necessary to ensure a secure connection.

Operational Advantages

The roof plate provides a simple and reliable solution for cable connections via the enclosure roof. The use of four cable entry flanges allows flexible adaptation to different requirements. The robust construction from steel sheet and textured paint ensures long service life and low maintenance. The colour RAL 7035 integrates well into industrial environments and supports a professional appearance.

PCF Value

The product life cycle footprint (PCF) is 15.2 kg CO2 equivalents per packaging unit (Cradle-to-Gate). This value is classified in category B and is based on the product weight, with the calculation being approximate and self-declared. The PCF value serves as a reference for the environmental balance of the product, without guaranteeing the actual environmental impact.

Weight and Packaging

The net weight of the roof plate is 3.5 kg, and the gross weight is 4 kg. The packaging unit includes one piece.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Number of required cable entry flanges4
Suitable forWidth: = 600 mm, Depth: = 600 mm
PCF/VE (Cradle-to-Gate)15.2 kg CO2 eq (Cat B)
