Rittal 8188245 VX side panel, screwable, for HT: 1800x800 mm VE2

Your rating:
Average rating
product review for Rittal 8188245 VX side panel, screwable, for HT: 1800x800 mm VE2
( 4.4 / 5 ) 12 ratings

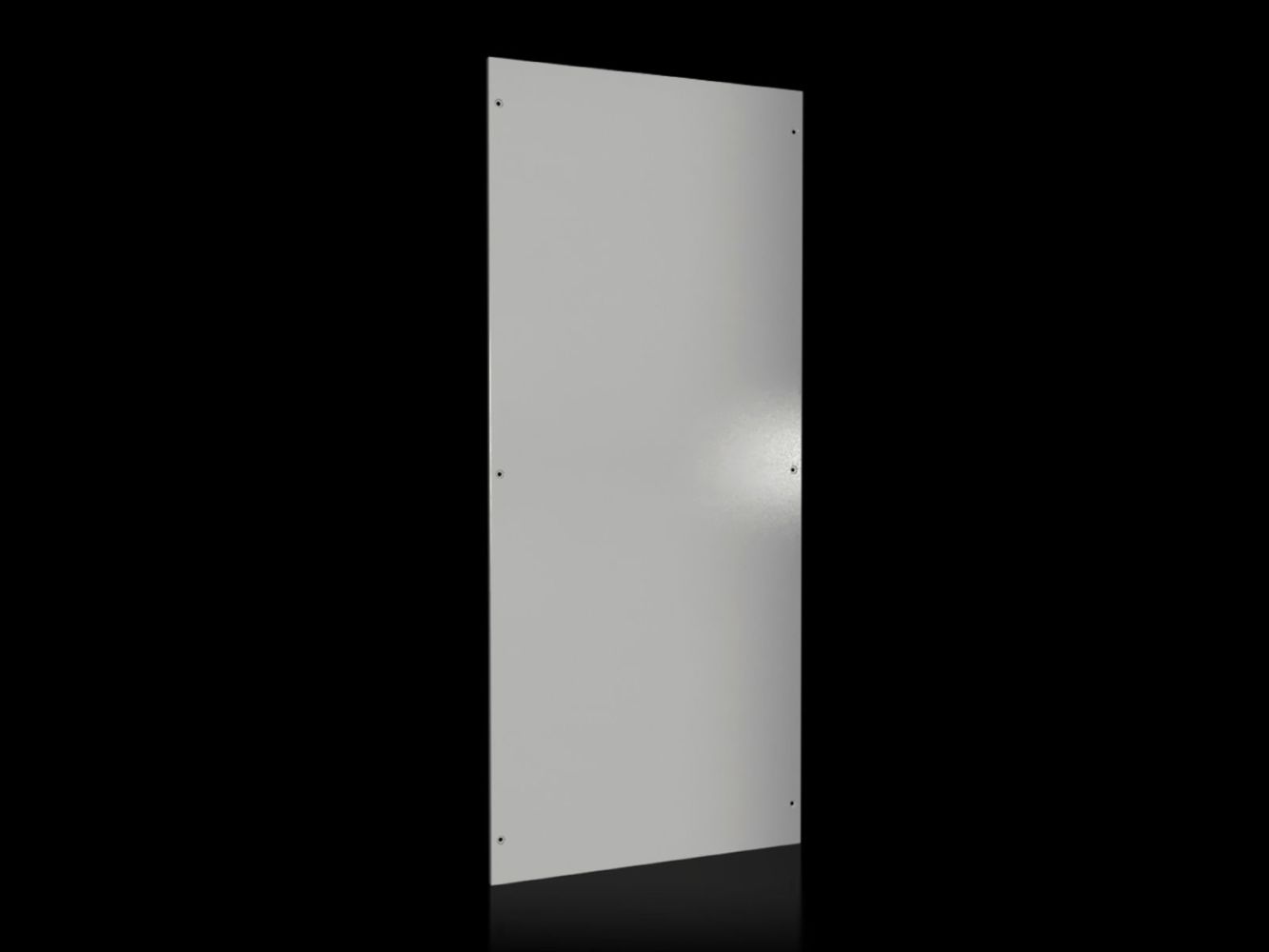

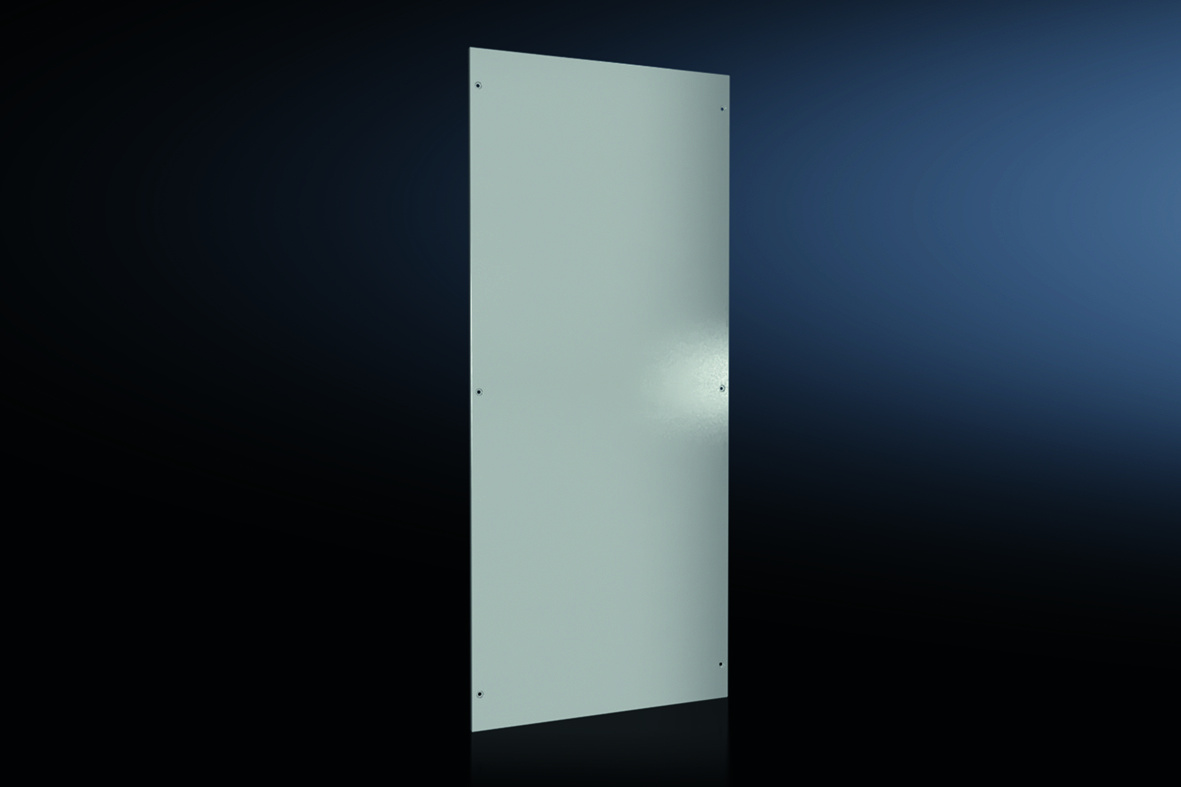

Rittal 8188245
This image may differ from the desired article.
Rittal 8188245Rittal 8188245Rittal 8188245
231,86 EUR
( 275,91 EUR incl. VAT )
≈ £194.07  |  ≈ $254.81
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8188245 VX side panel, screwable, for HT: 1800x800 mm VE2
Datasheet:file_download Download
Lieske Part No.:1440686
Mfg Part No: 8188245
UPC/EAN: 4028177921665
Weight:34 kg
Type:VX 8188.245

Product information for Rittal 8188245:

The Rittal VX 8188.245 is a screwable side panel for enclosures of the VX system, designed for enclosures with a height of 1,800 mm and a depth of 800 mm. The product is made of sheet steel with a wall thickness of 1.5 mm and is designed for use in industrial environments. The surface is dip-primed and externally powder-coated, ensuring high corrosion resistance and a uniform, robust finish in RAL 7035. The side panel is delivered in a packaging unit of two pieces and includes the required mounting hardware, enabling installation without additional components.

Applications

The side panel is specifically developed for enclosures of the VX system used in industrial electrical engineering, automation technology, or process control. It fits precisely to enclosures with the specified dimensions and supports the modular expandability of the VX system. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for indoor areas with increased contamination risk or occasional moisture. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for dry indoor spaces as well as environments with light splashing water or dirt.

Functions and Equipment in Detail

The side panel is mounted by screwing, with clipsable side panel holders enabling time-saving and precise fastening. The flat part holders with internal contact elements ensure automatic equipotential bonding and enhance EMC protection, which is particularly beneficial in electrically sensitive installations. A hanging aid facilitates accurate positioning in height and depth, making installation possible even for one person. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and reliable earthing contact.

Technology Explained Simply

The use of sheet steel with 1.5 mm thickness provides sufficient mechanical stability and safety for use in industrial installations. The powder-coated surface in RAL 7035 is not only aesthetically pleasing but also resistant to mechanical stress and environmental influences. The IP 55 protection rating means the side panel is dust-tight and protected against splashing water, making it suitable for use in production halls or workshops. The UL certification as Type 1 and Type 12 confirms suitability for indoor environments with low to medium environmental stress.

Compatibility and Accessories

The side panel is specifically designed for VX enclosures with dimensions of 1,800 mm height and 800 mm depth. Suitable accessories include hinges for side panels and a VX internal locking mechanism for side panels, galvanized, which enable additional mechanical fixation or secure locking of the side panel. These components can be used additionally according to the requirements of the installation.

Mounting and Installation

Mounting is done by screwing onto the designated holders. The clipsable holders and hanging aid facilitate positioning and enable precise alignment. The earthing bolts are already integrated and ensure a secure earthing connection. Single-person installation is possible, as the design allows for installation without additional tools or multiple people.

Advantages in Operation

The side panel provides reliable mechanical and electrical shielding for the enclosure system. The integrated earthing bolts and EMC-optimized holders increase the safety and functionality of the installation. The robust construction from sheet steel and the powder-coated surface ensure long service life and low maintenance requirements. The modular design of the VX system enables flexible expansion and adaptation to different requirements.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, height: = 1.800 mm, depth: = 800 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)104.86 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8188245, EAN: 4028177921665

Questions & answers

What is the delivery time of Rittal 8188245 VX side panel, screwable, for HT: 1800x800 mm VE2?

The article Rittal 8188245 VX side panel, screwable, for HT: 1800x800 mm VE2 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8188245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8188245 VX side panel, screwable, for HT: 1800x800 mm VE2 always at the best possible price. We can give you a discount of 2% on Rittal 8188245 VX side panel, screwable, for HT: 1800x800 mm VE2 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
