Rittal 8166245 VX side panel, screwable, for HT: 1600x600 mm

Your rating:
Average rating
product review for Rittal 8166245 VX side panel, screwable, for HT: 1600x600 mm
( 4.4 / 5 ) 8 ratings

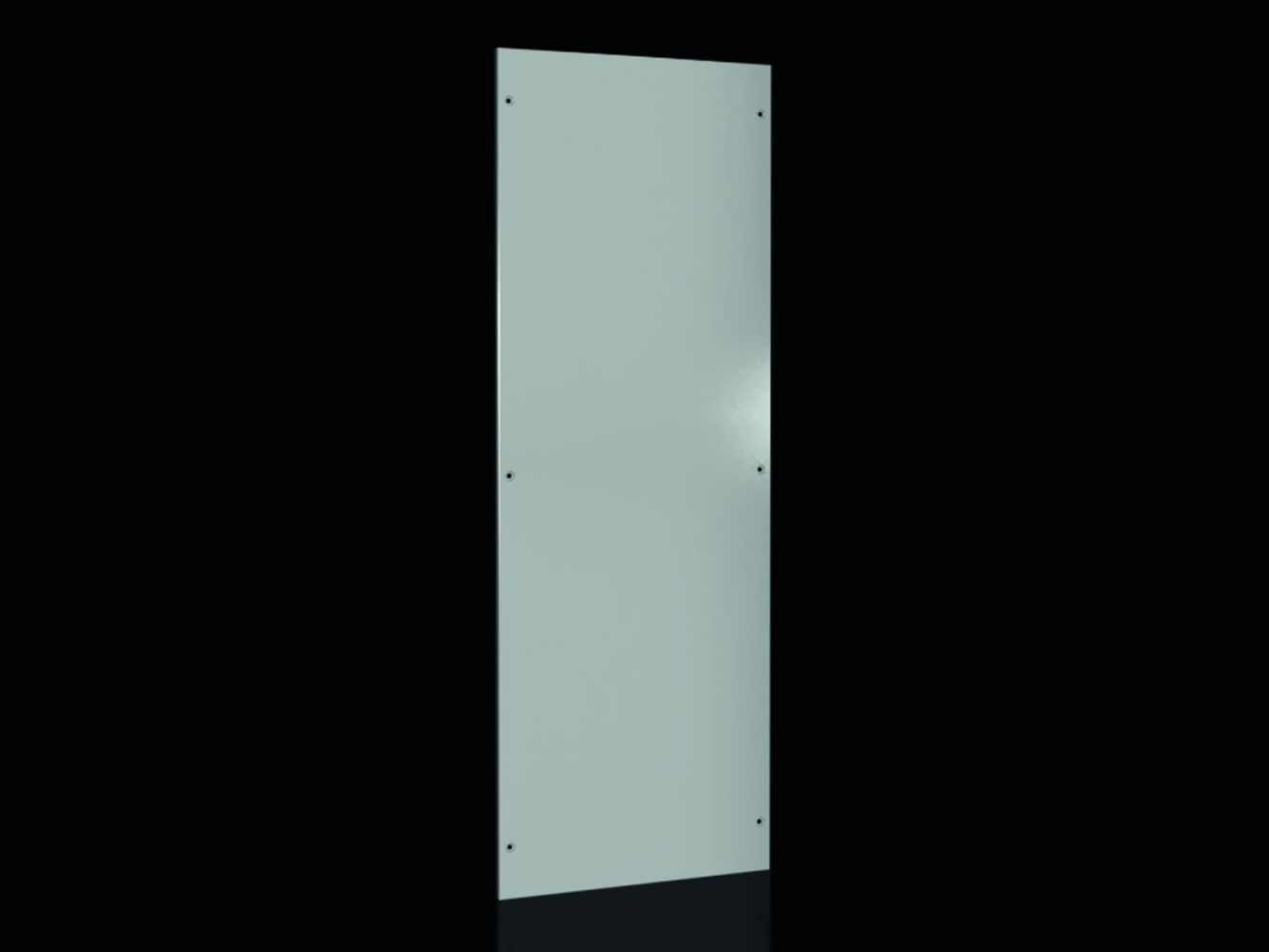

Rittal 8166245
This image may differ from the desired article.
Rittal 8166245Rittal 8166245Rittal 8166245
126,39 EUR
( 150,40 EUR incl. VAT )
≈ £105.79  |  ≈ $138.90
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8166245 VX side panel, screwable, for HT: 1600x600 mm
Datasheet:file_download Download
Lieske Part No.:1440653
Mfg Part No: 8166245
UPC/EAN: 4028177924932
Weight:23.2 kg
Type:VX 8166.245

Product information for Rittal 8166245:

Rittal VX 8166.245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures of the VX system with a height of 1,600 mm and a depth of 600 mm. The product serves as a stable closure for the side surfaces of enclosures and ensures secure and durable installation. The side panel is manufactured from 1.5 mm thick sheet steel, which is dip-primed and powder-coated on the outside, providing high corrosion resistance and uniform surface quality. The color is RAL 7035, a gray tone commonly used in industrial environments. The packaging unit includes two pieces, with a net weight of 22.8 kg per packaging unit.

Applications
The side panel is intended for use in industrial enclosure installations, particularly in environments requiring high mechanical stability and protection against dust and splashing water. It is suitable for applications in the manufacturing industry, energy supply, automation technology, and other areas where enclosures are installed indoors or in protected outdoor areas. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water from all directions, expanding its suitability for use in humid or dusty environments. Additionally, the product meets Type ratings Type 1 and Type 12 according to UL 50E, confirming its suitability for environments with limited protection requirements against dust and splashing water.

Functions and Equipment in Detail
The side panel is mounted by screwing, with the use of clip-on side panel holders reducing mounting time. These holders allow for quick and precise fastening, enabling installation by a single person. The hanging aid supports easy positioning in height and depth, increasing mounting accuracy. Another advantage is the automatic equipotential bonding, achieved through flat part holders with internal contact elements. This ensures a reliable earthing connection and enhances EMC protection. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and minimizing the risk of contact resistance.

Technology Explained Simply
The use of 1.5 mm thick sheet steel provides sufficient mechanical strength to protect the side panel against external influences such as mechanical loads or vibrations. The dip priming and external powder coating offer durable corrosion protection, especially in environments with high humidity or chemical exposure. The protection rating IP 55 means the side panel is dust-tight and protected against splashing water from all directions, making it suitable for industrial environments. The Type ratings Type 1 and Type 12 according to UL 50E refer to protection against dust and splashing water, with Type 1 suitable for indoor use and Type 12 for environments with limited splashing water.

Compatibility and Accessories
The side panel is specifically designed for enclosures of the VX system with a height of 1,600 mm and a depth of 600 mm. Compatible accessories include hinges for side panels, which are screw-mounted, and a VX internal locking mechanism for side panels, which is galvanized. These components can be used to extend the functionality of the side panel, for example, to improve accessibility or to lock the side panel.

Mounting and Installation
Mounting is done by screwing, with fastening materials included in the delivery scope. The clip-on side panel holders enable time-saving installation, while the hanging aid supports precise positioning in height and depth. Installation can be performed by a single person, simplifying the process in practice. The earthing bolts with paint-free contact surface ensure a reliable earthing connection, which is important for safety and EMC protection.

Advantages in Operation
The side panel offers high mechanical stability and reliable protection against dust and splashing water. The simple mounting and the possibility of single-person installation reduce labor effort. The automatic equipotential bonding and the large, paint-free contact surface of the earthing bolts enhance safety and EMC protection. The use of sheet steel with powder coating ensures long service life and low maintenance costs. Compatibility with accessories such as hinges and locking mechanisms extends the functionality of the side panel and allows for application-specific adaptation.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, height: = 1,600 mm, depth: = 600 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)70.43 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8166245, EAN: 4028177924932

Questions & answers

What is the delivery time of Rittal 8166245 VX side panel, screwable, for HT: 1600x600 mm?

The article Rittal 8166245 VX side panel, screwable, for HT: 1600x600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8166245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8166245 VX side panel, screwable, for HT: 1600x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8166245 VX side panel, screwable, for HT: 1600x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
