Rittal 8173245 VX side panel, screwable, for HT: 800x600 mm

Your rating:
Average rating
product review for Rittal 8173245 VX side panel, screwable, for HT: 800x600 mm
( 4.4 / 5 ) 15 ratings

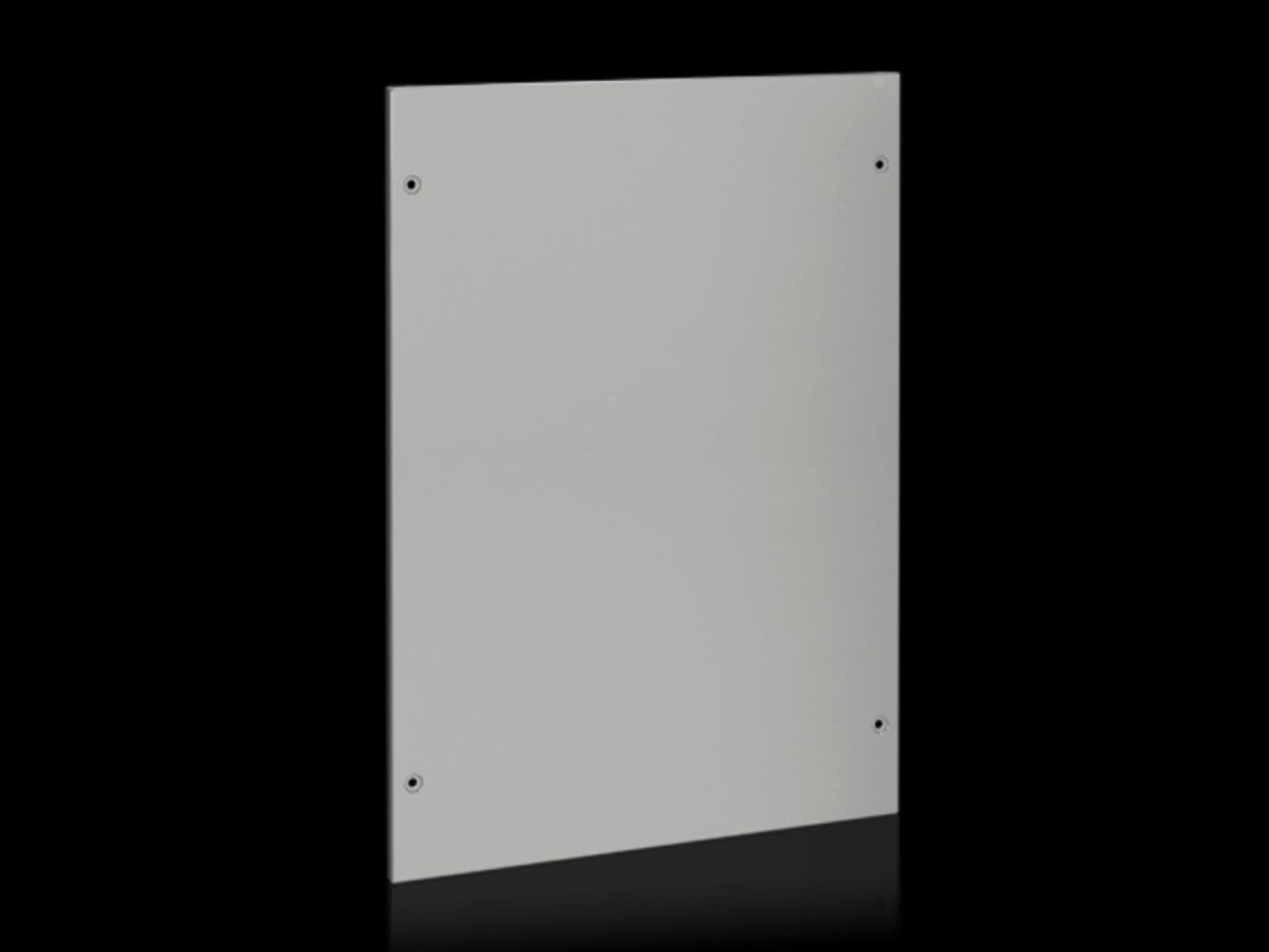

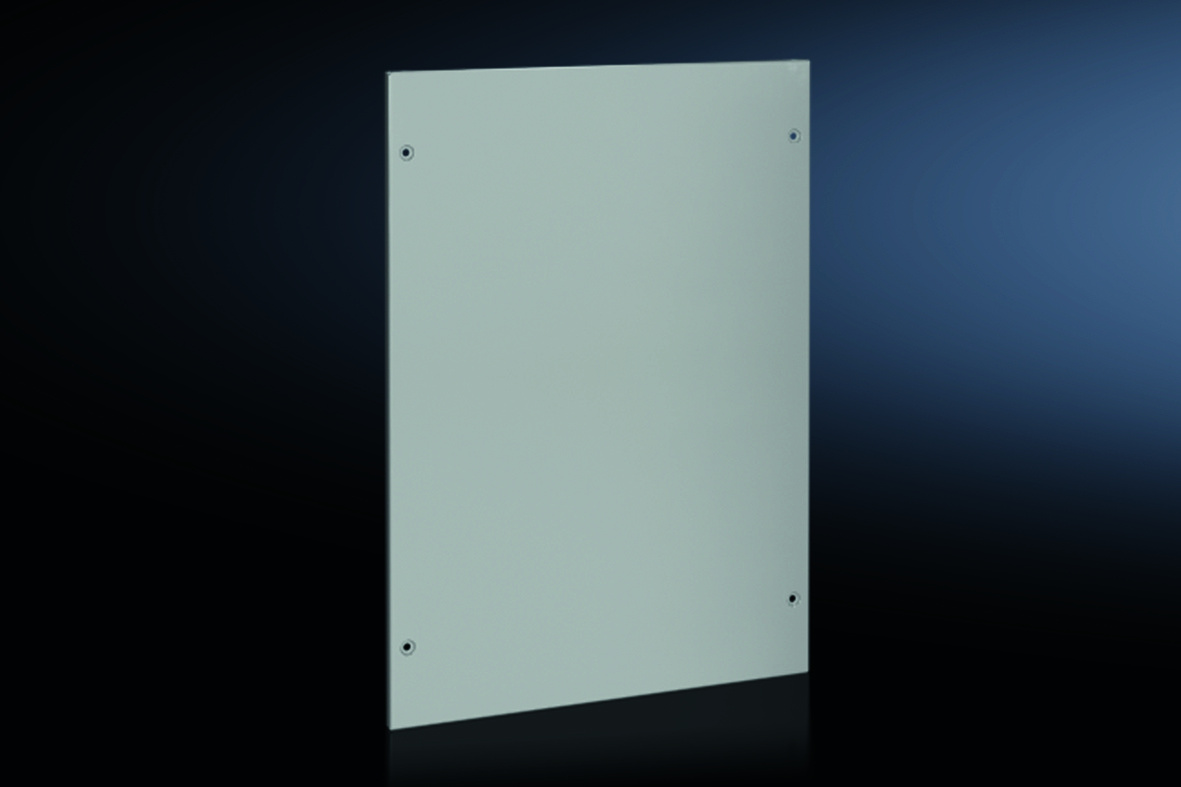

Rittal 8173245
This image may differ from the desired article.
Rittal 8173245Rittal 8173245Rittal 8173245
97,75 EUR
( 116,32 EUR incl. VAT )
≈ £81.82  |  ≈ $107.43
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8173245 VX side panel, screwable, for HT: 800x600 mm
Datasheet:file_download Download
Lieske Part No.:1440650
Mfg Part No: 8173245
UPC/EAN: 4028177921634
Weight:12 kg
Type:VX 8173.245

Product information for Rittal 8173245:

The Rittal VX 8173.245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures of the VX system with a height of 800 mm and a depth of 600 mm. The component serves as a stable enclosure for the side walls of the enclosure and ensures secure and durable mounting in industrial applications. The side panel is manufactured from 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, achieving high corrosion resistance and uniform surface quality. The colour is RAL 7035, a neutral grey tone that integrates well in industrial environments. The protection rating IP 55 according to IEC 60 529 provides protection against dust and splashing water, enabling use in damp or dusty areas. Additionally, the product complies with Type Ratings Type 1 and Type 12 according to UL 50E, confirming suitability for indoor use and environments with limited dirt and splashing water exposure.

Applications

The side panel is intended for use in industrial enclosures of the VX system, particularly in installations with a height of 800 mm and a depth of 600 mm. It is used in production plants, automation systems, power supply installations, and other technical installations where a robust and reliable enclosure wall is required. The construction is designed for indoor use, although the IP 55 protection rating also allows limited outdoor use under protected conditions.

Functions and Equipment in Detail

The side panel is mounted by screwing, with the use of clip-on side panel holders reducing mounting time. The holders allow for easy and quick fastening without additional tools. The flat part holders integrate internal contact elements that ensure automatic equipotential bonding and enhance electromagnetic compatibility (EMC) protection. A hanging aid facilitates precise positioning in height and depth, ensuring accurate alignment during installation. The earthing studs feature a large, paint-free contact surface, enabling optimal electrical connection and reliable earthing contact. Single-person installation is possible due to the design, making the installation more efficient.

Technology Explained Simply

The use of 1.5 mm thick sheet steel ensures sufficient mechanical stability to withstand industrial operating loads. The dip priming and external powder coating protect the material against corrosion and mechanical stress. The IP 55 protection rating means the side panel is dust-tight and protected against splashing water, making it suitable for environments with increased humidity or minor water splashes. The Type Ratings Type 1 and Type 12 according to UL 50E confirm suitability for indoor use and environments with limited dirt and splashing water exposure. The earthing studs with paint-free contact surfaces ensure a reliable electrical connection, which is crucial for the safety and functionality of the enclosure.

Compatibility and Accessories

The side panel is specifically designed for enclosures of the VX system with a height of 800 mm and a depth of 600 mm. Compatible accessories include hinges for side panels, enabling screw-mounted installation, as well as VX internal locking mechanisms for side panels, providing additional security. These components can be used additionally to enhance the functionality and safety of the enclosure construction.

Mounting and Installation

Mounting is done by screwing, with clip-on side panel holders facilitating fastening. The hanging aid supports precise positioning in height and depth, enabling accurate alignment. The earthing studs are already integrated and ensure a reliable earthing connection. Single-person installation is possible, making the installation more efficient.

Operational Advantages

The side panel provides a robust and reliable enclosure solution for VX system enclosures. The quick mounting via clip-on holders and single-person installation reduce installation time. The automatic equipotential bonding and enhanced EMC protection via flat part holders improve electrical safety. The earthing studs with paint-free contact surfaces ensure a stable earthing connection. The IP 55 protection rating and UL Type Ratings ensure suitability for industrial environments with higher requirements for protection and safety. The use of 1.5 mm thick sheet steel ensures high mechanical stability and longevity.

The packaging unit contains 2 pieces, enabling the fitting of two sides of an enclosure. The net weight is 11 kg per packaging unit, with a gross weight of 12 kg. The product description is confirmed by manufacturer specifications, which describe the technical features and compatibility with the VX system. The PCF values (Cradle-to-Gate) are 37.85 kg CO2 eq per packaging unit, with Class B indicating that the value is approximately calculated based on product weight and self-declared. The tariff code is 94039910, and the EAN number is 4028177921634. The product name is VX side panel, screw-mounted, for H x D: 800x600 mm, sheet steel.

The side panel is designed for use in enclosures of the VX system with the specified dimensions and offers a reliable, safe, and efficient mounting solution. The technical features and compatibility with the VX system are confirmed by manufacturer specifications. The use of sheet steel, the IP 55 protection rating, and the UL Type Ratings ensure suitability for industrial applications. Mounting is simple and quick, making installation efficient. The earthing studs with paint-free contact surfaces ensure a reliable earthing connection. The packaging unit contains 2 pieces, enabling the fitting of two sides of an enclosure. The net weight is 11 kg per packaging unit, with a gross weight of 12 kg. The product description is confirmed by manufacturer specifications, which describe the technical features and compatibility with the VX system. The PCF values (Cradle-to-Gate) are 37.85 kg CO2 eq per packaging unit, with Class B indicating that the value is approximately calculated based on product weight and self-declared. The tariff code is 94039910, and the EAN number is 4028177921634. The product name is VX side panel, screw-mounted, for H x D: 800x600 mm, sheet steel.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, Height: = 800 mm, Depth: = 600 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)37.85 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8173245, EAN: 4028177921634

Questions & answers

What is the delivery time of Rittal 8173245 VX side panel, screwable, for HT: 800x600 mm?

The article Rittal 8173245 VX side panel, screwable, for HT: 800x600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8173245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8173245 VX side panel, screwable, for HT: 800x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8173245 VX side panel, screwable, for HT: 800x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
