Rittal 8145245 VX side panel, screwable, for HT: 1400x500 mm

Your rating:
Average rating
product review for Rittal 8145245 VX side panel, screwable, for HT: 1400x500 mm
( 4.5 / 5 ) 26 ratings

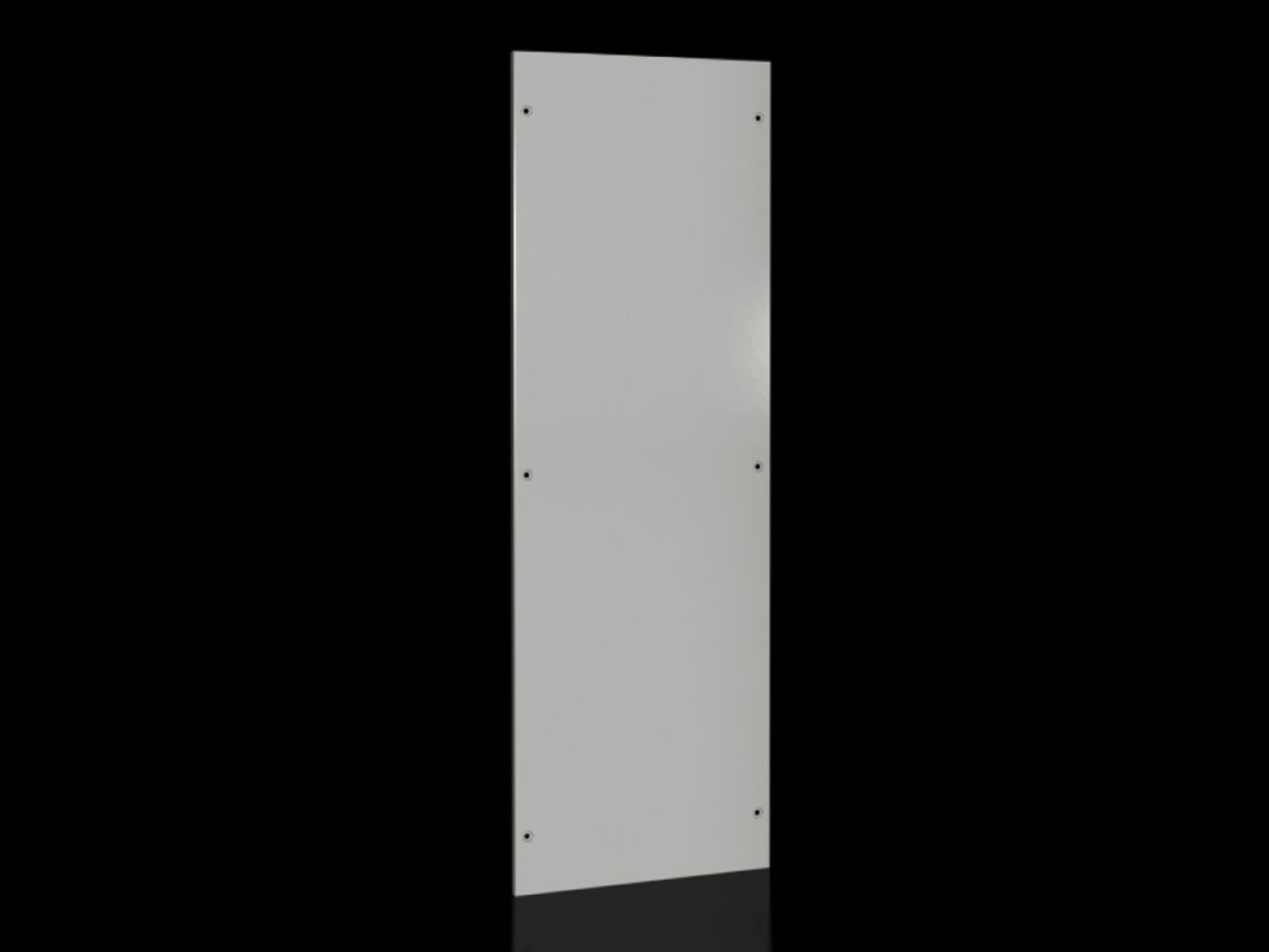

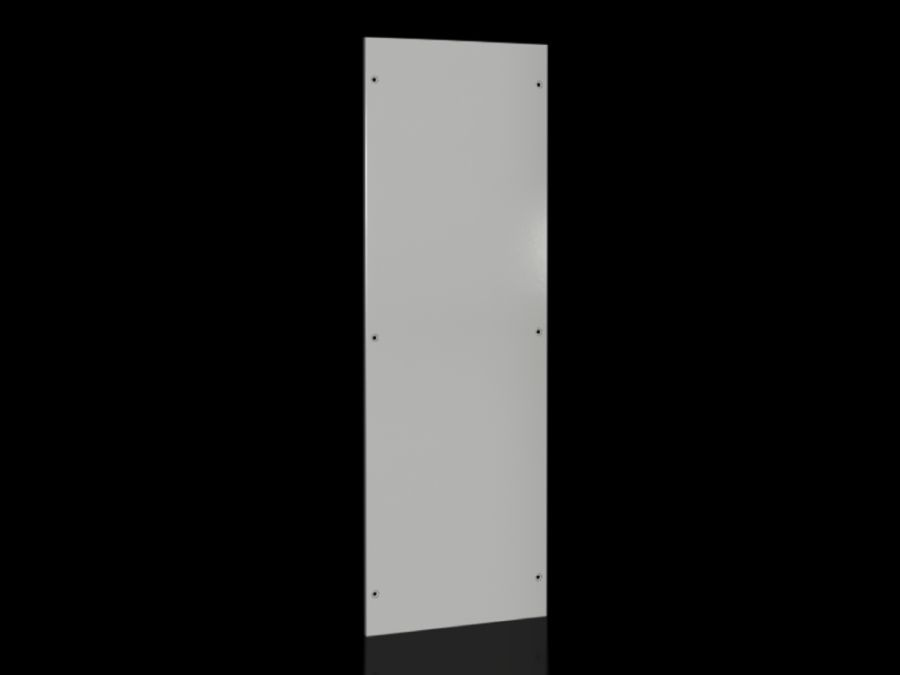

Rittal 8145245
This image may differ from the desired article.
Rittal 8145245Rittal 8145245
107,61 EUR 107,64 EUR
( 128,06 EUR incl. VAT )
≈ £90.07  |  ≈ $118.26
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8145245 VX side panel, screwable, for HT: 1400x500 mm
Datasheet:file_download Download
Lieske Part No.:1440655
Mfg Part No: 8145245
UPC/EAN: 4028177827592
Weight:17.2 kg
Type:VX 8145.245

Product information for Rittal 8145245:

The Rittal VX 8145.245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures in the VX system. It is designed for enclosures with a height of 1,400 mm and a depth of 500 mm, serving as a stable closure for side surfaces in enclosure construction. The component is made of 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, resulting in a uniform, durable surface in the colour RAL 7035. The side panel is designed for use in industrial environments and offers a protection rating of IP 55 according to IEC 60 529, ensuring protection against dust and splashing water. Additionally, it meets Type ratings Type 1 and Type 12 according to UL 50E, confirming suitability for indoor installations with limited exposure to splashing water and dust.

Applications

The side panel is used in industrial enclosure construction, particularly in installations requiring high mechanical stability and environmental resistance. It is suitable for applications in production plants, automation systems, or process industries, where enclosures must be protected against dust, splashing water, and mechanical stress. The design allows for secure mounting in standard VX enclosures with the specified dimensions.

Functions and Equipment in Detail

Installation is done by screwing, with the side panel featuring clip-in brackets that enable time-saving fastening. The flat part holders are equipped with internal contact elements, ensuring automatic equipotential bonding and enhanced EMC protection. A hanging aid facilitates precise positioning in height and depth. The earthing bolts feature a large, paint-free contact surface to ensure optimal electrical connection. The design allows for single-person installation, simplifying and accelerating the installation process.

Technology Explained Simply

The sheet steel with a thickness of 1.5 mm provides sufficient strength to withstand mechanical loads during operation. The dip priming ensures uniform surface priming, while the external powder coating in RAL 7035 creates a durable, corrosion-resistant layer. The IP 55 protection rating safeguards against dust and splashing water, ensuring suitability for use in humid or dusty environments. The Type ratings Type 1 and Type 12 according to UL 50E confirm suitability for indoor installations with limited exposure to splashing water and dust.

Compatibility and Accessories

The side panel is specifically designed for VX enclosures with a height of 1,400 mm and a depth of 500 mm. Compatible accessories include screw-mounted hinges for side panels, as well as a VX internal locking system for side panels, which enables additional securing. These components can be used to enhance the functionality and safety of the enclosure.

Installation and Mounting

Mounting is done by screwing onto the designated brackets. The clip-in brackets and hanging aid facilitate positioning and fastening. The earthing bolts are designed to ensure a secure electrical connection. Single-person installation reduces labour effort and accelerates installation.

Operational Advantages

The side panel offers high mechanical stability and environmental resistance. The integrated earthing bolts and EMC protection features ensure a safe and reliable electrical connection. The simple installation and compatibility with the VX system simplify integration into existing enclosure installations. The surface coating in RAL 7035 provides a uniform, long-lasting appearance, proven in industrial environments. The product is delivered including mounting hardware, enabling immediate installation upon receipt.

The packaging unit contains 2 pieces of the side panel. The PCF (Product Carbon Footprint) data is 52.87 kg CO2 eq per packaging unit (Cradle-to-Gate, category B, approximately calculated and self-declared).

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, Height: = 1,400 mm, Depth: = 500 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)52.87 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8145245, EAN: 4028177827592

Questions & answers

What is the delivery time of Rittal 8145245 VX side panel, screwable, for HT: 1400x500 mm?

The article Rittal 8145245 VX side panel, screwable, for HT: 1400x500 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8145245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8145245 VX side panel, screwable, for HT: 1400x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8145245 VX side panel, screwable, for HT: 1400x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
