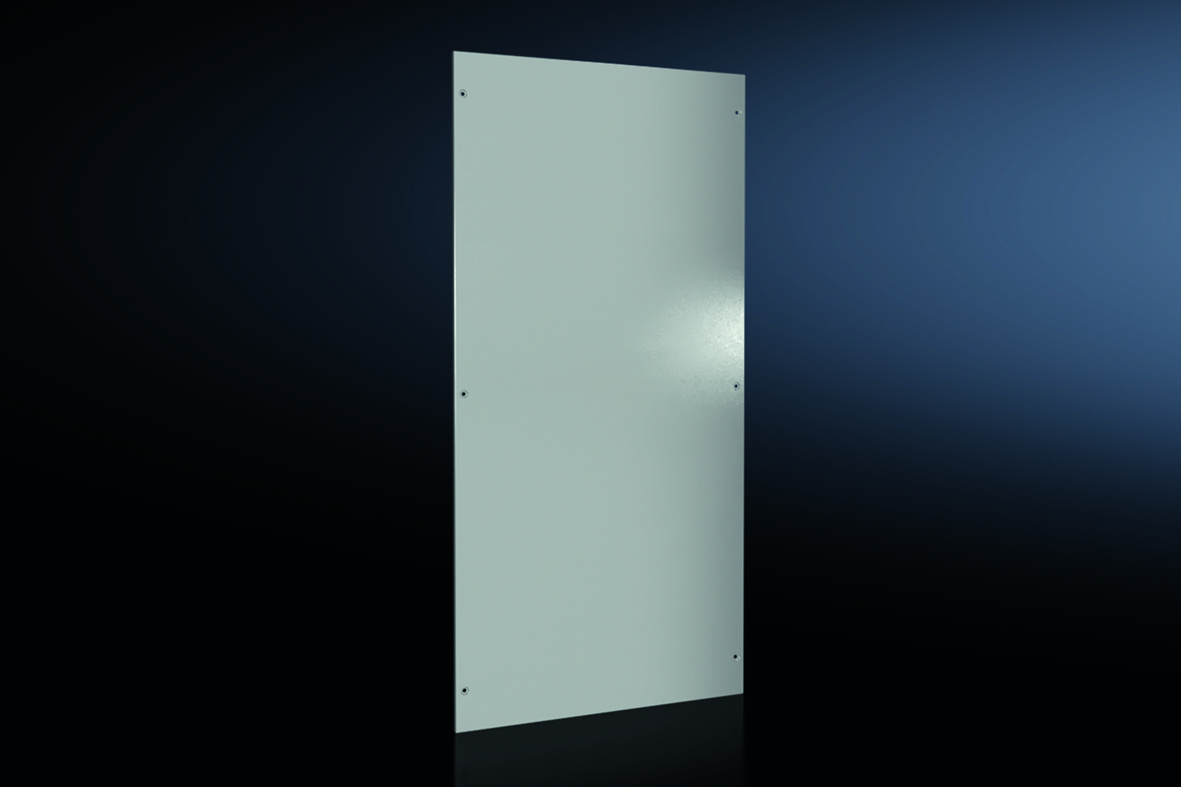

Rittal 8168245 VX side panel, screwable, for HT: 1600x800 mm

Your rating:
Average rating
product review for Rittal 8168245 VX side panel, screwable, for HT: 1600x800 mm
( 4.5 / 5 ) 15 ratings
Rittal 8168245
This image may differ from the desired article.
Rittal 8168245Rittal 8168245Rittal 8168245
-10% 157,90 EUR 176,14 EUR
( 187,90 EUR incl. VAT )
≈ £132.16  |  ≈ $173.53
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8168245 VX side panel, screwable, for HT: 1600x800 mm
Datasheet:file_download Download
Lieske Part No.:1440652
Mfg Part No: 8168245
UPC/EAN: 4028177924949
Weight:30.8 kg
Type:VX 8168.245

Product information for Rittal 8168245:

Rittal VX 8168.245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures of type VX with a height of 1,600 mm and a depth of 800 mm. The product serves as a structural component for the finishing and protective cladding of the side surfaces of enclosures, ensuring high mechanical stability and a defined protection rating. The side panel is manufactured from 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, achieving uniform surface quality and corrosion protection. The colour is RAL 7035, a grey-beige standard tone commonly used in industrial environments.

Applications
The side panel is intended for use in industrial enclosure systems, particularly in environments requiring protection against dust and splashing water. The protection rating IP 55 according to IEC 60 529 ensures a high level of protection against dust and splashing water from any direction, making it suitable for use in production halls, machine construction, or outdoor applications. Additionally, the product meets Type ratings Type 1 and Type 12 according to UL 50E, enabling its use in environments with limited dust and splash water protection in the USA and Canada.

Functions and Equipment in Detail
The side panel is mounted by screwing, with the use of clip-on side panel holders enabling time-saving and precise fastening. The holders are designed to support easy positioning in height and depth via an integrated hanging aid. This significantly simplifies installation and allows for single-person assembly without requiring additional tools or multiple people. The flat part holders are equipped with internal contact elements that ensure automatic equipotential bonding and enhance electromagnetic compatibility (EMC) protection. This is particularly important in environments with high electromagnetic interference to ensure the functionality of installed electrical devices.

Technology Explained Simply
The side panel is made of sheet steel with a thickness of 1.5 mm, providing sufficient mechanical strength for industrial use. The surface is dip-primed to ensure uniform priming and externally powder-coated, offering high resistance to corrosion and mechanical stress. The colour RAL 7035 is a neutral grey tone that integrates well in industrial environments. The protection rating IP 55 means the side panel is dust-tight and protected against splashing water from any direction, making it suitable for use in damp or dusty environments. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and reliable earthing contact.

Compatibility and Accessories
The side panel is specifically designed for enclosures of type VX with a height of 1,600 mm and a depth of 800 mm. Compatible accessories include hinges for side panels, enabling screw-mounted installation, as well as a VX internal locking system for side panels, which provides additional securing of the side panel. These components can be used in addition to the side panel to improve installation or the security of the enclosure cladding.

Installation and Mounting
Mounting is done by screwing onto the designated holders inside the enclosure. The clip-on holders allow for quick and precise fastening, with the hanging aid supporting easy positioning in height and depth. The earthing bolts are already integrated and ensure a reliable earthing contact. The delivery includes fastening material, so no additional mounting tools are required. The packaging unit contains two pieces, facilitating ordering for larger projects or multiple enclosures.

Operational Advantages
The VX 8168.245 provides a robust and reliable side cladding for industrial enclosures. The screw-mounted installation ensures secure fastening, while the integrated holders and hanging aid reduce installation time. The automatic equipotential bonding and enhanced EMC protection ensure a stable electrical environment, protecting the functionality of installed devices. The protection rating IP 55 and Type ratings Type 1/Type 12 make the side panel suitable for a wide range of industrial applications, including environments with increased humidity or dust exposure. The use of sheet steel with a thickness of 1.5 mm and a powder-coated surface ensures long service life and high resistance to mechanical and chemical stresses.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, height: = 1,600 mm, depth: = 800 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)93.87 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8168245, EAN: 4028177924949

Questions & answers

What is the delivery time of Rittal 8168245 VX side panel, screwable, for HT: 1600x800 mm?

The article Rittal 8168245 VX side panel, screwable, for HT: 1600x800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8168245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8168245 VX side panel, screwable, for HT: 1600x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8168245 VX side panel, screwable, for HT: 1600x800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
