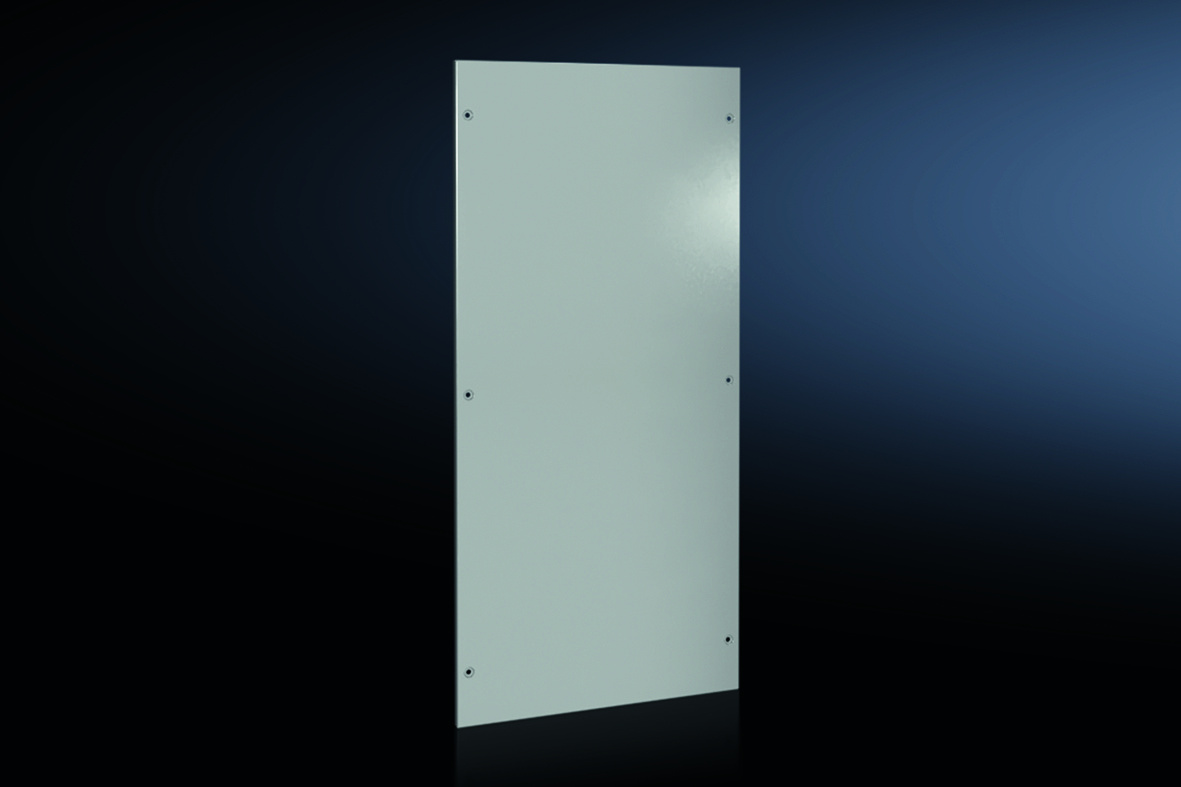

Rittal 8170245 VX side panel, screwable, for HT: 1200x600 mm

Your rating:
Average rating
product review for Rittal 8170245 VX side panel, screwable, for HT: 1200x600 mm
( 4.6 / 5 ) 20 ratings
Rittal 8170245
This image may differ from the desired article.
Rittal 8170245Rittal 8170245Rittal 8170245
-10% 118,91 EUR 132,65 EUR
( 141,50 EUR incl. VAT )
≈ £99.53  |  ≈ $130.68
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8170245 VX side panel, screwable, for HT: 1200x600 mm
Datasheet:file_download Download
Lieske Part No.:1440651
Mfg Part No: 8170245
UPC/EAN: 4028177921627
Weight:17.4 kg
Type:VX 8170.245

Product information for Rittal 8170245:

The Rittal VX 8170.245 is a screwable side panel made of sheet steel, specifically designed for enclosures of the VX system with a height of 1,200 mm and a depth of 600 mm. The product serves as a stable and secure closure for the side surfaces of enclosures, ensuring the required mechanical stability as well as the prescribed protection against dust and splashing water. The side panel is made of 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, thus achieving high corrosion resistance and uniform surface quality. The colour corresponds to RAL 7035, a grey tone commonly used in industrial applications. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water from any direction, enabling use in industrial environments with higher requirements for ambient conditions. Additionally, the product meets Type ratings Type 1 and Type 12 according to UL 50E, confirming suitability for indoor use and environments with limited risk of splashing water and dust.

Applications

The side panel is intended for use in industrial enclosures of the VX system, particularly in installations requiring high mechanical stability and reliable protection against environmental influences. It is suitable for applications in the manufacturing industry, energy supply, automation technology, and other areas where enclosures are used in harsh operating environments. The construction enables secure mounting and a tight closure, ensuring the integrity of the enclosure interior.

Features and Equipment in Detail

The VX 8170.245 offers time-saving installation through clip-on side panel holders, enabling quick and precise fastening. The holders are designed to support easy positioning in height and depth via an integrated hanging aid. This significantly simplifies installation and reduces labour effort. Another advantage is single-person installation, as the side panel can be installed without additional tools or multiple people. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and reliable equipotential bonding. This contributes to improved EMC protection, as the flat part holders with internal contact elements enable automatic equipotential bonding.

Technology Explained Simply

The use of 1.5 mm thick sheet steel ensures sufficient mechanical strength to protect the side panel against mechanical loads such as vibrations or impacts. The dip priming and external powder coating provide a durable corrosion protection layer that remains effective even under industrial conditions. The protection rating IP 55 means the side panel is dust-tight and protected against splashing water from any direction, making it suitable for use in damp or dusty environments. The Type ratings Type 1 and Type 12 according to UL 50E confirm suitability for indoor use and environments with limited risk of splashing water and dust, with Type 12 offering additional protection against splashing water and dust.

Compatibility and Accessories

The side panel is specifically designed for enclosures of the VX system with a height of 1,200 mm and a depth of 600 mm. It is compatible with corresponding enclosure types and can be combined with suitable hinges for side panel, screwable, as well as with a VX internal locking mechanism for side panel, galvanised, to enable additional functions such as secure locking or pivotable mounting.

Installation and Mounting

Mounting is done by screwing the side panel onto the designated holders inside the enclosure. The clip-on holders allow for quick and precise fastening, with the hanging aid supporting accurate positioning in height and depth. The earthing bolts are already integrated and ensure a secure electrical connection. The delivery includes fastening materials, so no additional mounting accessories are required. Single-person installation is possible, as the side panel is easy to handle and does not require additional tools.

Operational Advantages

The VX 8170.245 offers high mechanical stability and reliable protection against environmental influences, extending the service life of the enclosure and increasing operational safety. The easy installation and single-person installation reduce labour effort and installation time. The automatic equipotential bonding and improved EMC protection provided by the flat part holders with internal contact elements ensure a safe and interference-free electrical connection. The large, paint-free contact surface of the earthing bolts ensures optimal electrical conductivity and prevents corrosion at the contact points. The use of sheet steel with a thickness of 1.5 mm and a high-quality surface coating ensures long service life and high corrosion resistance, even under harsh operating conditions.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, height: = 1,200 mm, depth: = 600 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)54.14 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8170245, EAN: 4028177921627

Questions & answers

What is the delivery time of Rittal 8170245 VX side panel, screwable, for HT: 1200x600 mm?

The article Rittal 8170245 VX side panel, screwable, for HT: 1200x600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8170245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8170245 VX side panel, screwable, for HT: 1200x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8170245 VX side panel, screwable, for HT: 1200x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
