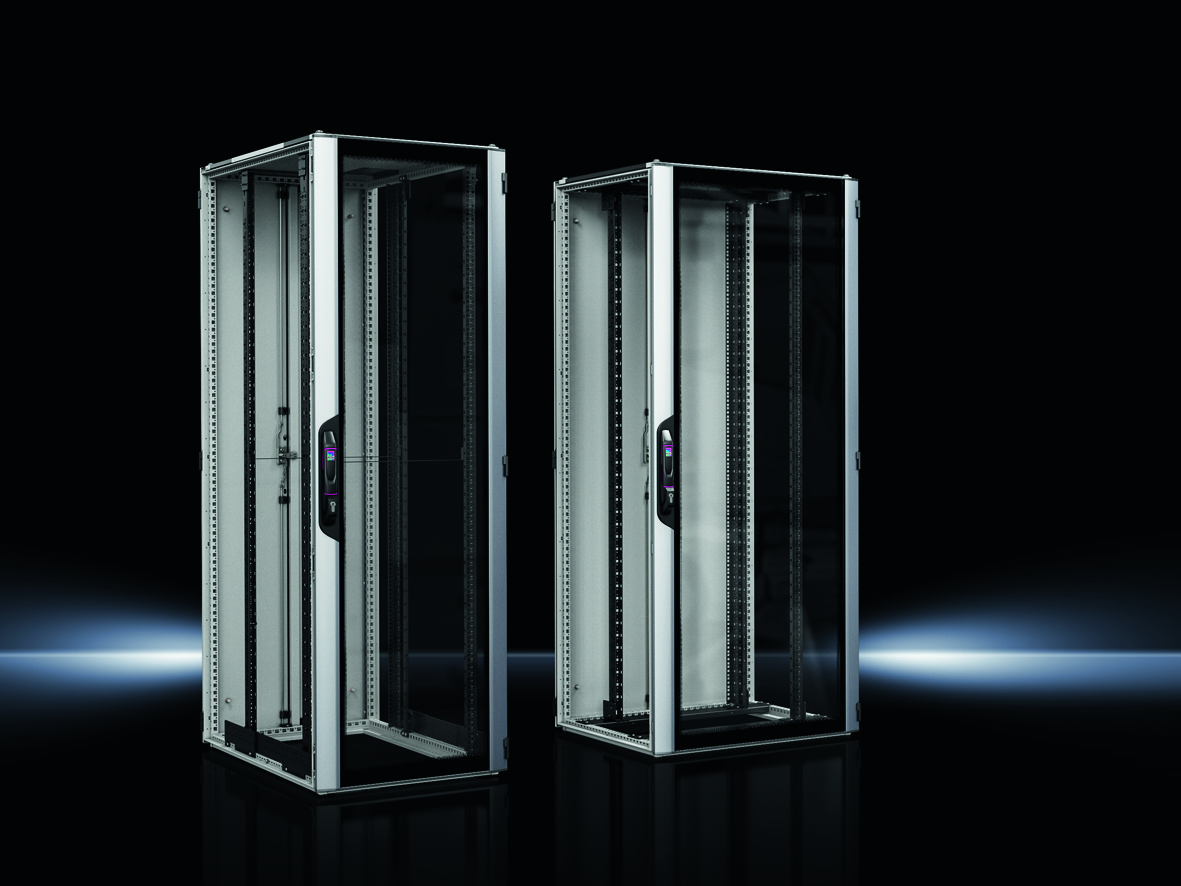

Rittal 5312124 Server rack VX IT closed 800x2200x800 mm 47 U (freight shipping)
|
1.351,37 EUR |
|
|
( 1.608,13 EUR incl. VAT ) ≈ £1,131.10 | ≈ $1,485.16 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775814 |
| Mfg Part No: | 5312124 |
| UPC/EAN: | 4028177945272 |
| Weight: | 114.6 kg |
| Type: | VX 5312124 |
Product information for Rittal 5312124:
Applications
This rack is suitable for use in data centres, server rooms, IT infrastructures, and other environments where a closed, robust, and standardized mounting environment for 48,3 cm ( 19 inch )-devices is required. The configuration with 48,3 cm ( 19 inch )-profile rails enables the mounting of network and server systems on the front and rear planes. The side cable entry in the roof plate supports structured cabling and integration of fans or climate control units.
Functions and Equipment in Detail
The rack is equipped with 48,3 cm ( 19 inch )-profile rails standard in VX IT, which are screwed to cross-braces at the top and bottom. Mounting is performed with a spacing of 520 mm in the delivered state. The mounting clearance is 150 mm at the front and 130 mm at the rear, providing sufficient space for device and cable installation. The floor construction is open, allowing integration of floor plates or cable ducts. The roof construction is multi-part and features side cable entries on both sides at the depth, prepared for mounting a fan plate.
Technology Explained Simply
The construction from steel sheet and aluminium ensures high mechanical stability. The load capacity is 8,000 N, matching the maximum static load capacity according to UL 2416. The IK code IK08 indicates the mechanical protection class against mechanical impacts, such as shocks or vibrations. The surface treatment with dip priming and powder coating ensures high corrosion resistance. The aluminium front door with single-pane safety glass allows visual inspection of devices without opening the door.
Compatibility and Accessories
The rack is compatible with a wide range of accessories that extend its functionality. These include 48,3 cm ( 19 inch )-fasteners 1 HE, spacers for raising roof plates, cable managers, velcro holders, routing panels, component shelves, drawers, cable ducts, glide rails, document clamps, and castors. These components enable individual adaptation to specific requirements, such as cable management, device mounting, or transportation.
Mounting and Installation
Mounting is performed on the 48,3 cm ( 19 inch )-rails at the front and rear, with the profile rails screwed to cross-braces at the top and bottom. The designated mounting clearances of 150 mm (front) and 130 mm (rear) facilitate device and cable installation. The open floor construction allows integration of floor plates or cable ducts. The roof construction with side cable entry and preparation for fan plate supports integration of climate control systems.
Operational Advantages
The rack offers high mechanical stability and load capacity, making it suitable for use in professional IT environments. The closed design with viewing door enables secure and simultaneously monitorable installation. The standardized 48,3 cm ( 19 inch )-mounting and compatibility with various accessories simplify integration into existing infrastructures. The surface treatment ensures long service life and high corrosion resistance. The preparation for fan plate and side cable entry support efficient climate control and cabling.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 800 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 130 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | Screwed to top and bottom crossbar |
| Model | Standard |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Door configuration rear | Steel sheet door, closed, vertically divided, 180° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 8.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 8.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 283.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5312124 Server rack VX IT closed 800x2200x800 mm 47 U (freight shipping)?
The article Rittal 5312124 Server rack VX IT closed 800x2200x800 mm 47 U (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5312124 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5312124 Server rack VX IT closed 800x2200x800 mm 47 U (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 5312124 Server rack VX IT closed 800x2200x800 mm 47 U (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
