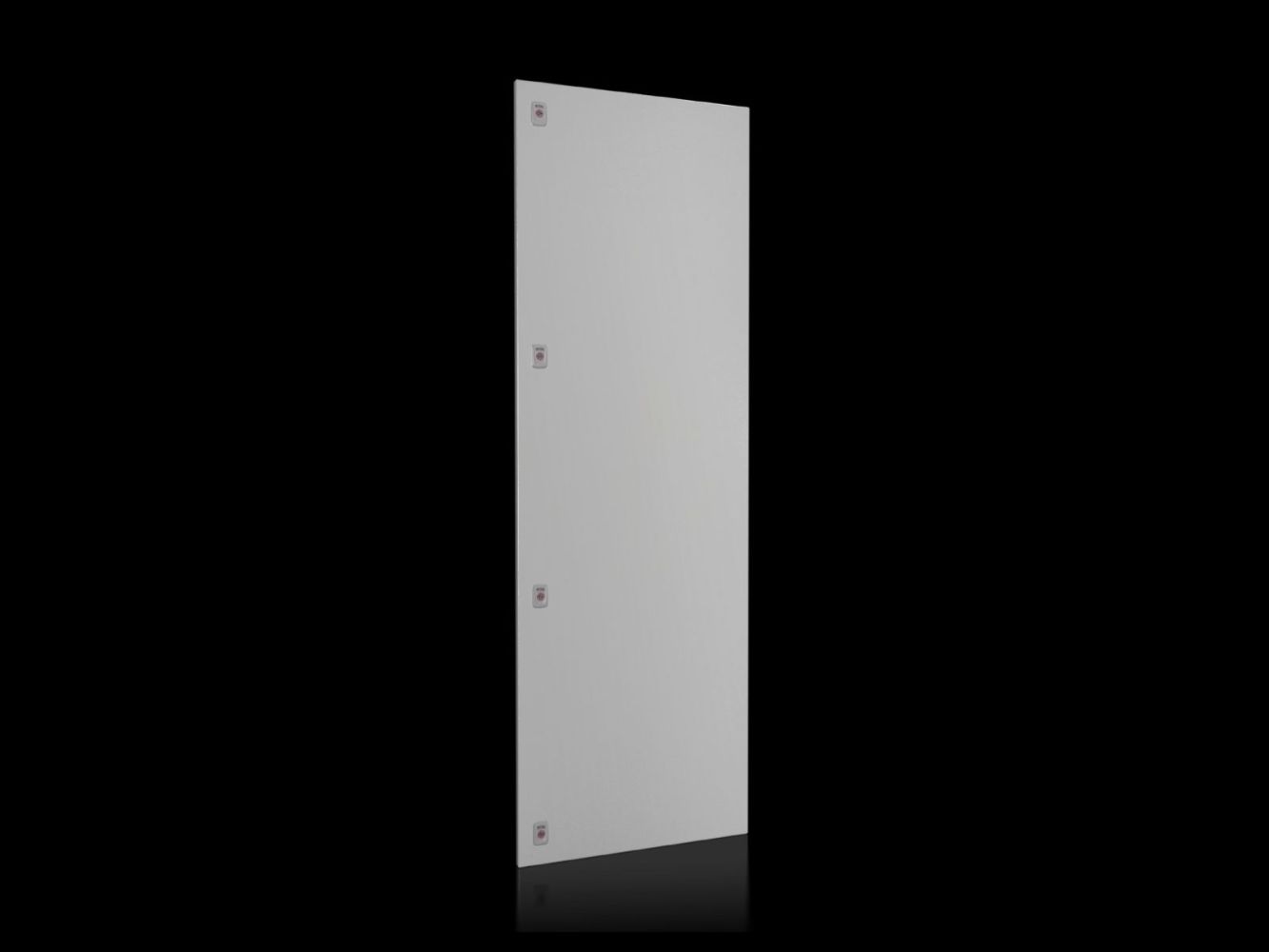

Rittal 9682178 SV partial door for VX, W x H: 600x1800 mm

Your rating:
Average rating
product review for Rittal 9682178 SV partial door for VX, W x H: 600x1800 mm
( 4 / 5 ) 2 ratings
Rittal 9682178
This image may differ from the desired article.
Rittal 9682178Rittal 9682178Rittal 9682178
-12% 190,44 EUR 216,82 EUR
( 226,62 EUR incl. VAT )
≈ £159.40  |  ≈ $209.29
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9682178 SV partial door for VX, W x H: 600x1800 mm
Datasheet:file_download Download
Lieske Part No.:468947
Mfg Part No: 9682178
UPC/EAN: 4028177928978
Weight:24.18 kg
Type:SV 9682178

Product information for Rittal 9682178:

The Rittal SV 9682178 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. With dimensions of 600 mm width and 1,800 mm height, it fits precisely into enclosures with a width of 600 mm. The door is manufactured from steel sheet with a thickness of 2 mm and features a structured paint surface in the colour RAL 7035, ensuring a robust and uniform coating suitable for industrial applications. The protection rating IP 54 in accordance with IEC 60 529 protects against dust and splashing water, making the partial door suitable for use in environments with increased requirements for environmental resistance.

Applications include modular fitting of VX enclosures, particularly in systems where a full door is not required, for example, to separate component areas or to improve access to specific components. The partial doors can be combined freely with each other, enabling flexible configurations within the enclosure. A front trim panel is required at the top and bottom of the partial door to ensure a clean appearance.

Functions and equipment in detail include an optional door hinge, which can be mounted on the right or left, facilitating installation at different positions within the enclosure. The door opens to a maximum opening angle of 130°, providing good access to components behind it. The delivery scope includes the partial door itself, a partition strip, hinges, locking components, and the necessary mounting materials. The locking system consists of four locks, standardly configured as double-barrel lock inserts, which can be exchanged for lock inserts of type A.

Technology explained simply shows that the use of 2 mm thick steel sheet ensures high mechanical stability and durability. The structured paint finish provides additional protection against corrosion and mechanical stress. The IP 54 protection rating means the door is dust-tight and protected against splashing water, making it suitable for use in production halls, workshops, or other industrial environments. Installation is carried out using the hinges and mounting materials included in the delivery scope, ensuring a firm and secure anchoring in the enclosure.

Compatibility and accessories include various front trim panels specifically developed for VX enclosures, for example, the SV front trim panel for VX, top or bottom, in various heights and with different protection ratings IP 54 or IP 2X). Additionally, lock inserts made of zinc die-cast are available, offering an alternative locking solution. For doors without a viewing window with a height of 600 to 1,000 mm, the installation of monitor frame 2305.000 is possible, enabling integration of control or display units. Mini comfort handles AX are also available as accessories to facilitate operation of the locks.

Mounting and installation are carried out by securing the partial door to the designated mounting points in the enclosure, with hinges and mounting materials included in the delivery scope. The door can be hinged on the right or left, allowing flexible positioning within the enclosure.

Operational advantages lie in the modular design, enabling individual adaptation to specific requirements. The combinability of partial doors allows flexible use of the enclosure space, improving access to individual components. The robust construction from steel sheet and the IP 54 protection rating ensure high reliability and durability in industrial environments. The integrated locking system with four locks ensures secure locking of the partial door, preventing unauthorised access to components behind it.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 4
Width600 mm
Height1.800 mm
Suitable forWidth: = 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)92.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682178, EAN: 4028177928978
