Rittal 8620500 VX trim panel, top hinged, W x H: 600x300

Your rating:
Average rating
product review for Rittal 8620500 VX trim panel, top hinged, W x H: 600x300
( 4.8 / 5 ) 9 ratings

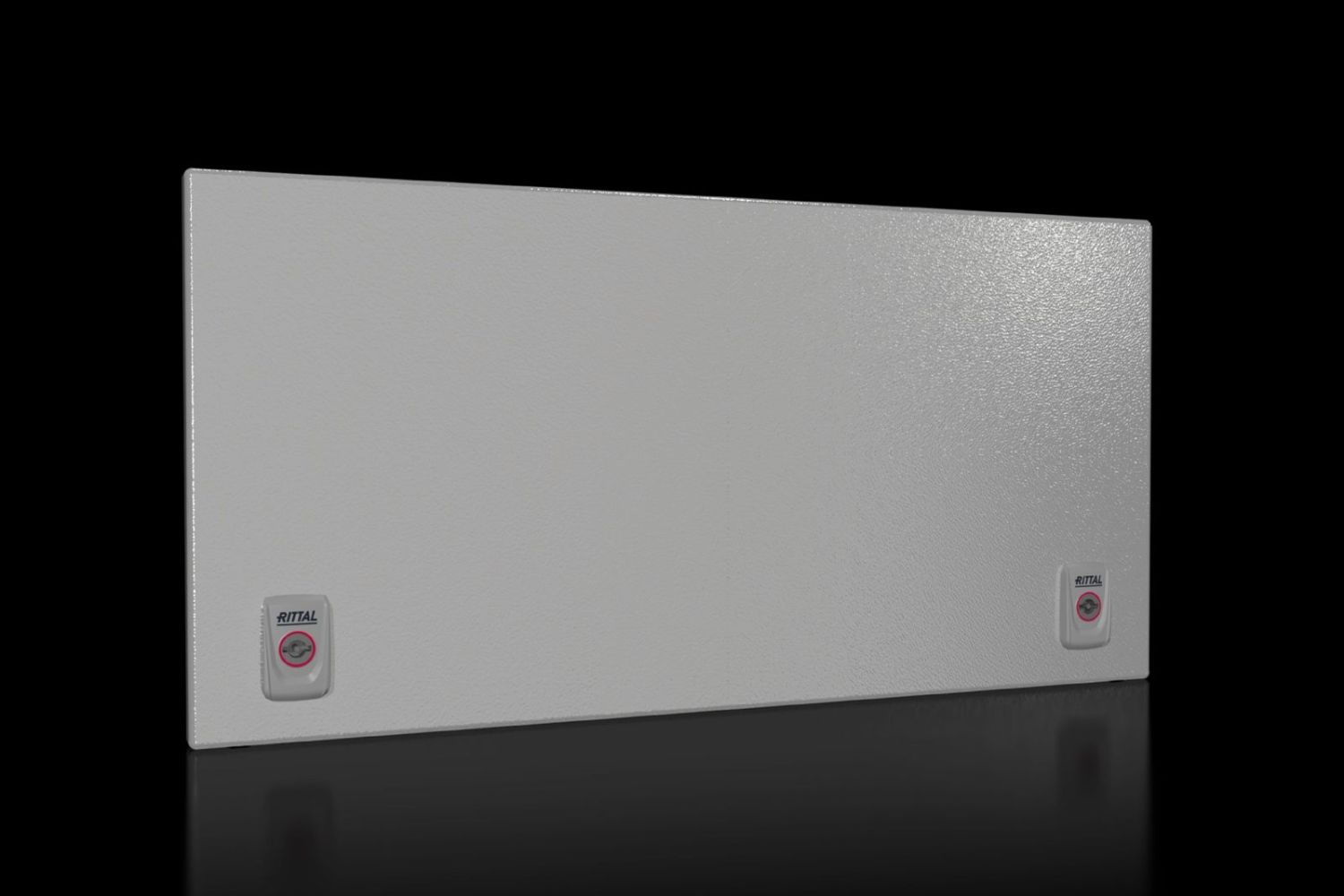

Rittal 8620500
This image may differ from the desired article.
Rittal 8620500Rittal 8620500
91,89 EUR
( 109,35 EUR incl. VAT )
≈ £76.91  |  ≈ $100.99
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8620500 VX trim panel, top hinged, W x H: 600x300
Datasheet:file_download Download
Lieske Part No.:1441006
Mfg Part No: 8620500
UPC/EAN: 4028177922570
Weight:4.317 kg
Type:VX 8620.500

Product information for Rittal 8620500:

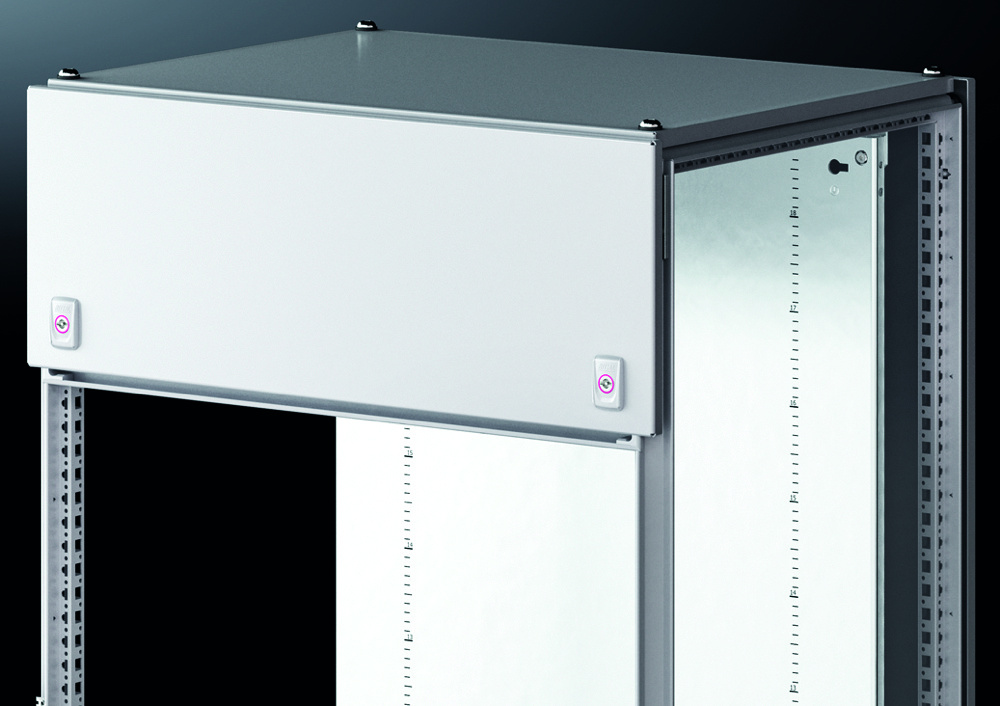

The Rittal VX 8620.500 is a top-hinged panel for enclosures of the VX system, designed for the installation of control and display elements. It is used in conjunction with modular front design and protective bars to create a structured and secure control surface. The panel is made of sheet steel with a thickness of 2 mm and features a surface finish of structured paint in the colour RAL 7035, ensuring a robust and uniform coating. The dimensions are a height of 300 mm and a width of 600 mm, making it specifically designed for enclosures with a front width of 600 mm.

Applications

The panel is suitable for industrial applications where secure and accessible operation of control and display units is required. It is commonly used in automation technology, manufacturing industry, or machine control systems, where a clear separation between the control panel and the enclosure core is necessary. The modular design allows for flexible adaptation to different control concepts.

Functions and Equipment in Detail

The panel is mounted with hinges at the top, allowing it to be opened upwards. It is equipped with a latch lock featuring an integrated 3 mm thick double-barrel lock insert to ensure a secure closure. The delivery includes the panel itself, the hinges, the latch lock with the double-barrel lock insert, and the required mounting hardware. This complete set enables direct installation without additional components.

Technology Explained Simply

The protection rating IP 54 according to IEC 60 529 protects the panel against dust and splashing water, making it suitable for environments with moderate contamination and moisture risks. The use of 2 mm thick sheet steel ensures sufficient mechanical stability to withstand industrial operating loads. The structured paint finish provides additional corrosion protection and a uniform surface texture.

Compatibility and Accessories

The panel is specifically designed for enclosures with a front width of 600 mm. As accessories, various lock inserts made of zinc die-cast are available, with a length of 27 mm. Additionally, handles such as the plastic handle AX/KX No. 3524E with safety cylinder or other models like AX 2533100 or AX 257701 can be mounted as optional additions. A stand for the panel, top-hinged, is also available to facilitate installation.

Mounting and Installation

Installation is carried out by securing the hinges to the enclosure front and attaching the panel to the hinges. The included mounting hardware enables a secure and durable connection. The panel opens upwards, providing access to the installed control elements. Installation requires no special tools other than a screwdriver or an appropriate key for the fastening elements.

Operational Advantages

The top-hinged design allows for easy and quick access to control elements without having to open the entire enclosure front. The IP 54 protection rating provides sufficient protection against environmental conditions in many industrial environments. The modular design supports flexible adaptation to different control concepts, making maintenance and servicing more efficient. The use of sheet steel and structured paint ensures long service life and high resistance to mechanical stress and environmental influences.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryShutter, hinges, latch with 3 mm double-barrel insert, including mounting hardware
Height300 mm
Suitable forWidth: 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)15.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8620500, EAN: 4028177922570

Questions & answers

What is the delivery time of Rittal 8620500 VX trim panel, top hinged, W x H: 600x300?

The article Rittal 8620500 VX trim panel, top hinged, W x H: 600x300 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8620500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8620500 VX trim panel, top hinged, W x H: 600x300 always at the best possible price. We can give you a discount of 2% on Rittal 8620500 VX trim panel, top hinged, W x H: 600x300 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
