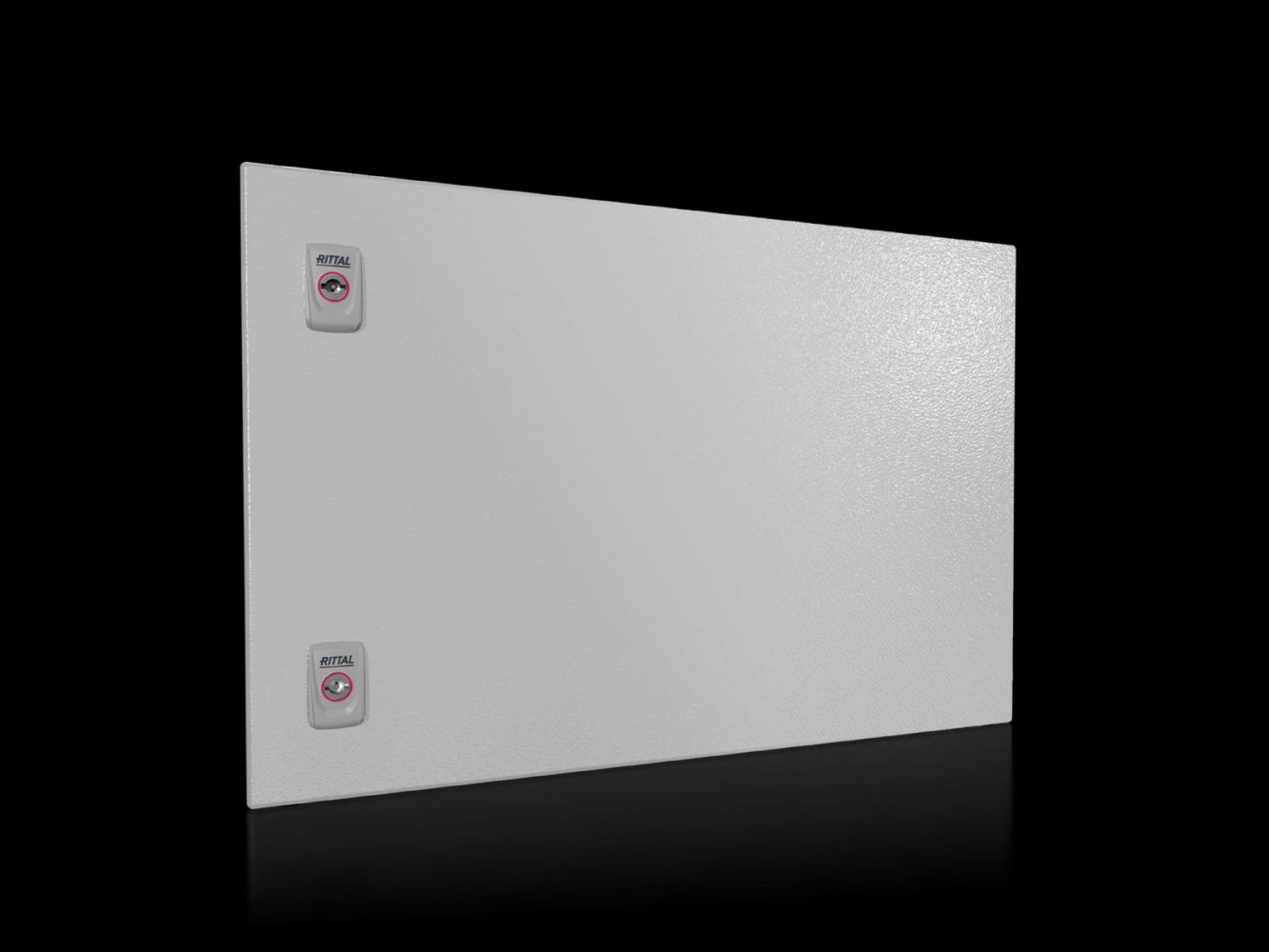

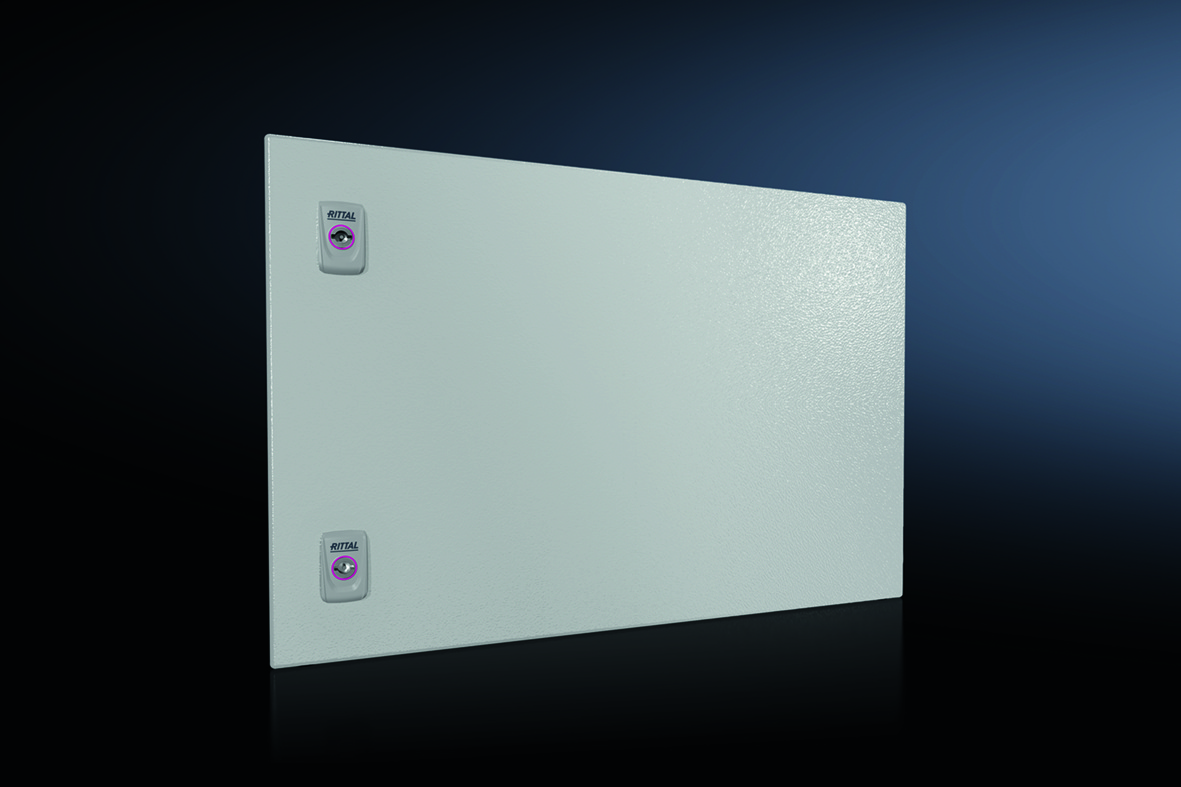

Rittal 9682164 SV partial door for VX, W x H: 600x400 mm
|
60,38 EUR |
|
|
( 71,85 EUR incl. VAT ) ≈ £50.54 | ≈ $66.36 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1285206 |
| Mfg Part No: | 9682164 |
| UPC/EAN: | 4028177929104 |
| Weight: | 5.7 kg |
| Type: | SV 9682164 |
Product information for Rittal 9682164:
Applications
The partial door is used in industrial electrical engineering and machine building, where flexible and secure partitioning of enclosure sections is required. It can be combined freely with other partial doors to create different compartments within an enclosure. At the top and bottom ends of the partial door, a front trim panel is required to ensure a clean and closed appearance. The door is designed for VX enclosures and can be used as part of a modular enclosure system.
Functions and Equipment in Detail
The partial door features a standard double-bar lock insert, ensuring secure locking. The number of locks is two, enabling stable and secure fastening. The lock inserts are interchangeable with type A, allowing adaptation to specific security requirements. The door hinges can be mounted on the right or left side, enabling flexible installation in various enclosure configurations. The maximum opening angle is 130°, providing sufficient space for access to components behind the door.
Technology Explained Simply
The construction from 2 mm steel sheet provides sufficient strength to withstand mechanical loads during operation. The textured coating in RAL 7035 ensures uniform surface finish and good corrosion protection. The IP 54 protection rating means the partial door is dust-tight and protected against splashing water, making it suitable for use in production environments. The partial door is supplied with a partition rib, hinges, locking components, and mounting materials, enabling direct installation without additional parts.
Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. It can be combined with various front trim panels, including SV front trim panels for VX in top and bottom versions, in sizes 600x300 mm and 600x100 mm, and in protection ratings IP 54 and IP 2X. Additionally, lock inserts made of zinc die-cast with a length of 27 mm can be used to adapt the locking function. Mini comfort handles AX are also available as accessories to facilitate operation of the locks.
Mounting and Installation
Installation is carried out by securing the partial door to the designated mounting points in the enclosure. The hinges can be installed on the right or left side depending on requirements. The maximum opening of 130° allows good access to components behind the door.
Operational Advantages
The modular design of the partial door enables flexible adaptation to different enclosure configurations. The IP 54 protection rating provides a high level of protection against environmental influences, increasing reliability in operation. The interchangeable lock inserts offer the possibility to adapt security functions to specific requirements. The delivery with all necessary mounting components reduces installation time and simplifies installation.
| General | |
| Material | Sheet steel, 2 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Partition door, partition web, hinges, locking parts, including fastening material |
| Note | Maximum opening angle of partition doors 130° |
| Lock | Number of locks: 2 |
| Width | 600 mm |
| Height | 400 mm |
| Suitable for | Width: = 600 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 21.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
