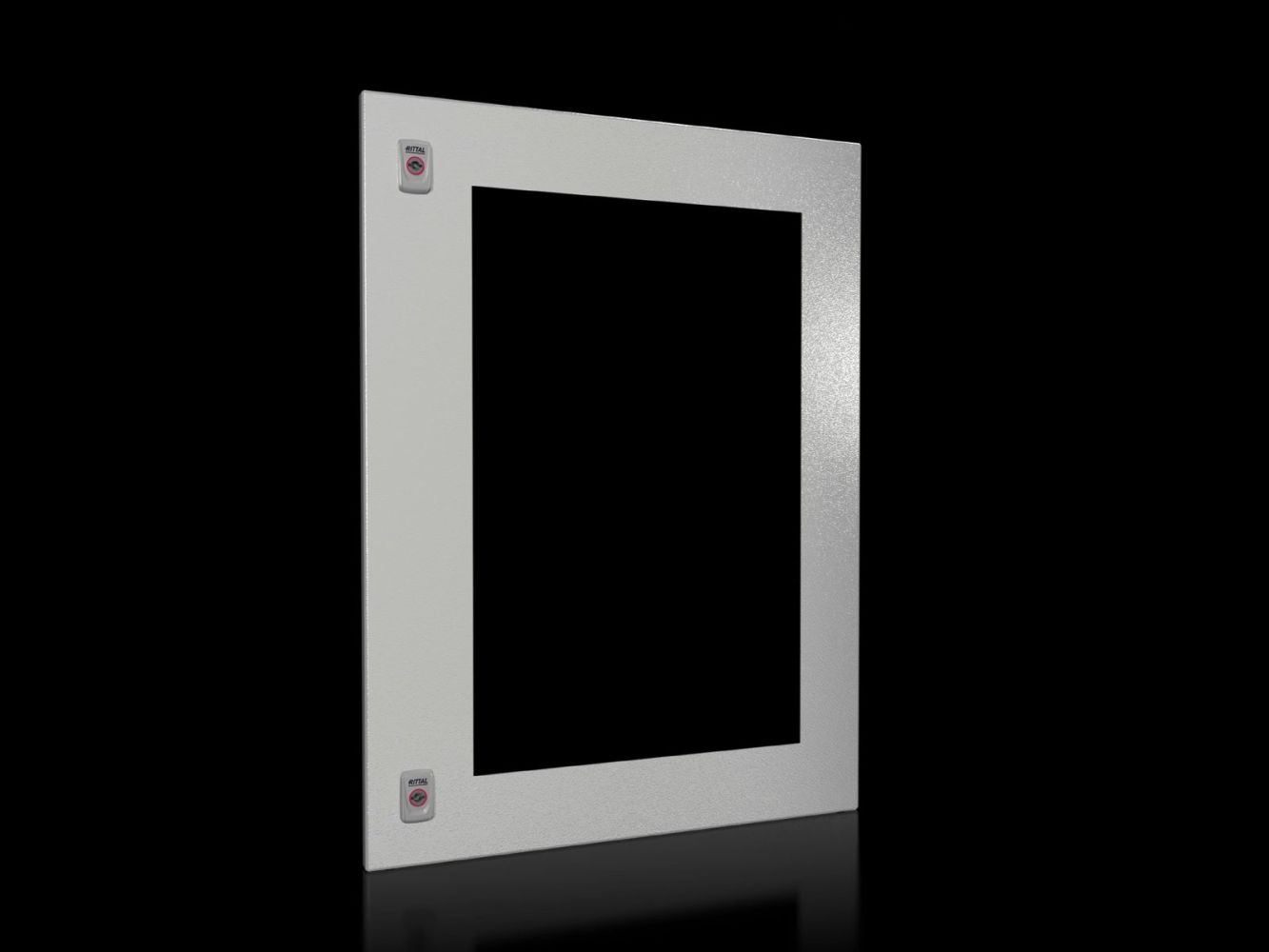

Rittal 9682169 SV partial door for VX, W x H: 600x800 mm, with viewing window

Your rating:
Average rating
product review for Rittal 9682169 SV partial door for VX, W x H: 600x800 mm, with viewing window
( 4 / 5 ) 1 ratings
Rittal 9682169
This image may differ from the desired article.
Rittal 9682169Rittal 9682169
200,91 EUR
( 239,08 EUR incl. VAT )
≈ £168.16  |  ≈ $220.80
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9682169 SV partial door for VX, W x H: 600x800 mm, with viewing window
Datasheet:file_download Download
Lieske Part No.:468945
Mfg Part No: 9682169
UPC/EAN: 4028177929180
Weight:9.72 kg
Type:SV 9682169

Product information for Rittal 9682169:

The Rittal SV 9682169 is a partial door for VX enclosures, featuring a viewing window, and serves as a replacement for a complete door or rear panel in the enclosure. The partial door has a width of 600 mm and a height of 800 mm and is specifically designed for enclosures with a width of 600 mm. It enables flexible design of the enclosure front, as multiple partial doors can be combined freely. At the top and bottom ends of the partial door, a front trim panel is required to ensure a clean appearance. The door hinge can be mounted on the right or left side, allowing adaptable installation for different enclosure configurations.

Applications

The partial door is intended for use in industrial enclosures, particularly in environments where visual inspection of devices inside the enclosure is required. The viewing window made of single-pane safety glass with a thickness of 3 mm ensures clear visibility of installed components without compromising the door’s protective function. The partial door is designed for indoor use, as it features protection class IP 54 according to IEC 60 529, which means it is dust-tight and protected against splashing water. This protection class makes it suitable for environments with moderate contamination and moisture risks.

Functions and Equipment in Detail

The partial door is made of sheet steel with a thickness of 2 mm and features a structured paint finish in the colour RAL 7035. The surface provides robust protection against mechanical stress and corrosion. The viewing window made of single-pane safety glass is firmly integrated into the door and allows safe observation of devices inside the enclosure. The door is equipped with a standard double-bar lock insert, which includes two locks. This lock is interchangeable with lock inserts of type A, enabling adaptation to specific security requirements. The maximum opening angle of the partial door is 130°, ensuring sufficient accessibility for maintenance and installation work.

Technology Explained Simply

The construction of the partial door from sheet steel ensures high mechanical stability and resistance to external influences. The use of single-pane safety glass for the viewing window ensures high safety, as the glass breaks into small, non-sharp fragments if shattered. Protection class IP 54 means the door is dust-tight and protected against splashing water from any direction, making it suitable for industrial environments. The structured paint finish in RAL 7035 provides an even, robust coating that protects the surface from corrosion and contamination.

Compatibility and Accessories

The partial door is specifically designed for VX enclosures with a width of 600 mm. It can be combined with other partial doors to create individual front configurations. For installation, front trim panels are required at the top and bottom ends, available in various types (e.g. IP 54, IP 2X) and dimensions (e.g. 600x300 mm, 600x100 mm). Additionally, lock inserts made of zinc die-cast in various lengths (e.g. 27 mm) can be used to adapt the lock to specific requirements. Mini comfort handles AX are also available as accessories to facilitate operation of the locks.

Installation and Mounting

The partial door is supplied with a partition, hinges, lock components, and mounting materials, enabling direct installation in the enclosure. Installation takes place at the designated position in the enclosure, with hinges and locks mounted according to the desired door hinge direction (right or left). Mounting is done using the included mounting materials. The maximum opening angle of 130° ensures sufficient space for installation and maintenance of devices inside the enclosure.

Operational Advantages

The partial door offers an optimal combination of safety, functionality, and flexibility. The viewing window enables continuous visual inspection of devices inside the enclosure without compromising protective function. Protection class IP 54 protects against dust and splashing water, increasing reliability in industrial environments. The interchangeable lock inserts allow adaptation to specific security requirements. The flexible combinability with other partial doors and front trim panels offers high design freedom for enclosure configuration. The robust construction from sheet steel and the structured paint finish ensure long service life and low maintenance requirements.

General
Modelwith viewing window
MaterialSteel sheet, 2 mm, sight glass: single-pane safety glass, 3 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width600 mm
Height800 mm
Suitable forWidth: = 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)37 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682169, EAN: 4028177929180

Questions & answers

What is the delivery time of Rittal 9682169 SV partial door for VX, W x H: 600x800 mm, with viewing window?

The article Rittal 9682169 SV partial door for VX, W x H: 600x800 mm, with viewing window is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682169 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682169 SV partial door for VX, W x H: 600x800 mm, with viewing window always at the best possible price. We can give you a discount of 2% on Rittal 9682169 SV partial door for VX, W x H: 600x800 mm, with viewing window if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
