Rittal 9682168 SV partial door for VX, W x H: 600x800 mm

Your rating:
Average rating
product review for Rittal 9682168 SV partial door for VX, W x H: 600x800 mm
( 4.7 / 5 ) 12 ratings

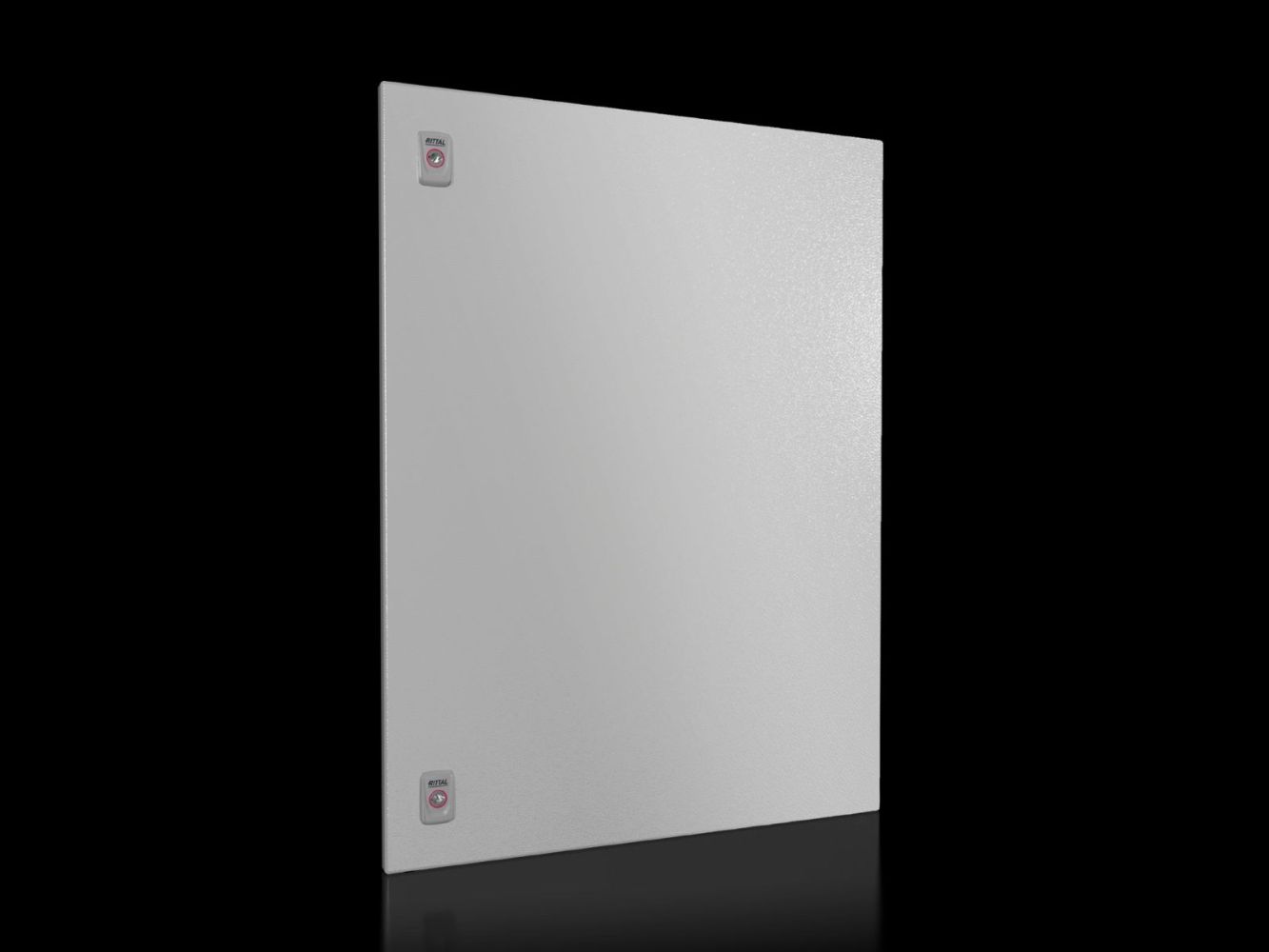

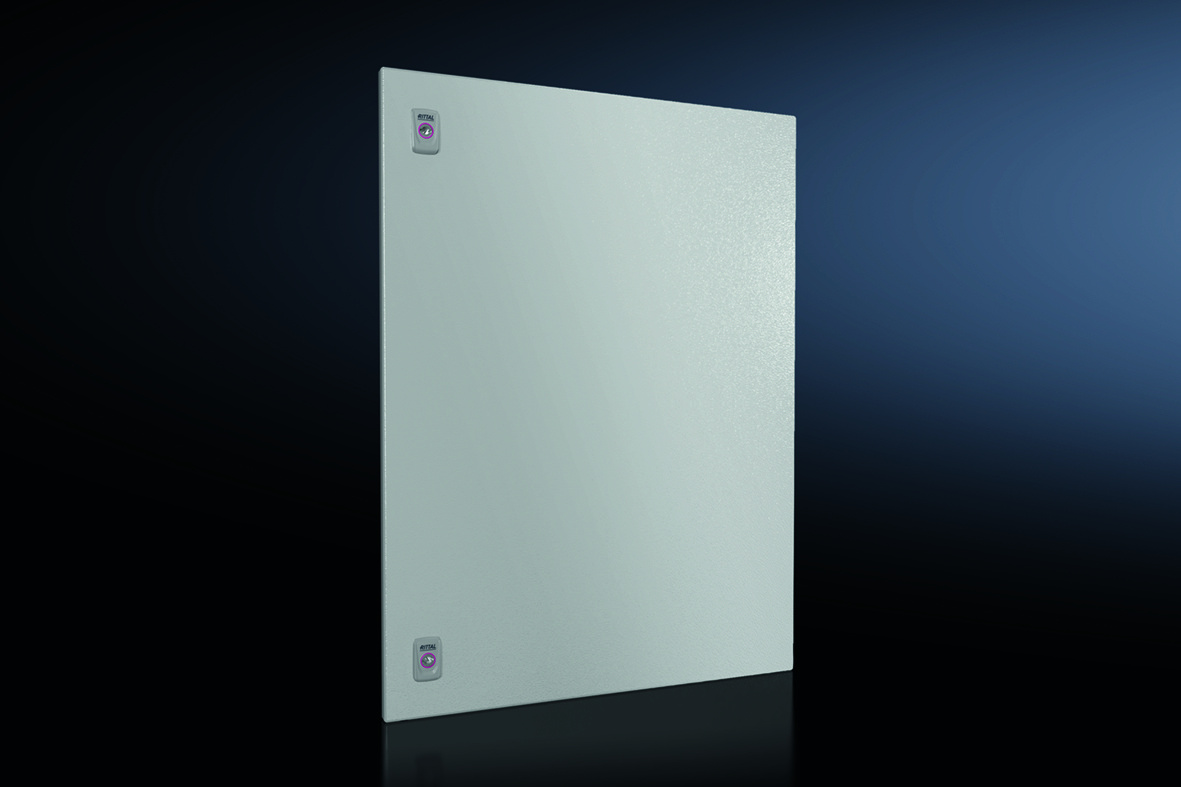

Rittal 9682168
This image may differ from the desired article.
Rittal 9682168Rittal 9682168Rittal 9682168
110,52 EUR
( 131,52 EUR incl. VAT )
≈ £92.51  |  ≈ $121.46
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9682168 SV partial door for VX, W x H: 600x800 mm
Datasheet:file_download Download
Lieske Part No.:1597400
Mfg Part No: 9682168
UPC/EAN: 4028177929142
Weight:10.12 kg
Type:VX 9682168

Product information for Rittal 9682168:

Rittal SV partial door for VX, type 9682168, is a system accessory for enclosures in the VX series. It serves as a replacement for a complete door or rear panel and enables a flexible, modular division of the enclosure interior. The partial door has a width of 600 mm and a height of 800 mm and is specifically designed for enclosures with a width of 600 mm. It is manufactured from steel sheet with a thickness of 2 mm and features a surface finish of textured paint in the colour RAL 7035, ensuring a robust and uniform coating.

Applications
The partial door is intended for use in industrial environments where targeted separation of enclosure sections is required. It is suitable, for example, for separating control and power sections, improving accessibility, or enhancing airflow within the enclosure. Combining multiple partial doors is possible, allowing for individual layouts to be created. A front trim panel is required at the top and bottom ends of the partial door to ensure a closed and aesthetically uniform front.

Functions and Equipment in Detail
The partial door is equipped with a standard double-bar lock insert, which includes two locks. This lock can be replaced with lock inserts of type A, enabling adaptation to specific safety requirements. The door can be hinged on the right or left side, supporting flexible installation in various enclosure configurations. The maximum opening angle is 130°, providing sufficient access to the interior of the enclosure.

Technology Explained Simply
The partial door is made of steel sheet, providing sufficient mechanical stability to withstand industrial loads. The textured paint surface ensures high corrosion resistance and a uniform, structured surface finish. The protection rating IP 54 according to IEC 60 529 protects against dust and splashing water, making it suitable for use in indoor environments with increased contamination risk. The partial door is supplied with a partition, hinges, locking components, and the necessary mounting materials, enabling direct installation without additional parts.

Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. Front trim panels at the top and bottom are required for complete installation. Compatible front trim panels include, for example, the SV front trim panel for VX, top and bottom, in dimensions 600x300 mm and 600x100 mm, respectively, in IP 54. Additionally, lock inserts made of zinc die-cast with a length of 27 mm can be used to modify the lock. For doors without a viewing window with a height of 600 to 1000 mm, the installation of monitor frame 2305.000 is possible, enabling integration of control or display units. Mini comfort handles AX are also available as accessories to facilitate operation.

Mounting and Installation
Mounting is performed by securing the partial door to the designated mounting points within the enclosure. The hinges and locking components are already integrated, so no additional mounting elements are required. The door can be hinged on the right or left side depending on requirements. Mounting is done using the included materials, enabling quick and secure installation.

Advantages in Operation
The modular design of the partial door allows flexible adaptation to different enclosure configurations. The IP 54 protection rating provides sufficient protection against dust and splashing water, increasing reliability in industrial operation. The replaceable lock insert allows adaptation to specific safety requirements. The integrated hinges and locks, along with the included mounting materials, reduce installation time and effort. The partial door is therefore a practical solution for modular enclosure design in industrial applications.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width600 mm
Height800 mm
Suitable forWidth: = 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)39.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682168, EAN: 4028177929142

Questions & answers

What is the delivery time of Rittal 9682168 SV partial door for VX, W x H: 600x800 mm?

The article Rittal 9682168 SV partial door for VX, W x H: 600x800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682168 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682168 SV partial door for VX, W x H: 600x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682168 SV partial door for VX, W x H: 600x800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
