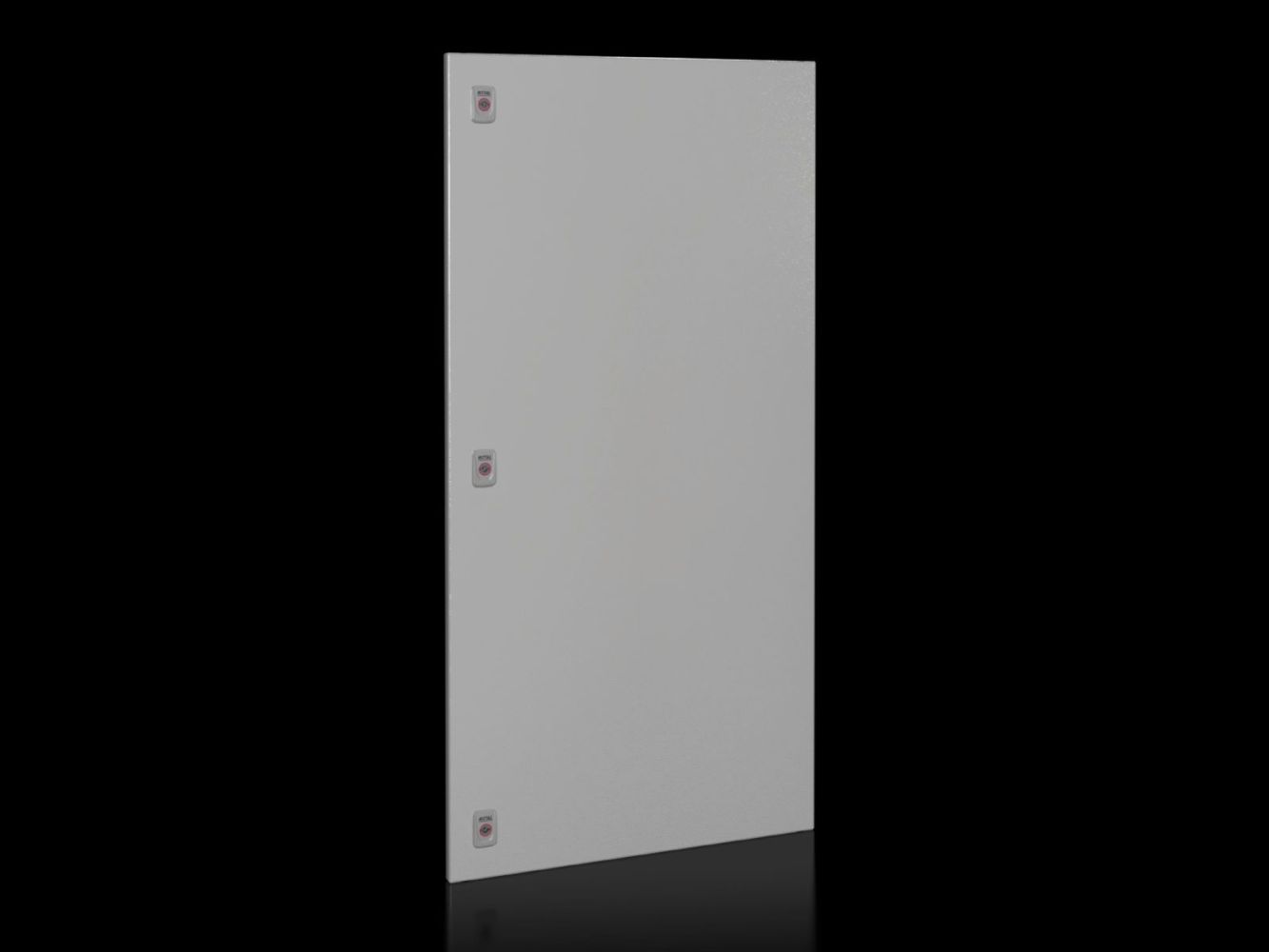

Rittal 9682172 SV partial door for VX, W x H: 600x1200 mm
|
-11% 143,52 EUR 161,31 EUR |
|
|
( 170,79 EUR incl. VAT ) ≈ £120.13 | ≈ $157.73 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 468946 |
| Mfg Part No: | 9682172 |
| UPC/EAN: | 4028177929067 |
| Weight: | 16.74 kg |
| Type: | SV 9682172 |
Product information for Rittal 9682172:
Applications
The partial door is specifically intended for VX enclosures and can be mounted in place of a full door or rear panel. It enables flexible design of the enclosure interior by allowing arbitrary arrangement in combination with other partial doors. A front trim panel is required at the top and bottom of the door to ensure a clean appearance. The door can be hinged on the right or left side, enabling flexible installation at different positions within the enclosure.
Functions and Equipment in Detail
The SV 9682172 features a standard double-bar lock insert, ensuring secure locking. The number of locks is three, providing stable and secure fastening. The lock insert is interchangeable with lock inserts of type A, allowing adaptation to specific security requirements. The door opens to a maximum angle of 130°, providing good access to the interior of the enclosure. The delivery includes the partial door, a partition, hinges, lock components, and the required mounting materials.
Technology Explained Simply
The use of 2 mm thick sheet steel ensures high mechanical stability and resistance to mechanical stress. The structured paint surface in RAL 7035 not only provides an attractive appearance but also offers high protection against contamination and abrasion. The protection rating IP 54 means the door is protected against dust and splashing water, making it suitable for use in industrial environments with increased contamination risk or occasional moisture. The maximum opening angle of 130° allows good access to the interior of the enclosure without requiring the door to be fully opened.
Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. It can be combined with other partial doors in any configuration to create custom arrangements within the enclosure. For use without a viewing panel (height 600–1000 mm), installation of the monitor frame 2305.000 is possible, enabling integration of control or display units. Suitable accessories include various front trim panels, including models with IP 54 and IP 2X, as well as lock inserts made of zinc die-cast. Additionally, mini comfort handles for AX and KX systems are available, enabling ergonomic operation.
Installation and Mounting
The partial door is mounted on VX enclosures with a width of 600 mm. The door can be hinged on the right or left side, allowing flexible arrangement. Mounting is done using the included materials. A front trim panel is required at the top and bottom of the door to ensure a clean appearance. The maximum opening angle of 130° facilitates access to the interior of the enclosure.
Operational Advantages
The SV 9682172 offers a flexible and secure solution for designing VX enclosures. The ability to combine partial doors arbitrarily enables custom arrangements within the enclosure. The robust construction from sheet steel and the protection rating IP 54 ensure high reliability in industrial environments. The interchangeable lock inserts allow adaptation to specific security requirements. The included mounting materials and lock components simplify installation and ensure secure locking.
| General | |
| Material | Sheet steel, 2 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Partition door, partition web, hinges, locking parts, including fastening material |
| Note | Maximum opening angle of partition doors 130° |
| Lock | Number of locks: 3 |
| Width | 600 mm |
| Height | 1.200 mm |
| Suitable for | Width: = 600 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 63.8 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
