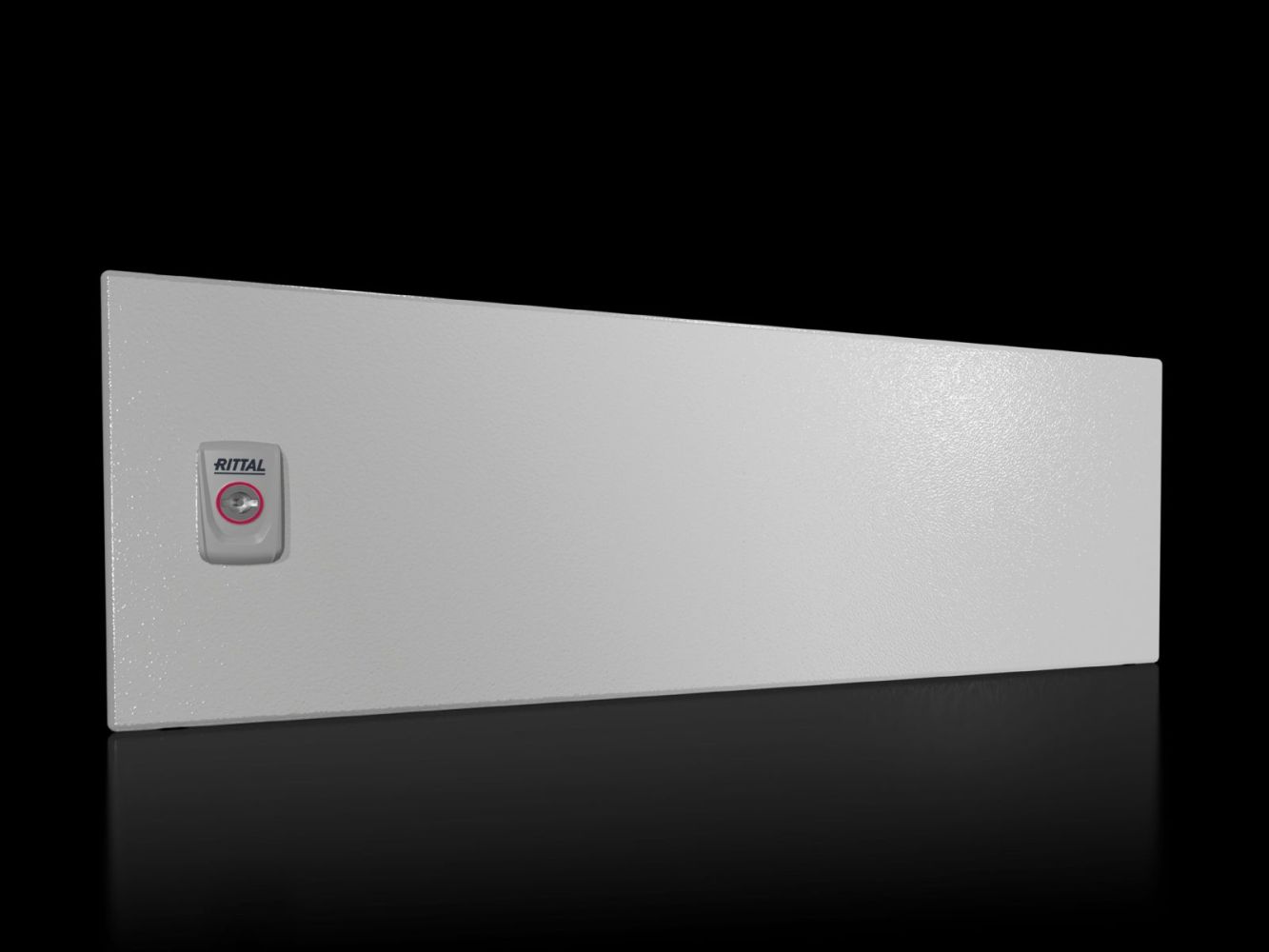

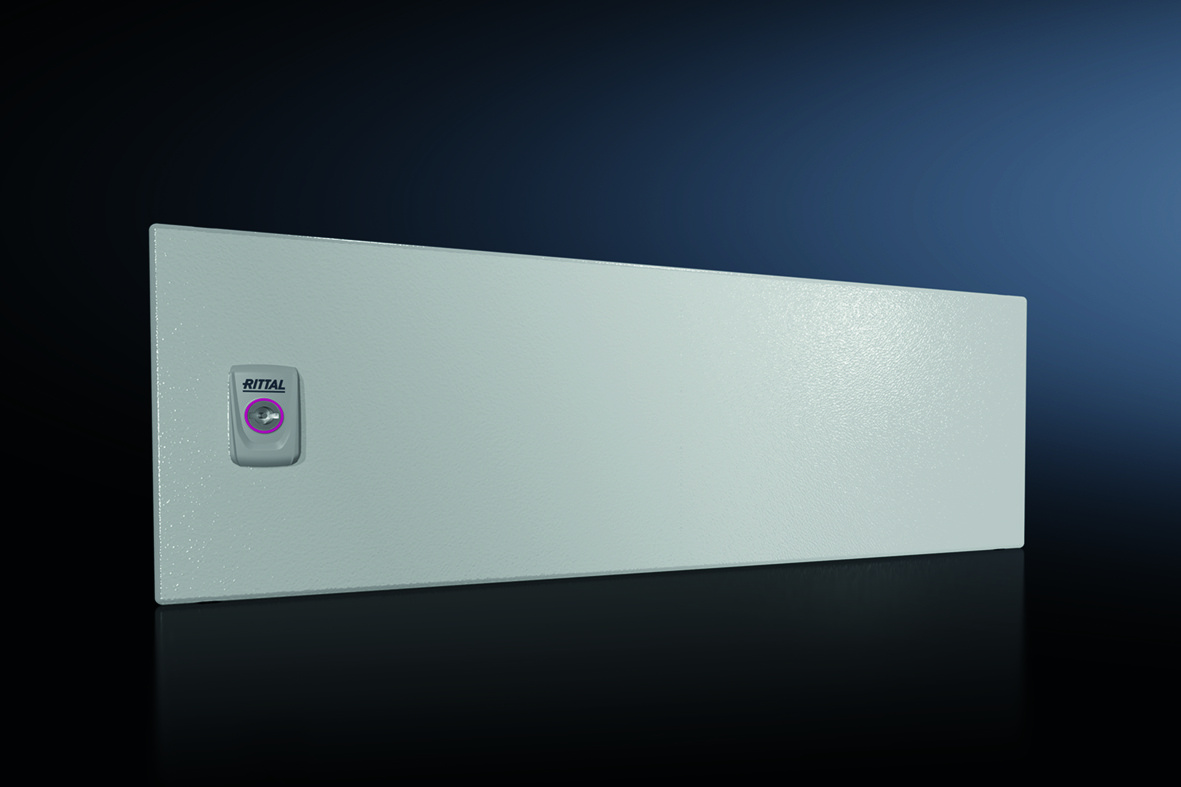

Rittal 9682162 SV partial door for VX, W x H: 600x200 mm

Your rating:
Average rating
product review for Rittal 9682162 SV partial door for VX, W x H: 600x200 mm
( 4.3 / 5 ) 3 ratings
Rittal 9682162
This image may differ from the desired article.
Rittal 9682162Rittal 9682162Rittal 9682162
47,15 EUR
( 56,11 EUR incl. VAT )
≈ £39.46  |  ≈ $51.82
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682162 SV partial door for VX, W x H: 600x200 mm
Datasheet:file_download Download
Lieske Part No.:2130609
Mfg Part No: 9682162
UPC/EAN: 4028177929081
Weight:3.48 kg
Type:SV 9682162

Product information for Rittal 9682162:

The Rittal SV 9682162 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. With a width of 600 mm and a height of 200 mm, it is suitable for modular design of enclosures, where multiple partial doors can be combined freely in vertical arrangement. The door is made of sheet steel with a thickness of 2 mm and features a structured paint surface in the colour RAL 7035, ensuring a robust and uniform coating. The protection rating IP 54 according to IEC 60 529 protects against dust and splashing water, making it suitable for use in industrial environments.

Applications

The partial door is specifically designed for VX enclosures with a width of 600 mm. It serves as part of a modular front construction, where multiple partial doors can be combined at different heights. At the top and bottom of the front, a front trim panel is required to ensure a closed appearance. The door can be hinged on the right or left side, allowing for flexible installation. For doors without a viewing window in height ranges from 600 to 1000 mm, installation of a monitor frame (item 2305.000) is possible, supporting integration of control or display units.

Functions and Equipment in Detail

The SV 9682162 features a standard double-bar lock insert, which can be replaced with lock inserts of type A. This allows adaptation to different security requirements. The door opens to a maximum opening angle of 130°, ensuring sufficient access to the enclosure interior. The delivery includes the partial door itself, a partition strip, hinges, locking components, and the necessary mounting material. Installation can therefore be carried out without additional parts.

Technology Explained Simply

The use of sheet steel with a thickness of 2 mm ensures high mechanical stability and resistance to mechanical stress. The structured paint finish in RAL 7035 provides a uniform, abrasion-resistant surface that integrates well in industrial environments. The IP 54 protection rating protects against dust and splashing water, making the door suitable for use in production halls, workshops, or other industrial facilities. The maximum opening angle of 130° allows convenient access to devices inside the enclosure without having to remove the door entirely.

Compatibility and Accessories

The partial door is specifically designed for VX enclosures with a width of 600 mm. As accessories, various front trim panels are available, including models with IP 54 and IP 2X, as well as top- and bottom-hinged panels in dimensions 600x300 mm and 600x100 mm. Additionally, lock inserts made of zinc die-cast with a length of 27 mm can be used to adjust security. Mini comfort handles for AX and KX systems are also available as optional accessories.

Installation and Mounting

Mounting is carried out at the designated attachment points of the VX enclosure. The included hinges and locking components enable quick and secure installation. The door can be hinged on the right or left side, allowing for flexible arrangement within the enclosure.

Operational Advantages

The modular construction of the partial door allows flexible adaptation to different enclosure configurations. The combination of multiple partial doors at different heights enables precise coverage of required areas within the enclosure. The IP 54 protection rating ensures reliable protection against environmental influences, while the robust sheet steel construction offers long service life and high load capacity. The interchangeable lock inserts allow adaptation to different security requirements without replacing the entire door.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 1
Width600 mm
Height200 mm
Suitable forWidth: = 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)13.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682162, EAN: 4028177929081

Questions & answers

What is the delivery time of Rittal 9682162 SV partial door for VX, W x H: 600x200 mm?

The article Rittal 9682162 SV partial door for VX, W x H: 600x200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682162 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682162 SV partial door for VX, W x H: 600x200 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682162 SV partial door for VX, W x H: 600x200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
