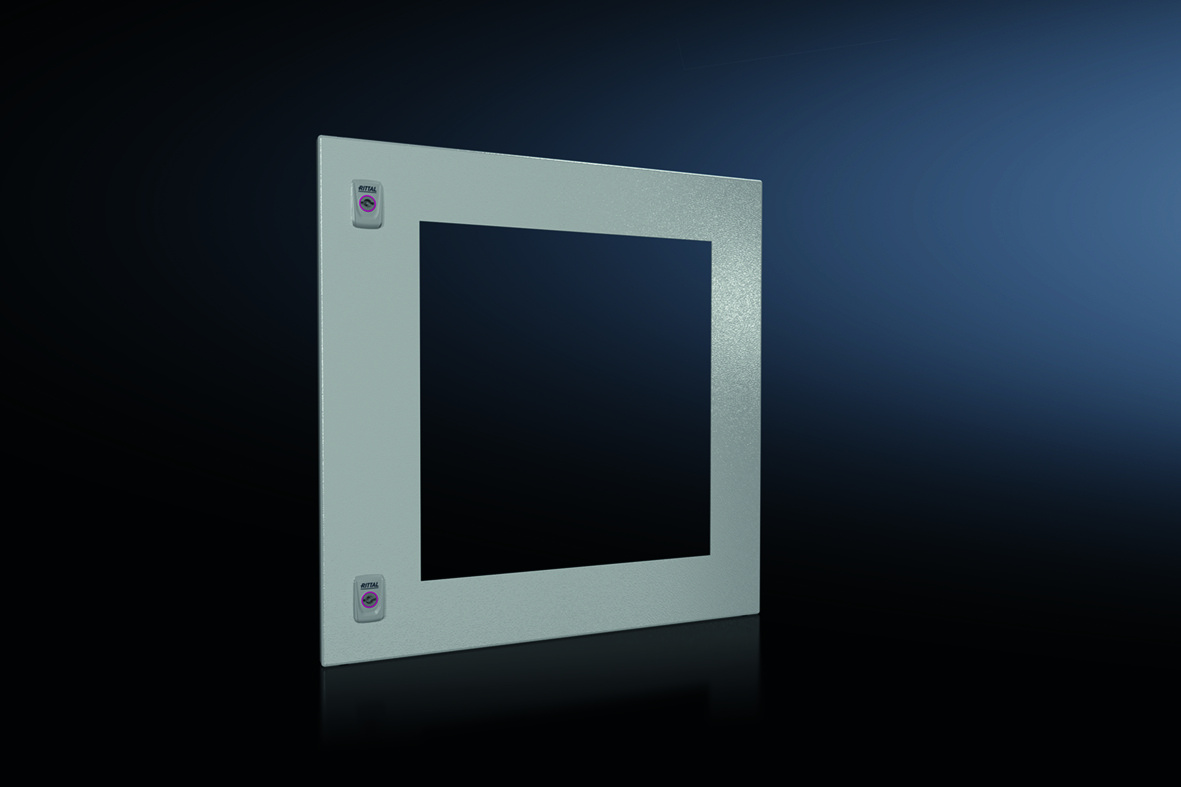

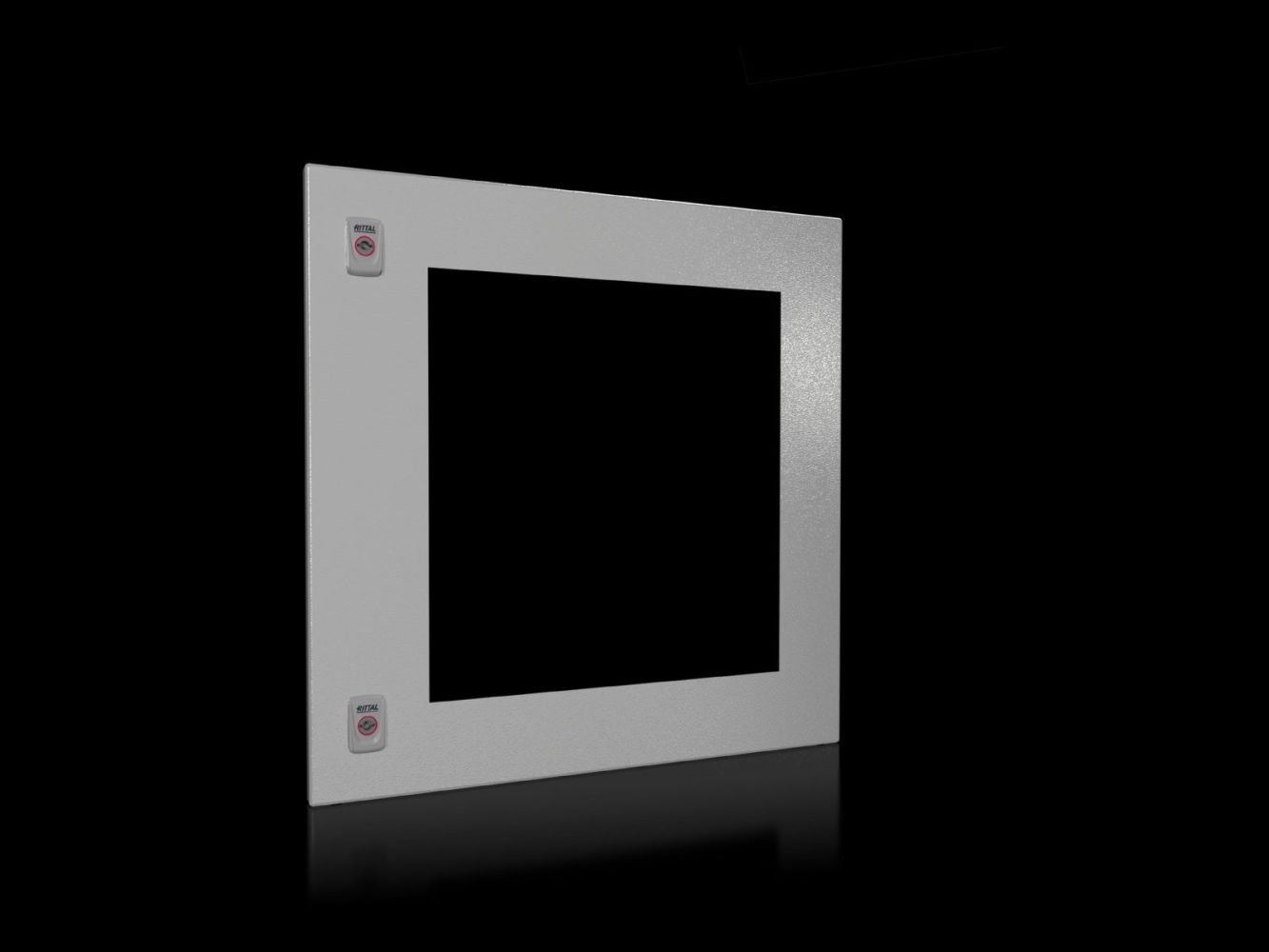

Rittal 9682167 SV partial door for VX, W x H: 600x600 mm, with viewing window
|
-12% 178,02 EUR 202,68 EUR |
|
|
( 211,84 EUR incl. VAT ) ≈ £149.00 | ≈ $195.64 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2130610 |
| Mfg Part No: | 9682167 |
| UPC/EAN: | 4028177928770 |
| Weight: | 7.98 kg |
| Type: | SV 9682167 |
Product information for Rittal 9682167:
Applications
The partial door is specifically designed for VX enclosures with a width of 600 mm. It can be combined freely with other partial doors to create individual front configurations. A front trim panel is required at the top and bottom of the partial door to ensure a clean and closed appearance. The door is designed for use in industrial environments where high mechanical stability and protection are required.
Functions and equipment in detail
The SV 9682167 features a standard double-bar lock insert, ensuring secure locking. The number of locks is two, providing stable and reliable locking. The lock components are interchangeable with lock inserts of type A, allowing adaptation to specific security requirements. The door can be hinged on the right or left side, enabling flexible installation in various enclosure configurations. The maximum opening angle is 130°, providing sufficient space for access to the interior.
Technology explained simply
The protection rating IP 54 according to IEC 60 529 protects the partial door against dust and splashing water, making it suitable for use in humid or dusty environments. The use of single-pane safety glass for the viewing window ensures high mechanical strength and safety, as the glass breaks into small, blunt fragments. The 2 mm thick steel sheet provides sufficient stability to withstand mechanical loads during operation. The textured paint finish in RAL 7035 ensures a uniform surface appearance and improves resistance to dirt.
Compatibility and accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. As accessories, front trim panels for VX enclosures are available and must be mounted at the top and bottom to complete the front side. Lock inserts made of zinc die-cast with a length of 27 mm, as well as mini comfort handles for AX and KX systems, can be used additionally to optimise operation and security. The partial door is not compatible with a monitor frame, as it features a viewing window.
Installation and mounting
Installation is carried out using the hinges, partition strip, lock components, and fastening materials included in the delivery. The door can be hinged on the right or left side, allowing flexible adaptation to the respective enclosure configuration. The maximum opening angle of 130° ensures sufficient access.
Advantages in operation
The partial door enables modular and flexible design of the enclosure front, facilitating adaptation to different operational requirements. The safety glass viewing window allows visual inspection of the interior without opening the door, increasing operational safety. The IP 54 protection rating ensures reliable operation in industrial environments with increased humidity or dust exposure. The robust construction from steel sheet and the secure locking via the double-bar lock insert ensure long service life and high reliability in use.
The delivery includes the partial door, partition strip, hinges, lock components, and the necessary fastening materials. The partial door is therefore fully ready for installation and can be directly integrated into the enclosure.
| General | |
| Model | with viewing window |
| Material | Steel sheet, 2 mm, sight glass: single-pane safety glass, 3 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Partition door, partition web, hinges, locking parts, including fastening material |
| Note | Maximum opening angle of partition doors 130° |
| Lock | Number of locks: 2 |
| Width | 600 mm |
| Height | 600 mm |
| Suitable for | Width: = 600 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 30.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9682167 SV partial door for VX, W x H: 600x600 mm, with viewing window?
The article Rittal 9682167 SV partial door for VX, W x H: 600x600 mm, with viewing window is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682167 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9682167 SV partial door for VX, W x H: 600x600 mm, with viewing window always at the best possible price. We can give you a discount of 2% on Rittal 9682167 SV partial door for VX, W x H: 600x600 mm, with viewing window if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
